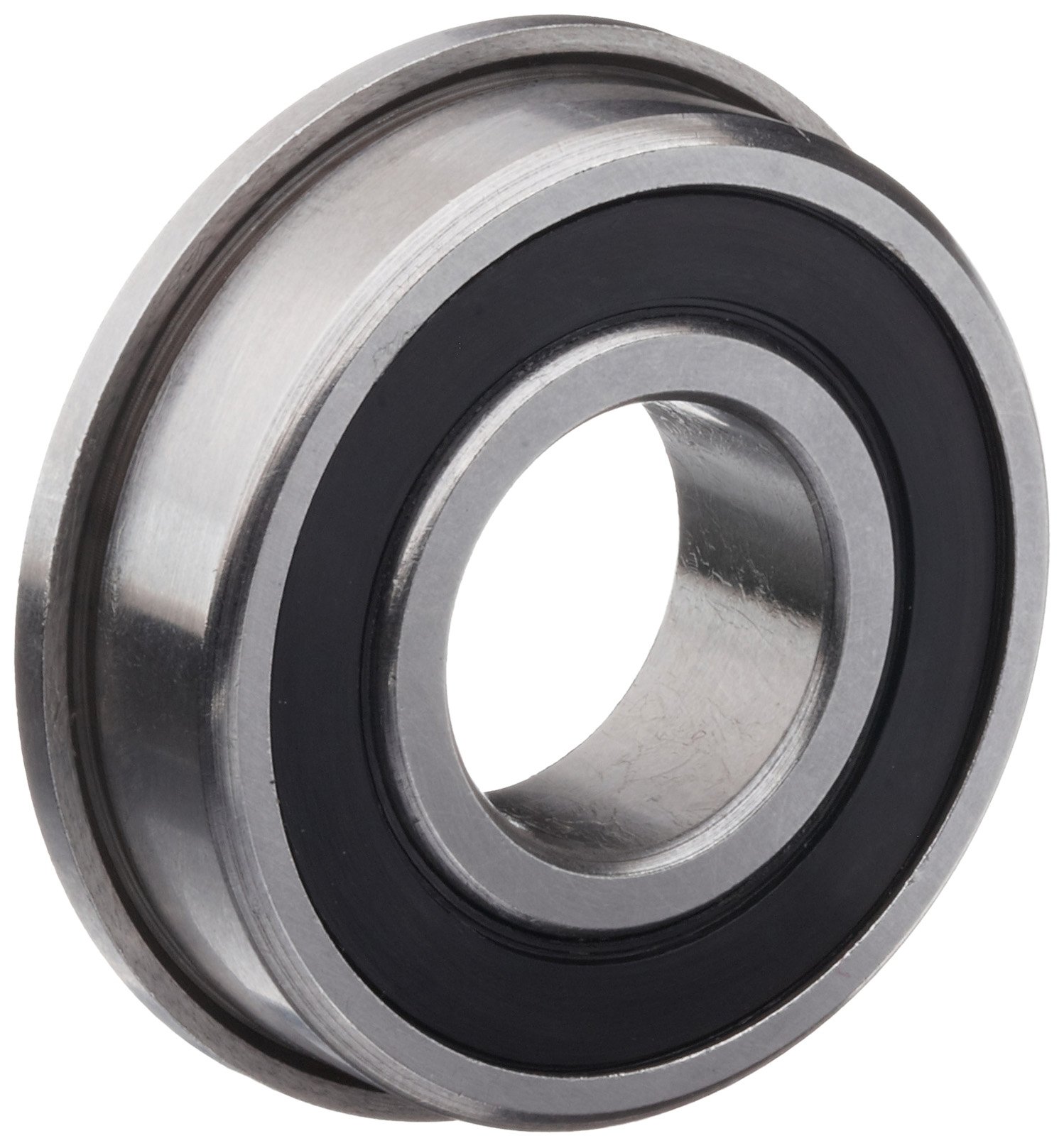

Dynaroll R-Series Ball Bearing, Double Sealed, Flanged, 52100 Chrome Steel

Be the first to review this item

Product Specifications
Material Type
52100 Alloy Steel
Brand Name
Dynaroll

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 1 hr 47 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Mfr Part # Bore Diameter Outside Diameter Bearing Width Maximum Rotational Speed Static Load Capacity Dynamic Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-3 of 3
FR4-2RS 0.25" 0.625" 0.196" 6000 rpm 56 lbs 160 lbs B00634W2XU 7 $4.50 Buy Options
FR8-2RS 0.5" 1.125" 0.3125" 5600 rpm 33 lbs 84 lbs B00634W44W 2 $4.19 Buy Options
R10-2RS 0.625" 1.375" 0.3438" 12000 rpm 8.5 lbs 31 lbs B00634W04Q 37 $4.28 Buy Options

Key Features

  • Single row, deep-groove ball bearing for applications that support high speeds, axial loads in both directions, and radial loads
  • Buna-n rubber seal on both sides of the bearing keeps lubricant in and contaminants out
  • AISI 52100 chrome steel for durability and resistance to deformity under heavy loads
  • Stainless steel cage evenly spaces balls for reduced friction, vibration, and noise
  • CN (normal) radial clearance for applications where thermal expansion is not a factor

Product Description

This Dynaroll R-Series ball bearing is double sealed, has a flanged outer ring, and is made of American Iron and Steel Institute (AISI) 52100 chrome steel. The single-row, deep-groove ball bearing is suitable for applications that support high speeds, axial loads in both directions, and radial loads. It has deep inner and outer races that conform to the balls that run in them, allowing higher speeds and creating lower friction than bearings with comparable-sized roller bearings. The Buna-nitrile (Buna-n) seal on either side of the bearing fastens to the outside ring, extends over the rolling elements, and makes contact with the inside ring to keep out contaminants such as dirt and grime. The seals also hold in a lubricant applied during manufacturing that lasts the lifetime of the bearing. The inner and outer rings and balls are made of low-alloy, through-hardened AISI 52100 chrome steel for durability and resistance to deformity under heavy loads. This bearing has a stainless-steel cage to prevent the balls from coming into contact with each other during use, reducing friction, vibration, and noise, and an external flange on the outer ring for easier mounting and axial positioning in the housing than straight bearings. It can be used to a maximum operating temperature of 121 degrees C/250 degrees F. The bearing has a CN (normal) radial internal clearance designation making it suitable for applications where the load and speeds do not result in thermal expansion. This clearance provides latitude for self-realignment and compensates for static and dynamic alignment errors. This ball bearing is for use in commercial and industrial applications including generators, pumps, original equipment or replacement parts in motors, office automation, farm equipment, and conveyor rollers.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Dynaroll Corporation manufactures miniature bearings and ball bearings that meet International Organization for Standardization (ISO), Occupational Health and Safety Assessment Series (OHSAS), Production Part Approval Process (PPAP), and U.S. Food and Drug Administration (FDA) Critical standards for quality assurance. Founded in 1988, Dynaroll is based in Sylmar, California.
