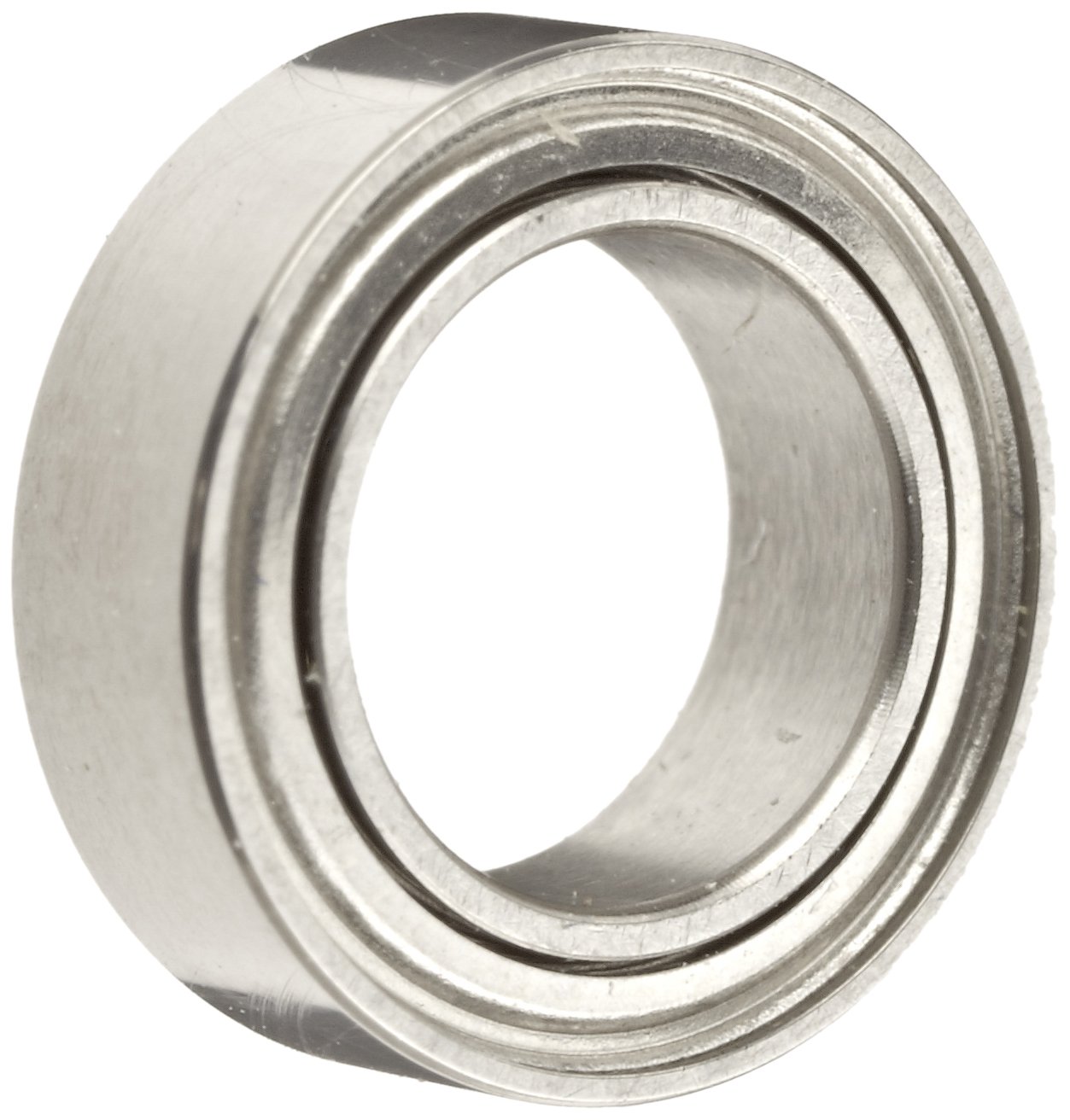

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Dynaroll Precision Miniature Ball Bearing, ABEC-5, Double Shielded, Stainless Steel, Metric

Be the first to review this item

Product Specifications
Material Type
Stainless Steel
UNSPSC Code
31171504
Brand Name
Dynaroll

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 1 hr 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 22 Next 2 »
Mfr Part # Bore Diameter Outside Diameter Bearing Width Maximum Rotational Speed Static Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 22 Next 2 »
604hZZ A5 5 mm 12 mm 4 mm 5000 rpm 187 kilograms B00634V0BU 1 $10.83 Buy Options
605hZZ A5 5 mm 14 mm 5 mm 3500 rpm 75 kilograms B00634V4E8 4 $3.38 Buy Options
608hZZ A5 8 mm 22 mm 7 mm 5600 rpm 48 kilograms B00634VCO0 1 $11.00 Buy Options
624hZZ A5 5 mm 13 mm 5 mm 4800 rpm 240 kilograms B00634V0UQ 1 $10.97 Buy Options
625hZZ A5 5 mm 16 mm 5 mm 4300 rpm 117 kilograms B00634V4ZC 1 $11.50 Buy Options
684hZZ A5 4 mm 9 mm 4 mm 4800 rpm 57 kilograms B00634UYQC 2 $11.68 Buy Options
686hZZ A5 6 mm 13 mm 5 mm 10000 rpm 15 kilograms B00634V6UU 21 $2.60 Buy Options
687hZZ A5 7 mm 14 mm 5 mm 8000 rpm 14 kilograms B00634VAQA 2 $11.67 Buy Options
688hZZ A5 8 mm 16 mm 5 mm 6700 rpm 42 kilograms B00634VC9A 8 $3.13 Buy Options
689hZZ A5 9 mm 17 mm 5 mm 6700 rpm 22 kilograms B00634VDMQ 2 $11.47 Buy Options
692hZZ A5 2 mm 6 mm 3 mm 6300 rpm 77 kilograms B00634UWDC 1 $11.73 Buy Options
694hZZ A5 4 mm 11 mm 4 mm 4000 rpm 147 kilograms B00634UZXE 1 $10.67 Buy Options
695hZZ A5 5 mm 13 mm 4 mm 4300 rpm 51 kilograms B00634V3US 1 $10.86 Buy Options
696hZZ A5 6 mm 15 mm 5 mm 10000 rpm 11 kilograms B00634V84E 1 $7.62 Buy Options
SMR105ZZ A5 5 mm 10 mm 4 mm 3600 rpm 103 kilograms B00634V2MM 1 $7.40 Buy Options
SMR115ZZ A5 5 mm 11 mm 4 mm 4500 rpm 308 kilograms B00634V3DU 1 $10.97 Buy Options
SMR117ZZ A5 7 mm 11 mm 3 mm 9000 rpm 22 kilograms B00634V8R6 1 $11.32 Buy Options
SMR126ZZ A5 6 mm 12 mm 4 mm 12000 rpm 7 kilograms B00634V6GE 1 $11.29 Buy Options
SMR137ZZ A5 7 mm 13 mm 4 mm 7500 rpm 29 kilograms B00634V9K2 1 $11.26 Buy Options
SMR52ZZ A5 2 mm 5 mm 2.5 mm 4800 rpm 77 kilograms B00634UVAG 4 $3.59 Buy Options

Key Features

  • Single row, deep-groove precision miniature ball bearing for limited-space applications requiring high accuracy, high speeds, and both axial and radial loads
  • Metal shields on both sides of the bearing keep the lubricant in and contaminants out
  • 400-series hardened martensitic stainless steel for better resistance to corrosion and high temperatures than AISI 52100 chrome steel
  • Stainless steel cage evenly spaces balls for reduced friction, vibration, and noise
  • CN (normal) radial clearance for applications where thermal expansion is not a factor

Product Description

This double shielded Dynaroll precision miniature ball bearing is made of 400-series hardened martensitic stainless steel and has an Annular Bearing Engineers’ Committee (ABEC)-5 precision rating. The single-row, deep-groove precision miniature ball bearing is suitable for limited-space applications requiring high accuracy, high speeds, and both axial and radial loads. The bearing has deep inner and outer races that conform to the balls that run in them, allowing higher speeds and creating lower friction than bearings with comparable-sized roller bearings. It has a metal shield on either side that is fastened to the outside ring and extends over the rolling elements. The shields assist in keeping out contaminants such as dirt and grime and also help to hold in lubricant applied during manufacturing. The inner and outer rings and balls are made of a 400-series martensitic stainless steel hardened to a minimum of C58 on the Rockwell hardness scale, providing better resistance to corrosion and high temperatures than American Iron and Steel Institute (AISI) 52100 chrome steel, and higher hardness and wear resistance than plain stainless steel. This bearing has a stainless-steel cage to prevent the balls from coming into contact with each other during use, reducing friction, vibration, and noise. It can be used to a maximum operating temperature of 121 degrees C/250 degrees F. The ball bearing has a CN (normal) radial internal clearance designation, making it suitable for applications where the load and speeds do not result in thermal expansion. This clearance provides latitude for self-realignment and compensates for static and dynamic alignment errors. This bearing has an ABEC-5 rating for a higher standard of precision than ABEC-3 bearings. ABEC-rated ball bearings are manufactured to tight dimensional tolerances, making them useful in applications that require high accuracy, high rotational speeds, and increased operating efficiency. This ball bearing is for use in commercial and industrial applications including medical devices, radio controls, gearboxes, instrumentation, fishing reels, and small motors.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Dynaroll Corporation manufactures miniature bearings and ball bearings that meet International Organization for Standardization (ISO), Occupational Health and Safety Assessment Series (OHSAS), Production Part Approval Process (PPAP), and U.S. Food and Drug Administration (FDA) Critical standards for quality assurance. Founded in 1988, Dynaroll is based in Sylmar, California.
