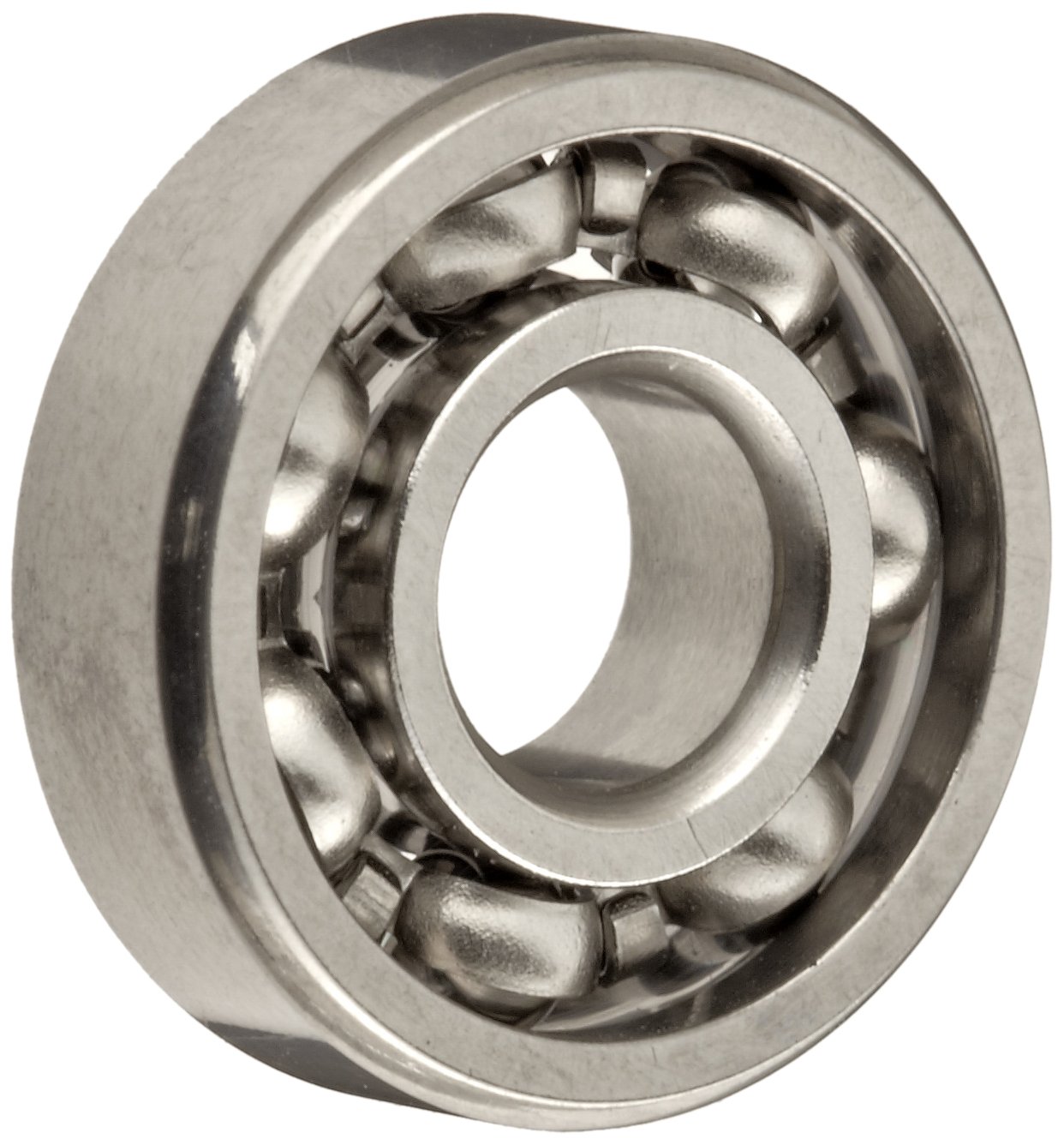

Dynaroll Precision Miniature Ball Bearing, ABEC-5, Open, Stainless Steel

Be the first to review this item

Product Specifications
Material Type
Stainless Steel
Brand Name

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Feb 3? Order in-stock items in the next 1 day 9 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Mfr Part # Bore Diameter Outside Diameter Bearing Width Maximum Rotational Speed Static Load Capacity Dynamic Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All All All All
Currently showing 1-12 of 12
SR0 A5 0.0469" 0.1562" 0.0937" 12000 rpm 8.5 lbs 31 lbs B00634SL8U yes $9.61 Buy Options
SR09 A5 0.04" 0.125" 0.0469" 14000 rpm 5.5 lbs 22 lbs B00634SKAE yes $3.91 Buy Options
SR1 A5 0.055" 0.1875" 0.1094" 11000 rpm 16 lbs 52 lbs B00634SM3Y yes $3.45 Buy Options
SR133 A5 0.0937" 0.1875" 0.0937" 9500 rpm 13 lbs 43 lbs B00634SN1U yes $10.21 Buy Options
SR155 A5 0.1562" 0.3125" 0.125" 6300 rpm 29 lbs 81 lbs B00634SSME yes $10.60 Buy Options
SR156 A5 0.1875" 0.3125" 0.125" 6300 rpm 29 lbs 81 lbs B00634STNM yes $10.11 Buy Options
SR168 A5 0.2500" 0.3750" 0.1250" 5600 rpm 33 lbs 84 lbs B00634SYZK yes $9.40 Buy Options
SR1810 A5 0.3125" 0.5" 0.1562" 4800 rpm 52 lbs 122 lbs B00634T1X4 yes $10.15 Buy Options
SR188 A5 0.25" 0.5000" 0.1250" 5000 rpm 90 lbs 243 lbs B00634SZXG yes $9.08 Buy Options
SR2-6 A5 0.125" 0.375" 0.1406" 6300 rpm 49 lbs 144 lbs B00634SQLC yes $10.60 Buy Options
SR3 A5 0.1875" 0.5" 0.196" 5000 rpm 108 lbs 293 lbs B00634SXHY yes $9.46 Buy Options
SR4 A5 0.25" 0.5" 0.196" 4500 rpm 128 lbs 335 lbs B00634T0W6 yes $9.88 Buy Options

Key Features

  • Single row, deep-groove precision miniature ball bearing for limited-space applications requiring high accuracy, high speeds, and both axial and radial loads
  • Open bearing for lubrication applied in place
  • 400-series hardened martensitic stainless steel for better resistance to corrosion and high temperatures than AISI 52100 chrome steel
  • Stainless steel cage evenly spaces balls for reduced friction, vibration, and noise
  • CN (normal) radial clearance for applications where thermal expansion is not a factor

Product Description

This Dynaroll precision miniature ball bearing is made of 400-series hardened martensitic stainless steel and has an Annular Bearing Engineers’ Committee (ABEC)-5 precision rating and an open design. The single-row, deep-groove precision miniature ball bearing is suitable for limited-space applications requiring high accuracy, high speeds, and both axial and radial loads. The bearing has deep inner and outer races that conform to the balls that run in them, allowing higher speeds and creating lower friction than bearings with comparable-sized roller bearings. The open design allows for lubricating the bearing in place. The inner and outer rings and balls are made of a 400-series martensitic stainless steel hardened to a minimum of C58 on the Rockwell hardness scale, providing better resistance to corrosion and high temperatures than American Iron and Steel Institute (AISI) 52100 chrome steel, and higher hardness and wear resistance than plain stainless steel. This bearing has a stainless-steel cage to prevent the balls from coming into contact with each other during use, reducing friction, vibration, and noise. It can be used to a maximum operating temperature of 121 degrees C/250 degrees F. The ball bearing has a CN (normal) radial internal clearance designation, making it suitable for applications where the load and speeds do not result in thermal expansion. This clearance provides latitude for self-realignment and compensates for static and dynamic alignment errors. This bearing has an ABEC-5 rating for a higher standard of precision than ABEC-3 bearings. ABEC-rated ball bearings are manufactured to tight dimensional tolerances, making them useful in applications that require high accuracy, high rotational speeds, and increased operating efficiency. This ball bearing is for use in commercial and industrial applications including medical devices, radio controls, gearboxes, instrumentation, fishing reels, and small motors.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Dynaroll Corporation manufactures miniature bearings and ball bearings that meet International Organization for Standardization (ISO), Occupational Health and Safety Assessment Series (OHSAS), Production Part Approval Process (PPAP), and U.S. Food and Drug Administration (FDA) Critical standards for quality assurance. Founded in 1988, Dynaroll is based in Sylmar, California.
