Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

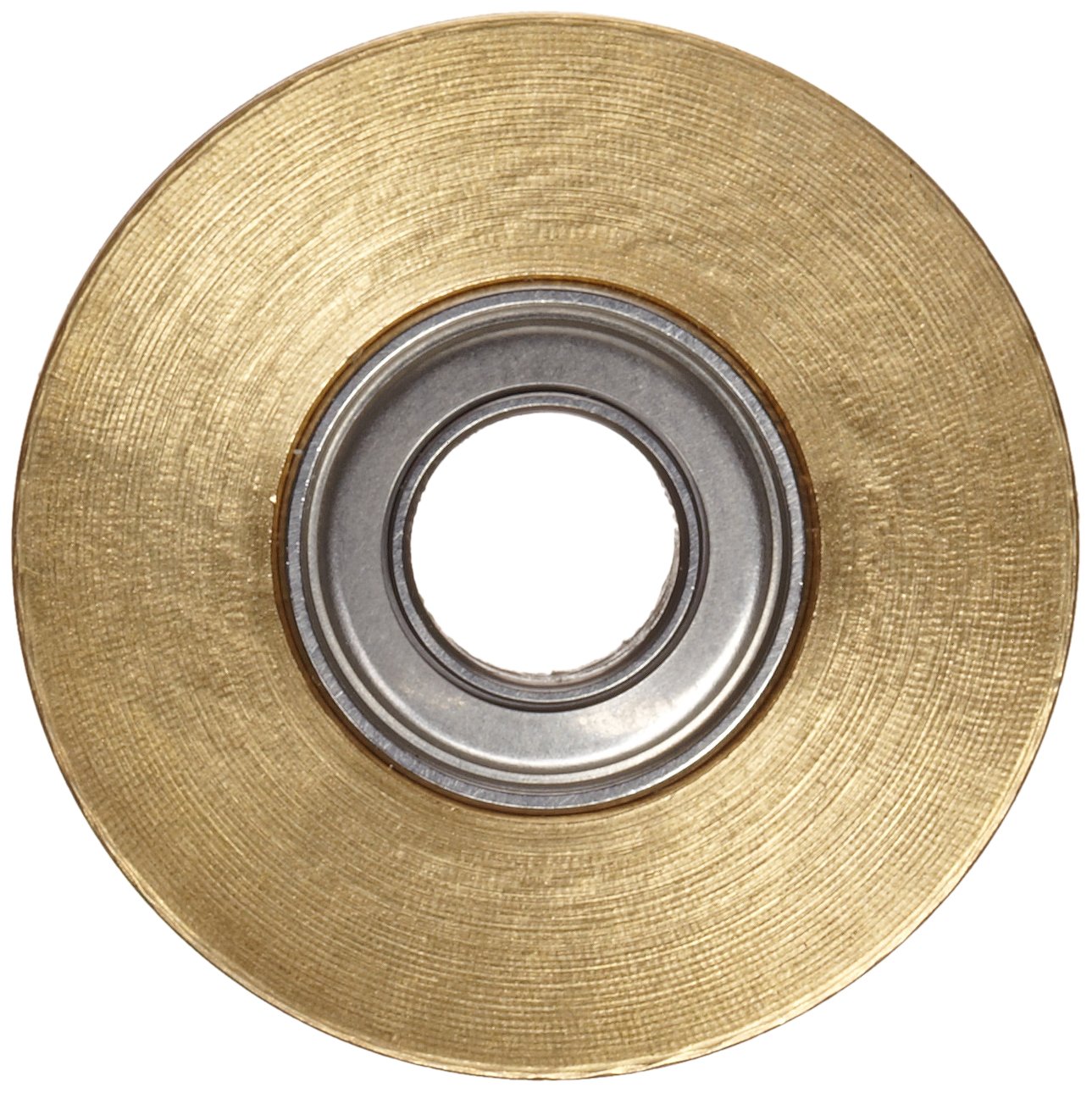

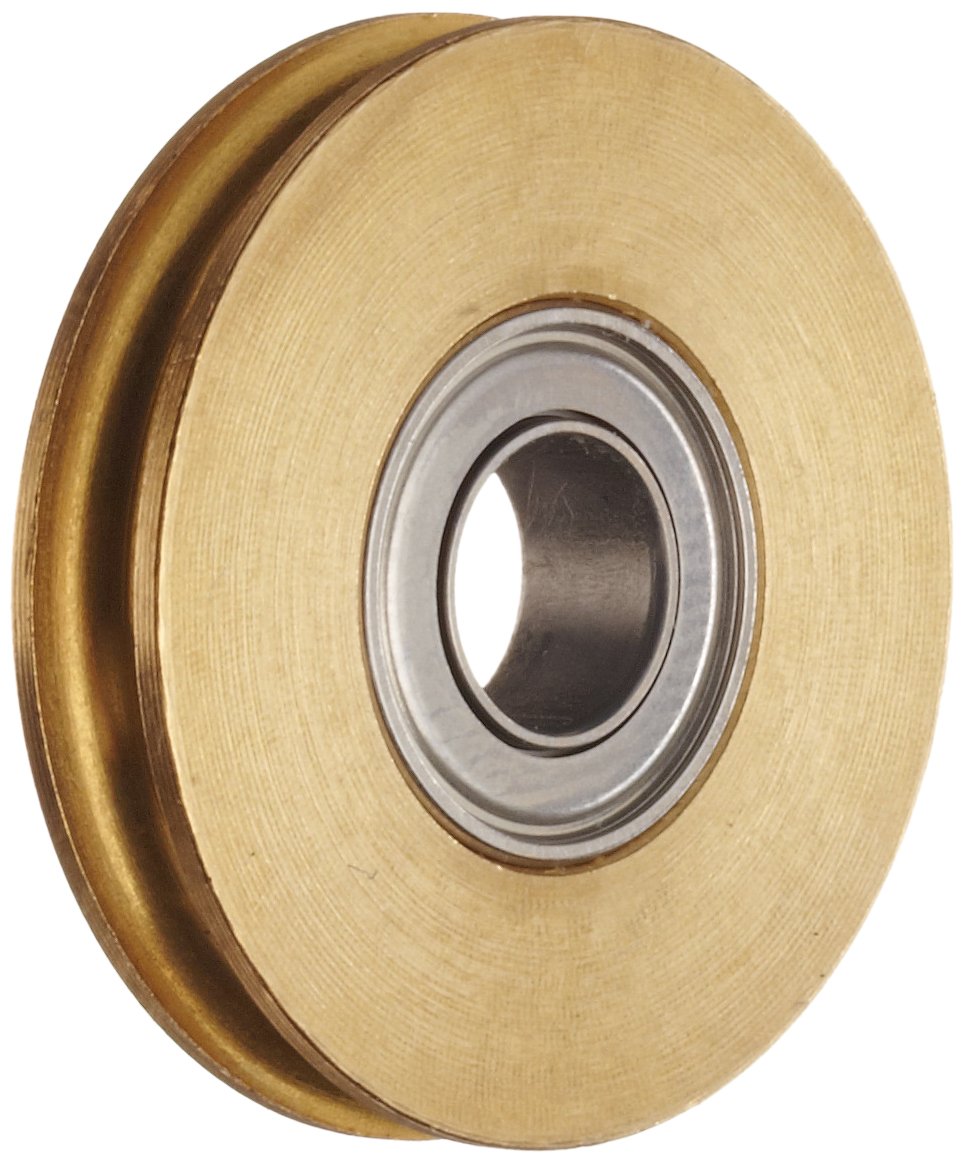

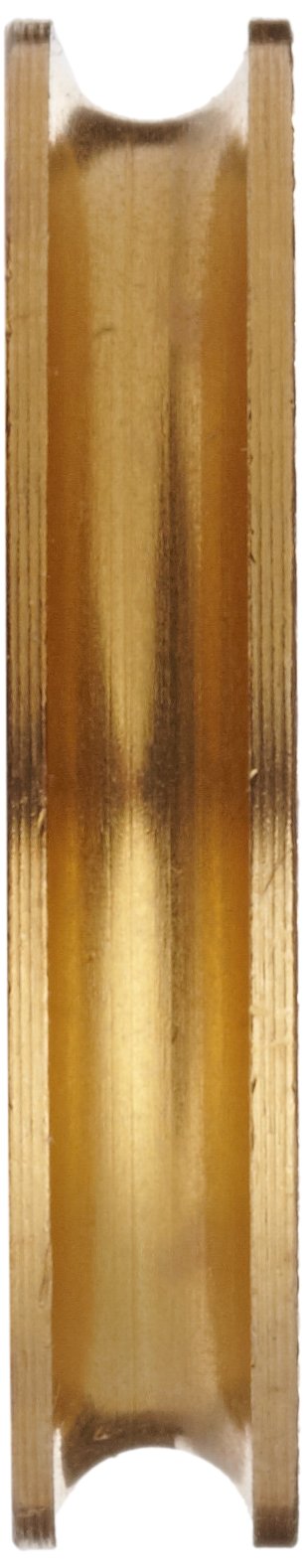

Dynaroll Miniature Precision Motion Control Brass Pulley with Ball Bearing, Double Shielded, Stainless Steel

Be the first to review this item

Product Specifications
Material Type
Stainless Steel
UNSPSC Code
31171504
Brand Name
Dynaroll

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 1 day 3 hrs 54 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Mfr Part # Bore Diameter Outside Diameter Bearing Width Maximum Rotational Speed Static Load Capacity Dynamic Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-4 of 4
BPGP3-32 0.125" 1" 0.157" 5000 rpm 90 lbs 243 lbs B00634WQCC yes $7.30 Buy Options
BPGP3-48 0.125" 1.5" 0.157" 4500 rpm 128 lbs 335 lbs B00634WQVS yes $14.14 Buy Options
BPGP6-64 0.375" 2" 0.281" 8000 rpm 22 lbs 75 lbs B00634WU7I yes $17.22 Buy Options
BPGP6-80 0.375" 2.5" 0.281" 7500 rpm 29 lbs 86 lbs B00634WUUA yes $15.94 Buy Options

Key Features

  • Miniature precision motion control pulley mounted to a ball bearing for use with elastomer O-ring belts in applications requiring low torque, smooth operation, and low noise
  • Metal shields on both sides of the bearing to keep lubricant in and contaminants out
  • 400-series hardened martensitic stainless steel for better resistance to corrosion and high temperatures than AISI 52100 chrome steel
  • Stainless steel cage evenly spaces balls for reduced friction, vibration, and noise
  • CN (normal) radial clearance for applications where thermal expansion is not a factor

Product Description

This Dynaroll miniature precision motion control pulley is made of brass and is mounted to a double-shielded ball bearing made of 400-series hardened martensitic stainless steel. This miniature precision motion control pulley with a deep-groove ball bearing is designed for use with elastomer O-ring belts in applications requiring low torque, smooth operation, and low noise. The bearing has deep inner and outer races that conform to the balls that run in them, allowing higher speeds and creating lower friction than bearings with comparable-sized roller bearings, and the pulley has a single groove on the outer raceway’s surface that keeps the belt in place, preventing the belt from wearing down by rubbing against the sides of the pulley. The bearing has a metal shield on either side that is fastened to the outside ring and extends over the rolling elements. The shields assist in keeping out contaminants such as dirt and grime and also help to hold in lubricant applied during manufacturing. The inner and outer rings and balls are made of 400-series martensitic stainless steel hardened to a minimum of C58 on the Rockwell hardness scale, providing better resistance to corrosion and high temperatures than American Iron and Steel Institute (AISI) 52100 chrome steel, and higher hardness and wear resistance than plain stainless steel. This bearing has a stainless-steel cage to prevent the balls from coming into contact with each other during use, reducing friction, vibration, and noise. It can be used to a maximum operating temperature of 121 degrees C/250 degrees F. The ball bearing has a CN (normal) radial internal clearance designation, making it suitable for applications where the load and speeds do not result in thermal expansion. This clearance provides latitude for self-realignment and compensates for static and dynamic alignment errors. Manufactured to tight dimensional tolerances, this precision bearing is useful in applications that require high accuracy, high rotational speeds, and increased operating efficiency. This ball bearing pulley meets International Organization for Standardization (ISO) 9001:2008 and 13485:2003, Occupational Health and Safety Assessment Series (OHSAS) 18001:2007, Production Part Approval Process (PPAP), and U.S. Food and Drug Administration (FDA) Critical standards for quality assurance. It is for use in commercial and industrial applications including small appliances, drive systems, vending machines, toys, and small motors.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Dynaroll Corporation manufactures miniature bearings and ball bearings that meet International Organization for Standardization (ISO), Occupational Health and Safety Assessment Series (OHSAS), Production Part Approval Process (PPAP), and U.S. Food and Drug Administration (FDA) Critical standards for quality assurance. Founded in 1988, Dynaroll is based in Sylmar, California.
