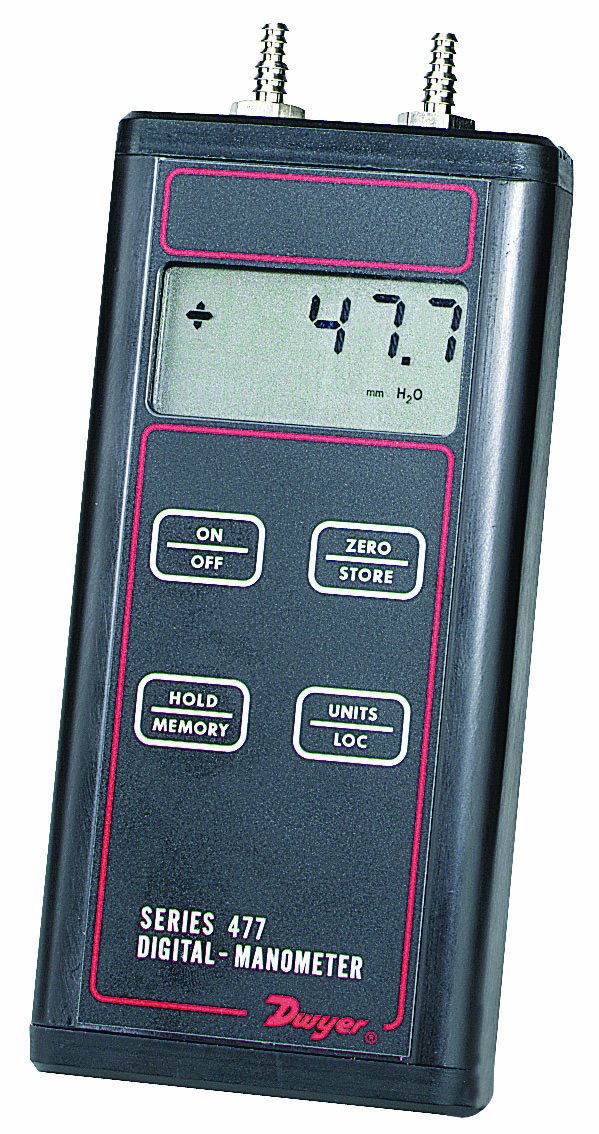

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

Dwyer Series 477 Handheld Digital Manometer, 0-150.0 psi Range, FM Approved

Be the first to review this item

ASIN B009PAFVWS

Product Specifications
Item Weight
0.64 pounds
Maximum Measurement
0-150.0 psi
Number of Items
1
Part Number
477-8-FM
Range
0-150.0 psi
Size Name
0-150.0 psi
Temperature Range
0/140  Degrees Fahrenheit
Specification for this product family (See all  products)
Measurement Accuracy
+/- 0.5 percent
UNSPSC Code
41103311
Display
LCD
Brand Name
Dwyer

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Intrinsically-safe digital manometer for field calibration, monitoring or troubleshooting HVAC systems, performing clean room inspections, air velocity monitoring, and natural gas appliance-line testing
  • FM-approved intrinsically safe for Class 1, Div. 1, Group A, B, C, D, T4 hazardous locations
  • Accuracy is + or - 0.5% of full scale at 60 to 78 degrees F, and + or - 1.5% full scale at 32 to 60 and 78 to 104 degrees F
  • Pressure measurement units include inH2O, mmH2O, bar, mbar, psi, inHg, mmHg, Pa, kPa
  • Non-volatile memory function provides storage of up to 40 readings, and audible and visual alarms indicate out-of-range measurements

Package Details

Shipping Weight: 0.75 pounds
Package Size: 9.2 x 4.7 x 1.1 inches

Product Description

The Dwyer Series 477 intrinsically-safe digital manometer provides positive, negative, and differential pressure measurements, and is used to perform field calibration, monitoring or troubleshooting HVAC systems, performing clean room inspections, air velocity monitoring, and natural gas appliance-line testing. The meter is FM-approved intrinsically safe for Class 1, Div. 1, Group A, B, C, D, T4 hazardous locations. It has an accuracy of + or - 0.5% of full scale at 60 to 78 degrees F, and + or - 1.5% full scale at 32 to 60 and 78 to 104 degrees F. The extruded aluminum case provides durability. The backlit four-digit LCD displays the pressure measurement. User-selectable measurement units include inH2O, mmH2O, bar, mbar, psi, inHg, mmHg, Pa, and kPa. The non-volatile memory function provides storage of up to 40 readings, and audible and visual alarms indicate out-of-range measurements. The zero function nulls minor pressure differences before measuring, and display hold retains last reading when the display cannot be seen during testing. The meter is powered by a 9V battery (included) and automatically shuts off after 20 minutes to preserve battery life.

Specifications
Pressure typesPositive, negative, and differential
Media typeAir and compatible combustible gases
Case materialExtruded aluminum
Pressure unitsinH2O, mmH2O, bar, mbar, psi, inHg, mmHg, Pa, kPa
DisplayFour-digit LCD
Temperature limits0 to 140 degrees F/-17.8 to +60 degrees C
Compensated temperature limits32 to 104 degrees F/0 to 40 degrees C
Dimensions6-17/32 x 2-13/16 x 29/32 (H x W x D)
Power9V alkaline battery
Agency approvalsCE, FM

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Manometers measure the pressure of a liquid or gas. They are used in laboratory, medical equipment, engineering, automotive, and heating, ventilation, and air-conditioning applications. Manometers measure any combination of gauge, absolute, or differential pressures. Gauge pressure is the amount of pressure in a system relative to the ambient pressure, absolute pressure is the amount of pressure in a system relative to an absolute vacuum, and differential pressure is the difference between two pressures. Analog manometers are composed of columns of liquid, and they use gravity and the liquid's density to calculate pressure. Because they have no moving parts, analog manometers do not require re-calibration. Digital manometers have pressure sensors that are connected to a system with a hose to provide a digital readout of the amount of pressure present in a system. They use microprocessors to calculate pressure, and they require periodic calibration to help ensure accuracy.

Dwyer Instruments manufactures measurement and control instruments, including pressure gauges, flow meters, level instrumentation, temperature instrumentation, and air quality monitors. The company, founded in 1931, is headquartered in Michigan City, IN.
