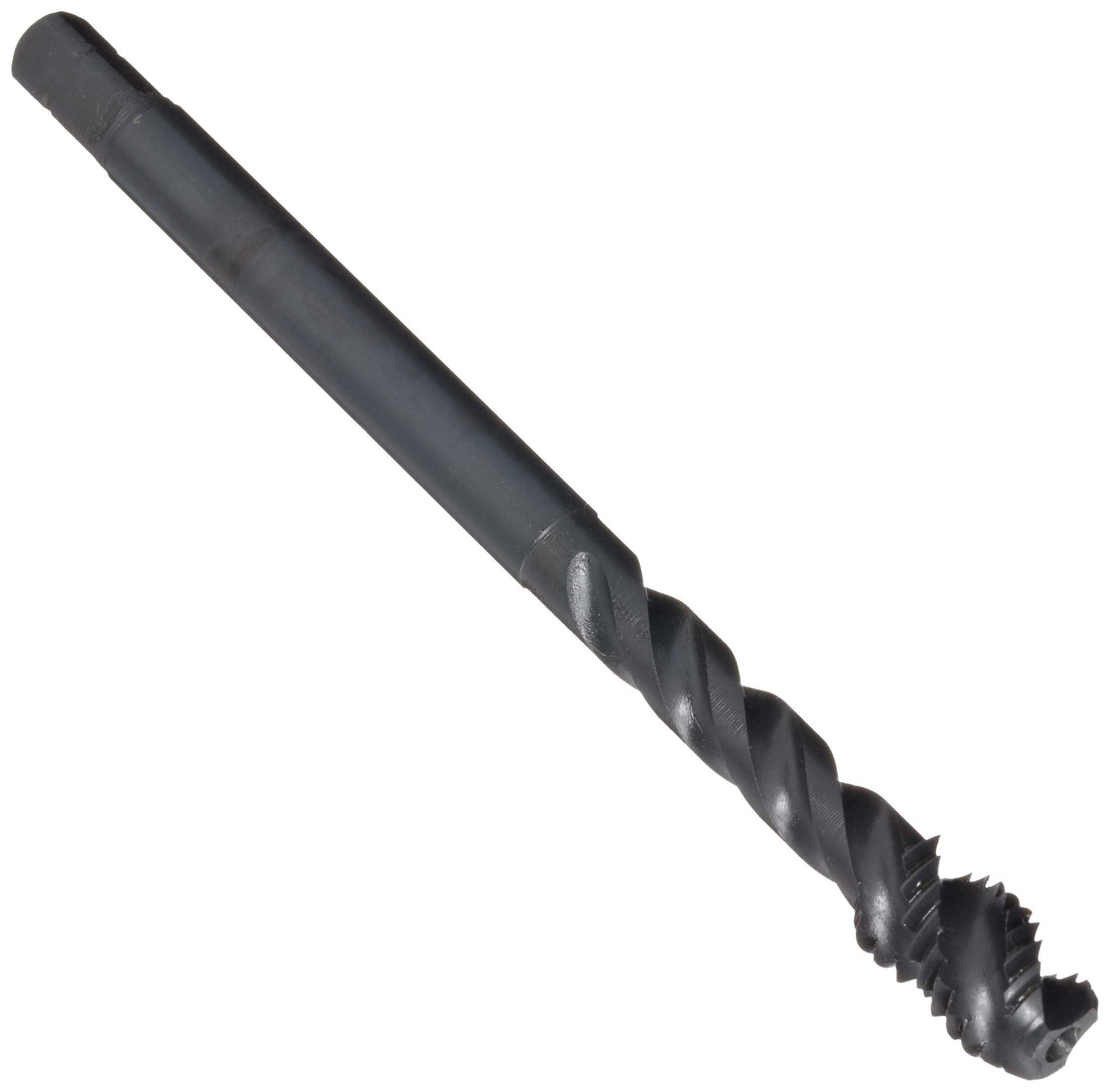

Dormer EX016H Powdered Metal Steel Spiral Flute Threading Tap, Black Oxide Finish, Round with Square End Shank, Modified Bottoming Chamfer

Be the first to review this item

Product Specifications
Cutting Direction
right-hand
Surface Coating
Black Oxide
Material Type
Powdered Metal Steel
Cutting Angle
45  Degrees
Brand Name
Dormer
Flute Type
Spiral
Manufacturer Series #
EX016H
Shank Type
round with square end
UNSPSC Code
27112806
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 24? Order in-stock items in the next 7 hrs 38 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 30 Next 10 »
Thread Size Thread Type Chamfer Type Number of Flutes Overall Length Pitch Diameter Limit Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 30 Next 10 »
M2-0.40 M modified bottoming 3 45 mm 6H EX01M2 B007IVGZP8 yes $26.50 Buy Options
M2.5-0.45 M modified bottoming 3 50 mm 6H EX01M2.5 B007IVH09S yes $25.82 Buy Options
M3-0.50 M modified bottoming 3 56 mm 6H EX01M3 B007IVH55C Usually ships in 2 to 5 weeks $22.34 Buy Options
M3.5-0.60 M modified bottoming 3 56 mm 6H EX01M3.5 B007IVH5T8 yes $22.44 Buy Options
M4-0.70 M modified bottoming 3 63 mm 6H EX01M4 B007IVH944 yes $21.45 Buy Options
M5-0.80 M modified bottoming 3 70 mm 6H EX01M5 B007IVHB9C yes $22.17 Buy Options
M6-1.00 M modified bottoming 3 80 mm 6H EX01M6 B007IVHDAY yes $22.59 Buy Options
M6-1.00 M modified bottoming 3 80 mm 6H EX01M6DIN376 B007IVHFNE yes $24.72 Buy Options
M7-1.00 M modified bottoming 3 80 mm 6H EX01M7 B007IVHG9W yes $23.51 Buy Options
M8-1.25 M modified bottoming 3 90 mm 6H EX01M8 B007IVHH2S yes $23.04 Buy Options
M8-1.25 M modified bottoming 3 90 mm 6H EX01M8DIN376 B007IVHHUA yes $25.76 Buy Options
M10-1.50 M modified bottoming 3 100 mm 6H EX01M10DIN376 B007IVGUAS yes $29.15 Buy Options
M10-1.50 M modified bottoming 3 100 mm 6H EX01M10 B007IVGTEA yes $27.66 Buy Options
M12-1.75 M modified bottoming 3 110 mm 6H EX01M12 B007IVGVM0 yes $33.49 Buy Options
M14-2.00 M modified bottoming 3 110 mm 6H EX01M14 B007IVGWRE yes $45.66 Buy Options
M16-2.00 M modified bottoming 4 110 mm 6H EX01M16 B007IVGX8W yes $46.79 Buy Options
M18-2.50 M modified bottoming 4 125 mm 6H EX01M18 B007IVGYBI yes $62.37 Buy Options
M20-2.50 M modified bottoming 4 140 mm 6H EX01M20 B007IVH15Q Usually ships in 2 to 5 weeks $69.61 Buy Options
M22-2.50 M modified bottoming 4 140 mm 6H EX01M22 B007IVH1WO yes $95.33 Buy Options
M24-3.00 M modified bottoming 4 160 mm 6H EX01M24 B007IVH2UU yes $89.79 Buy Options

Key Features

  • Powdered metal substrate offers superior performance that approaches that of solid carbide tools but with the toughness and shock-resistance of high-speed steel
  • Black oxide treatment adds lubricity and creates small pockets on the surface of the tool that act to hold coolant near the cutting edge

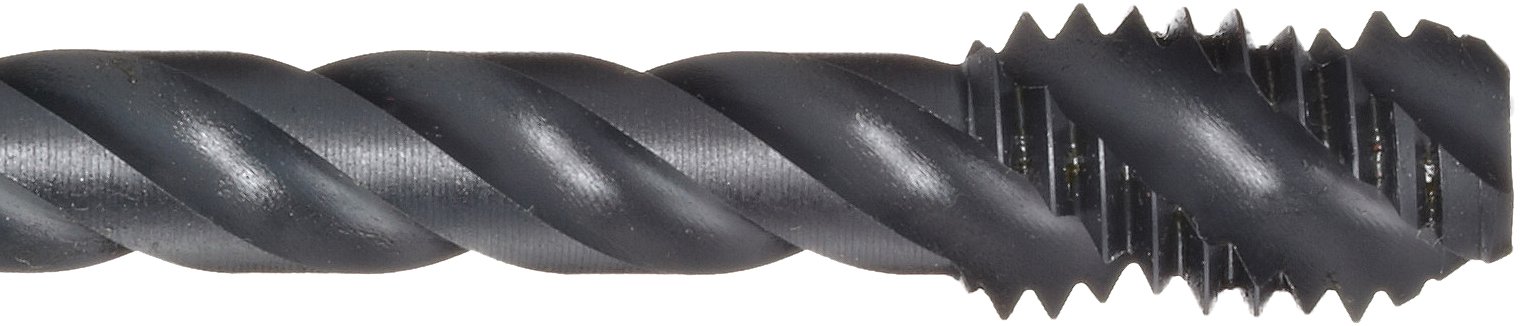

  • When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging

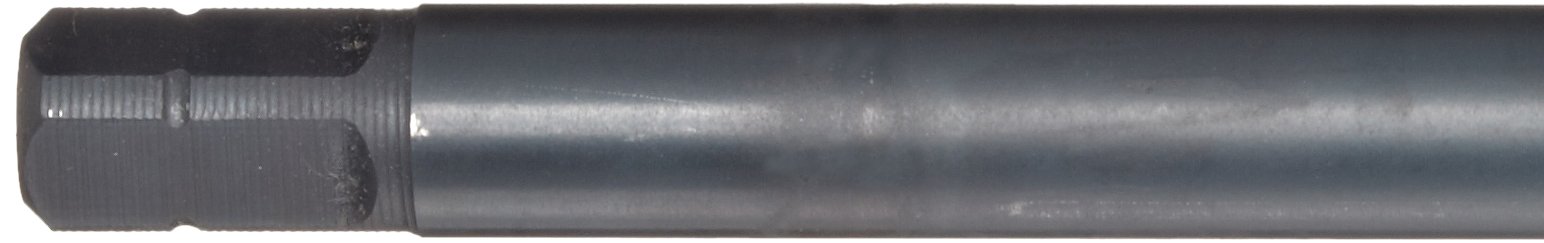

  • Round with square end shank
  • Blind hole
