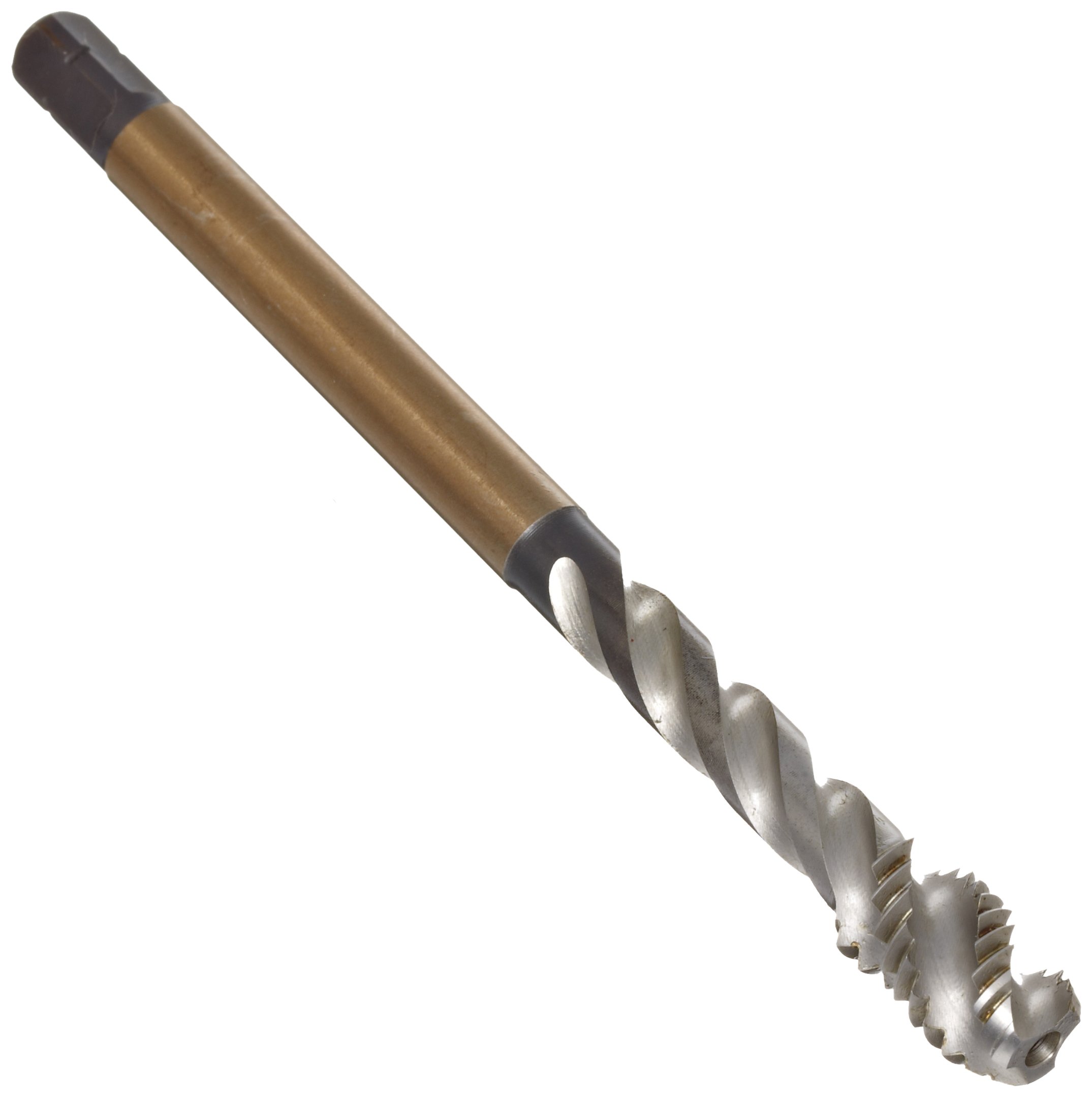

Dormer EX006H Powdered Metal Steel Spiral Flute Threading Tap, Gold Oxide Finish, Round with Square End Shank, Modified Bottoming Chamfer

Be the first to review this item

Product Specifications
Cutting Direction
right-hand
Surface Coating
gold oxide
Material Type
Powdered Metal Steel
Cutting Angle
45  Degrees
Brand Name
Dormer
Flute Type
Spiral
Manufacturer Series #
EX006H
Shank Type
round with square end
UNSPSC Code
27112806
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 17? Order in-stock items in the next 10 hrs 36 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 30 Next 10 »
Thread Size Thread Type Chamfer Type Number of Flutes Overall Length Pitch Diameter Limit Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 30 Next 10 »
M2-0.40 M modified bottoming 3 45 mm 6H EX00M2 B007IVGB0W yes $25.75 Buy Options
M2.5-0.45 M modified bottoming 3 50 mm 6H EX00M2.5 B007IVGBIE yes $25.81 Buy Options
M3-0.50 M modified bottoming 3 56 mm 6H EX00M3 B007IVGFOO yes $21.43 Buy Options
M3.5-0.60 M modified bottoming 3 56 mm 6H EX00M3.5 B007IVGGG6 yes $22.41 Buy Options
M4-0.70 M modified bottoming 3 63 mm 6H EX00M4 B007IVGJEA yes $21.48 Buy Options
M5-0.80 M modified bottoming 3 70 mm 6H EX00M5 B007IVGLUC yes $22.14 Buy Options
M6-1.00 M modified bottoming 3 80 mm 6H EX00M6 B007IVGOHM yes $22.78 Buy Options
M6-1.00 M modified bottoming 3 80 mm 6H EX00M6DIN376 B007IVGQBG yes $24.71 Buy Options
M7-1.00 M modified bottoming 3 80 mm 6H EX00M7 B007IVGQX4 yes $23.50 Buy Options
M8-1.25 M modified bottoming 3 90 mm 6H EX00M8 B007IVGRGA yes $23.64 Buy Options
M8-1.25 M modified bottoming 3 90 mm 6H EX00M8DIN376 B007IVGSY6 yes $25.75 Buy Options
M10-1.50 M modified bottoming 3 100 mm 6H EX00M10DIN376 B007IVG6O8 yes $28.78 Buy Options
M10-1.50 M modified bottoming 3 100 mm 6H EX00M10 B007IVG616 yes $27.13 Buy Options
M12-1.75 M modified bottoming 3 110 mm 6H EX00M12 B007IVG76U yes $32.62 Buy Options
M14-2.00 M modified bottoming 3 110 mm 6H EX00M14 B007IVG8DC yes $43.91 Buy Options
M16-2.00 M modified bottoming 4 110 mm 6H EX00M16 B007IVG9AY yes $45.00 Buy Options
M18-2.50 M modified bottoming 4 125 mm 6H EX00M18 B007IVGA9O yes $62.44 Buy Options
M20-2.50 M modified bottoming 4 140 mm 6H EX00M20 B007IVGC56 Usually ships in 2 to 5 weeks $69.65 Buy Options
M22-2.50 M modified bottoming 4 140 mm 6H EX00M22 B007IVGDRI Usually ships in 2 to 5 weeks $98.47 Buy Options
M24-3.00 M modified bottoming 4 160 mm 6H EX00M24 B007IVGE9A Usually ships in 2 to 5 weeks $88.96 Buy Options

Key Features

  • Powdered metal substrate offers superior performance that approaches that of solid carbide tools but with the toughness and shock-resistance of high-speed steel
  • Gold oxide is a thinner oxide surface treatment than black oxide typically used to identify cobalt steel tools; performance is similar to uncoated tools

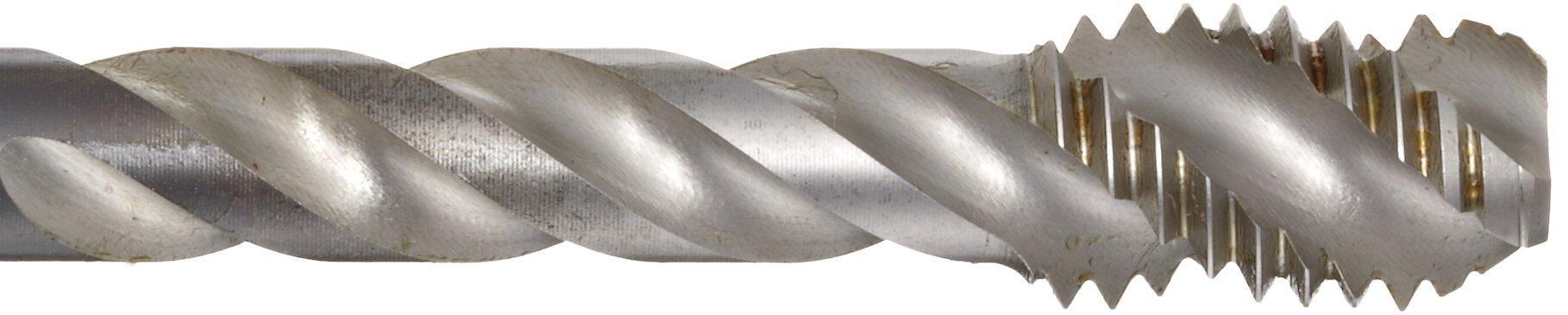

  • When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging

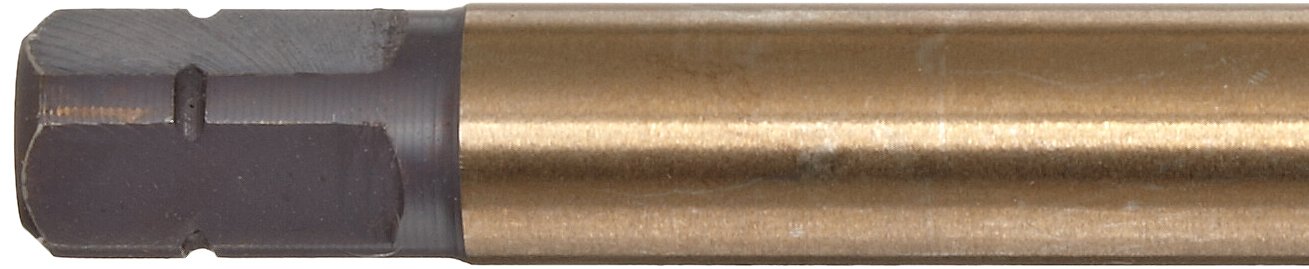

  • Round with square end shank
  • Blind hole
