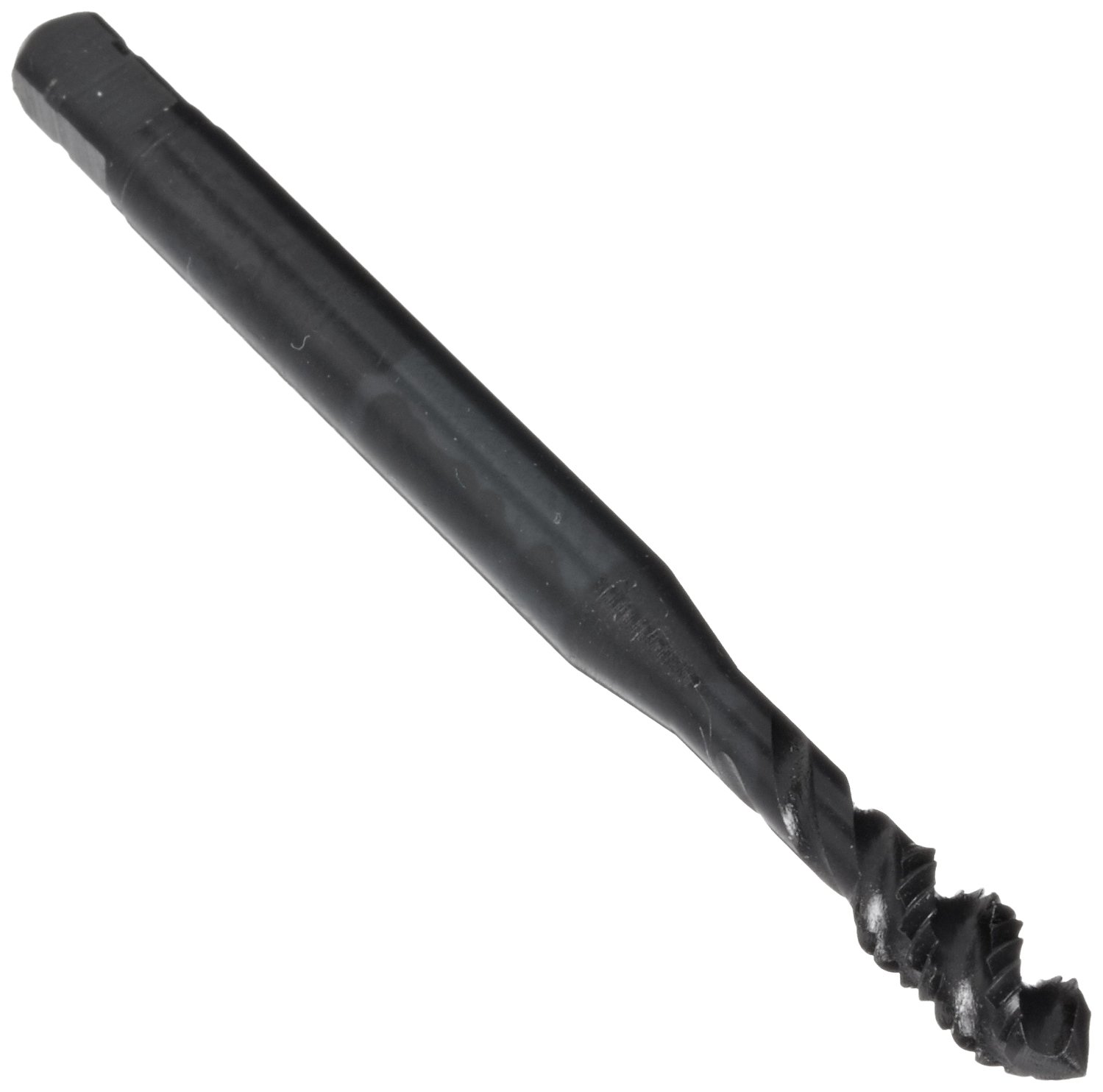

Dormer E023 Powdered Metal Steel Spiral Flute Threading Tap, Black Oxide Finish, Round with Square End Shank, Modified Bottoming Chamfer

Be the first to review this item

Product Specifications
Manufacturer Series #
E023
Cutting Direction
right-hand
Surface Coating
Black Oxide
Shank Type
round with square end
Material Type
Powdered Metal Steel
UNSPSC Code
27112806
Cutting Angle
48  Degrees
Brand Name
Dormer
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 14 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-16 of 16
Thread Size Thread Type Chamfer Type Number of Flutes Overall Length Pitch Diameter Limit Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-16 of 16
#2-56 UNC modified bottoming 2 44.5 mm 2B E0232-56 B007IVKKEU yes $42.72 Buy Options
#4-40 UNC modified bottoming 3 48 mm 2B E0234-40 B007IVKM2A yes $28.25 Buy Options
#5-40 UNC modified bottoming 3 48 mm 2B E0235-40 B007IVKO96 yes $27.42 Buy Options
#6-32 UNC modified bottoming 3 50 mm 2B E0236-32 B007IVKPAY yes $21.55 Buy Options
#8-32 UNC modified bottoming 3 53 mm 2B E0238-32 B007IVKTDC yes $21.38 Buy Options
#10-24 UNC modified bottoming 3 58 mm 2B E02310-24 B007IVKJ64 yes $22.01 Buy Options
#12-24 UNC modified bottoming 3 62 mm 2B E02312-24 B007IVKJXC yes $26.08 Buy Options
1/4"-20 UNC modified bottoming 3 66 mm 2B E0231/4 B007IVKINS Usually ships in 1 to 2 months $21.97 Buy Options
5/16"-18 UNC modified bottoming 3 72 mm 2B E0235/16 B007IVKMO8 yes $22.24 Buy Options
3/8"-16 UNC modified bottoming 3 80 mm 2B E0233/8 B007IVKLBM yes $26.16 Buy Options
7/16"-14 UNC modified bottoming 3 85 mm 2B E0237/16 B007IVKQGC yes $35.13 Buy Options
1/2"-13 UNC modified bottoming 3 89 mm 2B E0231/2 B007IVKHYI yes $31.47 Buy Options
5/8"-11 UNC modified bottoming 4 102 mm 2B E0235/8 B007IVKNOW yes $45.80 Buy Options
3/4"-10 UNC modified bottoming 4 112 mm 2B E0233/4 B007IVKKVI Usually ships in 1 to 2 months $67.33 Buy Options
7/8"-9 UNC modified bottoming 4 118 mm 2B E0237/8 B007IVKSY2 Usually ships in 1 to 2 months $100.86 Buy Options
1"-8 UNC modified bottoming 4 130 mm 2B E0231 B007IVKHHA yes $112.28 Buy Options

Key Features

  • Powdered metal substrate offers superior performance that approaches that of solid carbide tools but with the toughness and shock-resistance of high-speed steel
  • Black oxide treatment adds lubricity and creates small pockets on the surface of the tool that act to hold coolant near the cutting edge

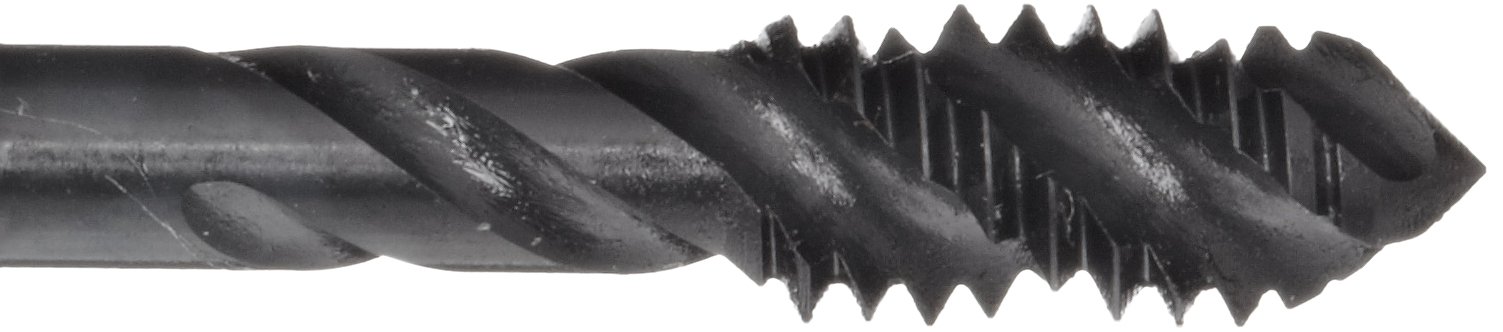

  • When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging

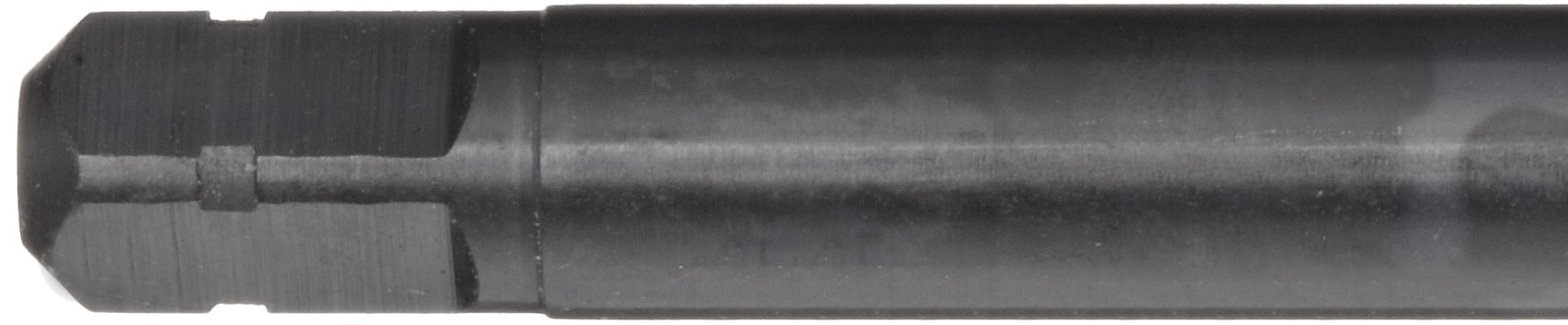

  • Round with square end shank
  • Blind hole
