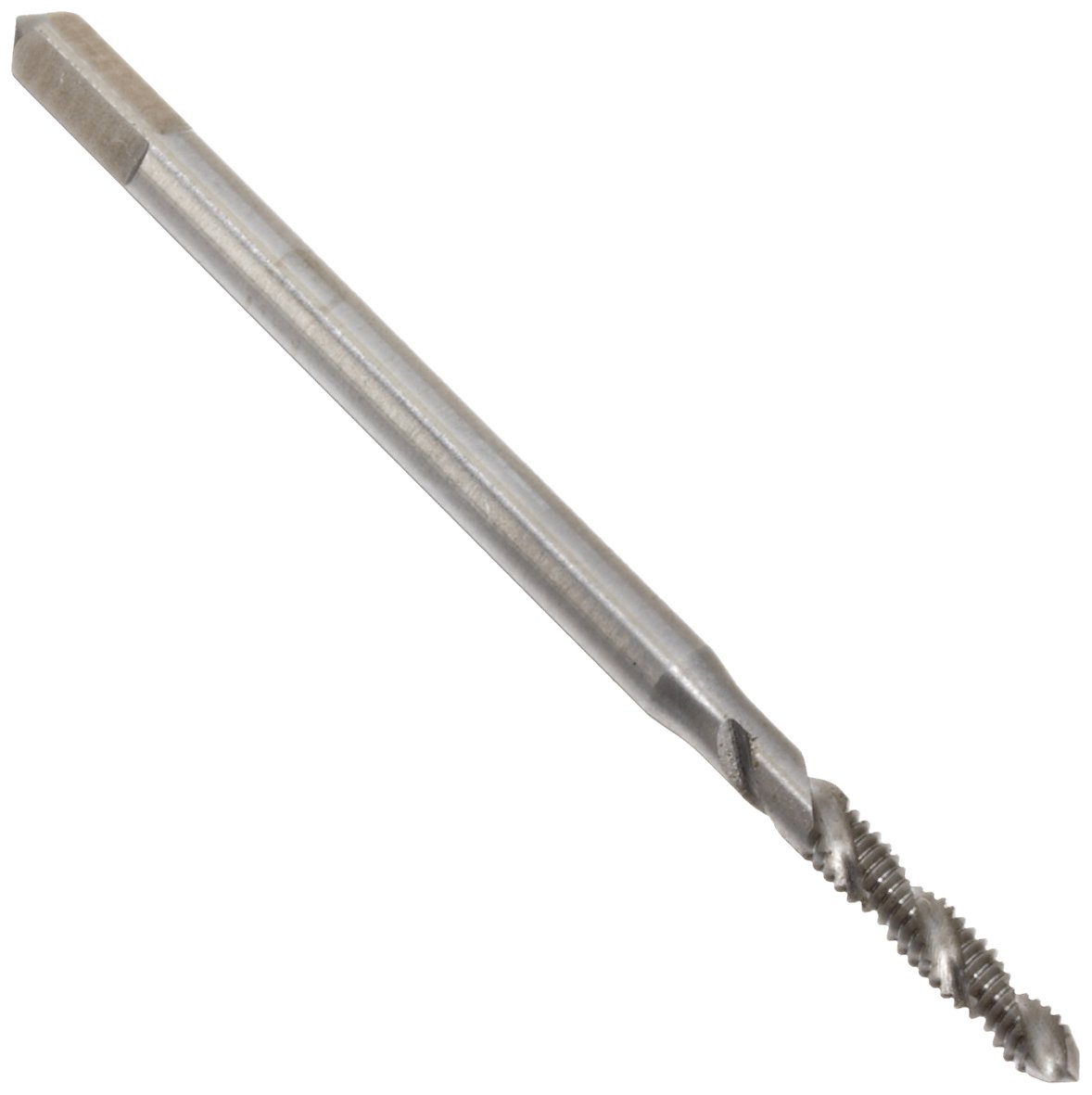

Dormer E022 Powdered Metal Steel Spiral Flute Threading Tap, Gold Oxide Finish, Round with Square End Shank, Modified Bottoming Chamfer

Be the first to review this item

Product Specifications
Manufacturer Series #
Cutting Direction
Surface Coating
gold oxide
Shank Type
round with square end
Material Type
Powdered Metal Steel
Cutting Angle
48  Degrees
Brand Name
Flute Type

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 23? Order in-stock items in the next 4 hrs 17 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-16 of 16
Thread Size Thread Type Chamfer Type Number of Flutes Overall Length Pitch Diameter Limit Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All All All
Currently showing 1-16 of 16
#2-56 UNC modified bottoming 2 44.5 mm 2B E0222-56 B007IVKB2Q 1 $39.86 Buy Options
#4-40 UNC modified bottoming 3 48 mm 2B E0224-40 B007IVKCVQ 1 $31.11 Buy Options
#5-40 UNC modified bottoming 3 48 mm 2B E0225-40 B007IVKELO 1 $27.06 Buy Options
#6-32 UNC modified bottoming 3 50 mm 2B E0226-32 B007IVKF7M 1 $23.21 Buy Options
#8-32 UNC modified bottoming 3 53 mm 2B E0228-32 B007IVKH0M 1 $23.03 Buy Options
#10-24 UNC modified bottoming 3 58 mm 2B E02210-24 B007IVKAA4 1 $23.76 Buy Options
#12-24 UNC modified bottoming 3 62 mm 2B E02212-24 B007IVKAOK 1 $28.48 Buy Options
1/4"-20 UNC modified bottoming 3 66 mm 2B E0221/4 B007IVK82Y 1 $22.90 Buy Options
5/16"-18 UNC modified bottoming 3 72 mm 2B E0225/16 B007IVKDI8 1 $25.08 Buy Options
3/8"-16 UNC modified bottoming 3 80 mm 2B E0223/8 B007IVKC98 1 $28.62 Buy Options
7/16"-14 UNC modified bottoming 3 85 mm 2B E0227/16 B007IVKFPE 1 $39.63 Buy Options
1/2"-13 UNC modified bottoming 3 89 mm 2B E0221/2 B007IVK7B6 1 $35.41 Buy Options
5/8"-11 UNC modified bottoming 4 102 mm 2B E0225/8 B007IVKE3C 1 $51.86 Buy Options
3/4"-10 UNC modified bottoming 4 112 mm 2B E0223/4 B007IVKBMG Usually ships in 2 to 4 weeks $76.47 Buy Options
7/8"-9 UNC modified bottoming 4 118 mm 2B E0227/8 B007IVKG62 1 $111.33 Buy Options
1"-8 UNC modified bottoming 4 130 mm 2B E0221 B007IVK6US Usually ships in 2 to 4 weeks $130.19 Buy Options

Key Features

  • Powdered metal substrate offers superior performance that approaches that of solid carbide tools but with the toughness and shock-resistance of high-speed steel
  • Gold oxide is a thinner oxide surface treatment than black oxide typically used to identify cobalt steel tools; performance is similar to uncoated tools

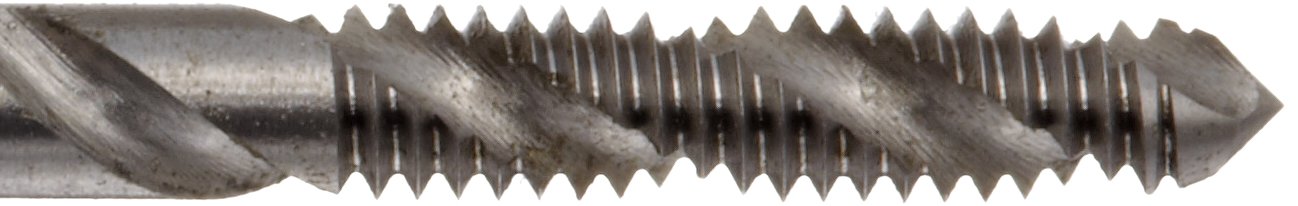

  • When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging

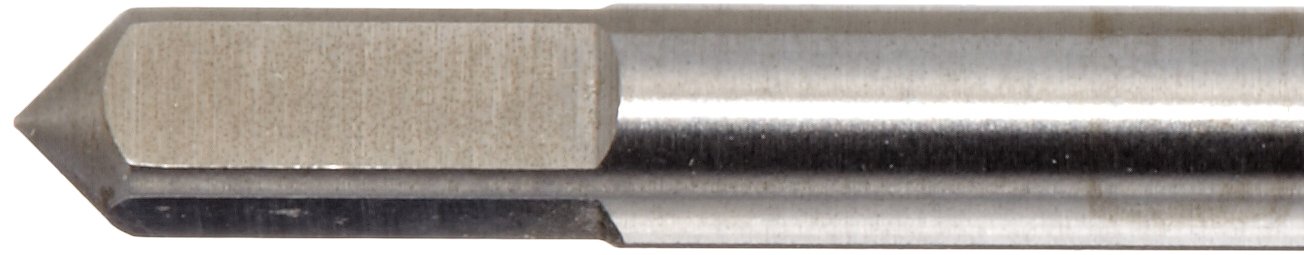

  • Round with square end shank
  • Blind hole
