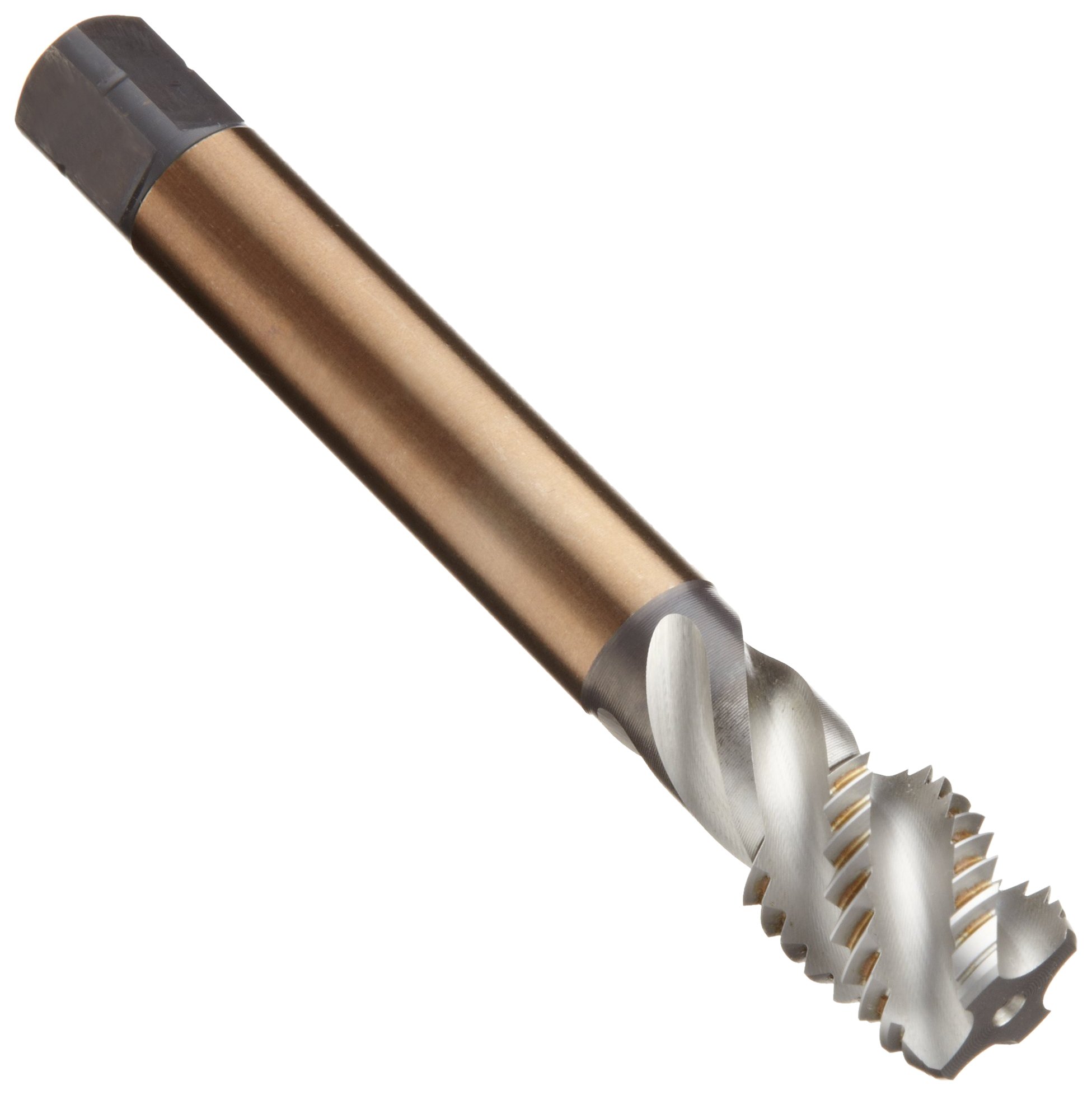

Dormer MTT-X E002/MTT-X E012 Powdered Metal Spiral Flute Threading Tap, Gold Oxide Finish, Round Shank With Square End, Modified Bottoming Chamfer

Be the first to review this item

Product Specifications
Surface Coating
Gold Oxide
Shank Type
Round With Square End
Pitch Diameter Limit
6H
Material Type
High Speed Steel
Thread Type
Metric
Chamfer Type
Semi-Bottoming
Brand Name
Dormer

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 10 hrs 17 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 30 Next 10 »
Thread Size Manufacturer Series # Number of Flutes Shank Diameter Length of Threads Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 30 Next 10 »
M3-0.5 E002 3 3.15 mm 6 mm 48 mm 567869 B003JY6HJ2 2 $18.27 Buy Options
M3.5-0.6 E002 3 3.55 mm 16 mm 50 mm 567876 B003JY6HJM 1 $20.72 Buy Options
M4-0.5 E012 3 4 mm 7 mm 53 mm 568620 B003JY6JWW 1 $22.72 Buy Options
M4-0.7 E002 3 4 mm 7 mm 53 mm 567883 B003JY6HKG 6 $16.84 Buy Options
M5-0.5 E012 3 5 mm 8 mm 58 mm 568637 B003JY6JXG 1 $20.90 Buy Options
M5-0.8 E002 3 5 mm 8 mm 58 mm 567890 B003JY6HLA 2 $17.84 Buy Options
M6-0.5 E012 3 6.3 mm 10 mm 66 mm 568644 B003JY6JY0 1 $23.77 Buy Options
M6-0.75 E012 3 6.3 mm 10 mm 66 mm 568651 B003JY6JYK 1 $24.11 Buy Options
M6-1 E002 3 6.3 mm 10 mm 66 mm 567906 B003JY6HLU 5 $18.19 Buy Options
M8-0.75 E012 3 8 mm 12 mm 72 mm 568668 B003JY6JZ4 1 $27.75 Buy Options
M8-1.25 E002 3 8 mm 12 mm 72 mm 567913 B003JY6HME 5 $18.63 Buy Options
M10-1 E012 3 10 mm 15 mm 80 mm 568682 B003JY6JQ8 1 $44.22 Buy Options
M10-1.25 E012 3 10 mm 15 mm 80 mm 568699 B003JY6JQS 2 $46.11 Buy Options
M10-1.5 E002 3 10 mm 15 mm 80 mm 567920 B003JY6HEC 1 $20.77 Buy Options
M12-1 E012 3 9 mm 16 mm 89 mm 568705 B003JY6JRC 1 $50.49 Buy Options
M12-1.25 E012 3 9 mm 16 mm 89 mm 568712 B003JY6JRW 1 $50.49 Buy Options
M12-1.5 E012 3 9 mm 16 mm 89 mm 568729 B003JY6JSG 1 $50.48 Buy Options
M12-1.75 E002 3 9 mm 16 mm 89 mm 567937 B003JY6HEW 1 $24.43 Buy Options
M14-1.5 E012 3 11.2 mm 18 mm 95 mm 568736 B003JY6JT0 1 $65.96 Buy Options
M14-2 E002 3 11.2 mm 18 mm 95 mm 567944 B003JY6HFG 1 $35.10 Buy Options

Key Features

  • Spiral flutes for creating threads in blind holes
  • Spiral flute tap pulls chips back from the tip of the tool and out of the hole to prevent clogging
  • Gold oxide finish reduces grinding stress within the tool
  • Powdered-metal steel for performance approaching that of solid carbide tools, with the toughness and shock-resistance of high-speed steel
  • Available in Metric Coarse (M) or Metric Fine (MF) right-hand thread options for different applications

Product Description

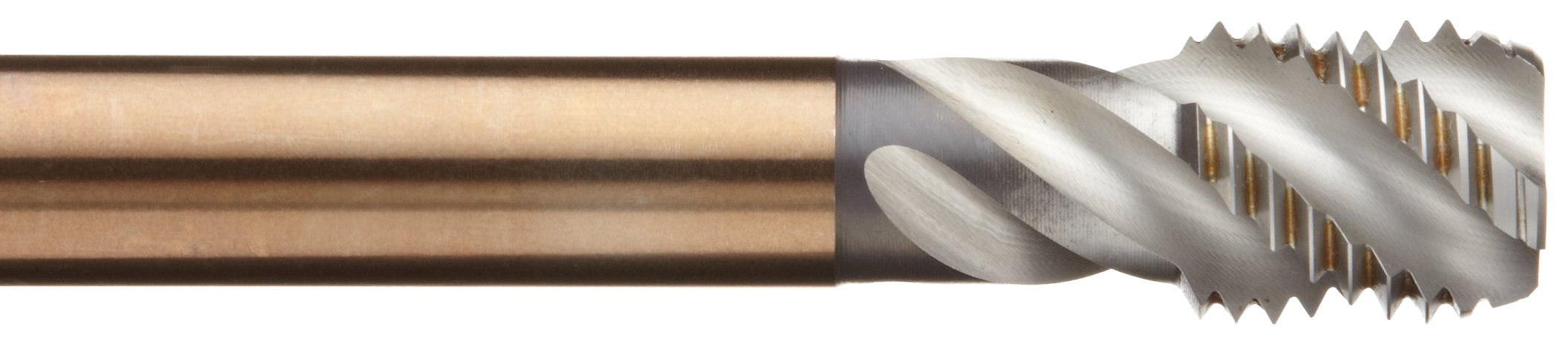

The Dormer MTT-X E002/MTT-X E012 powdered-metal steel spiral flute tap has a round shank with a square end, gold oxide finish, and a modified bottoming chamfer, and is used to create metric right-hand threads in a range of materials, with best performance in steel, aluminum and magnesium. It is available in two different thread specification standards: Metric Coarse (M) or Metric Fine (MF). The 48-degree spiral flutes of this tap pull chips back from the tip of the tool, up and out the hole to prevent clogging, making it suitable for blind or bottoming holes (with only one opening). Gold oxide is a low-temperature heat treatment that reduces grinding stress within the tool. The modified bottoming chamfer has additional length to reduce chip load, add tool life in difficult-to-machine materials, and permit higher tapping speeds.

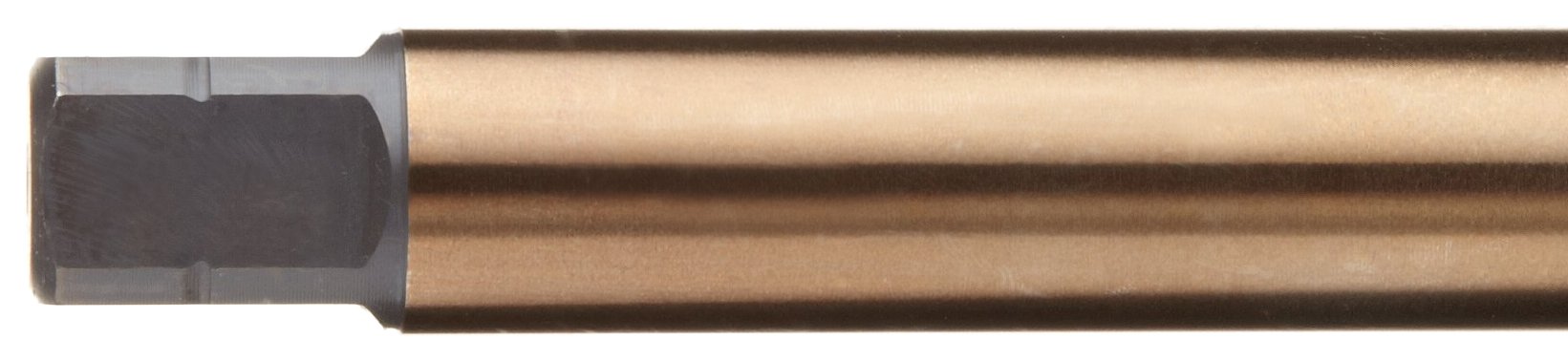

Right-hand threads are designed to tighten when a head or nut is rotated clockwise (the most common threading direction). Powdered-metal steel offers performance that approaches that of solid carbide tools but with the toughness and shock-resistance of high-speed steel. The round shank with square end helps to minimize rotation in the tool holder. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

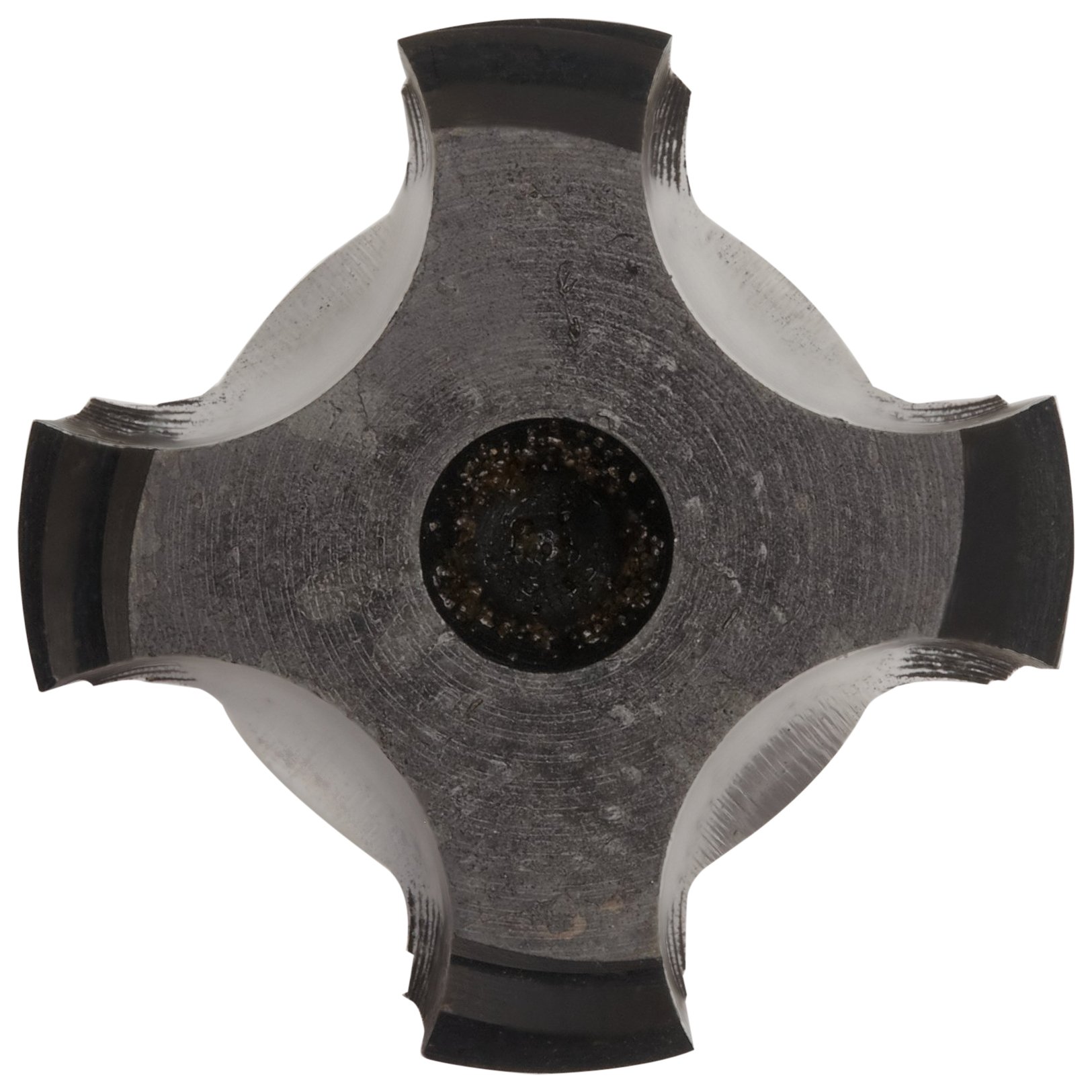

In the Dormer MTT-X E002 series, taps with nominal diameters of 3 mm to 14 mm have three flutes and those with nominal diameters of 16 mm to 24 mm have four flutes. In the MTT-X E012 series, taps with nominal diameters of 4 mm to 14 mm have three flutes and those with nominal diameters of 16 mm to 22 mm have four flutes. All taps in both series have modified bottoming chamfers. This tap conforms to ISO 529 standards and can create threads to a depth two-and-a-half times its diameter. It is suitable for the 6H tolerance class: 6H is used for a normal length of thread engagement and medium tolerance quality.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
