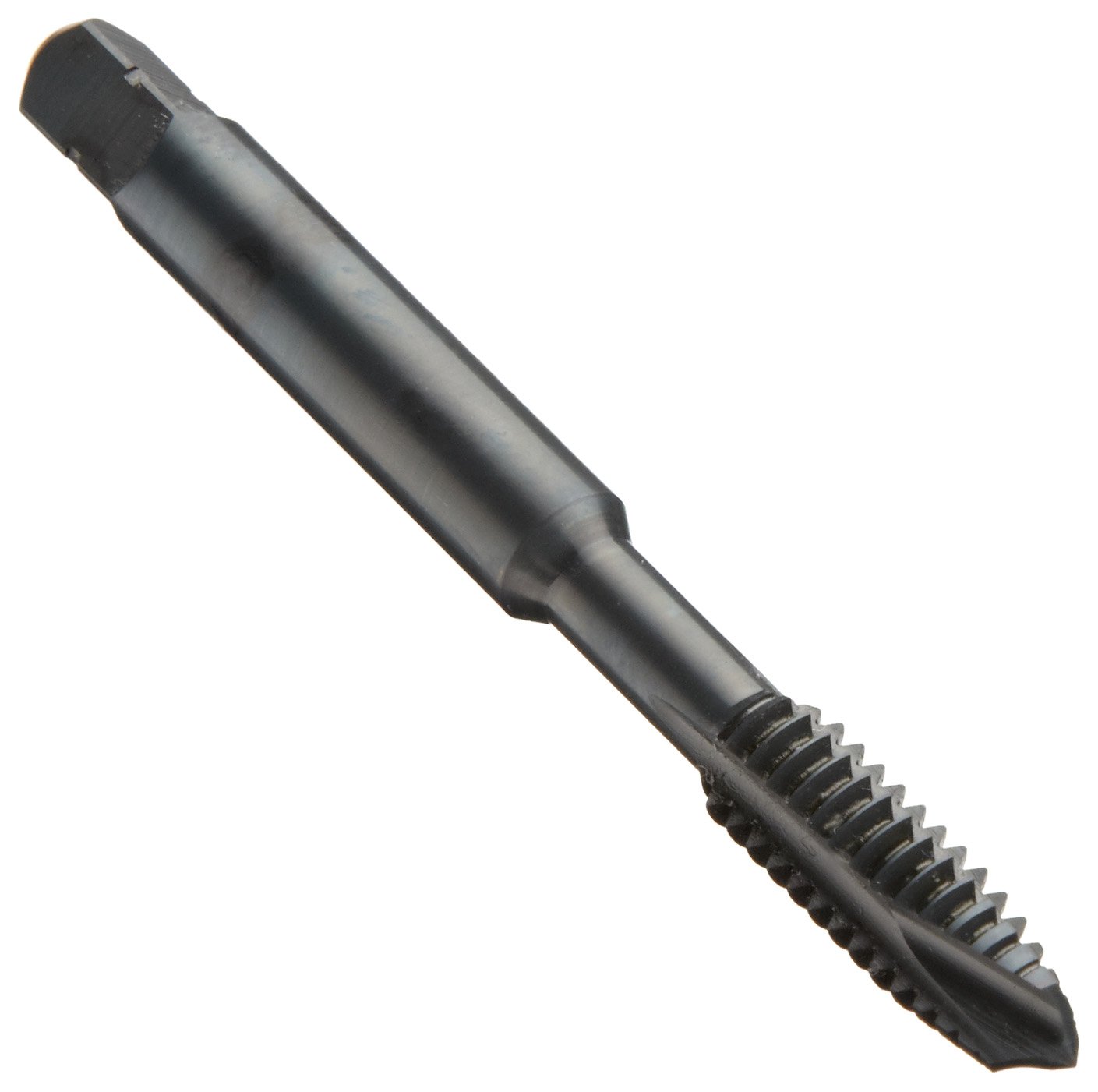

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Dormer MTT-X E026/MTT-X E036 Powdered Metal Spiral Point Threading Tap, Black Oxide Finish, Round Shank With Square End, Plug Chamfer

Be the first to review this item

Product Specifications
Surface Coating
Steam Oxide
Shank Type
Round With Square End
Material Type
High Speed Steel
UNSPSC Code
27112806
Chamfer Type
Plug
Brand Name
Dormer

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 6 hrs 14 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 43 Next 20 »
Thread Size Thread Type Manufacturer Series # Number of Flutes Shank Diameter Length of Threads Overall Length Pitch Diameter Limit Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All All
Currently showing 1-20 of 43 Next 20 »
#2-56 UNC E026 2 0.141" 0.314" 1.75" H2 583203 B003JY6KXA yes $19.83 Buy Options
#4-40 UNC E026 2 0.141" 0.6091" 1.875" H2 581254 B003JY6L02 yes $15.10 Buy Options
#5-40 UNC E026 2 0.141" 0.7404" 1.9375" H2 581261 B003JY6L3E yes $15.10 Buy Options
#6-32 UNC E026 2 0.141" 0.261" 2" H2 581278 B003JY6L48 yes $12.30 Buy Options
#8-32 UNC E026 2 0.168" 0.2484" 2.125" H2 581285 B003JY6L5W yes $12.30 Buy Options
#10-24 UNC E026 2 0.194" 0.4303" 2.375" H3 581292 B003JY6KW6 yes $2.43 Buy Options
#10-32 UNF E036 2 0.194" 0.4303" 2.375" H2 582145 B003JY6M9W yes $12.10 Buy Options
#12-24 UNC E026 2 0.22" 0.4173" 2.375" H3 581308 B003JY6KWQ yes $13.95 Buy Options
#12-28 UNF E036 2 0.22" 0.4173" 2.375" H3 582152 B003JY6MBK yes $13.15 Buy Options
1/4"-20 UNC E026 2 0.255" 0.5075" 2.5" H3 581315 B003JY6KUI yes $12.30 Buy Options
1/4"-20 UNC E026 3 0.255" 0.5075" 2.5" H11 581322 B003JY6KVC yes $12.30 Buy Options
1/4"-20 UNC E026 3 0.255" 0.5075" 2.5" H3 581339 B003JY6KUS yes $12.30 Buy Options
1/4"-28 UNF E036 3 0.255" 0.5075" 2.5" H3 582176 B003JY6M9C yes $7.76 Buy Options
1/4"-28 UNF E036 2 0.255" 0.5075" 2.5" H3 582169 B003JY6M8S yes $12.01 Buy Options
5/16"-18 UNC E026 3 0.318" 0.5939" 2.7188" H3 581360 B003JY6L16 yes $13.45 Buy Options
5/16"-18 UNC E026 3 0.318" 0.5939" 2.7188" H11 581353 B003JY6L1Q yes $13.45 Buy Options
5/16"-18 UNC E026 2 0.318" 0.5939" 2.7188" H3 581346 B003JY6L0M yes $13.45 Buy Options
5/16"-24 UNF E036 3 0.318" 0.5939" 2.7188" H3 582190 B003JY6MEC yes $12.75 Buy Options
5/16"-24 UNF E036 2 0.318" 0.5939" 2.7188" H3 582183 B003JY6MDS yes $12.75 Buy Options
3/8"-16 UNC E026 2 0.381" 0.602" 2.9375" H3 581377 B003JY6KYE yes $15.90 Buy Options

Key Features

  • Spiral point and straight flutes for cutting threads in through holes
  • Spiral point pushes chips ahead of tool to reduce clogging
  • Powdered-metal steel for performance approaching that of solid carbide tools, with the toughness and shock-resistance of high-speed steel
  • Black oxide finish improves lubricity, resists corrosion, and helps prevent buildup
  • Available in UNC (Unified Coarse) and UNF (Unified Fine) right-hand thread options for different applications

Product Description

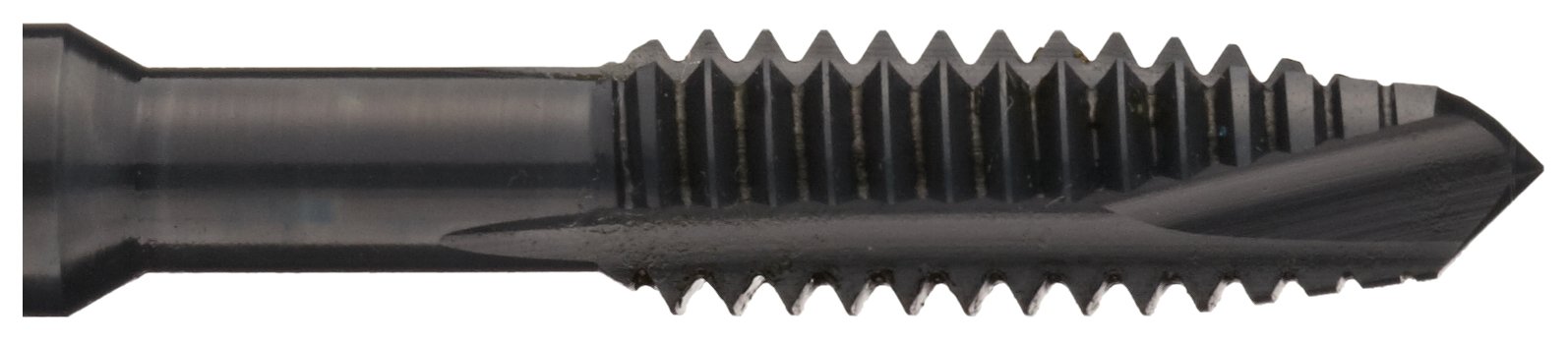

The Dormer MTT-X E026/MTT-X E036 powdered-metal steel spiral point tap has a round shank with a square end, black oxide finish, and a plug chamfer, and is used to create right-hand threads in a number of materials, with best performance in steel and stainless steel. It is available in two different ANSI thread specification standards: UNC (Unified Coarse) and UNF (Unified Fine). The spiral point of this tap (sometimes referred to as a “gun tap”) pushes chips ahead of the tool and the straight flutes reduce clogging. Both characteristics make it suitable for threading through holes (extending through the workpiece). The tap’s black oxide finish improves lubricity, resists corrosion, and will not chip or flake. It also helps to prevent buildup of welding materials on the tap’s cutting edge when working with iron and steel. A plug chamfer distributes cutting to ease tapping at the beginning of the hole and to maintain correct perpendicular alignment with the workpiece.

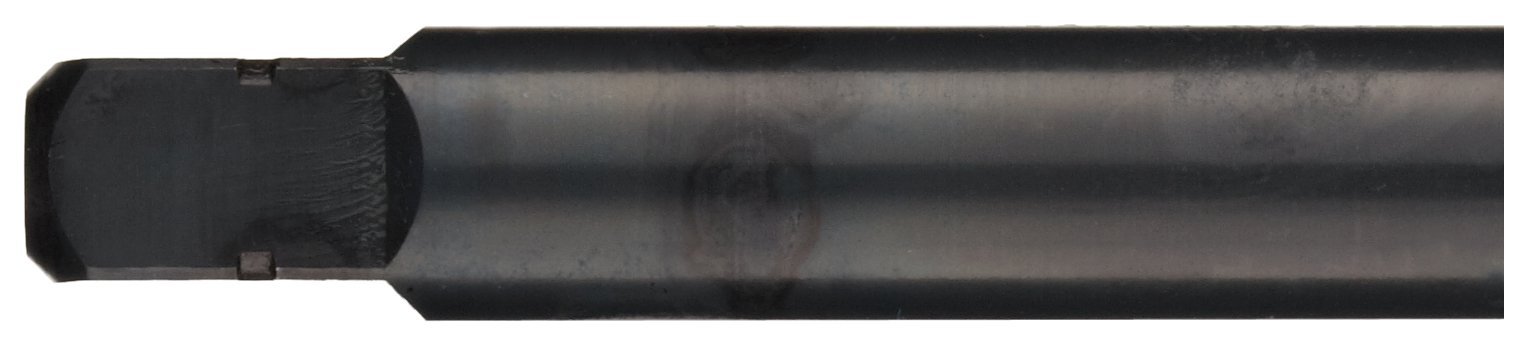

Right-hand threads are designed to tighten when a head or nut is rotated clockwise (the most common threading direction). Powdered-metal steel offers performance that approaches that of solid carbide tools but with the toughness and shock-resistance of high-speed steel. The round shank with square end helps to minimize rotation in the tool holder. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

In the Dormer MTT-X E026 series, taps in machine screw sizes 2 to 12 have two flutes, taps with nominal diameters of 1/4“ to 3/8” are available with two or three flutes, taps with a nominal diameter of 7/16” have three flutes, taps with a nominal diameter of 1/2“ are available with two or three flutes, and those with nominal diameters of 9/16” to 1” have three flutes. In the MTT-X E036 series, taps in machine screw sizes 10 and 12 have two flutes, taps with nominal diameters of 1/4” to 3/8” are available with two or three flutes, taps with a nominal diameter of 7/16” have three flutes, those with a nominal diameter of 1/2” are available with two or three flutes, and those with nominal diameters of 9/16” to 1” have three flutes. All taps in both series have plug chamfers. This tap conforms to ANSI standards and can create threads to a depth two-and-a-half times its diameter. It is suitable for the ANSI 3B tolerance class: 3B produces close-tolerance fasteners that resist loosening, as in aerospace applications.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
