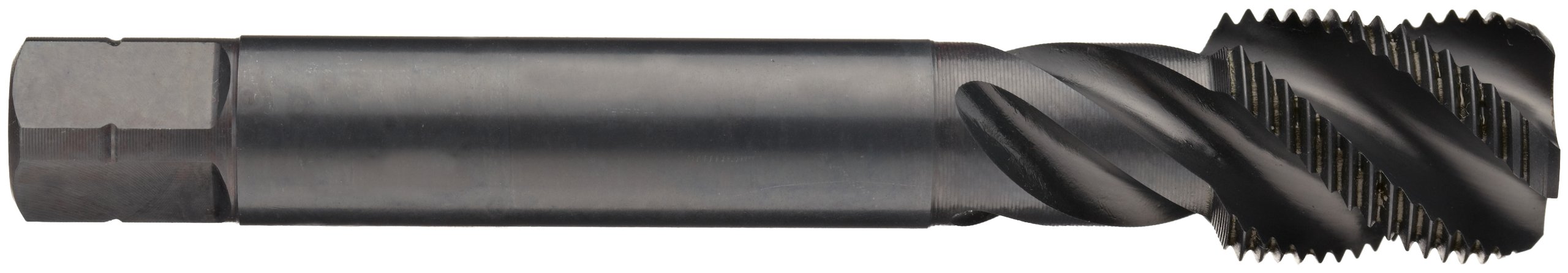

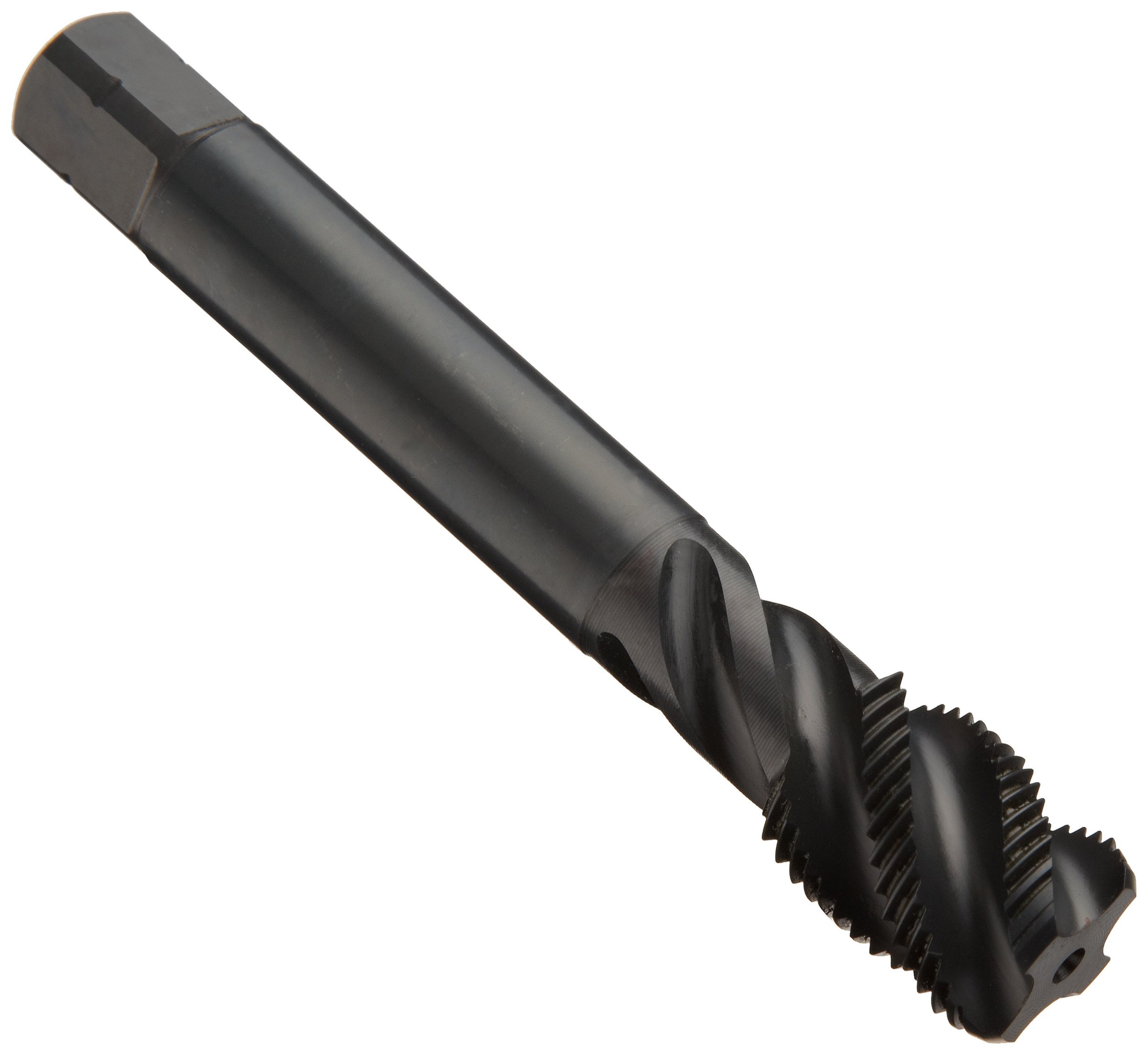

Dormer MTT-X E043 Powdered Metal Pipe Tap, Spiral Flute, BSP, Black Oxide Finish, Round Shank With Square End, Modified Bottoming Chamfer

Be the first to review this item

Product Specifications
Manufacturer Series #
MTT-X E043
Surface Coating
Steam Oxide
Shank Type
Round With Square End
Pitch Diameter Limit
6H
Material Type
High Speed Steel
Thread Type
BSPP
UNSPSC Code
31201519
Chamfer Type
Semi-Bottoming
Brand Name
Dormer

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 23? Order in-stock items in the next 1 day 19 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Thread Size Number of Flutes Shank Diameter Length of Threads Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-5 of 5
1/8"-28 3 8 mm 15 mm 90 mm 569917 B003JY6N8W yes $29.66 Buy Options
1/4"-19 3 10 mm 19 mm 100 mm 569924 B003JY6N8C yes $38.97 Buy Options
3/8"-19 4 12.5 mm 21 mm 100 mm 569931 B003JY6NA0 yes $51.98 Buy Options
1/2"-14 4 16 mm 26 mm 125 mm 569948 B003JY6N7S yes $71.82 Buy Options
3/4"-14 4 20 mm 28 mm 140 mm 569955 B003JY6N9G yes $80.33 Buy Options

Key Features

  • Pipe tap cuts threads in pipes and pipe fittings
  • Spiral flutes for creating threads in blind holes
  • Black oxide finish improves lubricity, resists corrosion, and helps prevent buildup
  • Powdered-metal steel for performance approaching that of solid carbide tools, with the toughness and shock-resistance of high-speed steel
  • Produces British Standard Pipe Parallel (BSPP) threads for straight pipe threading

Product Description

The Dormer MTT-X E043 powdered-metal steel pipe tap has spiral flutes, black oxide finish, a modified bottoming chamfer, and a round shank with a square end, and is used to create British Standard Pipe Parallel (BSPP) right-hand threads in a number of materials, with best performance in steel. British Standard Pipe Parallel, also called the BSP G Series, is a standard thread configuration for parallel, or straight, pipe threads. The 48-degree spiral flutes of this tap pull chips back from the tip of the tool, up and out of the hole to prevent clogging, making it suitable for blind or bottoming holes (with only one opening). Black oxide finish improves this tool’s lubricity, resists corrosion, and will not chip or flake. Black oxide also helps to prevent buildup and welding of material on the tap’s cutting edge when working with iron and steel. The modified bottoming chamfer has additional length to reduce chip load, add tool life in difficult-to-machine materials, and permit higher tapping speeds.

Right-hand threads are designed to tighten when a head or nut is rotated clockwise (the most common threading direction). Powdered-metal steel offers performance that approaches that of solid carbide tools but with the toughness and shock-resistance of high-speed steel. The round shank with square end helps to minimize rotation in the tool holder. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

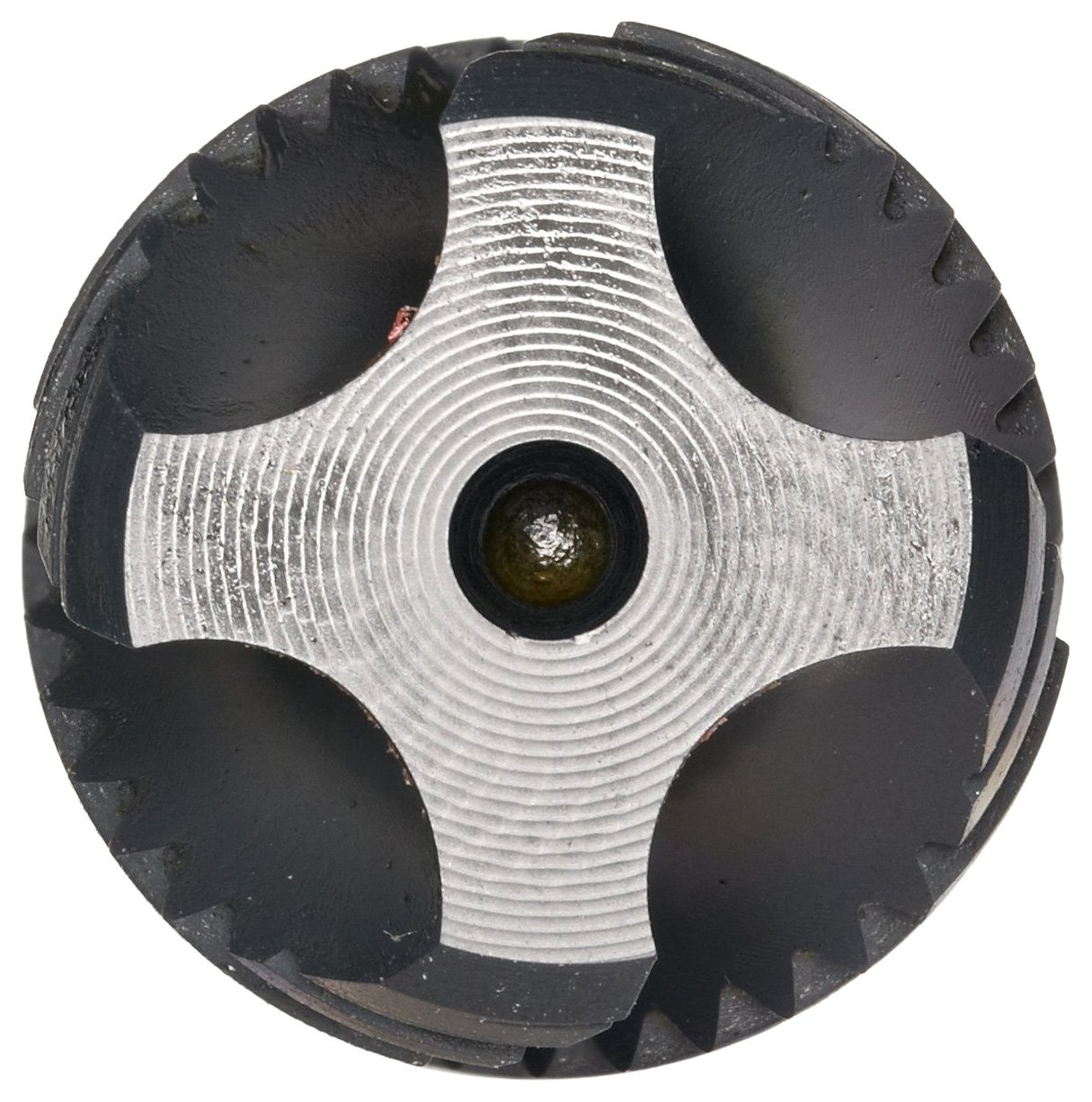

In the Dormer MTT-X E043 series, taps with nominal diameters of 1/8” and 1/4” have three flutes, and taps with nominal diameters of 3/8” to 3/4“ have four flutes. In this series all taps have modified bottoming chamfers. This tool conforms to Dormer ISO standards and can create threads to a depth two-and-a-half times its diameter. It is suitable for normal pipe thread tolerance.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
