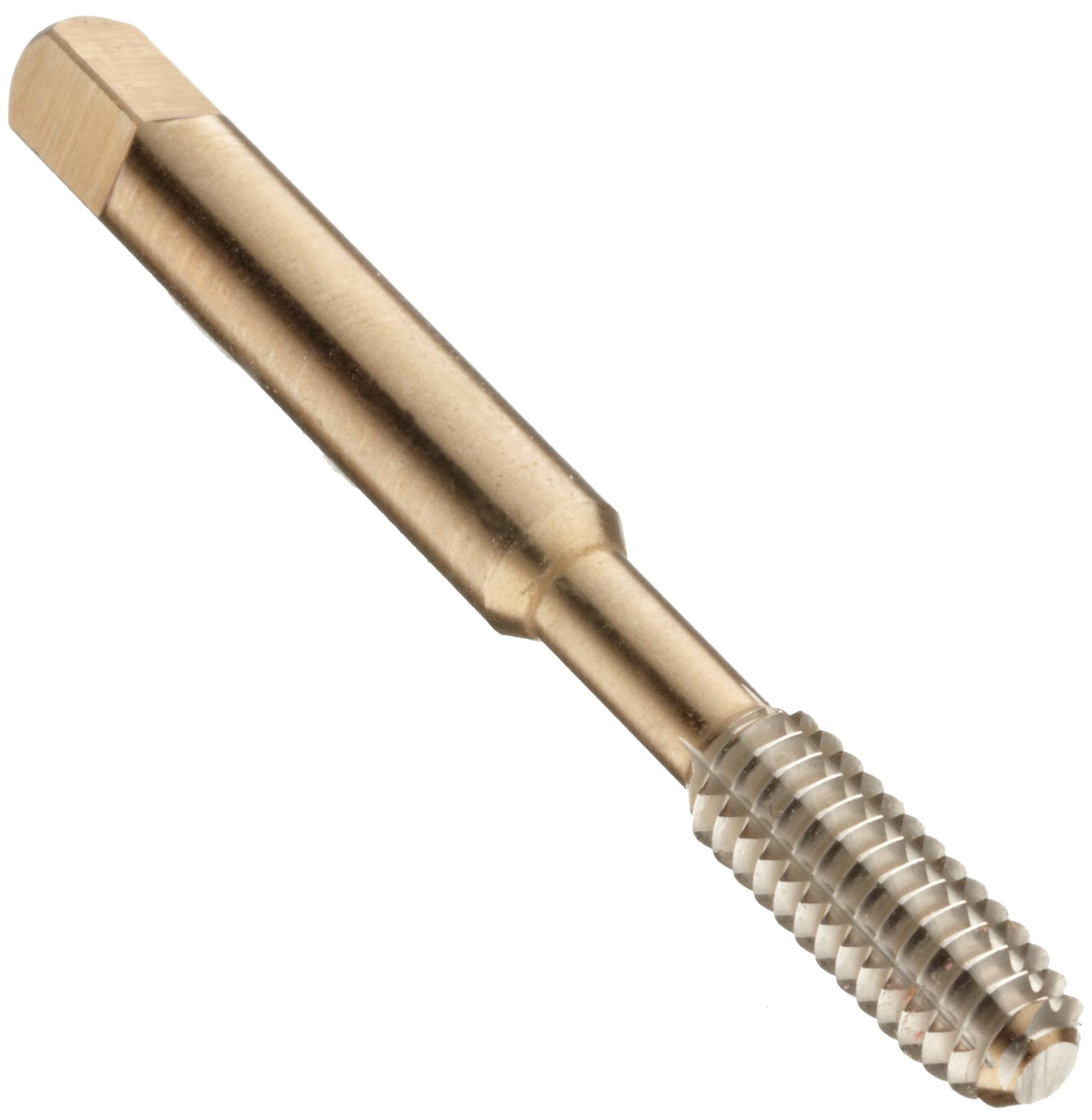

Dormer MTT-X E059/MTT-X E064/MTT-X E074 Powdered Metal Thread Forming Tap, Round Shank With Square End, Modified Bottoming Chamfer

Be the first to review this item

Product Specifications
Brand Name
Dormer
Chamfer Type
Semi-Bottoming
Material Type
High Speed Steel
Pitch Diameter Limit
2B
Shank Type

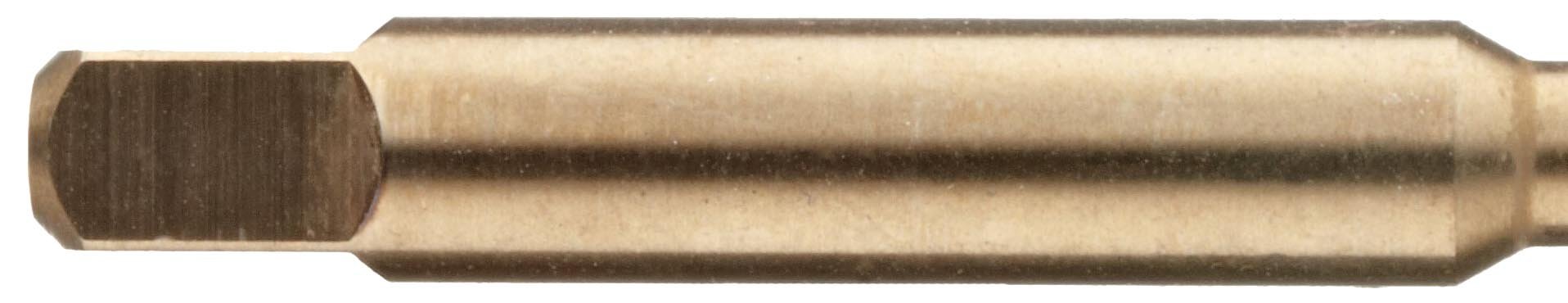

Round With Square End
Surface Coating
Gold Oxide

0 items added

To add items,
choose from the table below



These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tuesday, May 28? Order in-stock items in the next 22 hours 56 minutes and choose One-Day Shipping at checkout.

  • Share
Currently showing 8 of 8
Thread Size Thread Type Manufacturer Series # Number of Flutes Shank Diameter Length of Threads Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price Quantity
All All All All All All All
Currently showing 8 of 8
#6-32 UNC E064 3 0.141" 0.261" 2" 0582640 B003JY6QIE In Stock (1) $23.07
#8-32 UNC E064 3 0.168" 0.2484" 2.125" 0582657 B003JY6QIY In Stock (1) $19.71
#10-24 UNC E064 4 0.194" 0.4303" 2.375" 0582664 B003JY6QFM In Stock (1) $19.57
#12-24 UNC E064 4 0.22" 0.4173" 2.375" 0582671 B003JY6QG6 In Stock (1) $21.53
5/16"-18 UNC E064 5 0.318" 0.5939" 2.7188" 0582695 B003JY6QHU In Stock (1) $20.75
5/16"-24 UNF E074 5 0.318" 0.5939" 2.7188" 0582893 B003JY6S5K In Stock (1) $24.69
3/8"-16 UNC E064 6 0.381" 0.602" 2.9375" 0582701 B003JY6QGQ In Stock (1) $22.73
3/8"-24 UNF E074 6 0.381" 0.602" 2.9375" 0582909 B003JY6S4Q In Stock (1) $23.49

Key Features

  • Powdered metal substrate offers superior performance that approaches that of solid carbide tools but with the toughness and shock-reistance of high-speed steel
  • Gold oxide is a thinner oxide surface treatment than black oxide typically used to identify cobalt steel tools; performance is similar to uncoated tools
  • Right-hand cut tools have a cutting action that engages when they are run in a clockwise direction
  • Thread forming taps MTT-X
