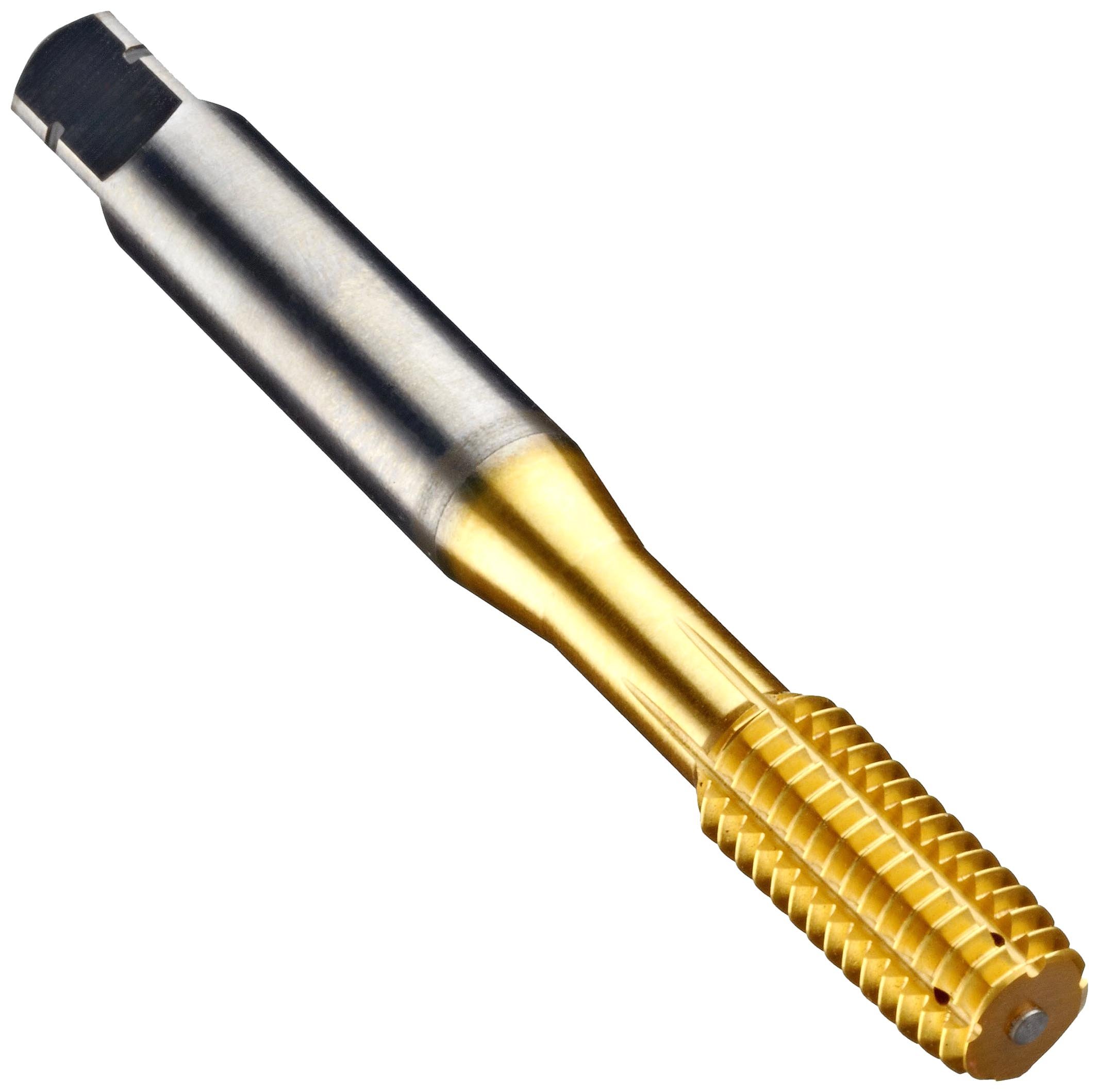

Dormer MTT-X E099 Powdered Metal Thread Forming Tap, Coolant-Through, TiN Coated, Round Shank With Square End, Modified Bottoming Chamfer

Be the first to review this item

Product Specifications
Manufacturer Series Number
MTT-X E099
Finish Types
Shank Type
Round With Square End
Tolerance Held
Material Type
High Speed Steel
Thread Style
Chamfer Type
Brand Name

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 2 days 3 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Currently showing 1-6 of 6
M10-1.5 B003JY6T4A yes $96.80 Buy Options
M12-1.75 B003JY6T4U yes $99.33 Buy Options
M16-2 B003JY6T5E yes $145.87 Buy Options
M4-0.7 B003JY6T68 yes $65.42 Buy Options
M5-0.8 B003JY6T6S yes $73.00 Buy Options
M8-1.25 B003JY6T86 yes $24.01 Buy Options

Key Features

  • Thread forming tap cold-forms threads in through holes and blind holes without producing chips
  • Titanium nitride (TiN) coating for extended tool life and faster cutting speeds than with uncoated tools

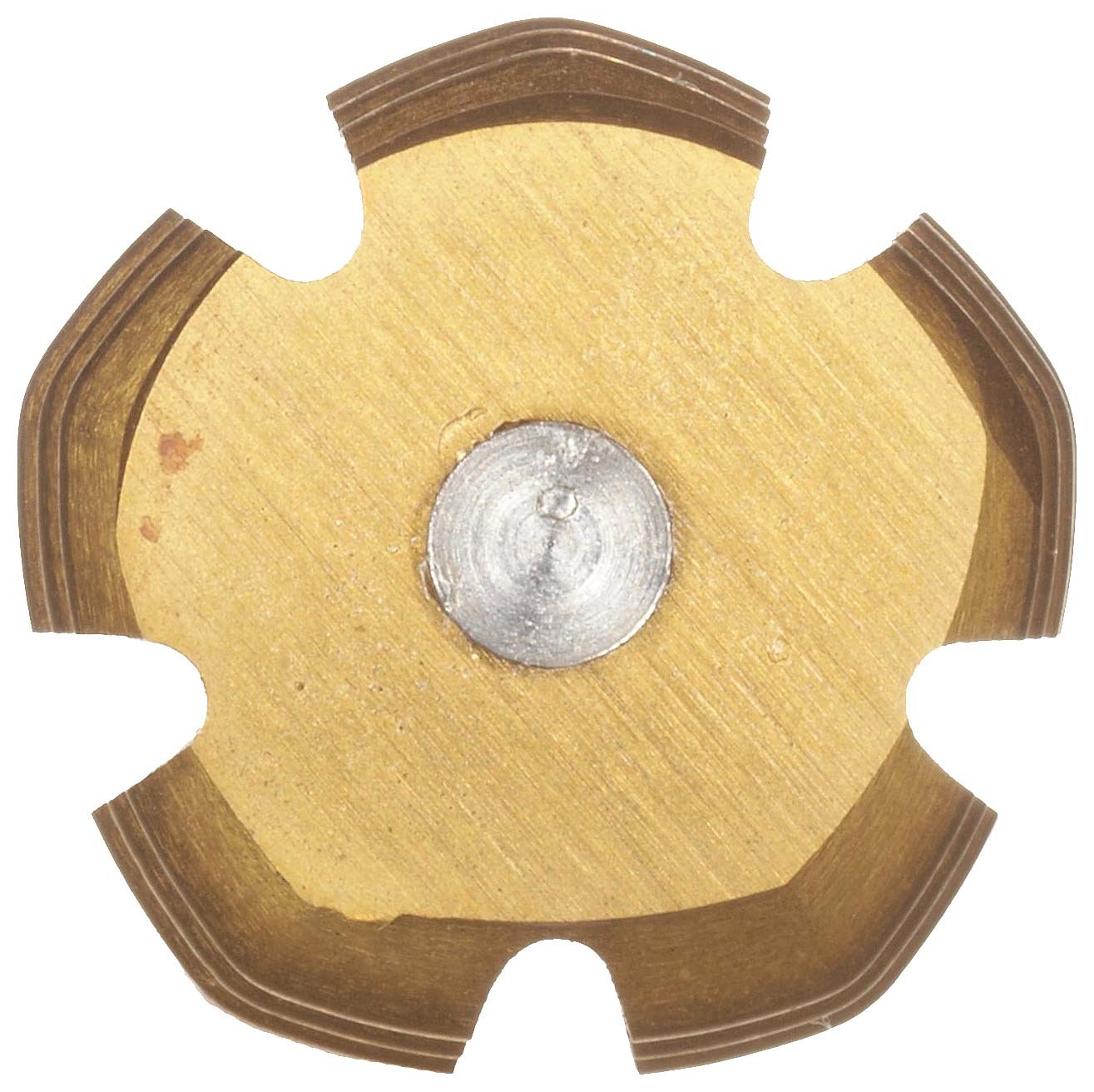

  • Coolant-through channel with radial outlet and external grooves for improved lubricant flow
  • Powdered-metal steel for performance approaching that of solid carbide tools, with the toughness and shock-resistance of high-speed steel

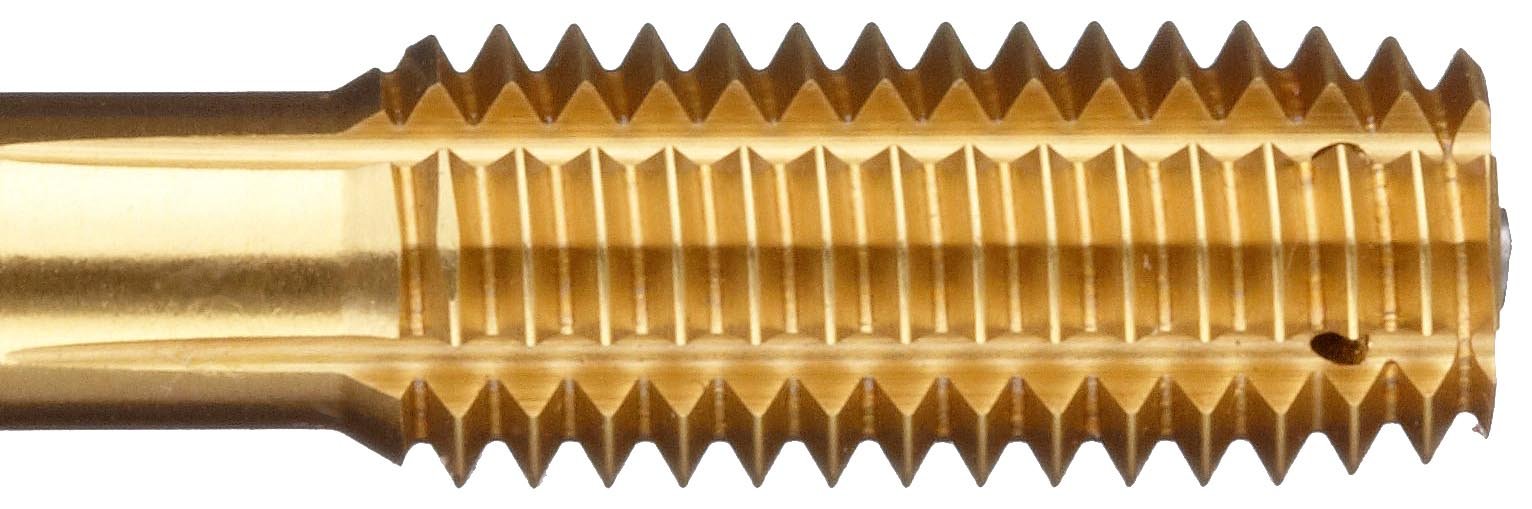

  • Modified bottoming chamfer has additional length to reduce chip load, add tool life, and permit higher tapping speeds

Product Description

The Dormer MTT-X E099 powdered-metal steel thread forming tap has a round shank with a square end, titanium nitride (TiN) coating, lubricant grooves, and a coolant-through channel with a radial outlet, and is used for cold-forming metric right-hand threads in ductile materials such as steel, stainless steel, titanium, nickel, and aluminum. It is suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening). The TiN ceramic coating combines hardness and low friction to extend the life of the tap, as well as permits faster cutting speeds than with uncoated taps. The lubricant grooves on this thread forming tap create paths for coolant and lubricant to reach the taper threads of the chamfer, where forming occurs. The internal coolant channel of this tap has a radial outlet at the tip of the tool that directs lubricant flow to the sides of the chamfer; this capability is valuable in through holes. The tap’s modified bottoming chamfer has additional length to reduce chip load, adds tool life in difficult-to-machine materials, and permits higher tapping speeds.

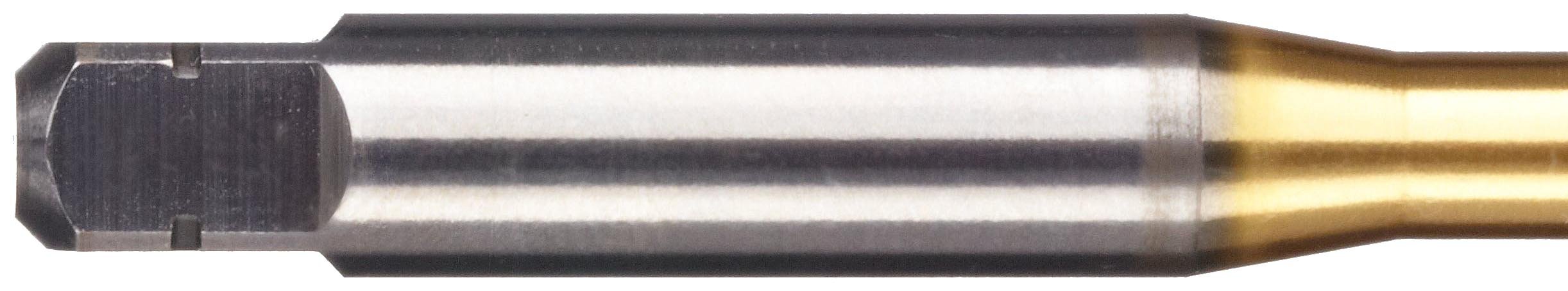

Right-hand threads are designed to tighten when a head or nut is rotated clockwise (the most common threading direction). Powdered-metal steel offers performance that approaches that of solid carbide tools but with the toughness and shock-resistance of high-speed steel. The round shank with square end helps to minimize rotation in the tool holder. This thread forming tap can be used in machines such as drill presses or lathes.

In the Dormer MTT-X E099 series, taps are designed with varying numbers of lubricant grooves depending upon size. All taps in this series have modified bottoming chamfers. This tap conforms to ISO 529 standards and can create threads to a depth three times its diameter. It is suitable for the 6HX tolerance class: 6HX exceeds the standard tolerance to increase tool life in tapping high-strength or abrasive materials that do not create oversize problems.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
