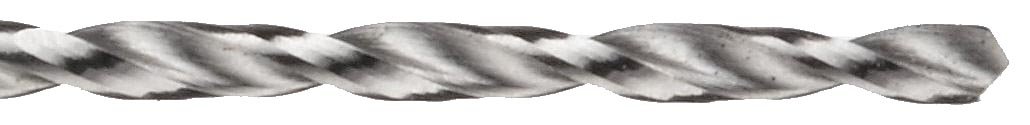

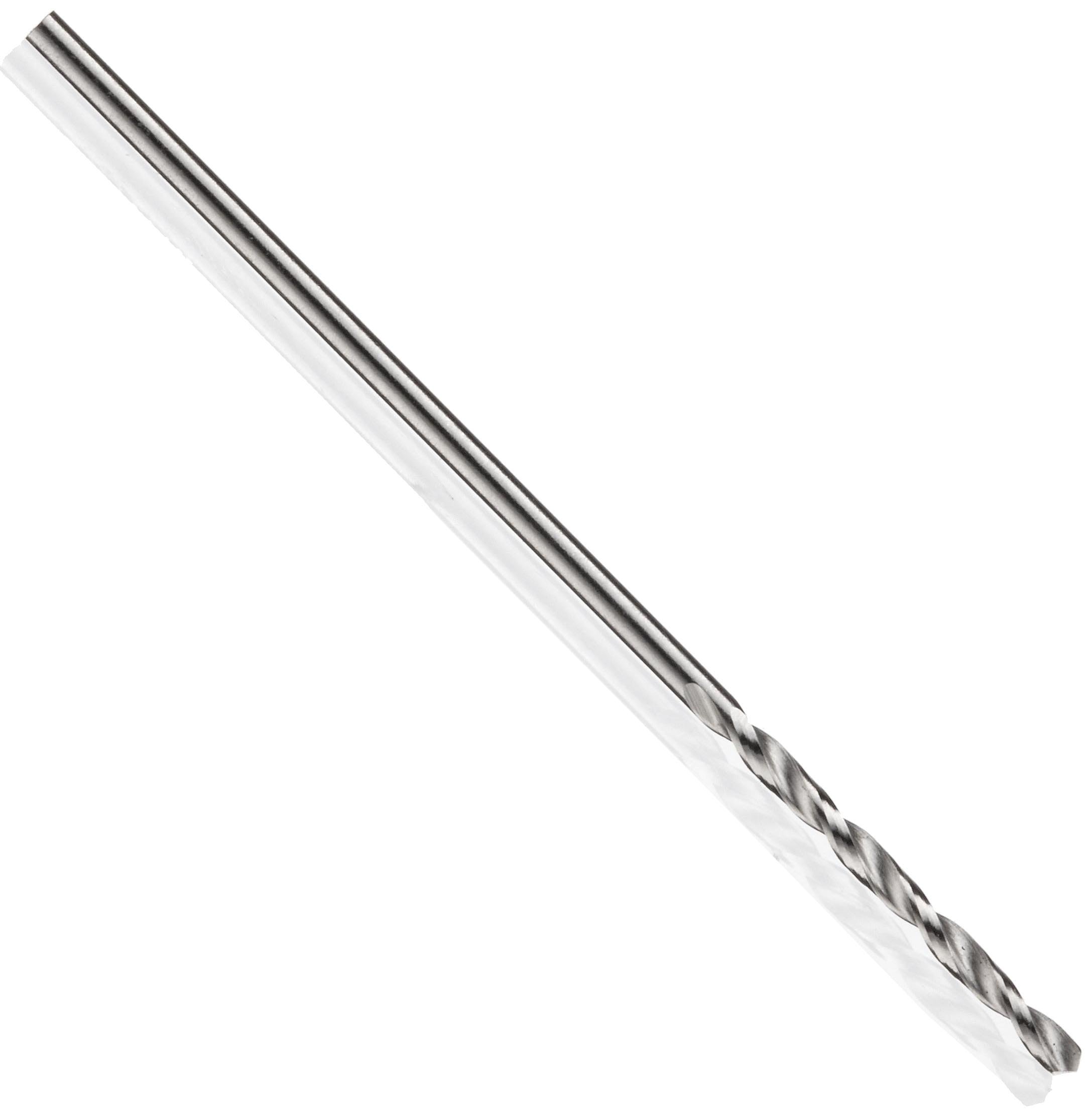

Dormer A191 High Speed Steel Jobber Length Drill Bit Set with Plastic Case, Black Oxide Finish, 118 Degree Conventional Point, Wire Size, 20 piece, #80 to #61

Be the first to review this item

ASIN B0001P020W

Specifications for this item
Cutting Direction
Right-Hand
Number of Items
1
Finish Types
Black Oxide
Material Type
High-Speed Steel
Drill Point
conventional
Part Number
179499
Cutting Angle
118  Degrees
Brand Name
Dormer
Flute Type
Spiral
EAN
7320760179499
Manufacturer Series Number
A191
Shank Type

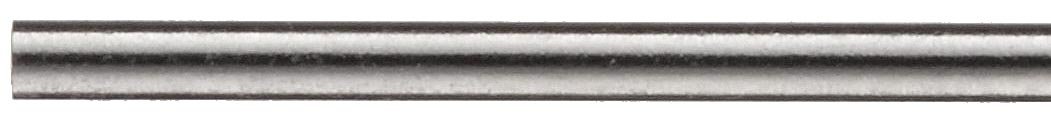

Round
UNSPSC Code
20121600
Style Name
Jobber
System of Measurement
Wire Gauge

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Aug 5? Order in-stock items in the next 2 days 19 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Set of 20 jobber length drill bits includes one each of wire gauge sizes #80 through #61
  • High-speed steel (HSS) provides hardness for wear resistance
  • Black oxide finish reduces bit wear while promoting chip and coolant flow on ferrous material

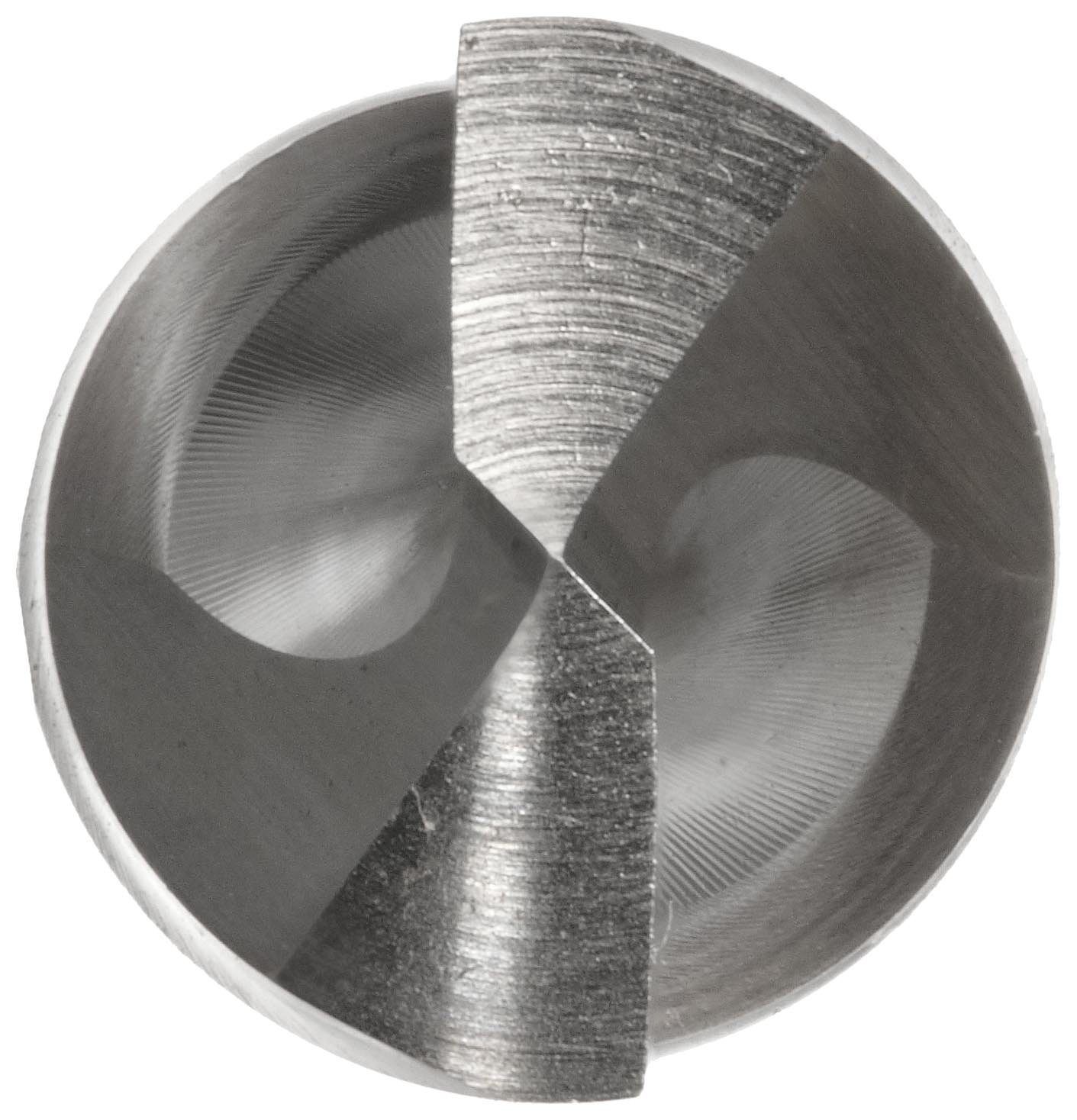

  • 118-degree conventional point for a range of drilling applications
  • Drill bits conform to DIN 338 standard

Package Details

Shipping Weight: 0.55 pounds
Package Size: 4.3 x 2 x 0.3 inches

Product Description

This Dormer A191 jobber length drill bit set contains 20 high-speed steel drill bits, one each of wire gauge sizes #80 through #61, with a black oxide finish and a 118-degree conventional point for use in general-purpose applications on ferrous material. High-speed steel (HSS) provides hardness for wear resistance, and the black oxide finish acts as a lubricant to reduce wear while promoting chip and coolant flow. These jobber length drill bits have a drilling depth up to four times their diameter. The round shank accommodates most drill chucks. The set comes in a plastic index case with labeled compartments for identification and organization. Drill bits conform to Deutsches Institut für Normung (DIN) 338 standard.

Drill bits are cutting tools used to make holes in a range of materials using machines such as handheld portable drills, machining centers, and lathes. Drill bits come in a variety of lengths and types, the most common of which is the twist drill bit. The round, twisted shaft of the twist drill bit typically has two cutting edges and flutes. The helical twist of the flutes brings chips up and away from the cutting edges and allows for coolant to reach the cutting edges. Jobber length twist drill bits, the most common length of twist drill bit, offer a good compromise of length and reach to work with the widest range of materials and applications. Mechanic's length twist drill bits (also called maintenance length) are a little shorter than jobber length and less prone to deflection when drilling. Short length twist drill bits (also called stub or screw-machine length) are the shortest and stiffest twist drill bits, helping to reduce the chance of deflection or breakage when drilling. Reduced shank drill bits (also called Silver and Deming drill bits) have a shank that is smaller in diameter than its shaft, permitting drilling machines with either a 1/2" or 3/4" drill chuck to create large holes. Long length twist drill bits (also called taper length) are a little longer than jobber length, allowing for deeper holes and longer reach. Extra long twist drill bits (also called extension) are longer than long length twist drill bits for greater reach or for drilling deeper holes.

Precision Dormer manufactures cutting tools under the brands Precision Twist, Dormer, and Union Butterfield. The company, headquartered in Crystal Lake, IL, meets International Organization for Standardization (ISO) standards 9001 and 14000.

What’s in the Box?

  • 20 drill bits, one each of wire gauge sizes #80 through #61

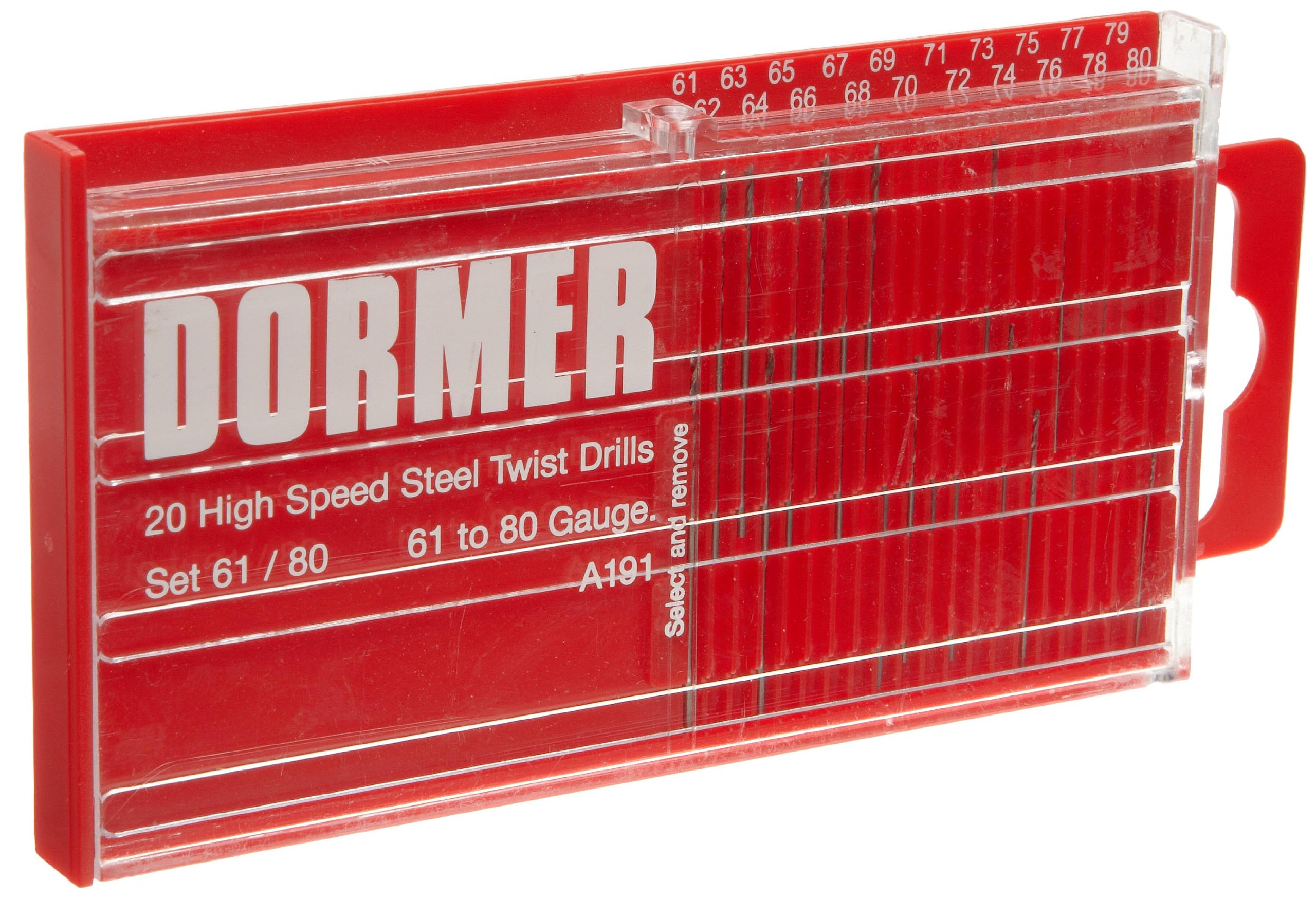

  • Plastic case

How can we improve our Product Description?

Customer Reviews

There are no customer reviews yet.

Be the first to review this item
