Dormer A097 High Speed Steel Jobber Drill Bit Set, Bright Finish with TiN Coated Tip, Round Shank, 118 Degree Split Point

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
TiN
Shank Type
Round
Material Type
High-Speed Steel
Drill Point
118 Degrees
UNSPSC Code
20121600
Cutting Angle
118  Degrees
Brand Name
Dormer
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Sep 19? Order in-stock items in the next 9 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Size Mfg Series # System of Measurement Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-6 of 6
#60 - #1 A097 Wire Gauge 1 574324 B003JY5YNC yes $91.15 Buy Options
1/16-1/4" A097 Inch 1 574355 B003JY5YQE yes $28.03 Buy Options
1/16-1/2" A097 Inch 1 574362 B003JY5YPK yes $338.98 Buy Options
1/16-1/2" A097 Inch 1 574348 B003JY5YPA yes $52.81 Buy Options
1/16-1/2" A097 Inch 1 574317 B003JY5YOG Usually ships in 2 to 5 weeks $95.82 Buy Options
A-Z A097 Letter Gauge 1 574331 B003JY5YNW yes $108.93 Buy Options

Key Features

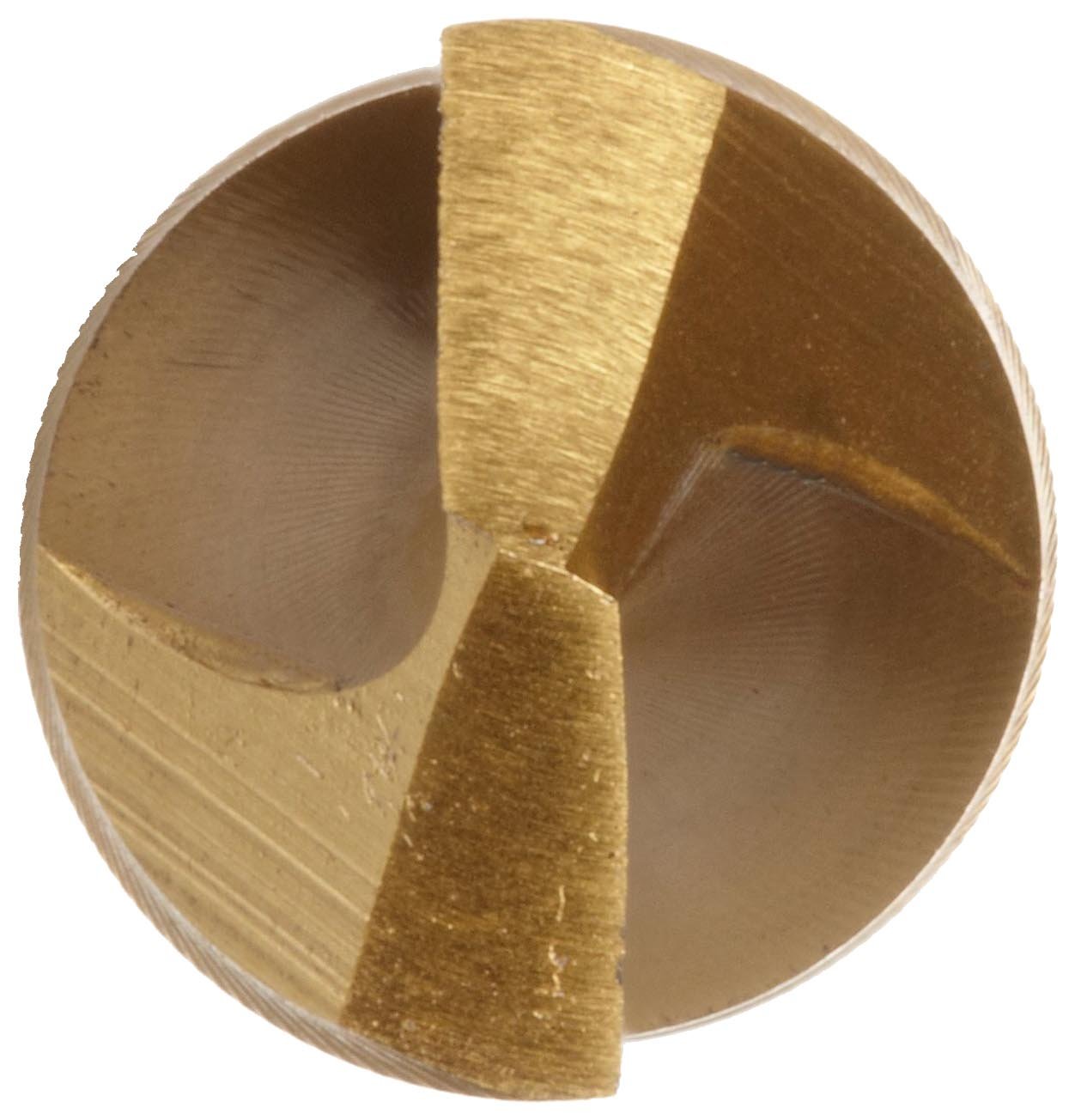

  • Special Dormer PS 118-degree split-point angles are self-centering, to reduce walking, good for hard material, and to reduce pressure on cutting edges

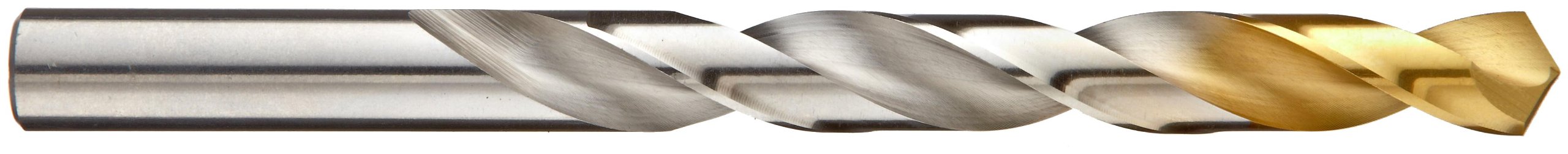

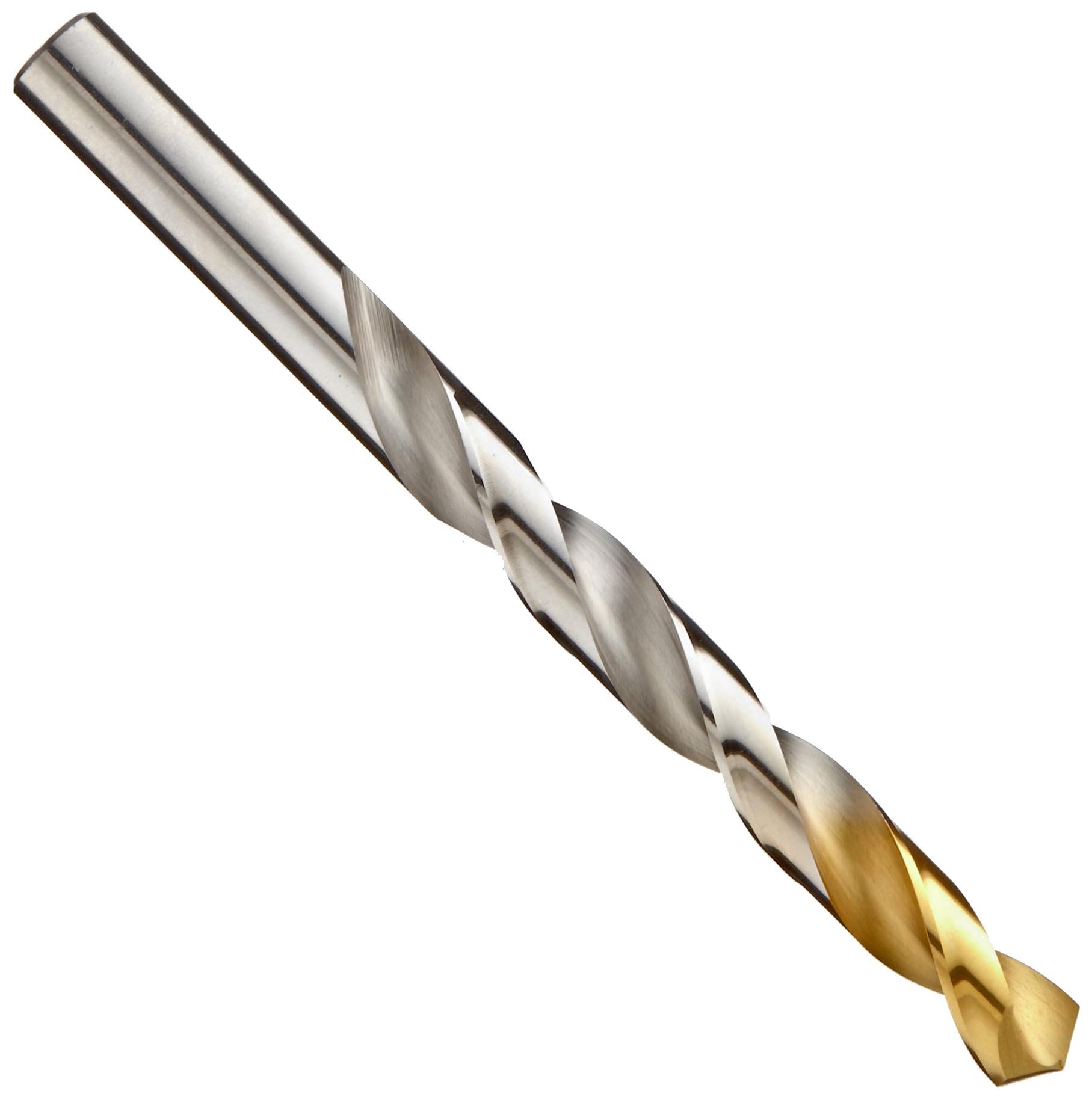

  • Uncoated (bright) finish with Titanium Nitride (TiN) only at the tip, for hardness and heat resistance
  • Variable length, for a wide range of applications
  • High-speed steel (HSS), for use on a wide variety of materials
  • Round shanks, for use on a variety of tool-holding systems

Product Description

The Dormer A097 variable-length, TiN-tipped, general-purpose, round-shank drill bit set, offers a set of drills to drills holes into a wide variety of metals and synthetic materials. It can drill to a depth up to four times the diameter of the drill size. The shank diameter is the same as the drill size.

The A097 series has a type N flute form, with a regular helix (21 to 34 degrees) angle and with a special Dormer PS point geometry which offer easier workpiece penetration, improved hole size, and accurate centering when starting the hole. The TiN finish is a gold-colored ceramic coating that is hard and has low friction, permitting faster cutting speeds than uncoated materials. The jobber length offers a good compromise between reach and rigidity.

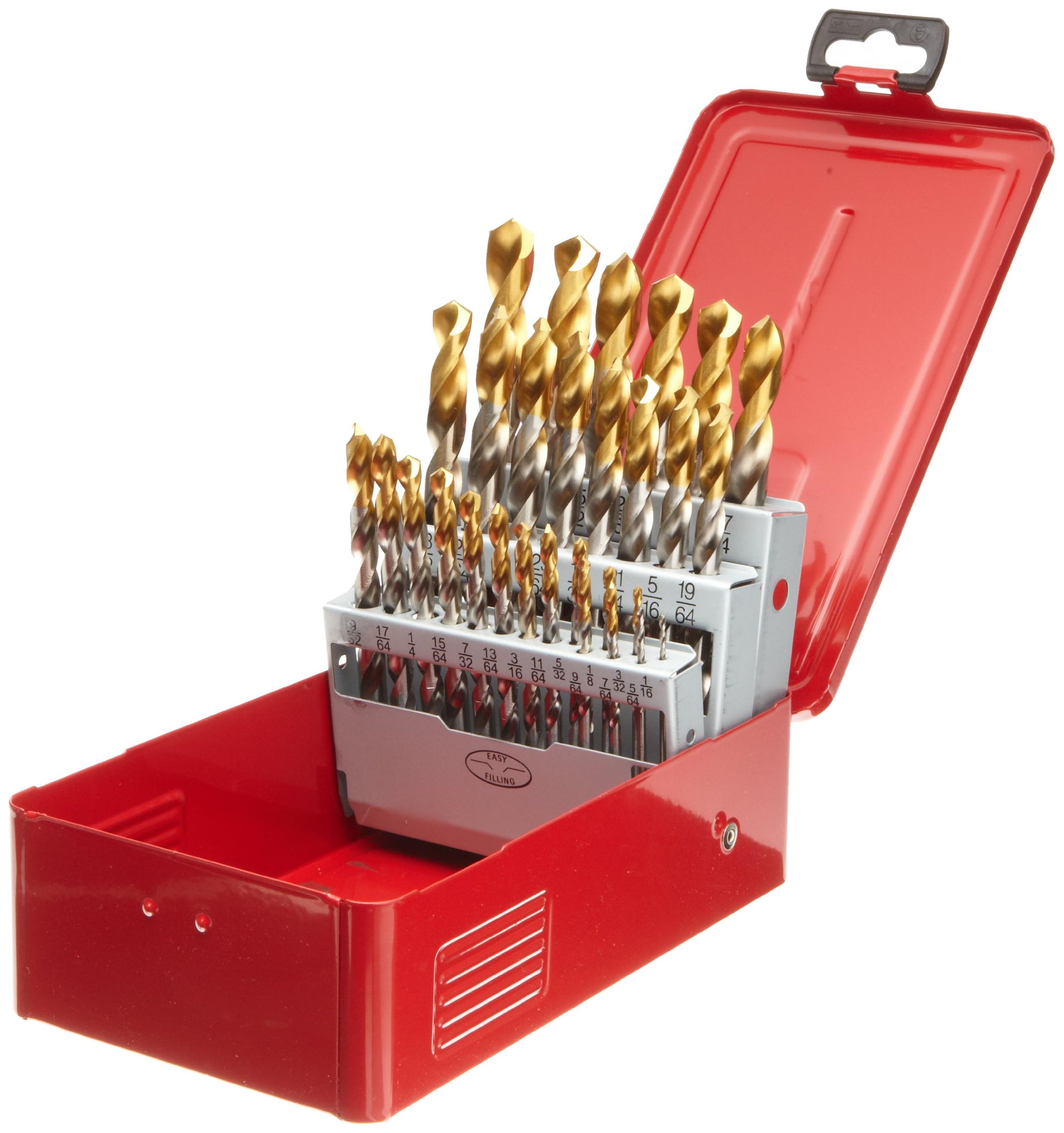

This set has the following options: Style 18, tool type A012, number in set 29, and set sizes 1/16 – 1/2 x 1/64; style 20, tool type A012, number in set 15, sizes 1/16 – 1/2 x 1/32; style 60, tool type A012, number in set 13, sizes 1/16 – 1/4 x 1/64; style 12, tool type A012, number in set 60, sizes Nr. 1 – Nr. 60; style 14, tool type A012, number in set 26, sizes A to Z; style 30, tool type A012, number in set 115, sizes 1/16 – 1/2 x 1/64, Nr. 1 – Nr. 60, A to Z.

Drilling, or hole making, is the most common metalworking operation in the world. Twist drill bits are the most common type of drill bit used. Twist drill bits can be used in hand-operated drills, standalone drill presses, or a lathe. They are made to ANSI industry standards, which ensure that drill bits around the world, confirm to the same specifications.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
