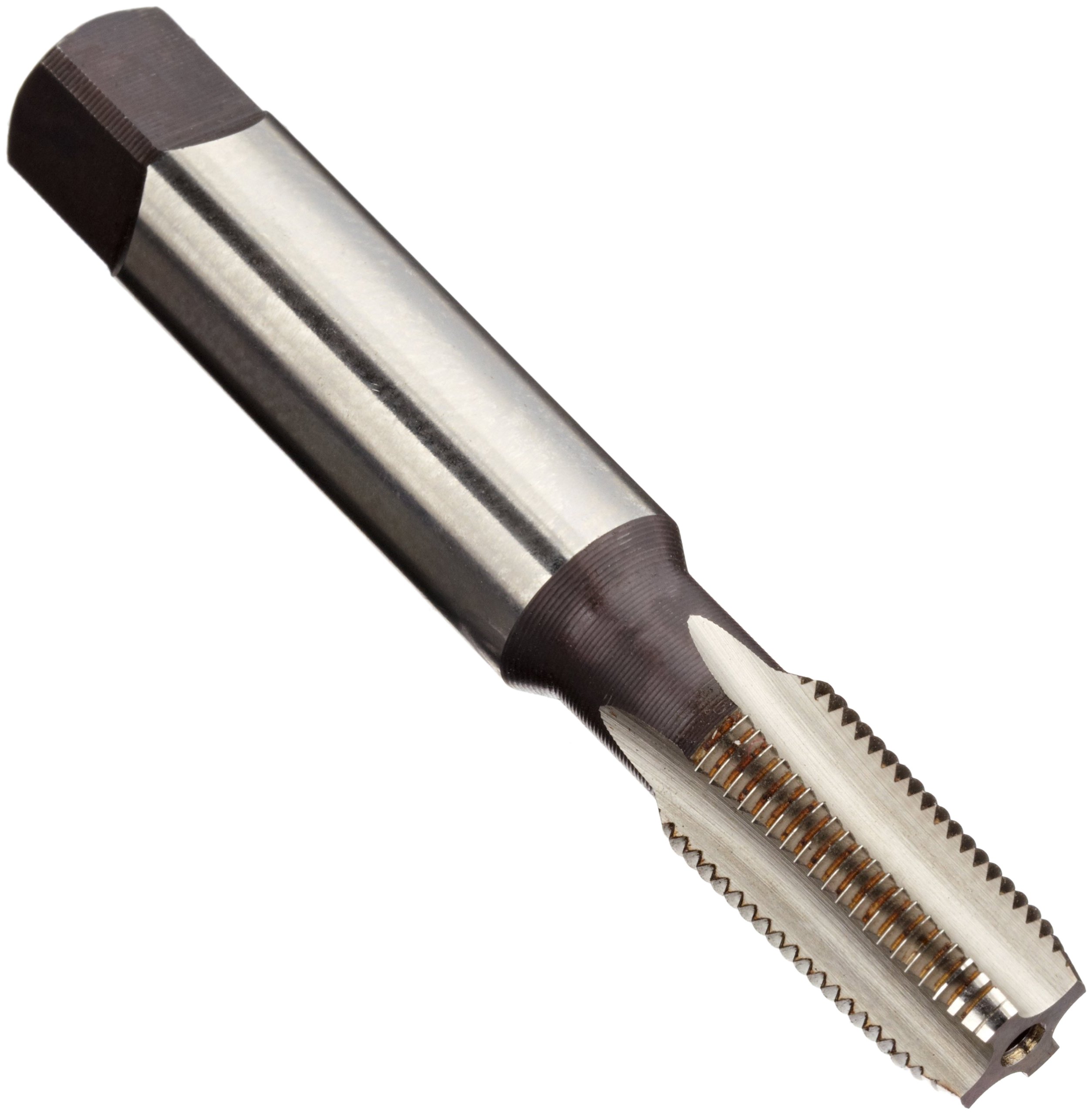

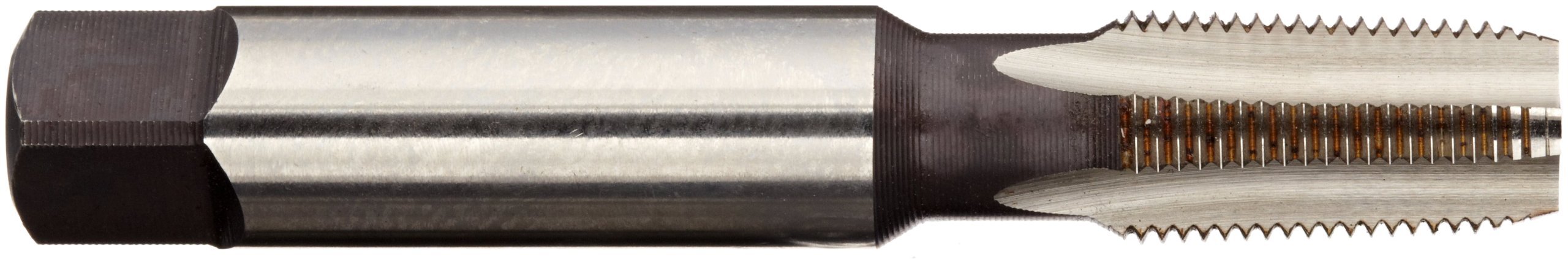

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Dormer E710 High-Speed Steel Pipe Tap, NPT, Uncoated (Bright) Finish, Round Shank With Square End, Modified Bottoming Chamfer

Be the first to review this item

Product Specifications
Manufacturer Series #
E710
Surface Coating
Uncoated (Bright)
Shank Type
Round With Square End
Pitch Diameter Limit
6H
Material Type
High Speed Steel
Thread Type
NPT
UNSPSC Code
31201519
Chamfer Type
Semi-Bottoming
Brand Name
Dormer

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 10 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Thread Size Number of Flutes Shank Diameter Length of Threads Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-15 of 15
1/16"-27 4 8.1 mm 17 mm 65 mm 159491 B003JY71CE yes $22.05 Buy Options
1/8"-27     19 mm 70 mm 210314 B003JY71FQ yes $44.92 Buy Options
1/8"-27 4 11.1 mm 19 mm 70 mm 99889 B003JY71EW yes $21.96 Buy Options
1/4"-18     27 mm 75 mm 210321 B003JY71EC yes $58.67 Buy Options
1/4"-18 4 14.3 mm 27 mm 75 mm 99872 B003JY71E2 yes $19.71 Buy Options
3/8"-18 4 17.8 mm 27 mm 80 mm 99919 B003JY71HY yes $27.21 Buy Options
3/8"-18     27 mm 80 mm 210338 B003JY71II yes $92.16 Buy Options
1/2"-14     35 mm 100 mm 210345 B003JY71D8 yes $59.35 Buy Options
1/2"-14 4 17.5 mm 35 mm 100 mm 99865 B003JY71CO yes $12.36 Buy Options
3/4"-14     35 mm 105 mm 210352 B003JY71HE yes $185.57 Buy Options
3/4"-14 5 23 mm 35 mm 105 mm 99902 B003JY71GK yes $50.82 Buy Options
1-1/4"-11.5 5 33.3 mm 43 mm 125 mm 99858 B003JY71BK yes $114.15 Buy Options
1-1/2"-11.5 7 38.1 mm 43 mm 135 mm 99841 B003JY71B0 yes $115.89 Buy Options
1"-11.5 5 28.6 mm 43 mm 115 mm 99834 B003JY71AG yes $80.40 Buy Options
2"-11.5 7 47.6 mm 43 mm 145 mm 99896 B003JY71GA yes $131.32 Buy Options

Key Features

  • Pipe tap cuts threads in pipes and pipe fittings
  • Straight flutes to cut threads in through holes and blind holes
  • NPT (National Pipe Taper) threads for tighter seals than straight threads
  • High-speed steel is compatible with a variety of materials
  • Modified bottoming chamfer has additional length to reduce chip load, add tool life, and permit higher tapping speeds

Product Description

The Dormer E710 uncoated, high-speed steel pipe tap has straight flutes and a round shank with a square end, and is used to create NPT (National Pipe Taper) right-hand threads in a range of materials. NPT is an ANSI-standard thread configuration intended for use with a sealant to create a leak-free tapered pipe joint. The straight flutes of this tap are suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening). The modified bottoming chamfer has additional length to reduce chip load, add tool life in difficult-to-machine materials, and permit higher tapping speeds.

Right-hand threads are designed to tighten when a head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools. The round shank with square end helps to minimize rotation in the tool holder. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

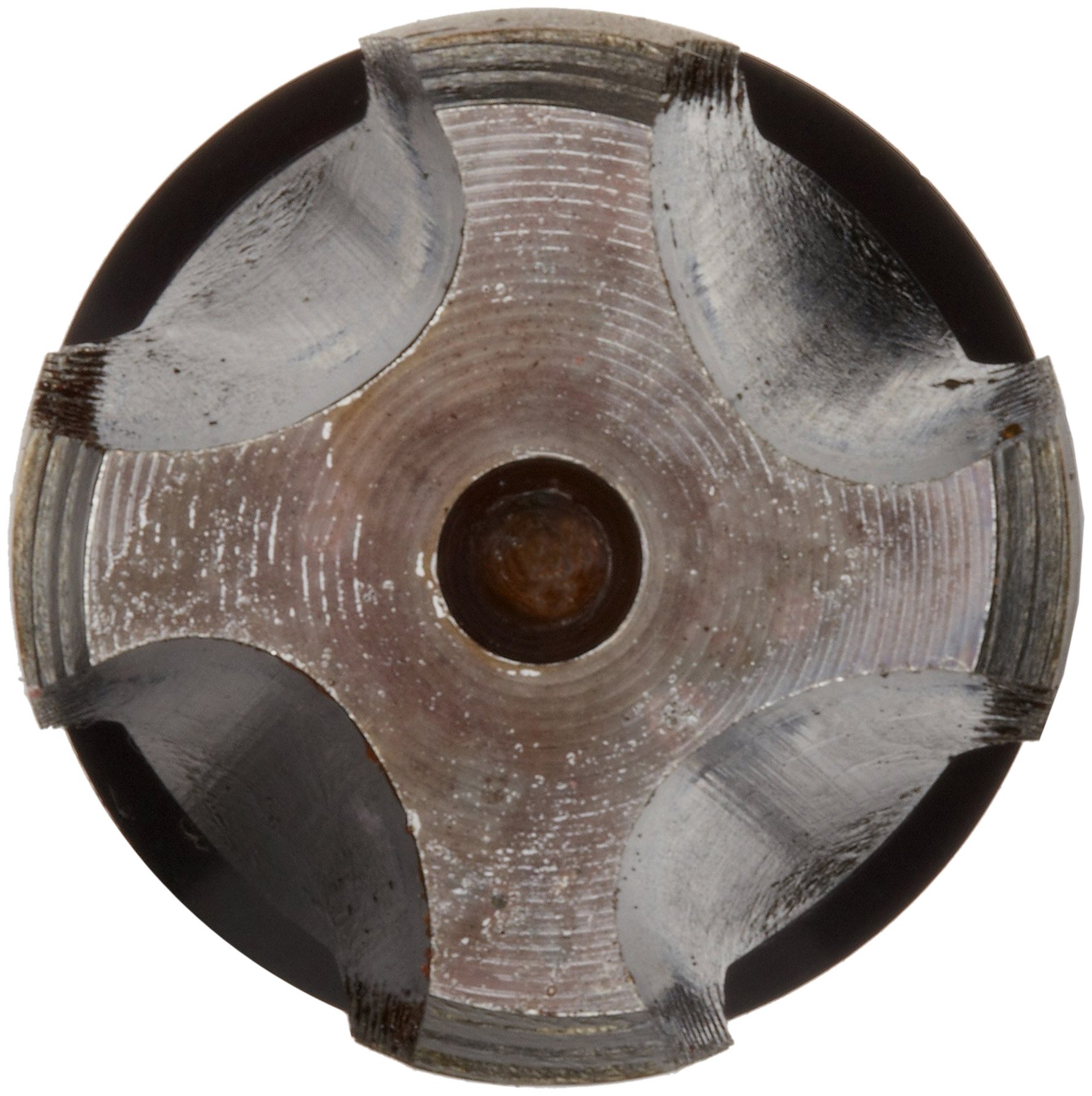

In the Dormer E710 series, taps with nominal diameters of 1/16” to 1/2” have four flutes, taps with nominal diameters of 3/4” to 1-1/4“ have five flutes, and taps with nominal diameters of 1-1/2” and 2” have seven flutes. In this series all taps have modified bottoming chamfers. This tool conforms to ANSI B94.9 standards and can create threads to a depth one-and-a-half times its diameter. It is suitable for normal pipe thread tolerance.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
