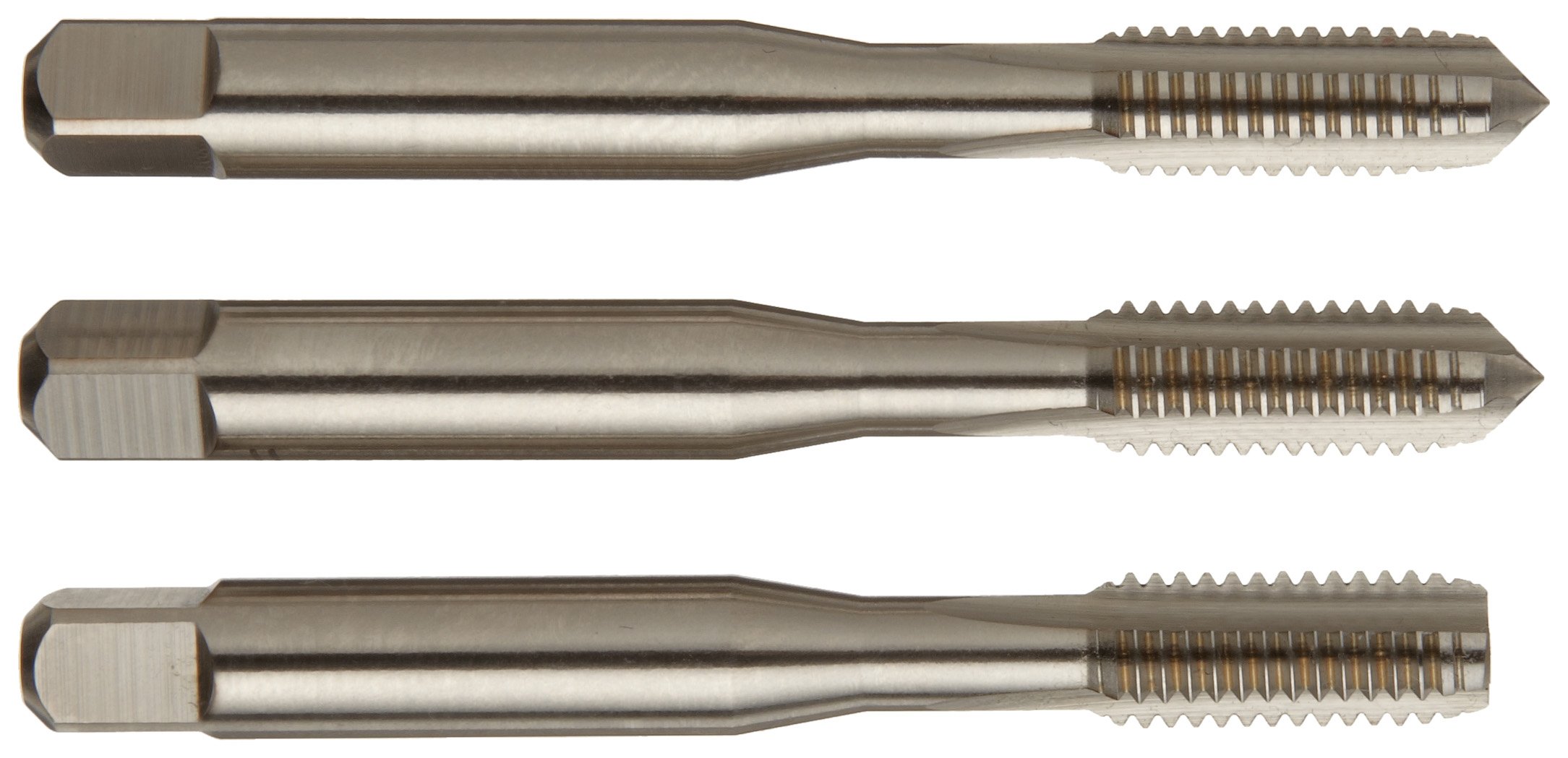

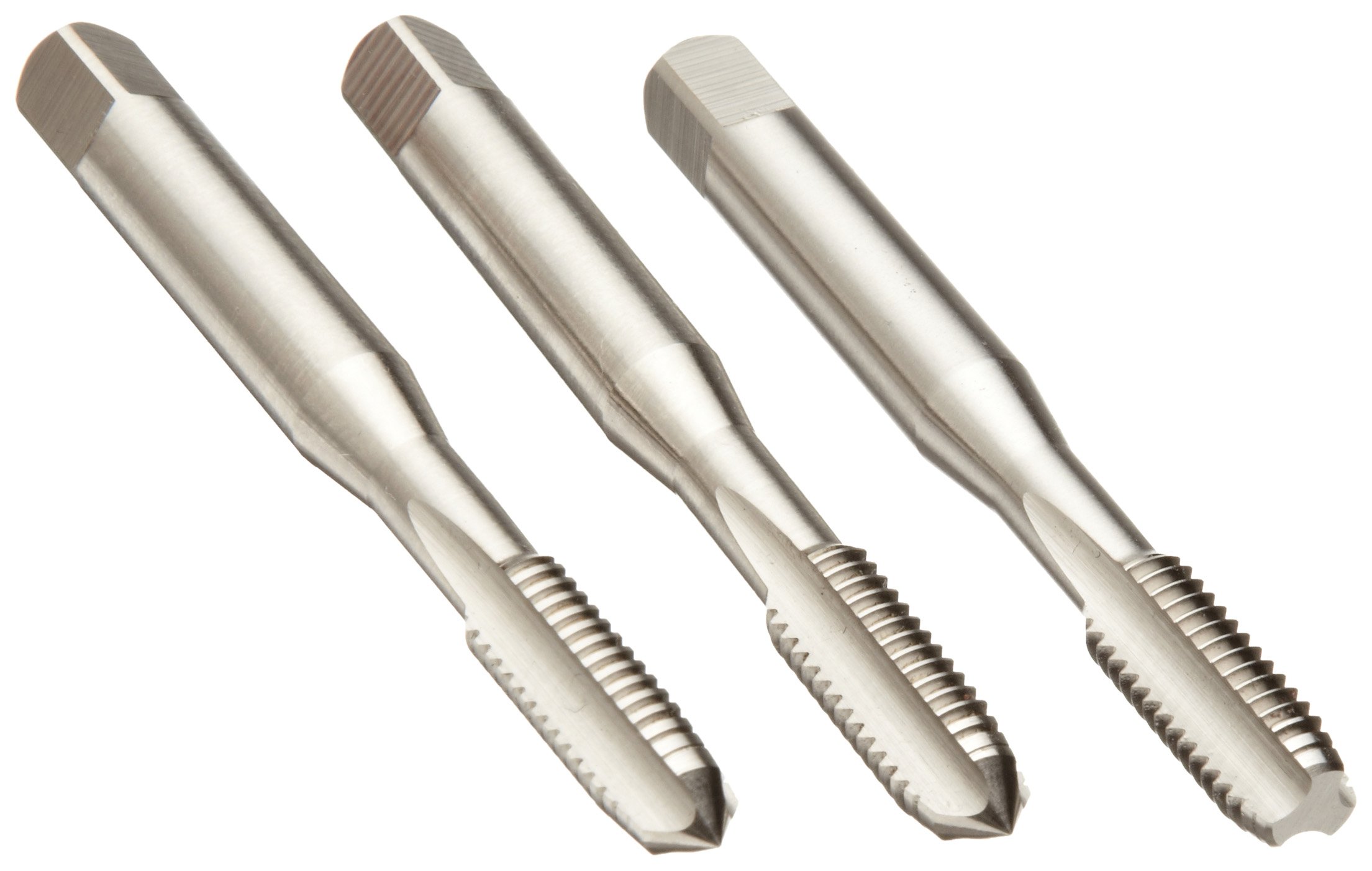

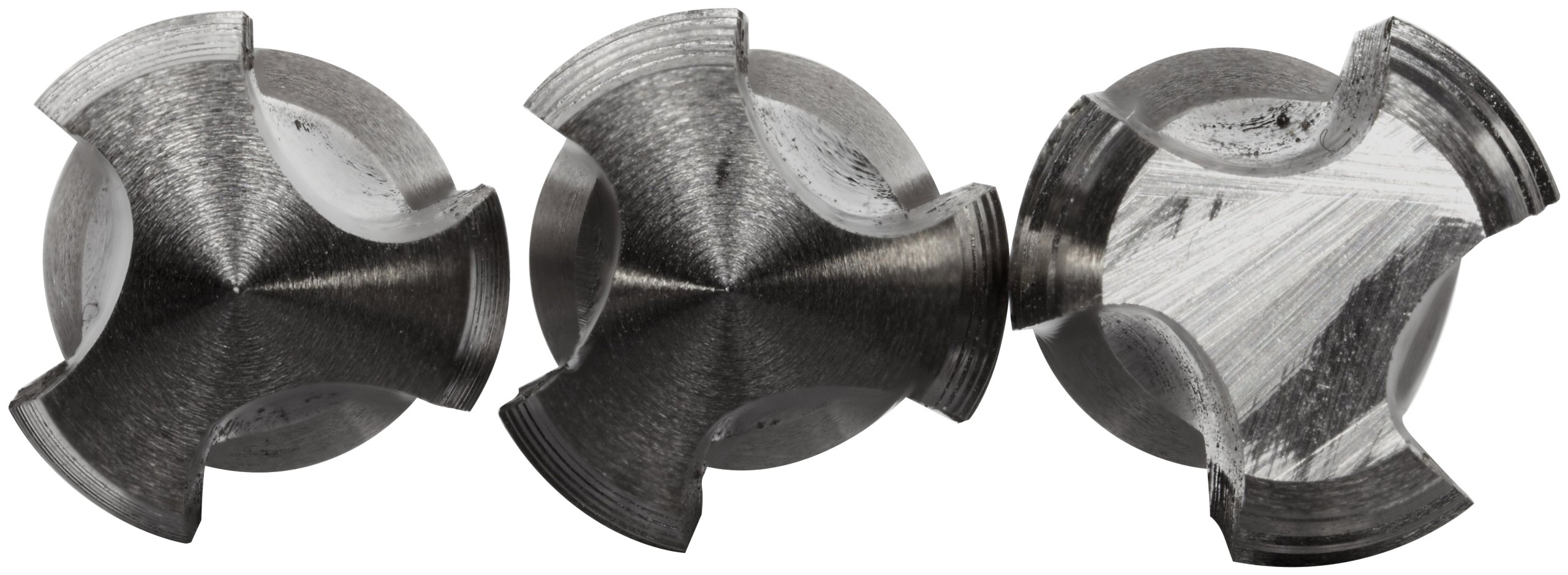

Dormer E500 High-Speed Steel Straight Flute Tap Set, Uncoated (Bright) Finish, Round Shank with Square End, 3-Piece Set (1 Each of Incomplete Profile Taper and Plug Chamfers, 1 Standard Bottoming Chamfer)

Be the first to review this item

Product Specifications
Manufacturer Series #
E500
Surface Coating
Uncoated (Bright)
Shank Type
Round With Square End
Pitch Diameter Limit
6H
Material Type
High Speed Steel
Thread Type
Metric
UNSPSC Code
27112806
Chamfer Type
Multiple
Brand Name
Dormer

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 1? Order in-stock items in the next 5 hrs 52 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 24 Next 4 »
Thread Size Number of Flutes Shank Diameter Length of Threads Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 24 Next 4 »
M1.6-0.35 2   8 mm 41 mm 93917 B003JY6TG8 yes $76.06 Buy Options
M1.7-0.35 2   8 mm 41 mm 154977 B003JY6TJA yes $60.07 Buy Options
M1.8-0.35 2   8 mm 41 mm 93962 B003JY6TMM yes $62.83 Buy Options
M2-0.4 3   8 mm 41 mm 94280 B003JY6UTE yes $40.19 Buy Options
M2.2-0.45 3   9.5 mm 44.5 mm 94181 B003JY6U8K yes $50.94 Buy Options
M2.5-0.45 3   9.5 mm 44.5 mm 94242 B003JY6UE4 yes $39.40 Buy Options
M3-0.5 3   12.5 mm 48 mm 94471 B003JY6V70 yes $21.97 Buy Options
M3.5-0.6 3   14 mm 50 mm 94433 B003JY6UY4 yes $21.81 Buy Options
M4-0.7 3   14 mm 53 mm 94679 B003JY6VM0 yes $21.81 Buy Options
M4.5-0.75 3   9.5 mm 53 mm 94631 B003JY6VD4 yes $21.81 Buy Options
M5-0.8 3   11 mm 58 mm 94785 B003JY6VWK yes $22.26 Buy Options
M6-1 3   13 mm 66 mm 94839 B003JY6W24 yes $8.38 Buy Options
M7-1 3   13 mm 66 mm 94860 B003JY6W4W yes $23.67 Buy Options
M8-1.25 3   16 mm 72 mm 94907 B003JY6W88 yes $24.69 Buy Options
M9-1.25 3   16 mm 72 mm 94921 B003JY6WC4 yes $27.89 Buy Options
M10-1.5 2   18 mm 80 mm 93993 B003JY6TP4 yes $40.77 Buy Options
M11-1.5 3 8 mm 19 mm 85 mm 94020 B003JY6TRM yes $37.25 Buy Options
M12-1.75 3   22 mm 89 mm 94068 B003JY6TUO yes $43.33 Buy Options
M14-2 4   24 mm 95 mm 94099 B003JY6TXG yes $62.37 Buy Options
M16-2 4   24 mm 102 mm 94129 B003JY6TZY yes $75.62 Buy Options

Key Features

  • Hand threading tap set with straight flutes cuts threads in through holes and blind holes
  • Available in Metric Coarse (M) or Metric Fine (MF) right-hand thread options for different applications
  • Incomplete-profile taper and plug chamfer taps to cut full-size thread in gradual steps
  • High-speed steel for compatibility with a variety of materials
  • Uncoated (bright) tools have no additional surface treatment or coating, for use on a broad range of materials

Product Description

The Dormer E500/E513 uncoated, high-speed steel three-piece hand threading tap set (including incomplete-profile taper and plug chamfers, with standard bottoming chamfer) has straight flutes and round shanks with square ends, and is used to create metric right-hand threads in a range of materials. It is available in two different thread specification standards: Metric Coarse (M) or Metric Fine (MF). The straight flutes are suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening). Incomplete thread profiles provide a more gradual approach to tapping: the taper and plug chamfers with incomplete thread profiles are longer, with lower pitch and outer diameter than the complete thread profile standard. Use of either incomplete-profile tap in this set must be followed by use of the standard bottoming tap to finish the threads to full size.

Right-hand threads are designed to tighten when the head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provides an economical alternative to coated tools. The round shank with square end makes it suitable for hand or power-driven applications. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

In the Dormer E500/E513 series, E500 taps are available in Metric Coarse (M) sizes; E500 taps with nominal diameters of 1 mm to 1.8 mm have two flutes, taps with nominal diameters of 2 mm to 12 mm have three flutes, taps with nominal diameters of 14 mm to 39 mm have four flutes, and taps with nominal diameters of 42 mm to 56 mm have six flutes. E513 taps are available in Metric Fine (MF) sizes; E513 taps with nominal diameters of 3 mm to 13 mm have three flutes, taps with nominal diameters of 14 mm to 39 mm have four flutes, and taps with nominal diameters of 40 mm to 50 mm have six flutes. This tap set conforms to ISO 529 standards. A tap from this set can create threads to a depth 1 1/2 times its diameter. It is suitable for the 6H tolerance class: 6H is used for a normal length of thread engagement and medium tolerance quality.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
