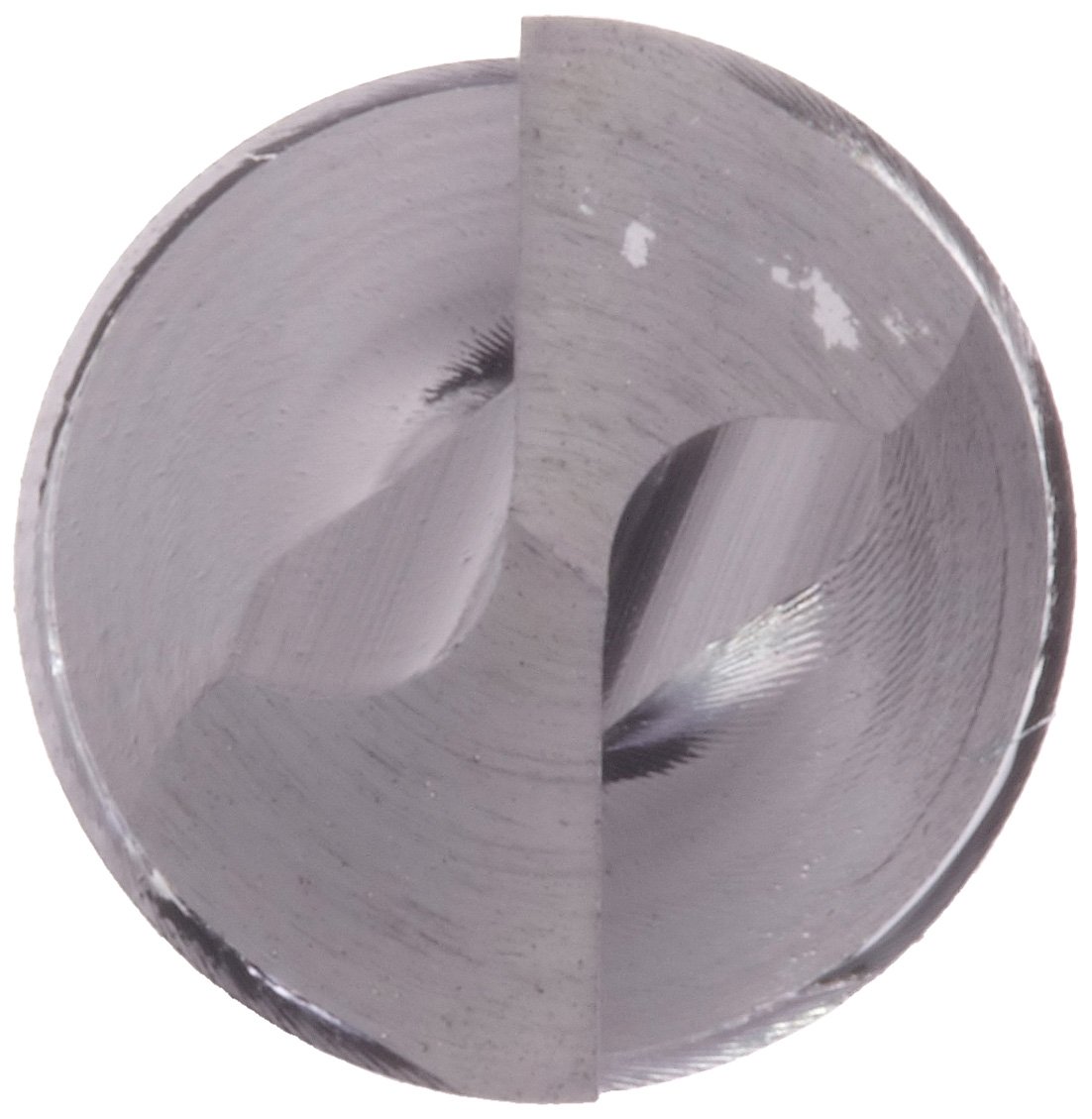

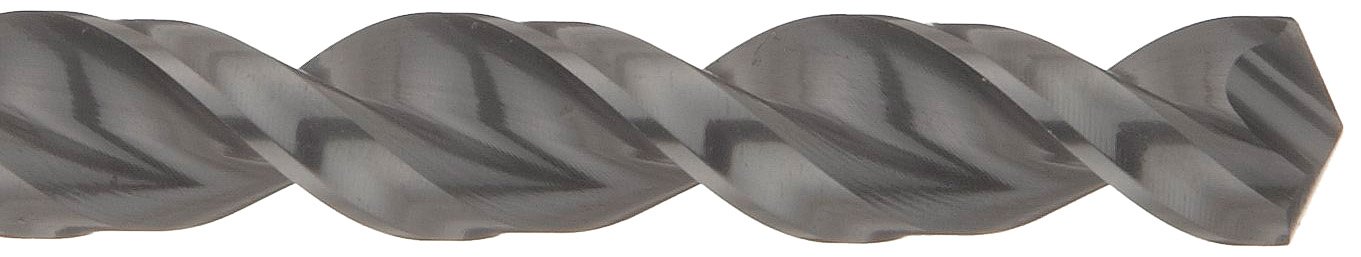

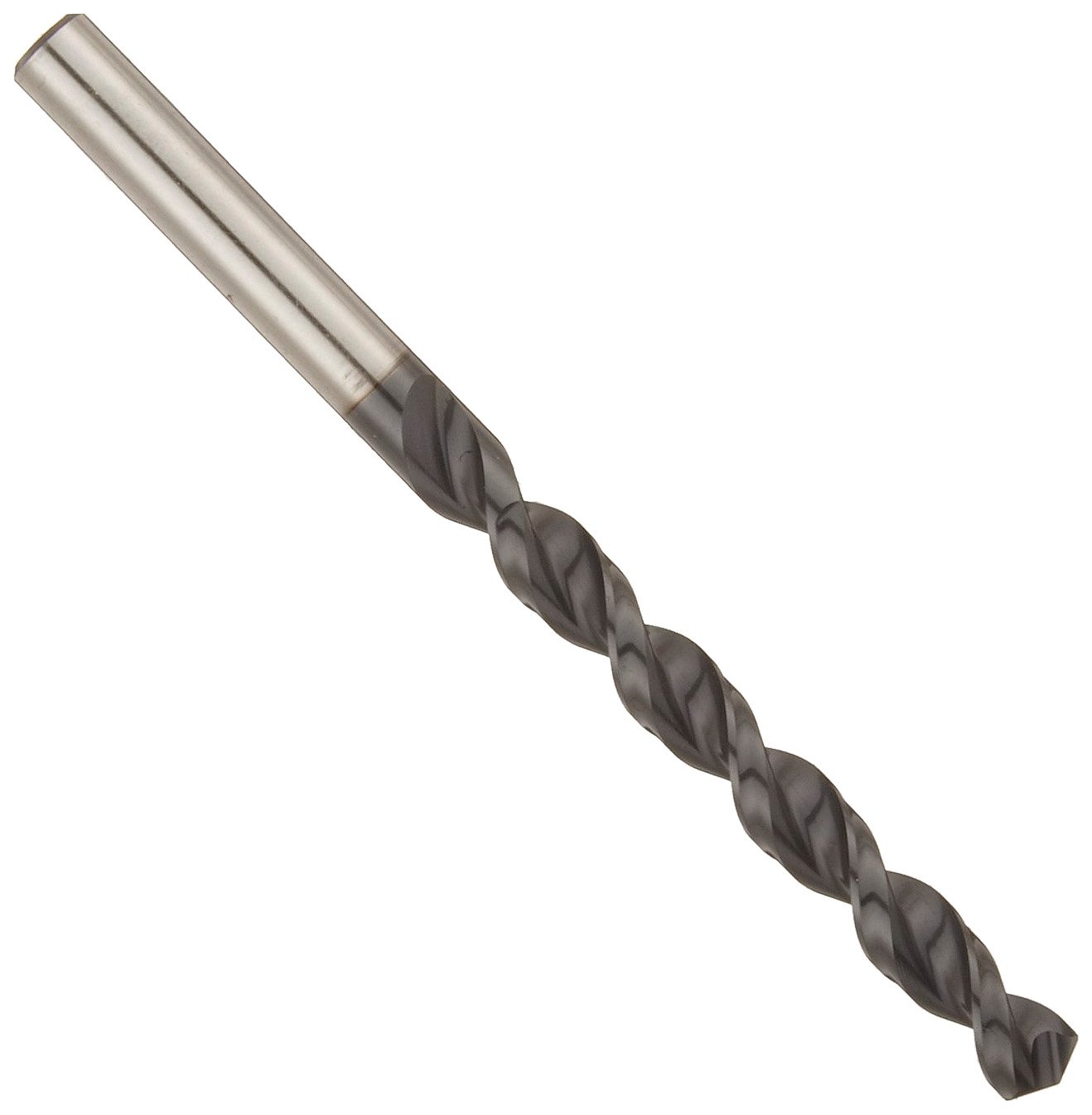

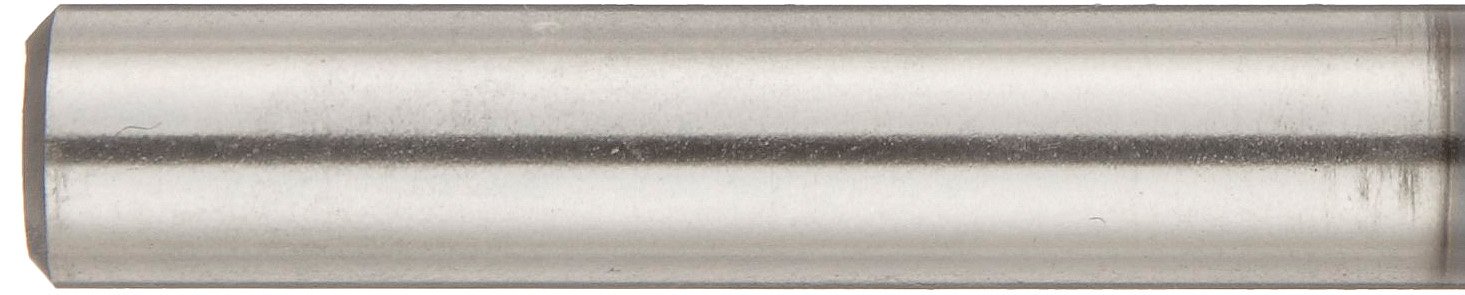

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Dormer A901 Cobalt Steel Spectrum Jobber Drill Bit, AlCrN Coating, Round Shank, 130 Degree Special Point

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
AlCrN
Material Type
Cobalt Steel
Drill Point
Special
Mfr Part #
0047781 parent
Brand Name
Dormer
Mfg Series #
A901
Shank Type
Round
Style Name
Jobber
UNSPSC Code
20121600

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Aug 26? Order in-stock items in the next 2 days 6 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 207 Next 20 »
Size System of Measurement Flute Length Overall Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 207 Next 20 »
#1 Wire Gauge 67 mm 98 mm 1 B0051Q9XNS yes $15.42 Buy Options
#2 Wire Gauge 67 mm 98 mm 1 B0051Q9TQO yes $14.61 Buy Options
#3 Wire Gauge 64 mm 95 mm 1 B0051QJ1ZI yes $13.84 Buy Options
#4 Wire Gauge 64 mm 95 mm 1 B0051Q9QRQ yes $13.26 Buy Options
#5 Wire Gauge 64 mm 95 mm 1 B0051Q9OQE yes $13.07 Buy Options
#6 Wire Gauge 64 mm 95 mm 1 B0051Q9NIS yes $13.07 Buy Options
#7 Wire Gauge 62 mm 92 mm 1 B0051Q9M7A yes $13.07 Buy Options
#8 Wire Gauge 62 mm 92 mm 1 B0051Q9HDO yes $12.22 Buy Options
#9 Wire Gauge 62 mm 92 mm 1 B0051Q9GE4 yes $11.99 Buy Options
#10 Wire Gauge 62 mm 92 mm 1 B0051Q9ETG yes $11.99 Buy Options
#11 Wire Gauge 59 mm 89 mm 1 B0051Q9DFG yes $12.22 Buy Options
#14 Wire Gauge 56 mm 86 mm 1 B0051Q986K yes $12.03 Buy Options
#15 Wire Gauge 56 mm 86 mm 1 B0052AKGFC Usually ships in 1 to 2 months $10.40 Buy Options
#17 Wire Gauge 56 mm 86 mm 1 B0051QJHK2 yes $11.07 Buy Options
#18 Wire Gauge 54 mm 83 mm 1 B0051QJG08 yes $11.07 Buy Options
#19 Wire Gauge 54 mm 83 mm 1 B0051QIVS6 yes $11.07 Buy Options
#20 Wire Gauge 54 mm 83 mm 1 B0051Q933I yes $11.07 Buy Options
#21 Wire Gauge 54 mm 83 mm 1 B0051Q8Z0K yes $11.07 Buy Options
#22 Wire Gauge 51 mm 79 mm 1 B0051Q8XC0 yes $11.99 Buy Options
#24 Wire Gauge 51 mm 79 mm 1 B0051Q8U00 yes $11.57 Buy Options

Key Features

  • Jobber-length, for a wide range of applications
  • 130-degree point angle, for centering and to help reduce pressure on cutting edges
  • Cobalt steel, for a combination of toughness and hardness, and for drilling into hard substances such as stainless steel or titanium
  • Aluminum chromium nitride (AlCrN) coating provides good hardness and better resistance to chemical breakdown in high-heat applications than TiAlN, TiCN, and TiN coatingsRound shanks, for use with a variety of tool holders

Product Description

The Dormer A901 Spectrum jobber-length drill bit is a 130-degree, PFX point, round shank drill bit made of cobalt steel. It can drill holes up to six times the diameter of the drill. The shank diameter is the same as the drill size. It is recommended to use ER collets for size ranges of: 1/16” - 5/8”, A - Z, 53 - 1, 1.5 - 16.0 mm.

The A901 series has a type W flute form, with a fast helix angle of 35 to 45 degrees, and are most suitable for drilling into steel, stainless steel, titanium, nickel, and alloyed aluminum. This design allows for single-pass drilling, which helps eliminate the need for pecking in up to six times the drill diameter deep holes, thus offering improved efficiency and increased productivity. Cobalt steet combines toughness and hardness needed for deep hole drilling. The parabolic design, combined with a parallel thinned web, allows for efficient chip removal.

Aluminum chromium nitride (AlCrN) also known as Smooth-Flow coating, provides hardness and better resistance to chemical breakdown in high-heat applications than TiAlN, TiCN, and TiN coatings.This coating is suitable for use on ductile cast iron and carbon steel. The spiral flutes act as a passageway for chip removal and for coolant to enter the hole. The right-hand twist brings chips up and away from the cutting edge.

Cobalt steel is many times harder and stiffer than high-speed steel (HSS) and holds an edge longer, deflects less, and resistsheat better than HSS. These qualities allow it to run at higher speeds and feeds than tool steel.

Drill bits are cutting tools used to make holes in a range of materials. They are used in machines such as handheld portable drills, drill presses, machining centers, and lathes. Drill bits come in a variety of types and lengths. Twist drill bits are the most common type of drill bit. They are a round, twisted shaft, end-cutting tool with two or more cutting edges and two or more flutes. Jobber drill bits are the most common length of twist bit. They offer a good comprise of length and reach to work with the widest range of materials and applications.

Precision Dormer manufactures cutting tools under the brands Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and makes tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
