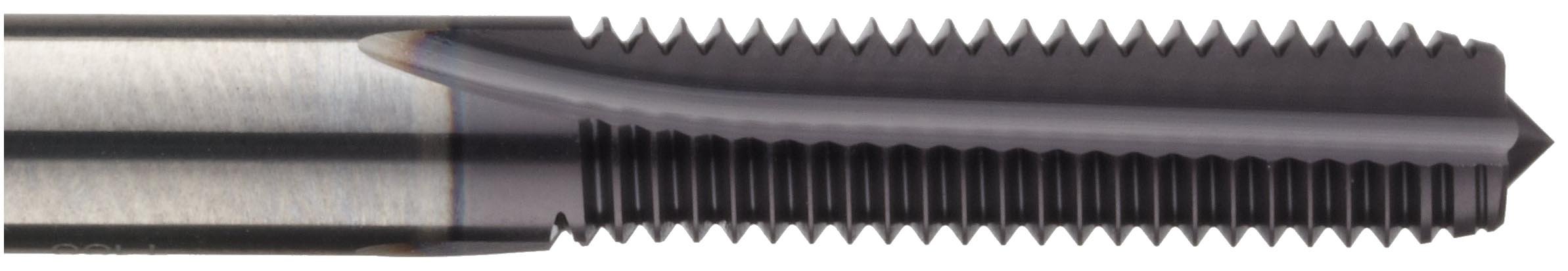

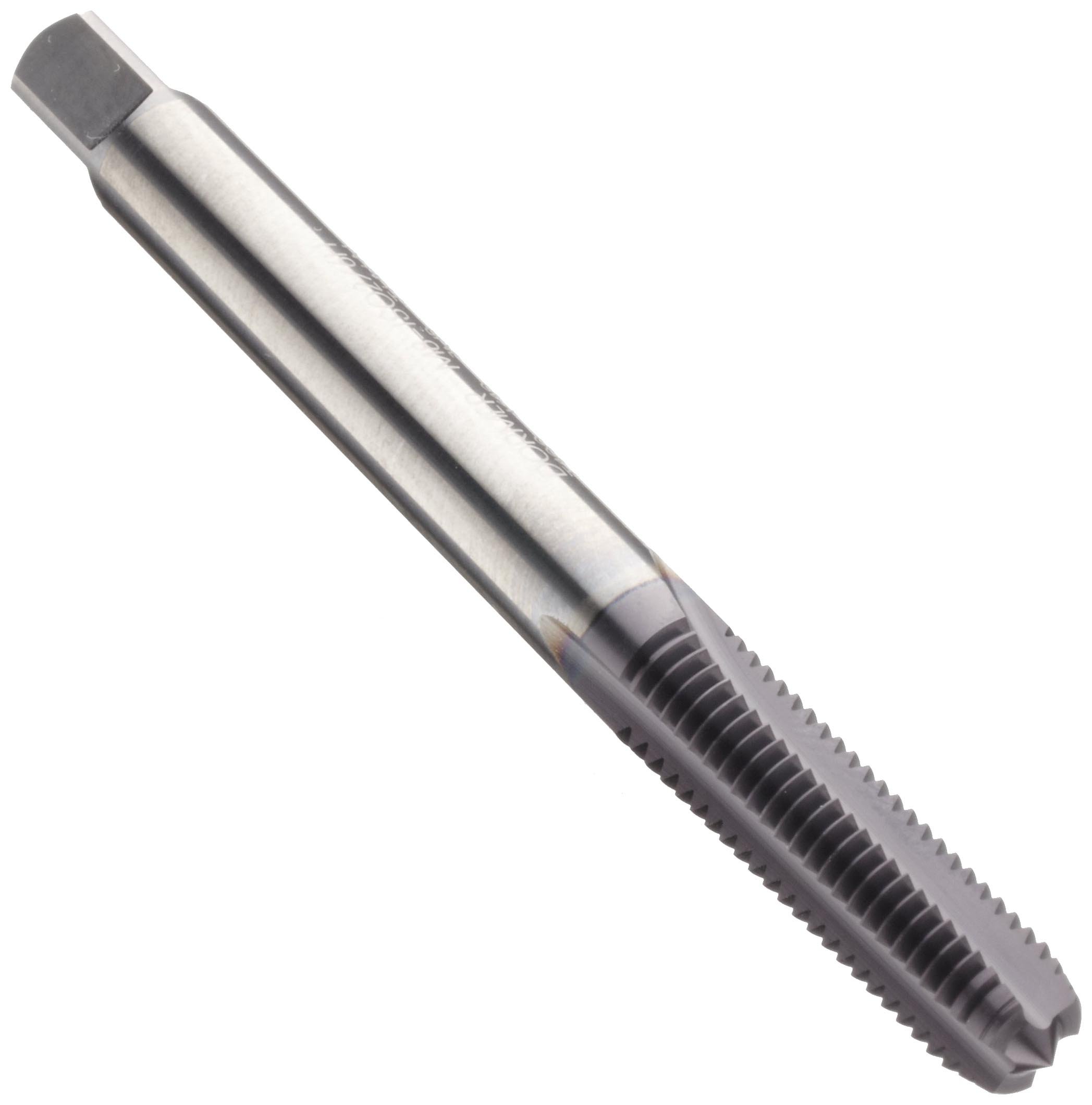

Dormer T100/T110 Solid Carbide Straight Flute Tap, TiAlN Coated, Round Shank With Square End, Modified Bottoming Chamfer

Be the first to review this item

Product Specifications
Surface Coating
TiAIN
Shank Type
Round With Square End
Material Type
Carbide
Thread Type
Metric
UNSPSC Code
27112806
Chamfer Type
Semi-Bottoming
Brand Name
Dormer

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 2 hrs 38 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Thread Size Manufacturer Series # Number of Flutes Shank Diameter Length of Threads Overall Length Pitch Diameter Limit Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-11 of 11
M4-0.7 T110 5 4.5 mm 13 mm 63 mm 6HX 374290 B003JY726Y yes $165.87 Buy Options
M5-0.8 T110 5 6 mm 16 mm 70 mm 6HX 374306 B003JY727I yes $193.39 Buy Options
M5-0.8 T100 3 6 mm 16 mm 70 mm 6H 374238 B003JY723C yes $172.94 Buy Options
M6-1 T110 5 6 mm 20 mm 80 mm 6HX 374313 B003JY727S yes $230.35 Buy Options
M6-1 T100 3 6 mm 20 mm 80 mm 6H 374245 B003JY723W yes $205.97 Buy Options
M8-1.25 T110 5 8 mm 25 mm 90 mm 6HX 374320 B003JY7282 yes $281.47 Buy Options
M8-1.25 T100 3 8 mm 25 mm 90 mm 6H 374252 B003JY724G yes $250.80 Buy Options
M10-1.5 T100 3 10 mm 30 mm 100 mm 6H 374269 B003JY720U yes $342.50 Buy Options
M10-1.5 T110 5 10 mm 30 mm 100 mm 6HX 374337 B003JY725A yes $383.71 Buy Options
M12-1.75 T110 6 12 mm 36 mm 110 mm 6HX 374344 B003JY725U yes $494.95 Buy Options
M12-1.75 T100 3 12 mm 36 mm 110 mm 6H 374276 B003JY721O yes $433.97 Buy Options

Key Features

  • Hand threading tap with straight flutes cuts threads in through holes and blind holes
  • Titanium aluminum nitride (TiAlN) coating lubricates the tap for high-temperature stability and abrasion resistance at high cutting speeds, offering better heat resistance than titanium nitride (TiN) and titanium carbon nitride (TiCN) coatings
  • Carbide can run at higher speeds than high-speed or cobalt steel, offering increased wear resistance and high cutting temperatures
  • Dormer DIN standard tap creates threads for metric applications, with longer shank for versatility
  • Modified bottoming chamfer has additional length to reduce chip load, add tool life, and permit higher tapping speeds

Product Description

The Dormer T100/T110 carbide hand threading tap has straight flutes, a round shank with a square end, a modified bottoming chamfer, and a titanium aluminum nitride (TiAlN) coating, and is used to create metric right-hand threads in a range of materials, with best performance in hardened alloy steel. The straight flutes are suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening). The TiAlN coating resists heat better than titanium nitride (TiN) and titanium carbon nitride (TiCN) coatings, increasing tool life and performance. It also offers increased hardness compared to TiN and may reduce the need for lubricants based on the application. The modified bottoming chamfer has additional length to reduce chip load, add tool life in difficult-to-machine materials, and permit higher tapping speeds.

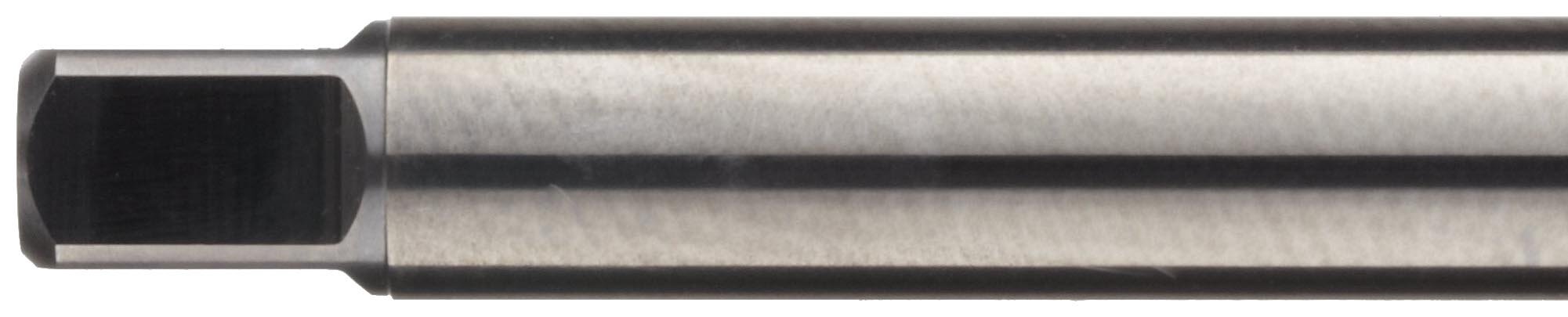

Right-hand threads are designed to tighten when the head or nut is rotated clockwise (the most common threading direction). The carbide substrate is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life. The round shank with square end makes this tap suitable for hand or power-driven applications. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.

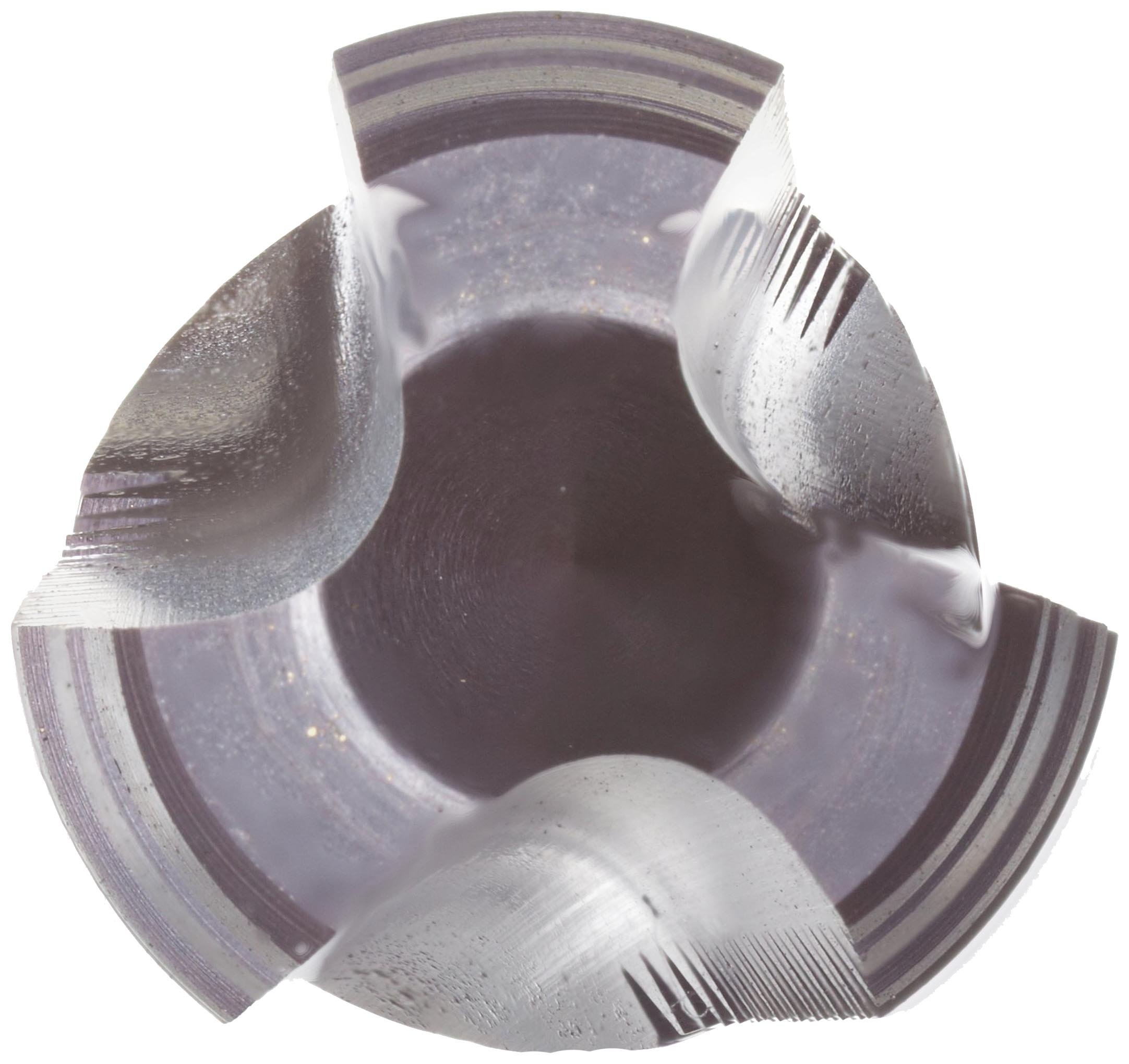

In the Dormer T100 series, all taps have three flutes. In the T110 series, taps with a nominal diameter of 3 mm have four flutes, taps with nominal diameters of 4 mm to 10 mm have five flutes, and those with a nominal diameter of 12 mm have six flutes. All taps in both series have modified bottoming chamfers. This tap conforms to Dormer DIN standards and can create threads to a depth 2 times its diameter. The T100 series is suitable for the 6H tolerance class: 6H is used for a normal length of thread engagement and medium tolerance quality. The T110 series is suitable for the 6HX tolerance class: 6HX exceeds the standard tolerance to increase tool life in tapping high-strength or abrasive materials that rdo not create oversize problems.

Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
