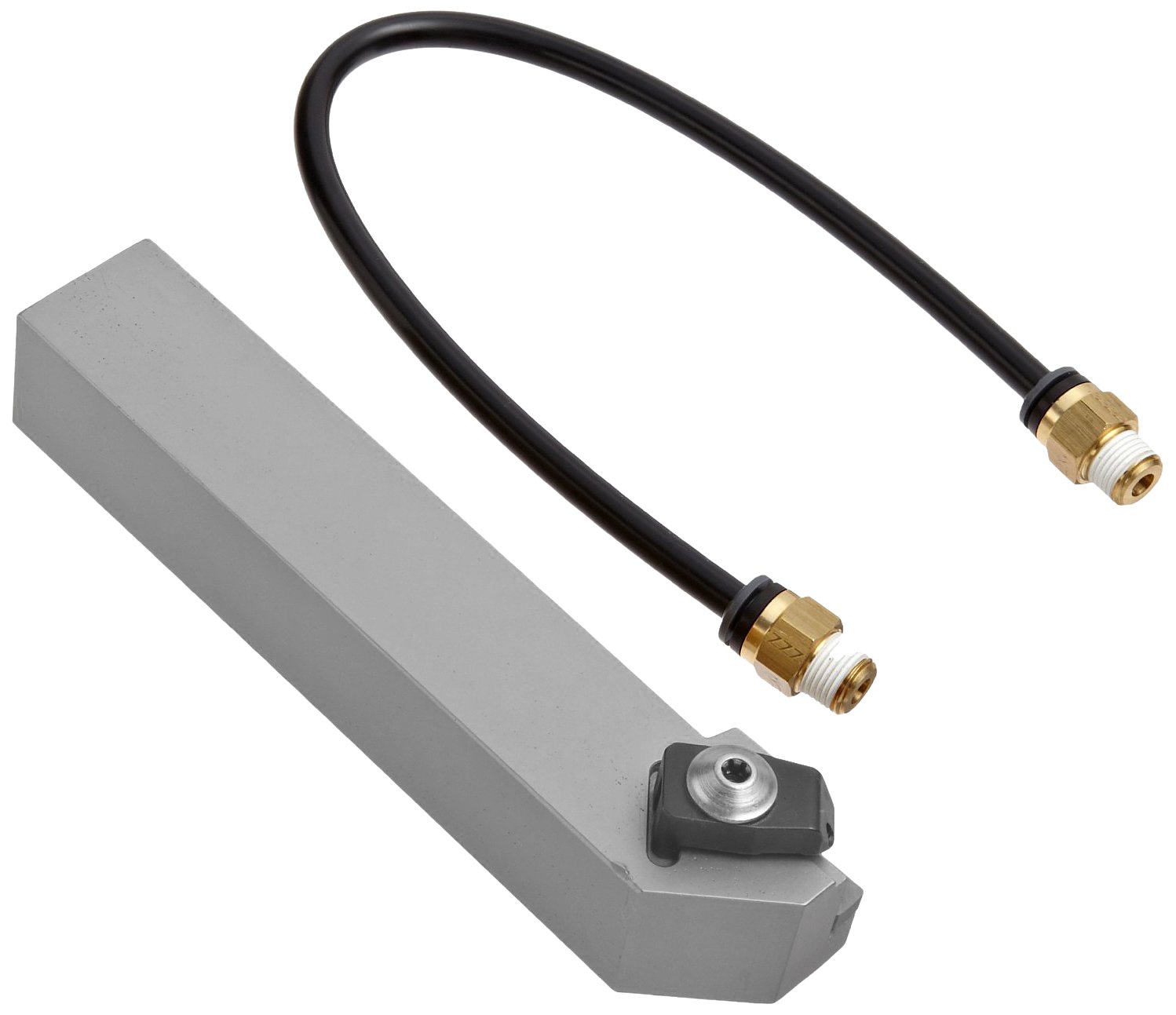

Dorian Tool ADNS Jet-Stream Square Shank Chromium Molybdenum Steel Thru Coolant DorNotch Threading Toolholder, Right Hand Cut, 1" Shank Width, 1" Shank Height, 3/16" Insert
Be the first to review this item
ASIN B006ZP8YBQ
Specifications for this item
- Brand Name
- Dorian Tool
- Cutting Direction
- Right Hand
- EAN
- 0733101534524
- Material Type
- Chromium Molybdenum Steel
- Number of Items
- 1
- Overall Length
- 6 inches
- Part Number
- ADNSR16-3D
- Shank Height
- 1 inches
- Shank Type
- Square
- Shank Width
- 1 inches
- Size Name
- 3/16 in
- System of Measurement
- Inch
- UPC
- 733101534524
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 21? Order in-stock items in the next 1 day 5 hours 29 minutes and choose One-Day Shipping at checkout.
Key Features
- The body's of the Jet-Stream toolholders are built with chromuim-molybdenum alloy steel
- This material features properties of high tensile strength and high yield stress
- This material is heat treated to 40-44Rc and electoless nickel coated
- Offset shank side mount tool style
- Style S - external DorNotch toolholder for threading and grooving DorNotch inserts
Package Details
Shipping Weight:
1.75 pounds
Package Size:
6.1 x 2 x 1.7 inches
Product Description
The advanced design of the JetStream threading bar offers the ability to use the front coolant port to flush chips out of the way so that they do not get packed or re-cut, by simply installing the supplied coolant nozzle screw. This will help prevent damage to the insert, the tool itself and even the part that is being cut. If this is not necessary in an application just replace the coolant screw with the already supplied solid screw and this will disable the front coolant port and use only the coolant port at the tip of the insert. PVD-TiN, Materials and quality: The body's of the Jet-Stream toolholders are built with chromuim-molybdenum alloy steel. This material features properties of high tensile strength and high yield stress resistance. This material is heat treated to 40-44Rc and electoless nickel coated. Electoless nickel coating will prevent the tools against rust providing a long tool life under severe working conditions. Style S - external DorNotch toolholder for threading and grooving DorNotch inserts. Right hand cut.
