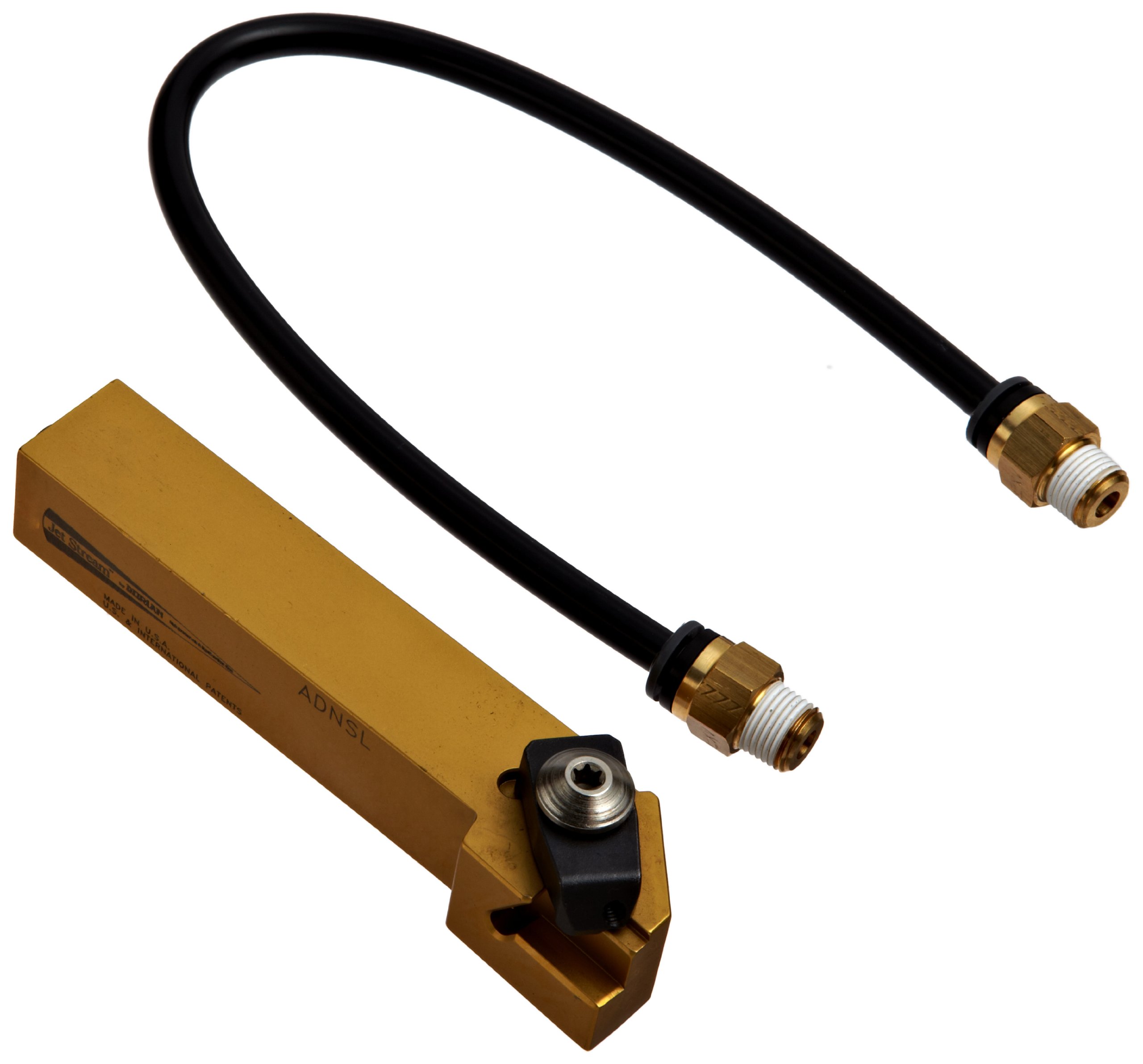

Dorian Tool ADNS Jet-Stream Square Shank Chromium Molybdenum Steel Thru Coolant DorNotch Threading Toolholder, Left Hand Cut, 3/4" Shank Width, 3/4" Shank Height, 3/16" Insert

Be the first to review this item

ASIN B006ZP8XLM

Specifications for this item
Number of Items
1
Cutting Direction
Left Hand
Material Type
Chromuim Molybdenum Steel
Shank Height
3/4  inches
Part Number
ADNSL12-3B
Shank Width
3/4  inches
UPC
733101534517
Brand Name
Dorian Tool
Size Name
3/16 in
EAN
0733101534517
Shank Type
Square
UNSPSC Code
23291803
Overall Length
4-1/2  inches
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 22 hrs 16 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • The body's of the Jet-Stream toolholders are built with chromuim-molybdenum alloy steel
  • This material features properties of high tensile strength and high yield stress
  • This material is heat treated to 40-44Rc and electoless nickel coated
  • Offset shank side mount tool style
  • Style S - external DorNotch toolholder for threading and grooving DorNotch inserts

Package Details

Shipping Weight: 0.8 pounds
Package Size: 6.5 x 1.6 x 1.5 inches

Product Description

The advanced design of the JetStream threading bar offers the ability to use the front coolant port to flush chips out of the way so that they do not get packed or re-cut, by simply installing the supplied coolant nozzle screw. This will help prevent damage to the insert, the tool itself and even the part that is being cut. If this is not necessary in an application just replace the coolant screw with the already supplied solid screw and this will disable the front coolant port and use only the coolant port at the tip of the insert. PVD-TiN, Materials and quality: The body's of the Jet-Stream toolholders are built with chromuim-molybdenum alloy steel. This material features properties of high tensile strength and high yield stress resistance. This material is heat treated to 40-44Rc and electoless nickel coated. Electoless nickel coating will prevent the tools against rust providing a long tool life under severe working conditions. Style S - external DorNotch toolholder for threading and grooving DorNotch inserts. Left hand cut.
