Donegan OptiVISOR LX Headband Magnifier with Optical Grade Acrylic Lensplate

Be the first to review this item

Product Specifications
UNSPSC Code
41100000
Brand Name
Donegan Optical

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 30? Order in-stock items in the next 8 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-2 of 2
1.75x Magnification, 14" Focal Length B0006O8RWS 4 $27.59 Buy Options
2.5x Magnification, 8" Focal Length B0006O8RX2 51 $27.72 Buy Options

Key Features

  • Binocular headband magnifier provides hands-free magnification and viewing for a variety of applications such as jewelry-making, watch-making, needlework, artwork, electronic inspection, book-reading, print inspection, and stamp-collecting
  • Available in multiple dioptric strengths (indicated by the model number) that provide a specific magnification power (X), depending on the distance from the object
  • Optical-grade acrylic lens plate ground and polished into prismatic lenses for quality, clarity, and durability
  • A dioptric number and a magnification number are not the same thing. Diopter strength represents a specific magnification power (X). For example, a 5-diopter provides 2.5X magnification (at a distance of 8")
  • Can be worn over prescription or safety eyeglasses

Product Description

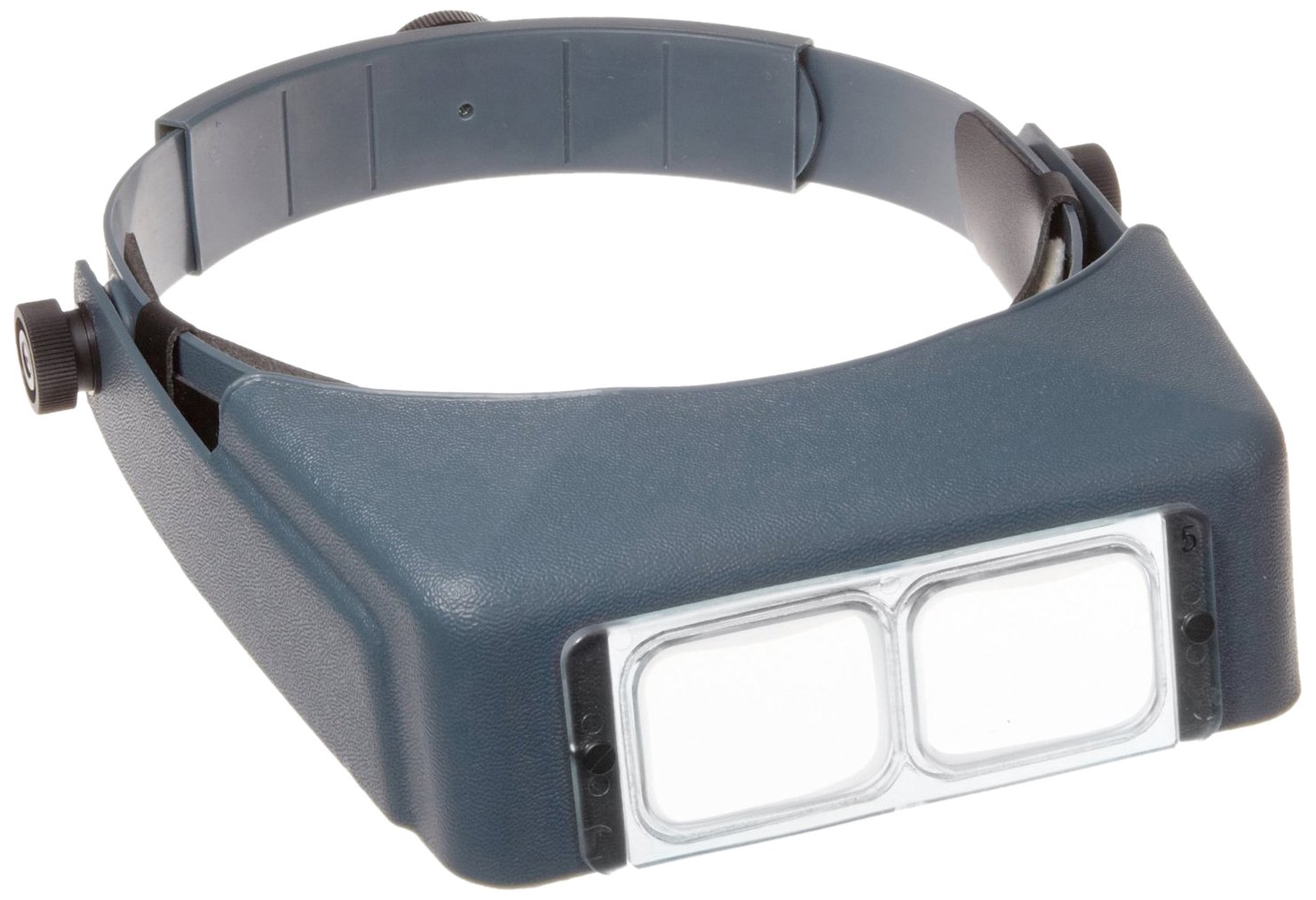

The Donegan OptiVISOR LX is a hands-free, headband binocular magnifier that has an optical-grade, acrylic lens plate that is ground and polished into prismatic lenses for quality, clarity, and durability, and is available in multiple dioptric strengths (indicated in the model number) which provide specific magnification power (X) at specified focal lengths, or distance from object. This magnifier enhances the size and resolution of an object or image, and is commonly used for a variety of applications such as jewelry-making, watch-making, needlework, artwork, electronic inspection, book-reading, print inspection, and stamp-collecting.

The OptiVISOR LX magnifier features a durable, replaceable binocular lensplate, made of optical grade acrylic (model AL-13). An adjustable headband with padded leather comfort band conforms to a variety of head sizes and provides comfort for hours of continuous use. It can be worn over prescription or safety eyeglasses. A durable, plastic visor tips up above the forehead when not in use. Spring-loaded pivot screws hold the headband in a raised or a forward-facing position. The magnifier weighs 0.67 lbs., and comes housed in a protective shell and carrying case. It has a one-year limited warranty.

Diopter (D) is a technical term for the measurement of the light curvature and thickness of a lens. A dioptric number and a magnification number are not the same thing. Diopter strength represents a specific magnification power (X). For example, a 5-diopter provides 2.5X magnification (at a distance of 8”). The higher the diopter, the more magnification a lens can provide. As magnification increases, distance to the object (focal length), and field of view (diameter, or narrowness of view) decrease. Magnifiers and prescription eyeglasses have a diopter value, such as 1.5 or 2. The dioptric strength of an accessory lens, such as prescription eyeglasses or an eye loupe, must be added to the dioptric strength of the magnifier to calculate total magnification.

Magnifiers are devices used to enlarge the visual appearance of an object or image. Magnifiers come in a variety of styles such as hand-held, headband, standing, clip-on, eye loupe, and those that hang in a necklace form, or fit in a trouser pocket. Magnifiers are commonly made of plastic or glass. They can have one or more lenses with varying magnification abilities, and can have a binocular configuration with a single lens, or two separate lenses. They are sometimes used with LED or fluorescent light sources to help control viewing capabilities. Magnifier ability is often expressed as magnification at a specific length. For example, 1.75X at 14” means that when a magnifier is held at 14” from a viewer’s eyes, the object will be magnified 1.75 times (X) its actual size. As magnification increases, viewing areas and focal length decrease. Magnifiers sometimes have a diopter number, expressed as + or - D, which is a measurement of strength (or power) of the lens. Some magnifiers are marked with a dioptric number on the lens. A high diopter number has a higher magnification than a low diopter number. Aspheric magnifiers, unlike spheric magnifiers, produce a sharp image to the edge of the lens for less distortion. Magnifiers are widely used in jewelry



Determining Magnification

Diopter
Magnification
Focal length
(Distance from object)
Sample view
20/20 vision
20" (50.8cm)
No   Magnification
2-diopter lens
1.50X
20" (50.8cm)
1.50x   Magnification
3-diopter lens
1.75X
14" (35.56cm)
1.75x   Magnification
4-diopter lens
2.00X
10" (25.4cm)
2.0x   Magnification
5-diopter lens
2.50X
8" (20.32cm)
2.50x   Magnification
7-diopter lens
2.75X
6" (15.24cm)
2.75x   Magnification
10-diopter lens
3.50X
4" (10.16cm)
3.50x   Magnification

inspection and fabrication, watch- making, needlework, artwork, reading, print inspection, and stamp-collecting.

Donegan Optical manufactures and distributes precision visual devices for hobbyists and professionals in industry, home, office and crafts applications. The company was founded in 1952 and is headquartered in Lenexa, Kansas.

What’s in the Box?

  • OptiVISOR LX magnifier
  • Fitted, plastic carrying case
  • Instruction manual
