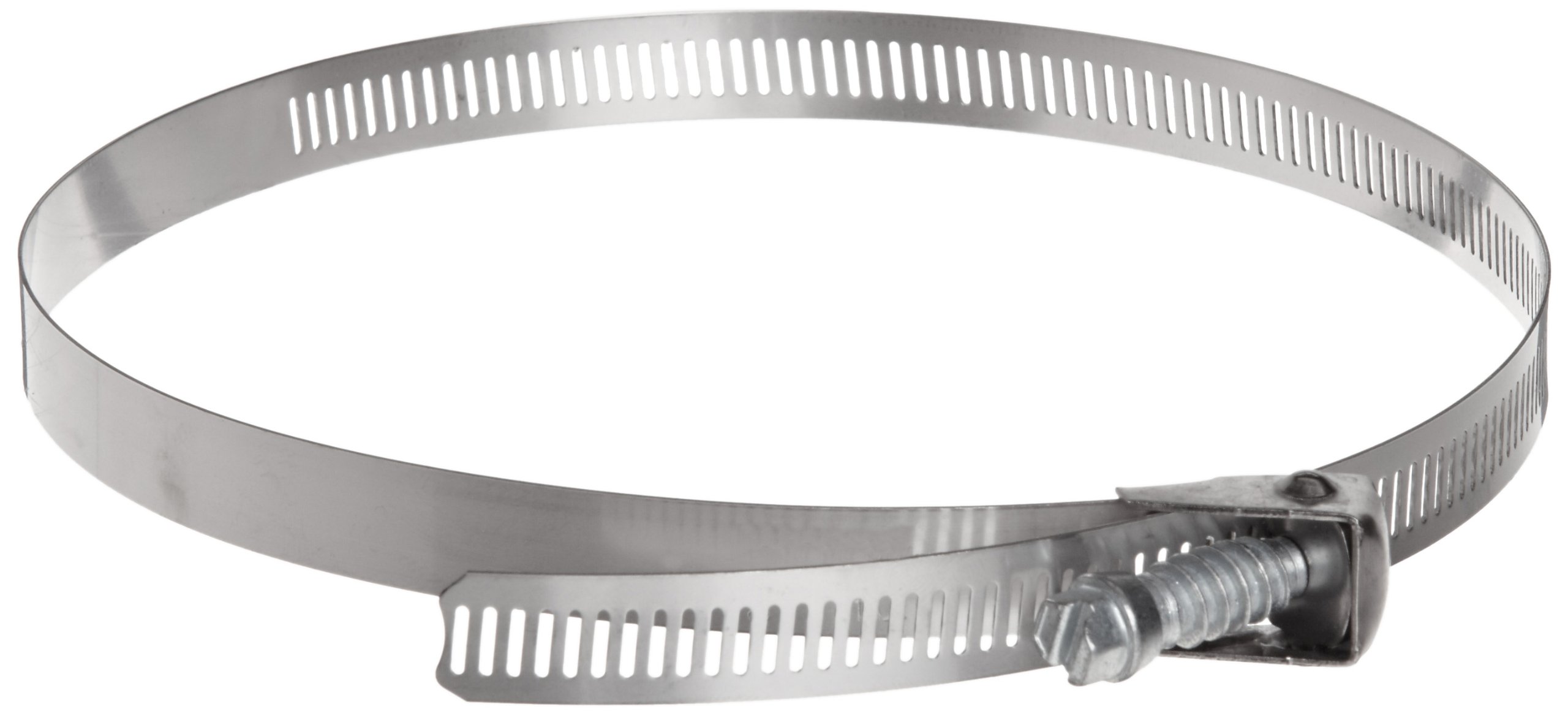

Dixon Valve & Coupling Stainless Steel 301 LS Style Quick Release Worm-Drive Clamp

Be the first to review this item

Product Specifications
Manufacturer Series Number
LS
Item Shape
Worm Gear
Material Type
Stainless Steel
Structure Description
Quick Release
Brand Name
Dixon Valve & Coupling

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 2 days 22 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Min Diameter Max Diameter Band Width Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-8 of 8
1-3/4" 8-9/16" 1/2" 1 LS128 B007VYA3S2 yes $9.13 Buy Options
1-3/4" 7" 1/2" 10 LS104 B007VY9Z54 yes $28.12 Buy Options
2" 10" 1/2" 1 LS152 B007VYA6KC yes $4.69 Buy Options
2" 5" 1/2" 10 LS72 B007VYA9ZO yes $18.51 Buy Options
2-1/16" 12-5/16" 1/2" 1 LS188 B007VYA8BE yes $4.46 Buy Options
2-1/16" 12.3125"   10 LS188 B00ICB7WUU Usually ships in 1 to 2 months $34.17 Buy Options
2-1/16" 6" 1/2" 10 LS88 B007W66428 yes $22.95 Buy Options
2-1/16" 12.3125" 1/2" 100 LS188 B00I9CSPK8 yes $280.63 Buy Options

Key Features

  • Type 301 stainless steel band helps provide resistance to corrosion, wear, and fatigue
  • Zinc-plated carbon screw resists rust
  • Worm gear mechanism for precise band adjustment
  • Quick release screw swivels to lock or disengage the clamp

Product Description

The Dixon LS series stainless steel quick release clamp has a stainless steel band and housing, a zinc-plated steel screw, and a quick release mechanism. A worm gear mechanism adjusts the clamp’s diameter to precisely apply sealing pressure. The 1/2" band and housing are made of stainless steel that conforms to the Society of Automotive Engineers (SAE) 301 standard and provides resistance to corrosion, wear, and fatigue. The slotted, 5/16” hex-head screw allows installation using a blade screwdriver, nut driver, or socket wrench. The screw is made of hardened carbon steel that is zinc-plated for resistance to rust. The screw swivels to lock the clamp or disengage it for quick release. The clamp is recommended for maximum torque of 30 inch-pounds.

Hose clamps attach hoses to fittings to prevent flow leakage. They come in a variety of designs and distribute uniform pressure over the circumference of hoses to bind them to fittings. Hose clamps are suitable for a large number of industries, and commonly used in industrial, electronic, and automotive applications.

Dixon Valve & Coupling Company manufactures pipe and hose fittings and accessories. The company, founded in 1916, is headquartered in Chestertown, MD.
