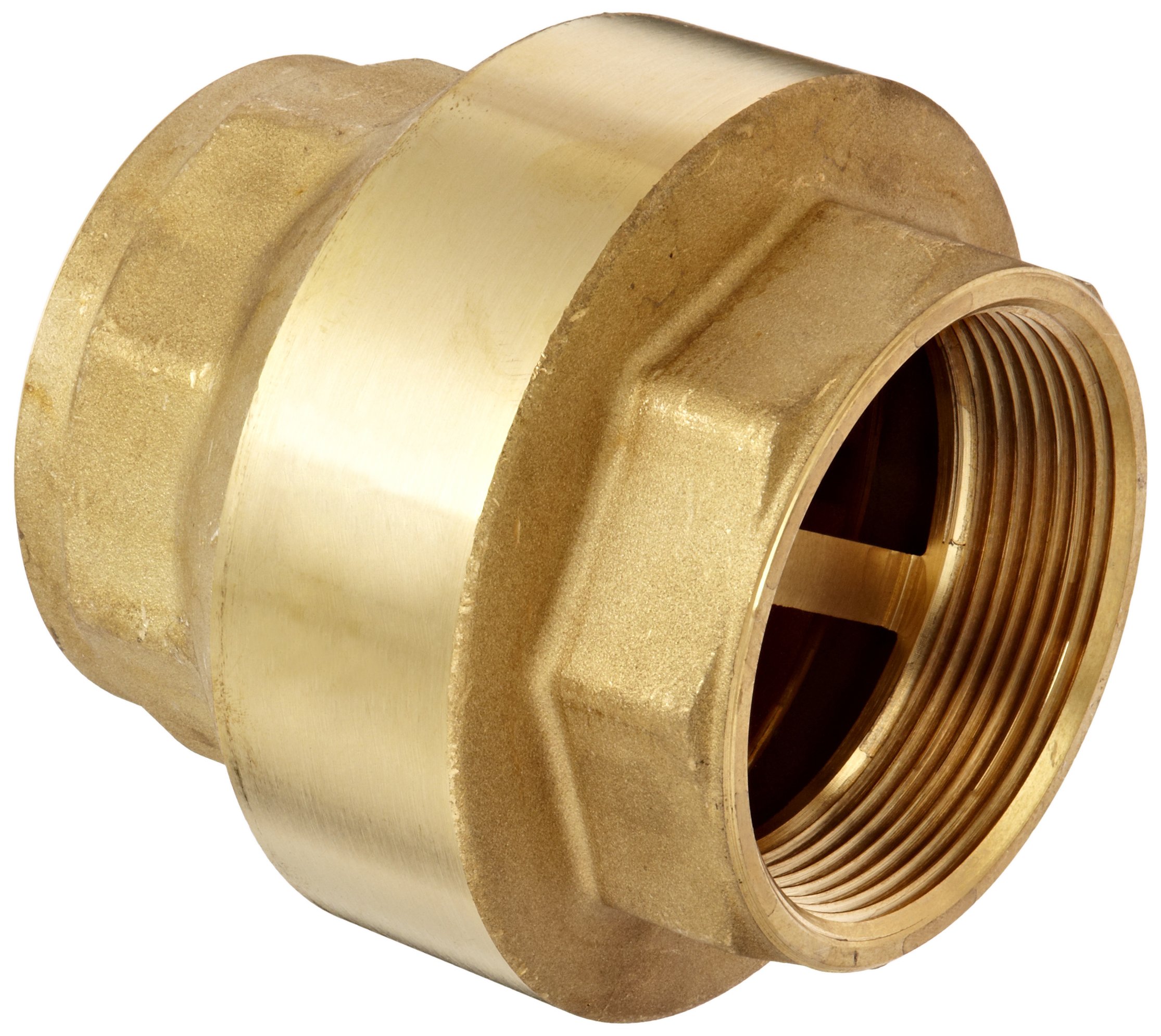

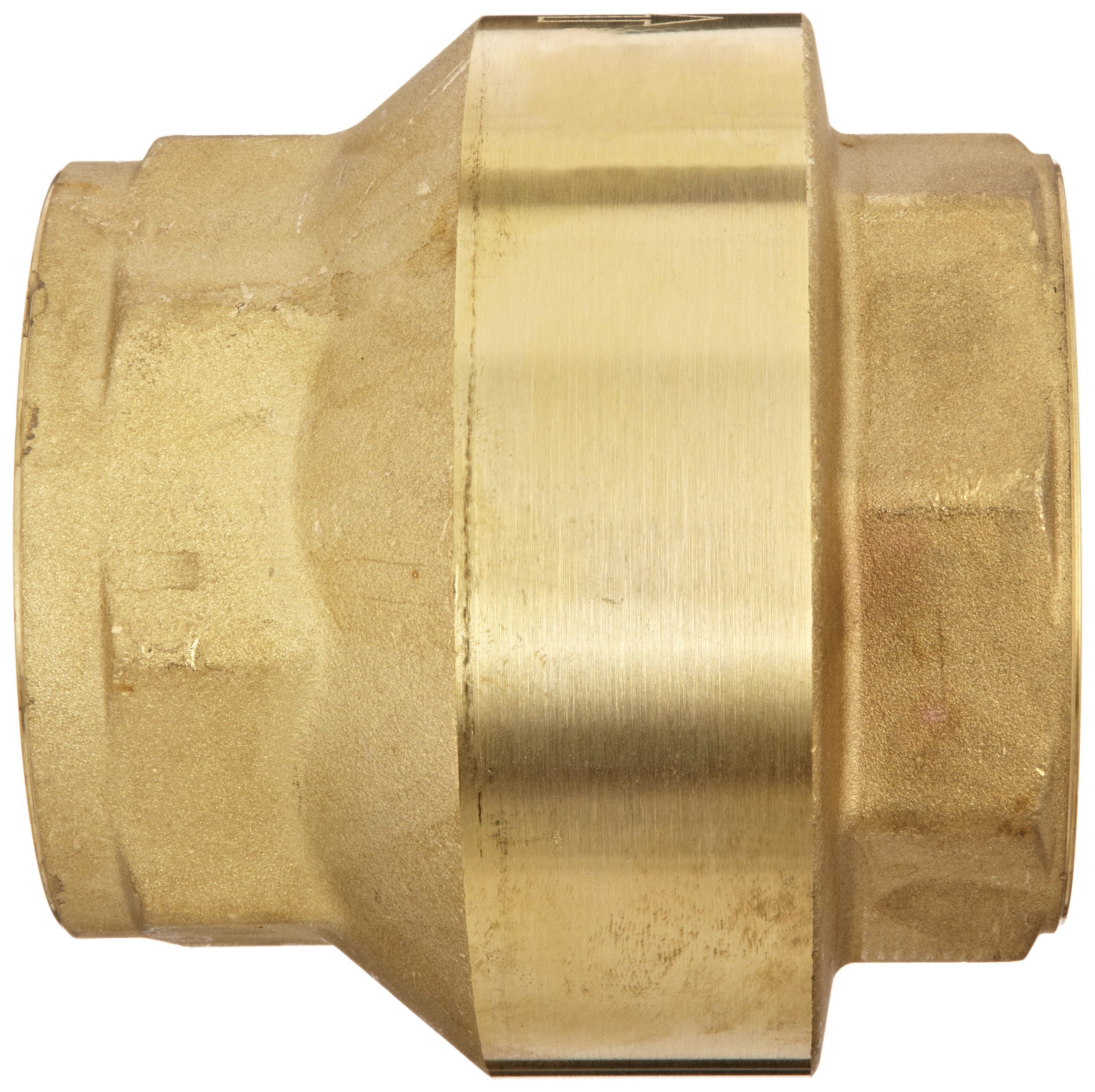

Dixon CV300 Brass Spring-Loaded Check Valve, 3" NPT Female

Be the first to review this item

ASIN B0081LK9DI

Product Specifications
Part Number
CV300
Number of Items
1
Size Name
3"
Maximum Pressure
175  PSI
System of Measurement
Inch
Maximum Steam Pressure Description
Not Rated
Specification for this product family (See all  products)
Upper Temperature Range
210  Degrees Fahrenheit
Material Type
Brass
Style Name
Threaded
Connector Type
NPT Female
UNSPSC Code
40141600
Brand Name
Dixon Valve & Coupling
LowerTemperature Range
10  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Dec 26? Order in-stock items in the next 1 day 8 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Spring-loaded check valve with NBR seat
  • Made of brass
  • Flow profile designed to minimize head loss
  • Soft seat for bubble tight shutoff, spring loaded for fast seating action
  • Cracking pressure: 0.50 psi

Package Details

Shipping Weight: 7.4 pounds
Package Size: 11.4 x 7.8 x 6.1 inches

Product Description

Spring-loaded check valve with NBR seat. Made of brass. Flow profile designed to minimize head loss. Soft seat for bubble tight shutoff, spring loaded for fast seating action. Cracking pressure: 0.50 psi. Temperature range 10 to 210 degree F. Underwriters approved. 3" NPT female. Rated to 175 psi pressure.
