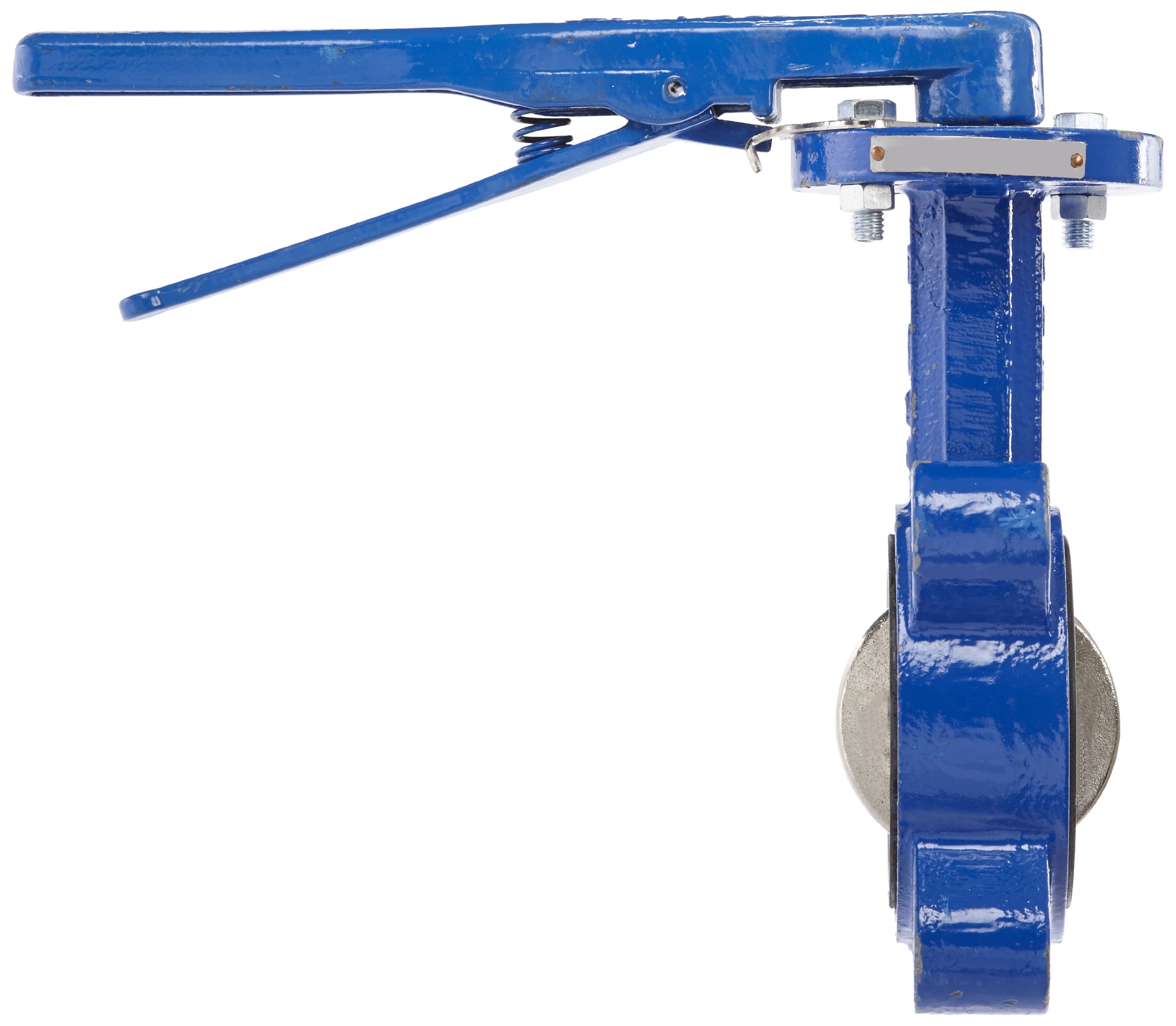

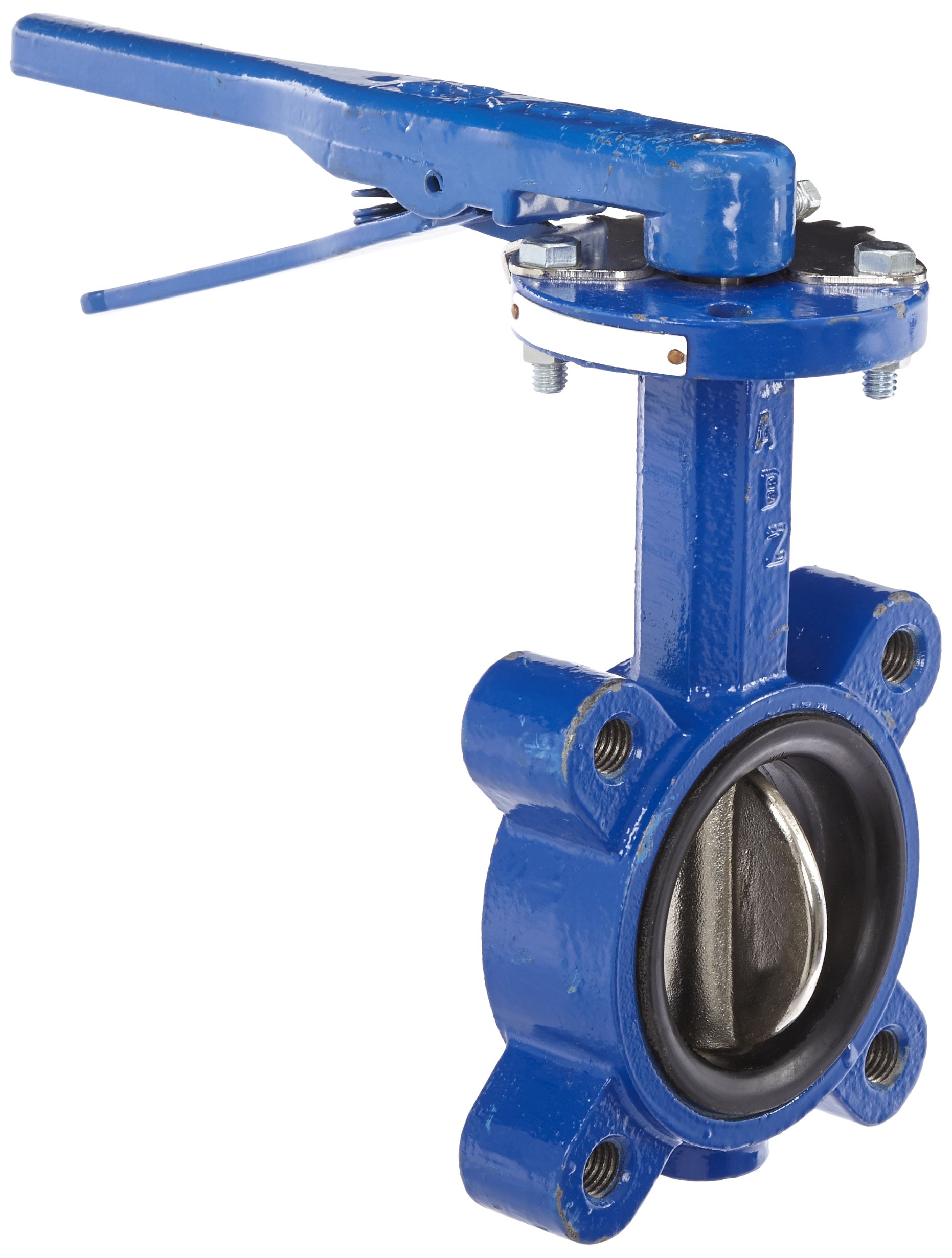

Dixon BFVL300 Ductile Iron Threaded Lug Style Butterfly Valve with Aluminum Bronze Disc and Buna-N liner, 3" Size, 200 psi Pressure
Be the first to review this item
ASIN B0081LJ0D8
Product Specifications
- Connection Size
- 3"
- Mfr Part #
- BFVL300
- Number of Items
- 1
- System of Measurement
- Inch
Specification for this product family (See all products)
- Brand Name
- Dixon Valve & Coupling
- Material Type
- Iron
- Maximum Pressure
- 200 PSI
- Upper Temperature Range
- 70 Degrees Fahrenheit
- Connector Type
- Flanged
- Style Name
- Flanged
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 29? Order in-stock items in the next 3 days 3 hours 4 minutes and choose One-Day Shipping at checkout.
Key Features
- Threaded lug style butterfly valve
- Made of ductile iron
- PTFE bushing
- Buna-N seal and stem seals
- Stainless steel top and bottom stems
Package Details
Shipping Weight:
12.1 pounds
Package Size:
12.7 x 6.1 x 4.2 inches
Product Description
Threaded lug style butterfly valve. PTFE bushing. Buna-N seal and stem seals. Stainless steel top and bottom stems. The number of holes on the valve should match the number of holes for the specific flange size. Aluminum bronze disc, ASTM B148, ALY.954. Ductile iron body, ASTM A536. For use between two 150 lbs flanges. Will lock "open" or "closed". Buna-N liner. Rated to 200 psi pressure at ambient temperature (70 degree F). Size: 3". Not recommended for steam service.
