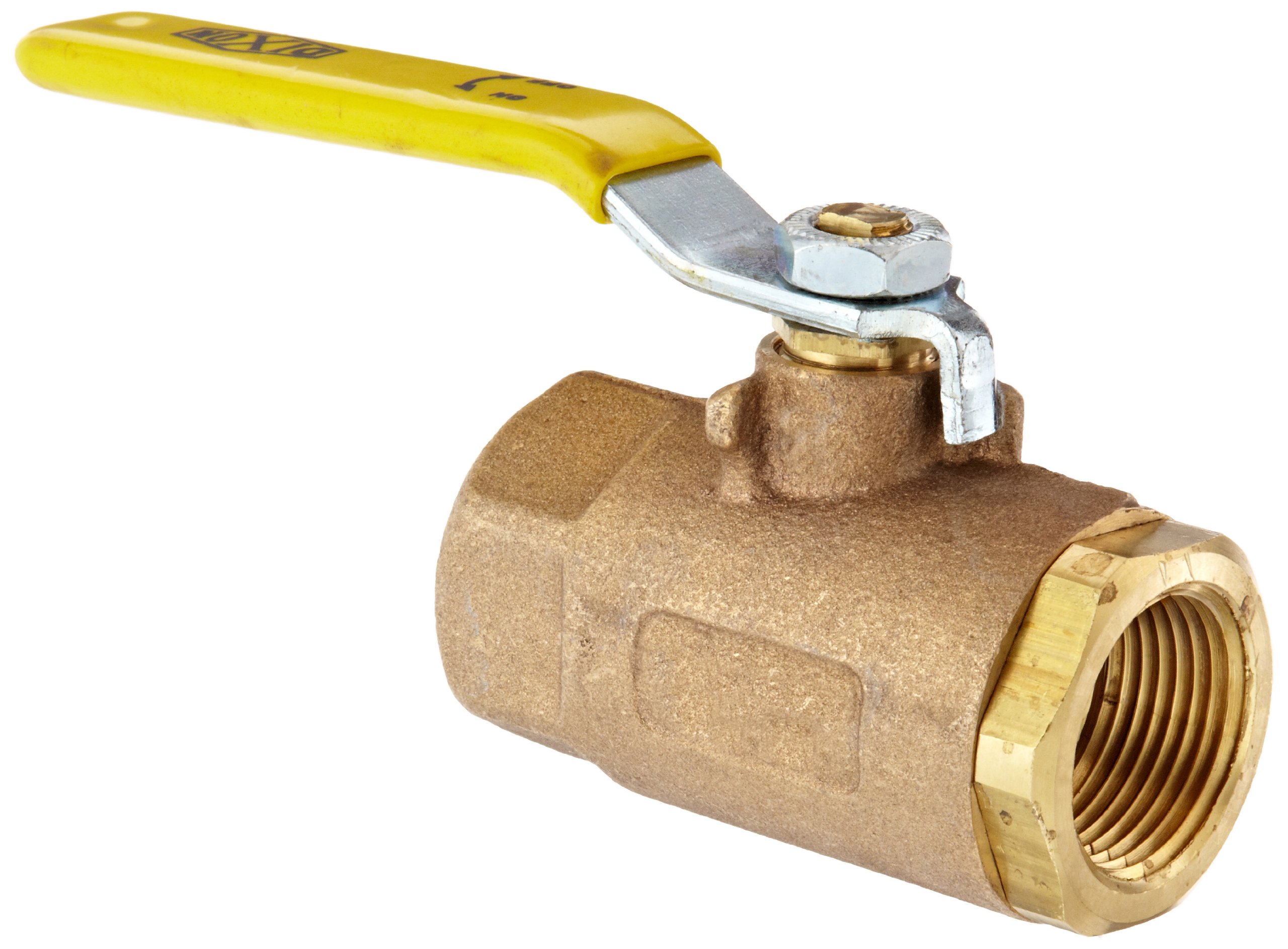

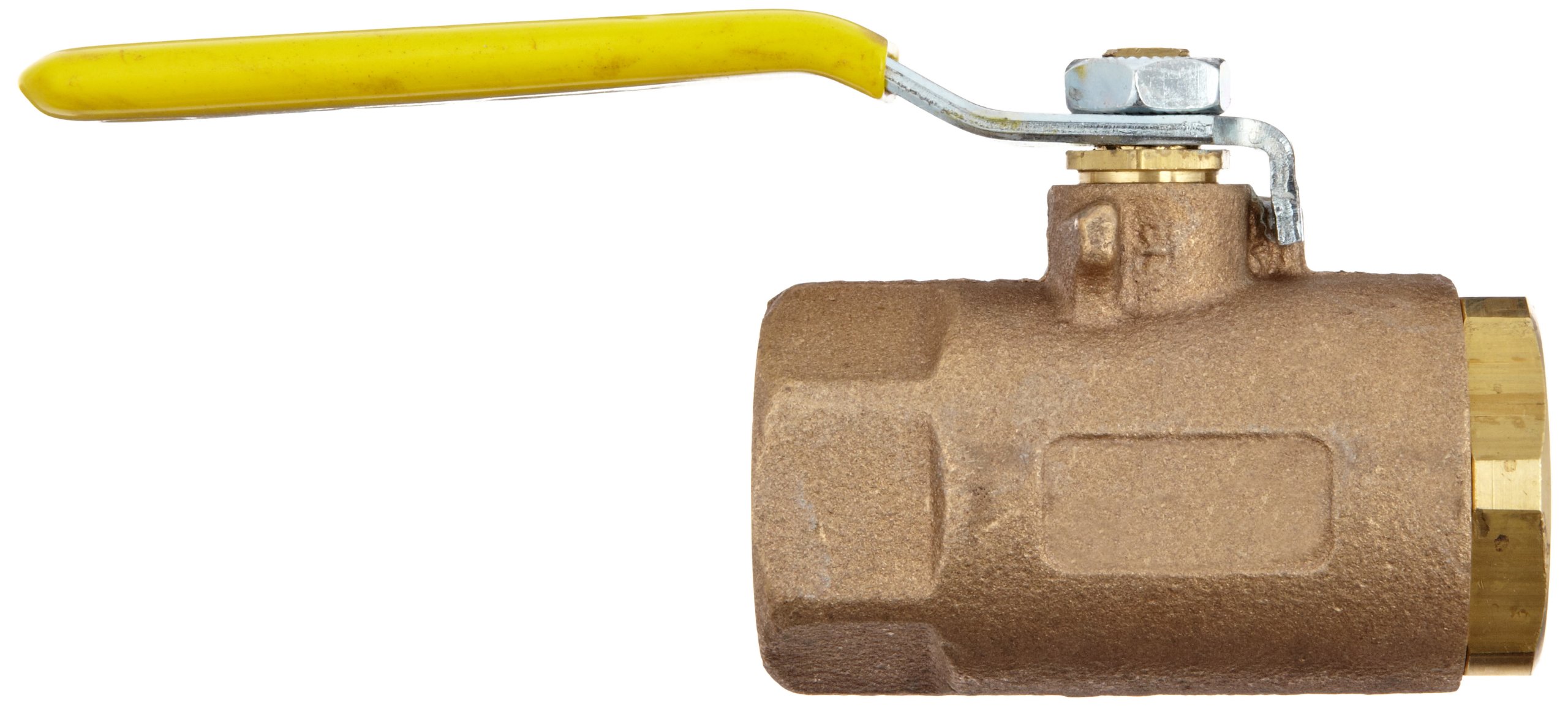

Dixon BBV100 Brass Ball Valve, 1" NPT Female

Be the first to review this item

ASIN B0040C5YVO

Product Specifications
Part Number
BBV100
Number of Items
1
Size Name
1"
Specification Met
WW-V 35C
System of Measurement
Inch
Construction Type
Standard Port
Item Weight
1.9 pounds
Maximum Steam Pressure Description
150 pounds_per_square_inch
Specification for this product family (See all  products)
Item Shape
Inline
Material Type
Brass
Maximum Pressure
600  PSI
Style Name
Threaded
Connector Type
NPT Female
UNSPSC Code
40141607
Brand Name
Dixon Valve & Coupling

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 4? Order in-stock items in the next 1 day 7 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • For control of air, water, oil and gas in hose or pipe lines for other services, please contact the factory
  • Rated to 600 psi WOG; 150 psi saturated steam
  • Brass valve bodies, balls and stems; blow-out proof stems
  • Glass-filled reinforced Teflon seats and stuffing box ring; stem seals and washers
  • Plated steel handles and nuts with vinyl sleeves, standard port valves are repairable

Package Details

Shipping Weight: 2 pounds
Package Size: 4.1 x 4.1 x 3.3 inches

Product Description

For control of air, water, oil and gas in hose or pipe lines for other services, please contact the factory. Rated to 600 psi WOG; 150 psi saturated steam. Brass valve bodies, balls and stems; blow-out proof stems. Glass-filled reinforced Teflon seats and stuffing box ring; stem seals and washers. Plated steel handles and nuts with vinyl sleeves, standard port valves are repairable. Meets WW-V 35C, Type II composition. 1" NPT female x 1" NPT female.
