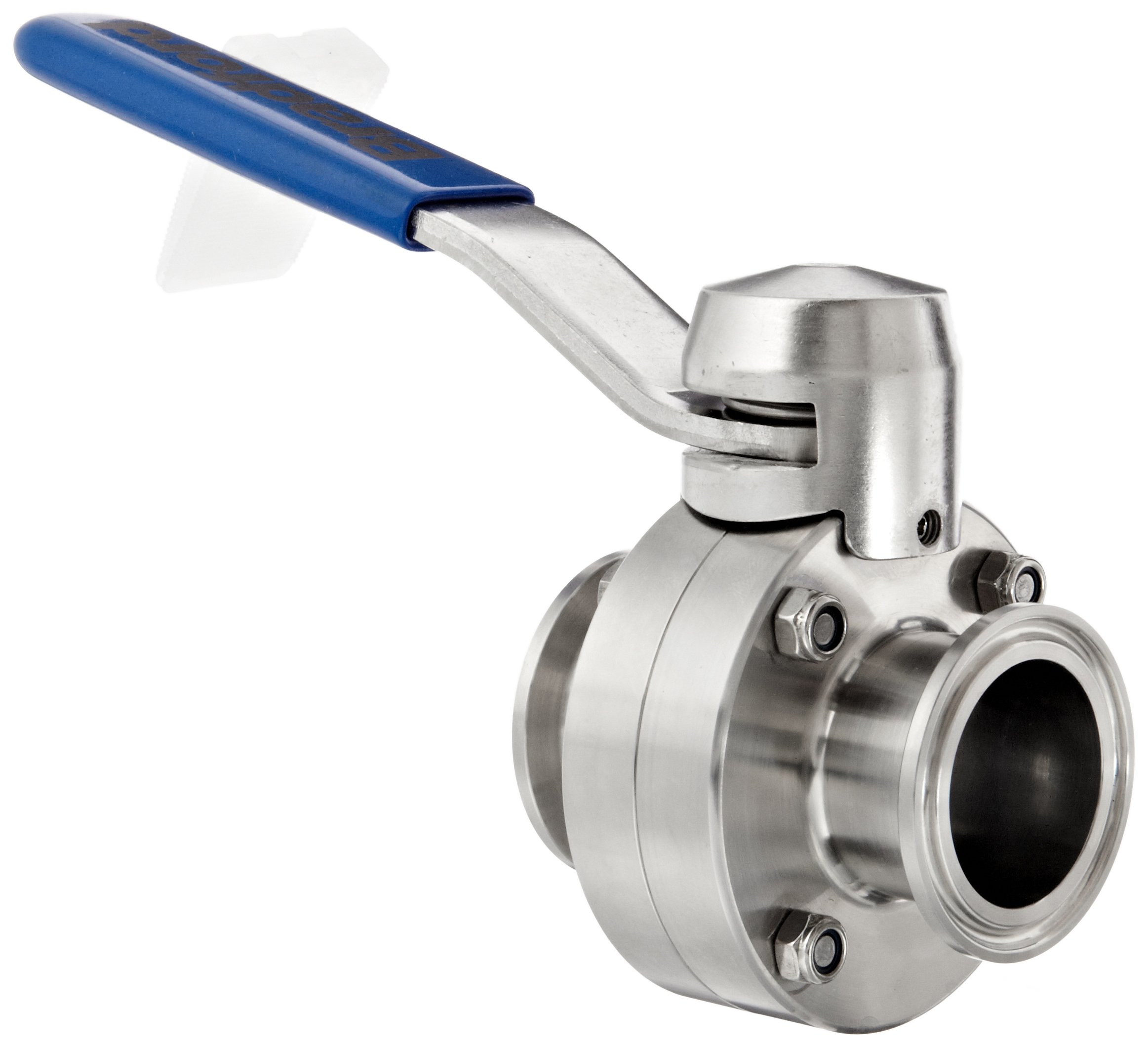

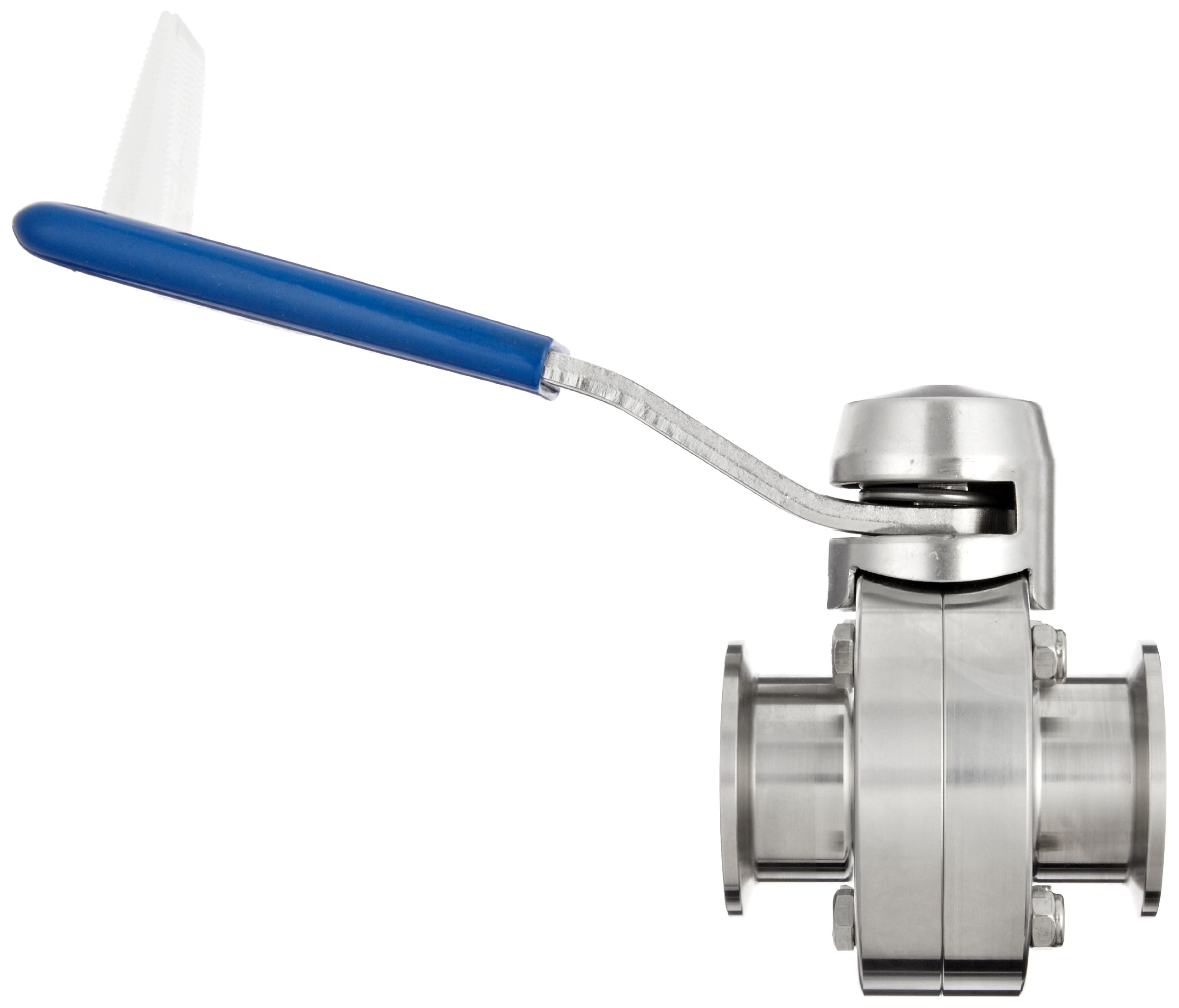

Dixon B5104E150CC-D Stainless Steel CF8M Clamp End Butterfly Valve with EPDM Seal, 1-1/2" Tube OD, 140 psi Pressure

Be the first to review this item


Product Specifications
Maximum Pressure
140  PSI
Number of Items
Part Number
Seal Material Type
Size Name
System of Measurement
Specification for this product family (See all  products)
Upper Temperature Range
200  Degrees Fahrenheit
Material Type
Stainless Steel
Style Name
Quick Clamp
Connector Type
Sanitary Quick Clamp
Brand Name
Dixon Valve & Coupling
LowerTemperature Range
15  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 1 day 9 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Sanitary fitting clamp end butterfly valve
  • Made of stainless steel CF8M
  • 100 Percent pressure hydraulic tested for reliability
  • Wetted surfaces polished to 3-A standards
  • Temperature range: 15 degree F to 200 degree F

Package Details

Shipping Weight: 2.85 pounds
Package Size: 5.1 x 3.9 x 3.2 inches

Product Description

100 percent tested/100 percent inspected. All wetted surfaces are sanitary finished to < 32R. Field serviceable (no special tools required). PTFE bushings reduce friction and increase cycle life. Minimal line pressure: 0.4 inches Hg vacuum at 68 degree F. Operating temperature range: 15 degree F to 200 degree F. Clamp style is standard. Sanitary fitting clamp end butterfly valve. Made of stainless steel CF8M with EPDM seal. Size: 1-1/2" tube OD, 140 psi pressure.
