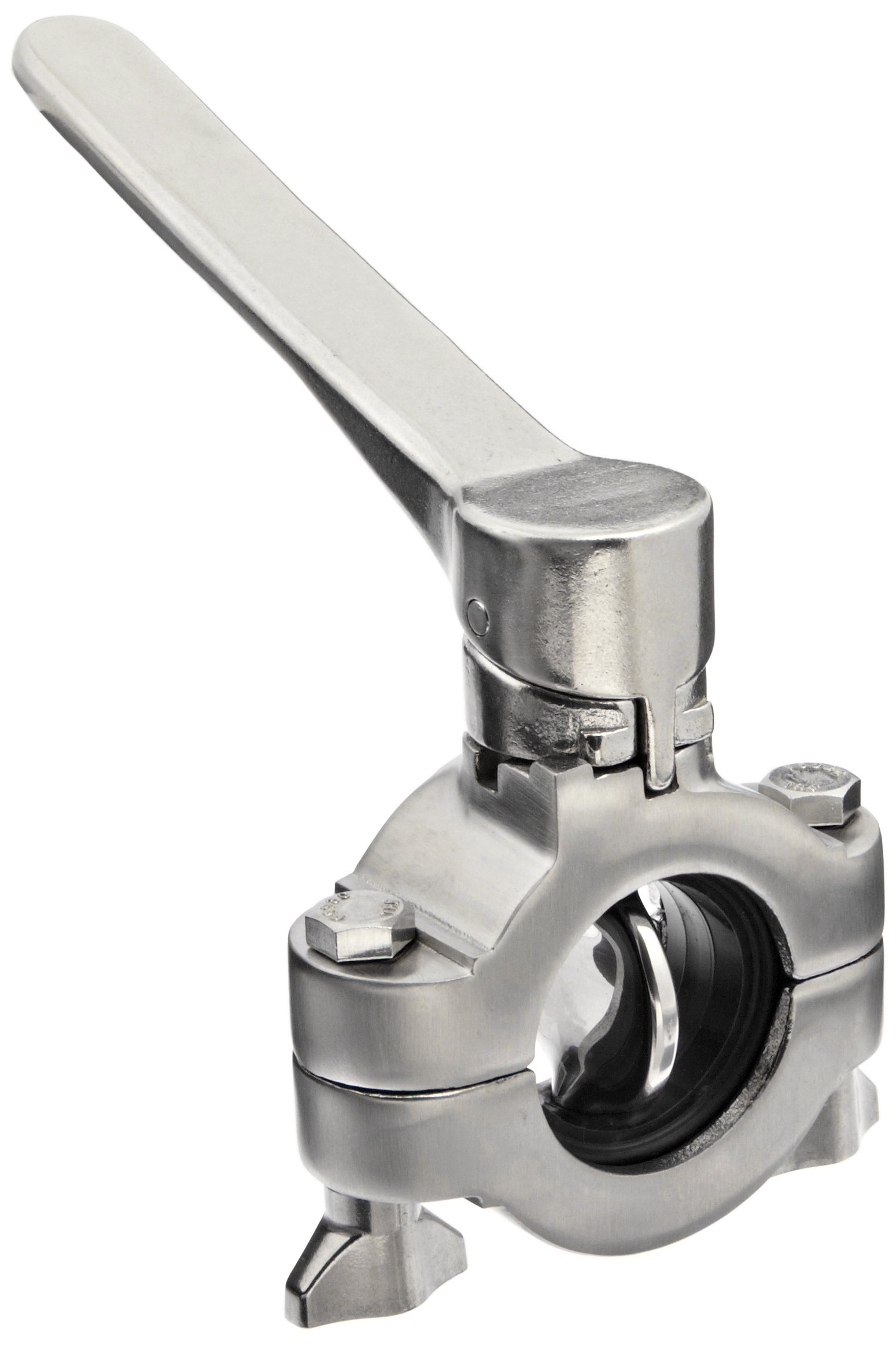

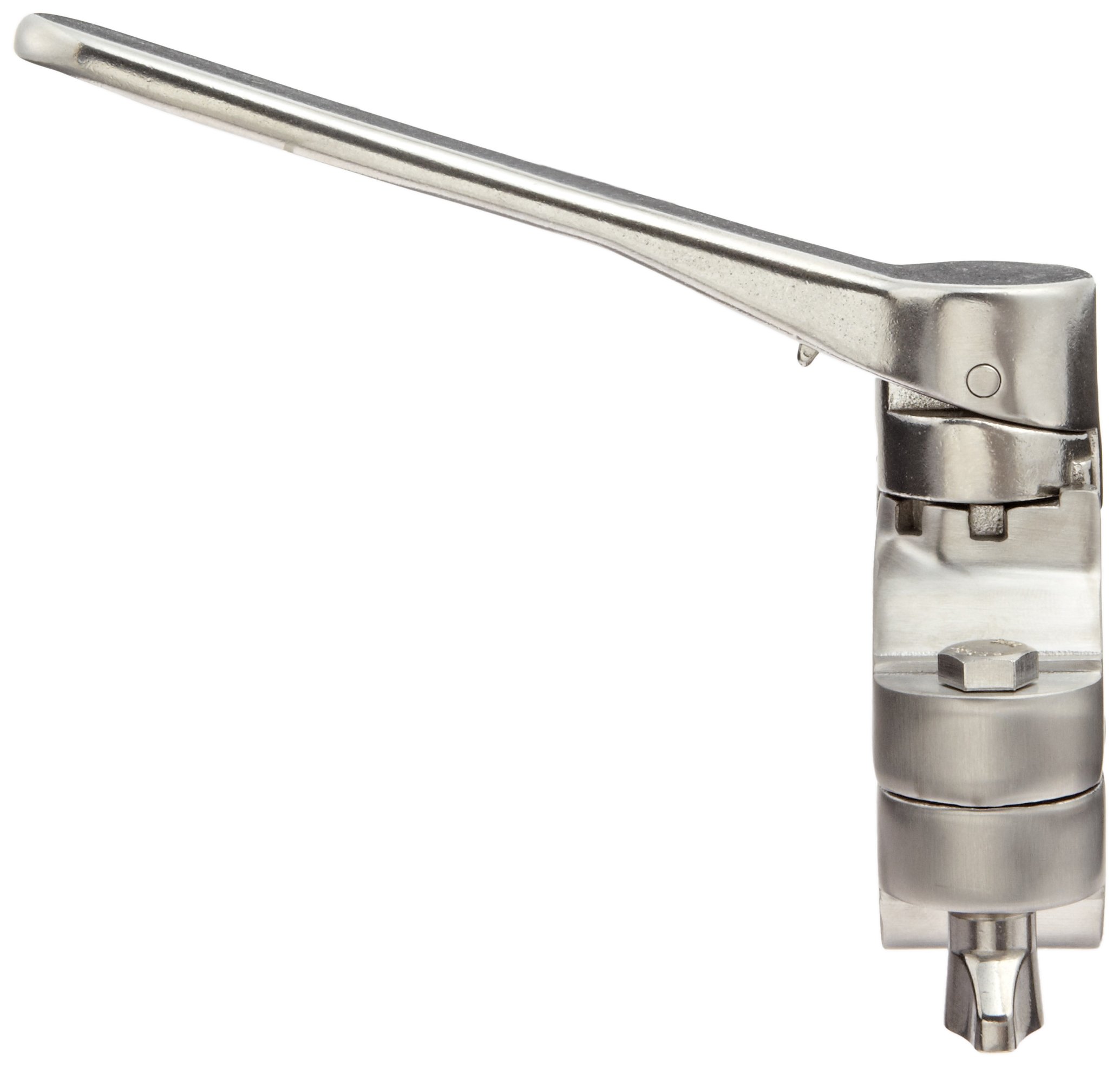

Dixon B5102E150-A Stainless Steel 316L Clamp Butterfly Valve with EPDM Seal, 1-1/2" Tube OD, 140 psi pressure

Be the first to review this item

ASIN B0081LIZ20

Product Specifications
Mfr Part #
B5102E150-A
Number of Items
1
Connection Size
1-1/2"
Maximum Pressure
140  PSI
System of Measurement
Inch
Seal Material Type
EPDM
Specification for this product family (See all  products)
Upper Temperature Range
200  Degrees Fahrenheit
Material Type
Stainless Steel 316L
Style Name
Quick Clamp
Connector Type
Quick Clamp
Brand Name
Dixon Valve & Coupling
LowerTemperature Range
15  Degrees Fahrenheit
List price:
$197.90
Price:
$100.39
You save:
$97.51 (49%)
Quantity:

In Stock (2)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 13 hrs 14 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Sanitary fitting clamp butterfly valve
  • Made of stainless steel 316L
  • The pull style handle allows you to set the valve in four different positions simply by pulling and turning
  • Temperature range: 15 degree F to 200 degree F
  • 100 Percent pressure hydraulic tested for reliability

Package Details

Shipping Weight: 1.5 pounds
Package Size: 5.4 x 4.1 x 2.3 inches

Product Description

The pull style handle allows you to set the valve in four different positions simply by pulling and turning. 100 Percent tested / 100 percent inspected 100 percent pressure hydraulic tested for reliability. Wetted surfaces polished to 3-A standards. Actuation available: double-acting, air-to-spring, electric. Vacuum rating: 14.2 psi at 68 degree F. Temperature range: 15 degree f to 200 degree F. Clamp style is standard.
