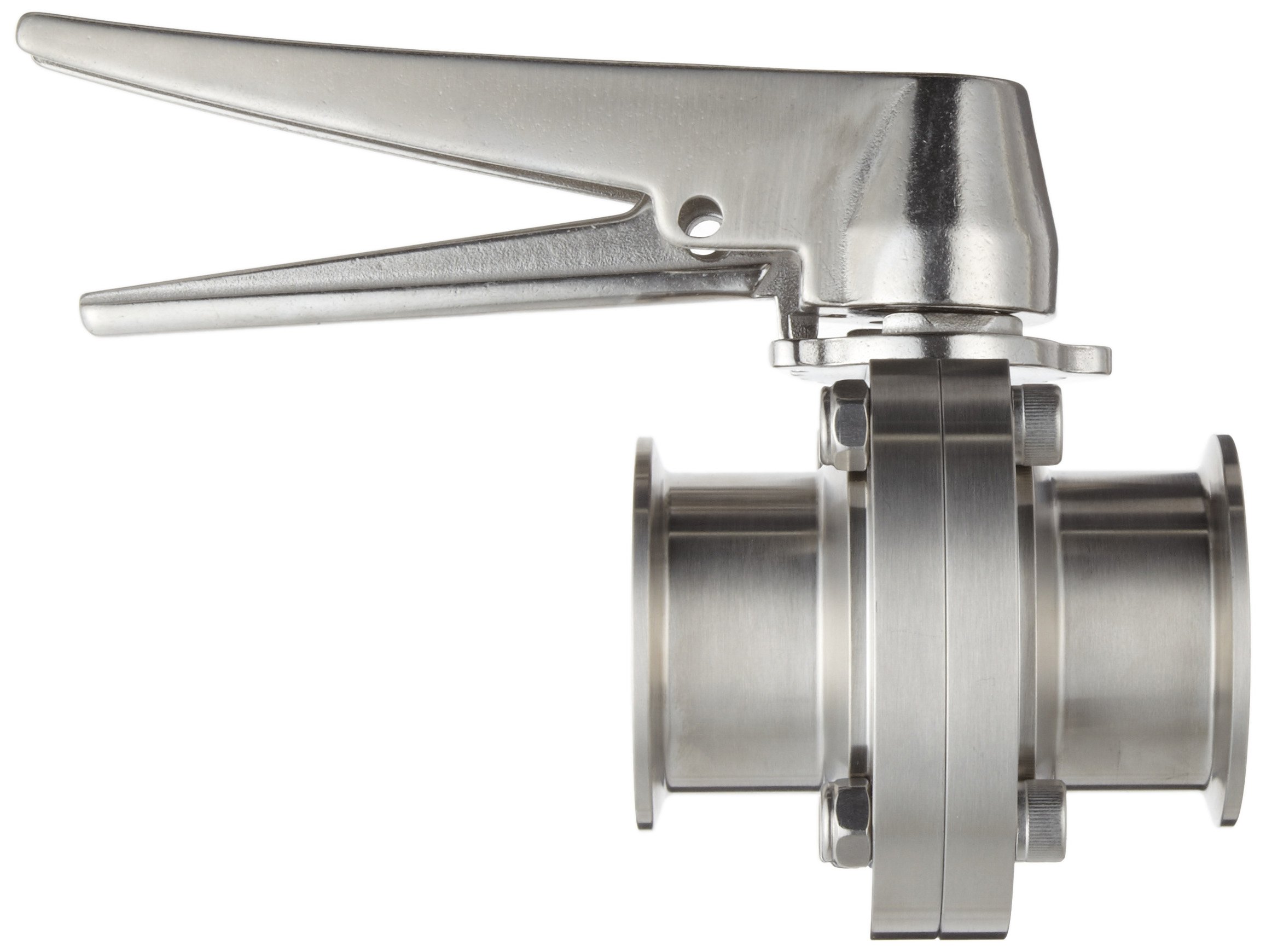

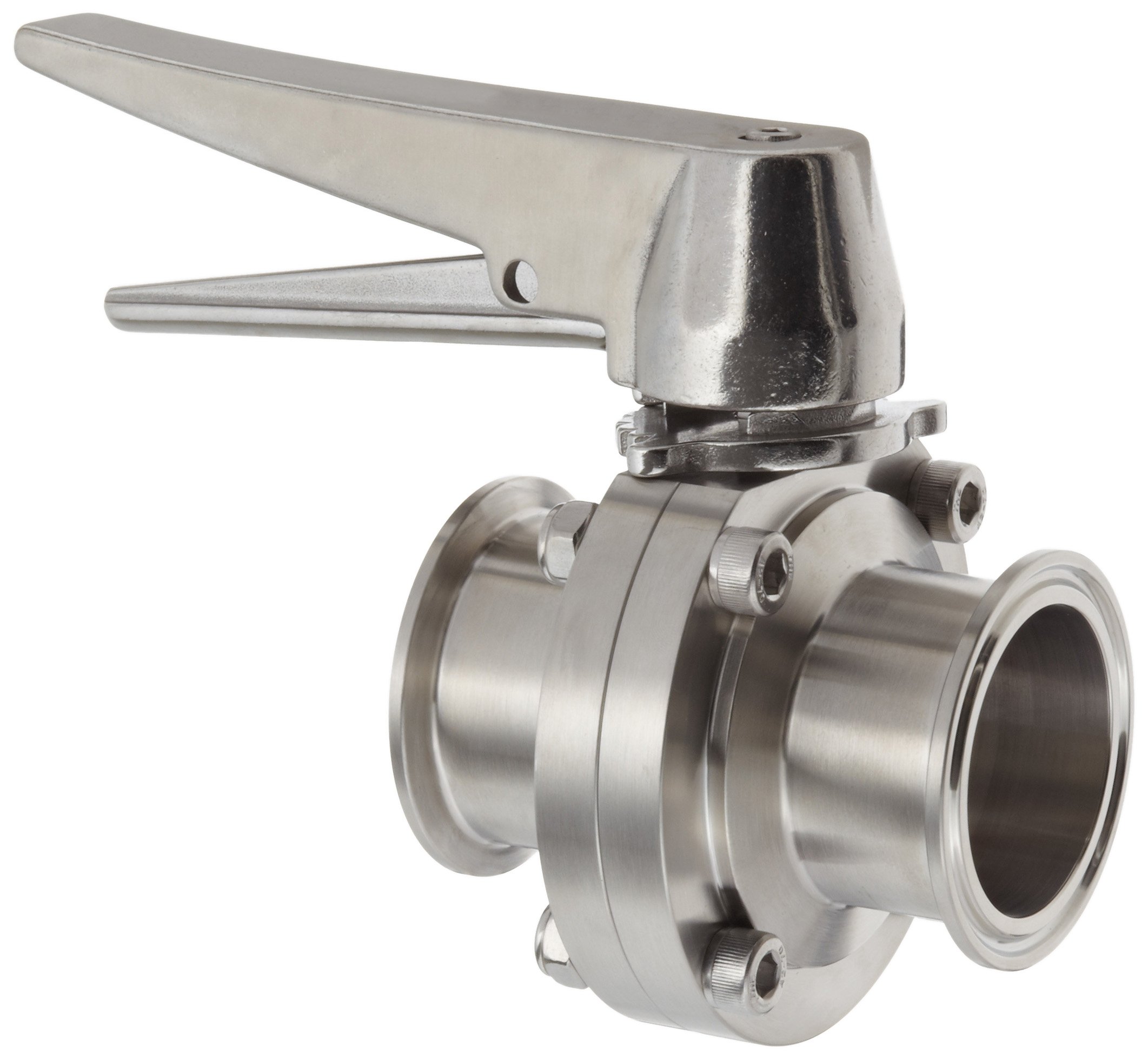

Dixon B5101S200CC-C Stainless Steel 316L Butterfly Valve with Trigger Handle and Silicone Seal, 2" Tube OD
Be the first to review this item
ASIN B0081LJBEQ
Product Specifications
- Connection Size
- 2"
- Mfr Part #
- B5101S200CC-C
- Number of Items
- 1
- Seal Material Type
- Silicone
- System of Measurement
- Inch
Specification for this product family (See all products)
- Brand Name
- Dixon Valve & Coupling
- Material Type
- Stainless Steel 316L
- LowerTemperature Range
- 15 Degrees Fahrenheit
- Upper Temperature Range
- 200 Degrees Fahrenheit
- Connector Type
- Quick Clamp
- Style Name
- Quick Clamp
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, June 21? Order in-stock items in the next 19 hours 1 minute and choose One-Day Shipping at checkout.
Key Features
- Sanitary fitting butterfly valve with trigger handle
- Made of stainless steel 316L
- The stainless steel trigger handle offers twelve positions which make it easy to understand how to actuate the valve
- Temperature range: 15 degree F to 200 degree F
- 100 Percent pressure hydraulic tested for reliability
Package Details
Shipping Weight:
3.15 pounds
Package Size:
8.9 x 8.6 x 8.3 inches
Product Description
The stainless steel trigger handle offers twelve positions which make it easy to understand how to actuate the valve. 100 Percent tested / 100 percent inspected. 100 Percent pressure hydraulic tested for reliability. Wetted surfaces polished to 3-A standards. Actuation available: double-acting, air-to-spring, electric. Vacuum rating: 14.2 psi at 68 degree F. Temperature range: 15 degree f to 200 degree F. Clamp style is standard.
