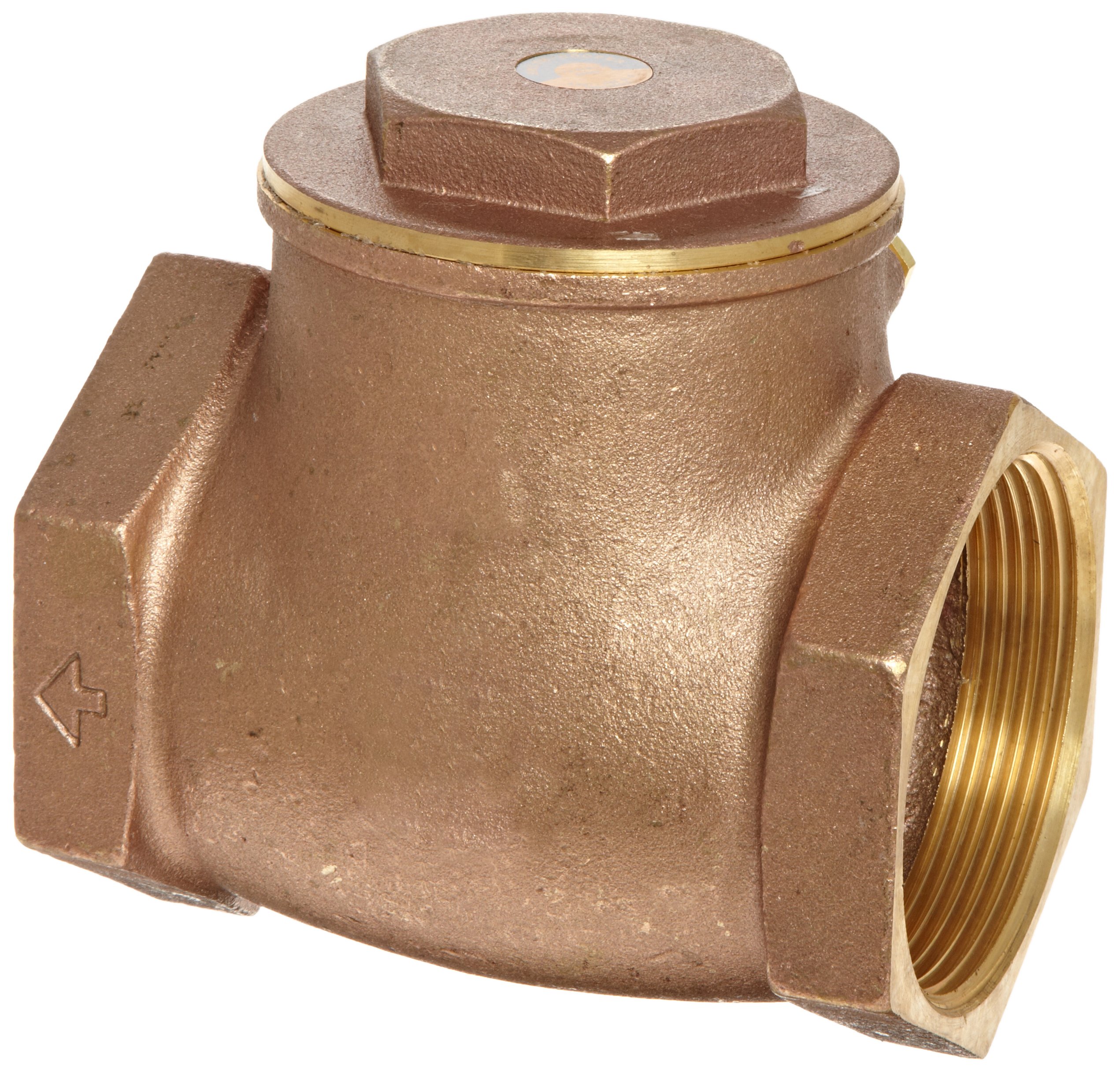

Dixon SWCV300 Brass Horizontal Swing Check Valve, 3" NPT Female
Be the first to review this item
ASIN B0081LJKQK
Product Specifications
- Connection Size
- 3"
- Maximum Steam Pressure Description
- Not Rated
- Mfr Part #
- SWCV300
- Number of Items
- 1
- System of Measurement
- Inch
Specification for this product family (See all products)
- Brand Name
- Dixon Valve & Coupling
- Material Type
- Brass
- Maximum Pressure
- 200 PSI
- LowerTemperature Range
- -20 Degrees Fahrenheit
- Upper Temperature Range
- 150 Degrees Fahrenheit
- Connector Type
- NPT Female
- Style Name
- Threaded
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 28? Order in-stock items in the next 13 hours 13 minutes and choose One-Day Shipping at checkout.
Key Features
- Horizontal swing check valve
- Made of brass
- Brass disc
- For horizontal or vertical use
- Rated to 200 psi pressure WOG
Package Details
Shipping Weight:
7 pounds
Package Size:
6.7 x 6.4 x 4.5 inches
Product Description
Horizontal swing check valve. A positive seating disc allows flow only in one direction and a screw-in cap provides easy access for periodic cleaning. Swing check valves are designed to prevent back flow in plumbing and liquid piping systems, while offering full flow performance with a minimum of turbulence or pressure loss. Made of brass. For horizontal or vertical use. Brass disc. Rated to 200 psi pressure WOG. Temperature range -20 to 150 degree F. 3" NPT female x 3" NPT female.
