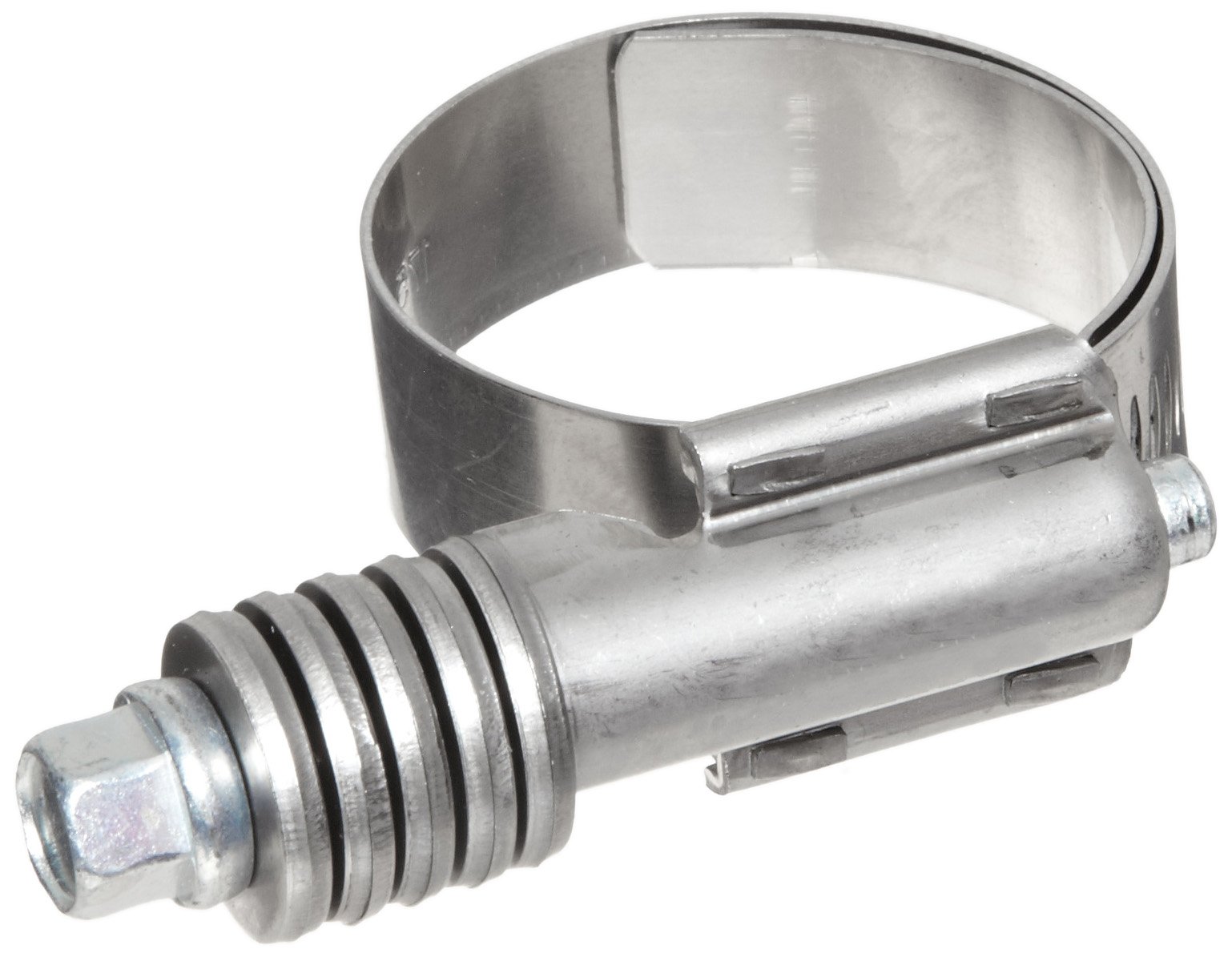

Dixon CT Stainless Steel 304 Constant Torque Clamp

Be the first to review this item

Product Specifications
Manufacturer Series Number
CT
Item Shape
Worm Gear
Grade
304
Material Type
Stainless Steel
UNSPSC Code
31162906
Brand Name
Dixon Valve & Coupling

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 4? Order in-stock items in the next 10 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-5 of 5
Min Diameter Max Diameter Band Width Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-5 of 5
3-3/4" 4-5/8" 5/8" 1 CT450L B007VY7OKM 3 $12.90 Buy Options
2-3/4" 3-5/8" 5/8" 1 CT350L B007VY7NMQ 2 $14.01 Buy Options
2-1/4" 3-1/8" 5/8" 1 CT300L B007VY7ML8 2 $12.29 Buy Options
1-3/4" 2-5/8" 5/8" 1 CT250L B007VY7L96 4 $11.87 Buy Options
1" 1-3/4" 5/8" 1 CT175L B007VY7J8E 3 $12.31 Buy Options

Key Features

  • Type 304 stainless steel band helps provide resistance to corrosion
  • Zinc-plated carbon steel screw resists rust
  • Worm gear mechanism for precise band adjustment
  • Belleville spring construction provides constant tension for reduced leakage in changing temperatures
  • Band width of 5/8" provides greater sealing area than smaller width band

Product Description

The Dixon CT series stainless steel constant torque clamp has a stainless steel band and housing, a zinc-plated steel screw, and provides constant tension for reduced leakage in changing temperatures. A worm gear mechanism adjusts the clamp’s diameter to precisely apply sealing pressure. A Belleville spring mechanism helps the clamp expand or contract its diameter as operational or environmental temperatures change. The band’s 5/8” width provides a greater sealing area than clamps of smaller width. The band and housing are made of stainless steel that conforms to the Society of Automotive Engineers (SAE) 304 standard and provides resistance to corrosion. The 3/8” hex-head screw allows installation using a nut driver or socket wrench. The screw is made of carbon steel that is zinc-plated for resistance to rust.

Hose clamps attach hoses to fittings to prevent flow leakage. They come in a variety of designs and distribute uniform pressure over the circumference of hoses to bind them to fittings. Hose clamps are suitable for a large number of industries, and commonly used in industrial, electronic, and automotive applications.

Dixon Valve & Coupling Company manufactures pipe and hose fittings and accessories. The company, founded in 1916, is headquartered in Chestertown, MD.
