Dixon HP Series Half Hard Stainless Steel Hi Torque Extended Range Clamp

Be the first to review this item

Product Specifications
Manufacturer Series Number
Maximum Lifting Height
0  inches
Item Shape
Worm Gear
Measurement Accuracy
Material Type
Stainless Steel
Brand Name
Dixon Valve & Coupling

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 2 days 1 hr 22 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Size name Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All
Currently showing 1-2 of 2
1-1/4 inches 1 B007VYAPKI yes $7.52 Buy Options
4 inches 1 B007VYAS32 yes $10.20 Buy Options

Key Features

  • Series 300 stainless steel band helps provide resistance to corrosion
  • Stainless steel screw resists corrosion
  • High torque worm gear mechanism helps provide sealing pressure and vibration resistance
  • Extended range band accommodates a wide variety of hose diameters
  • Band width of 5/8" provides greater sealing area than smaller width band

Product Description

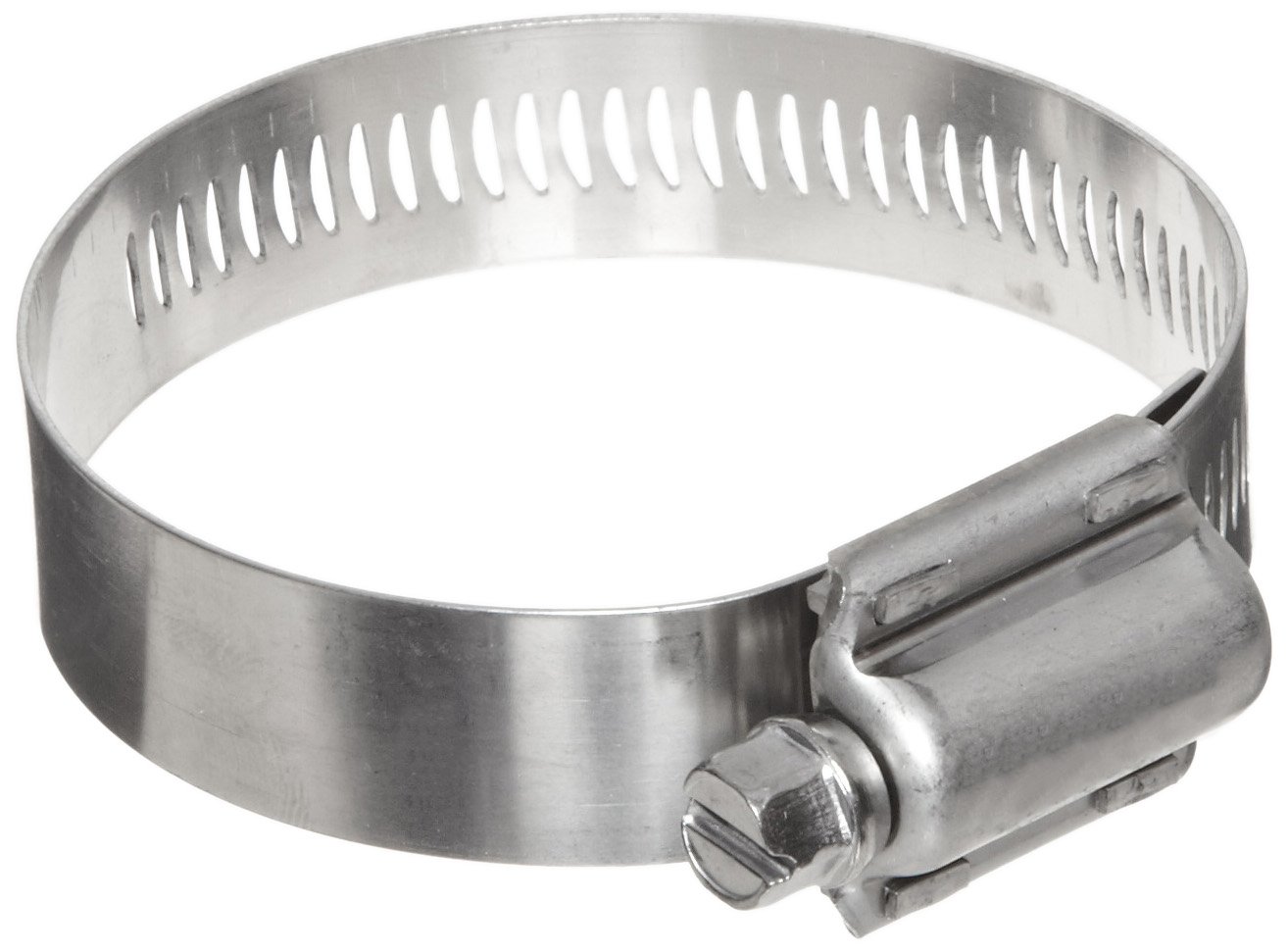

The Dixon HP series stainless steel hi torque clamp has a series 300 stainless steel extended range band, a stainless steel screw, and clamps with a higher degree of torque than standard clamps for additional sealing pressure and resistance to vibration. A worm gear mechanism adjusts the clamp’s diameter to precisely apply sealing pressure. The band’s 5/8” width provides a greater sealing area than clamps of smaller width, and its largest and smallest openings are greater than standard clamps to accommodate a wide variety of hose diameters. The band, housing, and screw are made of stainless steel that conforms to the Society of Automotive Engineers (SAE) 300 series standard and provides resistance to corrosion. The slotted, 5/16” hex-head screw allows installation using a blade screwdriver, nut driver, or socket wrench. The screw is made of SAE 410 low-carbon stainless steel that is resistant to corrosion and is hardened to prevent breaking. The clamp’s worm gear mechanism helps provide torque over 150 inch-pounds.

Hose clamps attach hoses to fittings to prevent flow leakage. They come in a variety of designs and distribute uniform pressure over the circumference of hoses to bind them to fittings. Hose clamps are suitable for a large number of industries, and commonly used in industrial, electronic, and automotive applications.

Dixon Valve & Coupling Company manufactures pipe and hose fittings and accessories. The company, founded in 1916, is headquartered in Chestertown, MD.
