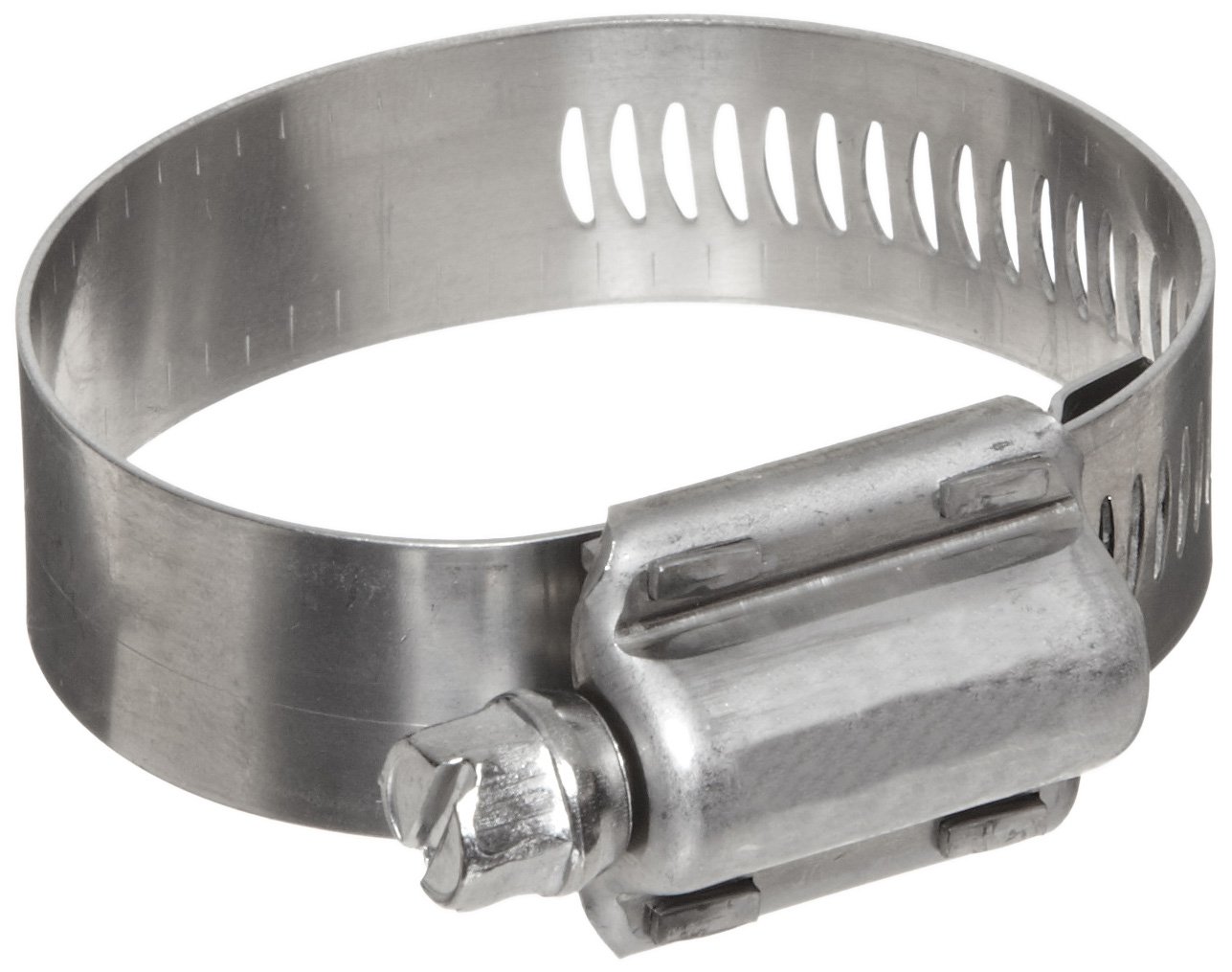

Dixon HTM Series Stainless Steel Hi Torque Clamp with Stainless Steel 410 Screw

Be the first to review this item

Product Specifications
Manufacturer Series Number
HTM
Item Shape
Worm Gear
Material Type
Stainless Steel
UNSPSC Code
31162906
Brand Name
Dixon Valve & Coupling

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 22 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Min Diameter Max Diameter Band Width Torque Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-7 of 7
4-1/4" 5-8/64" 5/8" 150 in-lbs 1 HTM500 B007VYDXX4 1 $4.10 Buy Options
3-3/4" 4-40/64" 5/8" 150 in-lbs 1 HTM450 B007VYDWFI 10 $3.04 Buy Options
3-1/4" 4-8/64" 5/8" 150 in-lbs 1 HTM400 B007VYDUOQ 1 $6.05 Buy Options
2-3/4" 3-40/64" 5/8" 150 in-lbs 1 HTM350 B007VYDTGU 6 $3.39 Buy Options
2-1/4" 3-8/64" 5/8" 150 in-lbs 1 HTM300 B007VYDS34 8 $7.62 Buy Options
1-3/4" 2-40/64" 5/8" 150 in-lbs 1 HTM250 B007VYDQ54 2 $3.20 Buy Options
1-1/4" 2-8/64" 5/8" 150 in-lbs 1 HTM200 B007VYDORE 6 $7.54 Buy Options

Key Features

  • Series 300 stainless steel band helps provide resistance to corrosion
  • Stainless steel screw resists corrosion
  • Worm gear mechanism for precise band adjustment
  • High torque worm gear mechanism helps provide sealing pressure and vibration resistance

Product Description

The Dixon HTM series stainless steel hi torque clamp has a series 300 stainless steel band and housing, a stainless steel screw, and clamps with a higher degree of torque than standard clamps for additional sealing pressure and resistance to vibration. A worm gear mechanism adjusts the clamp’s diameter to precisely apply sealing pressure. The band’s 5/8” width provides a greater sealing area than clamps of smaller width. The band, housing, and screw are made of stainless steel that conforms to the Society of Automotive Engineers (SAE) 300 series standard and provides resistance to corrosion. The slotted, 5/16” hex-head screw allows installation using a blade screwdriver, nut driver, or socket wrench. The screw is made of SAE 410 low-carbon stainless steel that Is resistant to corrosion and is hardened to prevent breaking. The clamp’s worm gear mechanism helps provide torque over 150 inch-pounds.

Hose clamps attach hoses to fittings to prevent flow leakage. They come in a variety of designs and distribute uniform pressure over the circumference of hoses to bind them to fittings. Hose clamps are suitable for a large number of industries, and commonly used in industrial, electronic, and automotive applications.

Dixon Valve & Coupling Company manufactures pipe and hose fittings and accessories. The company, founded in 1916, is headquartered in Chestertown, MD.
