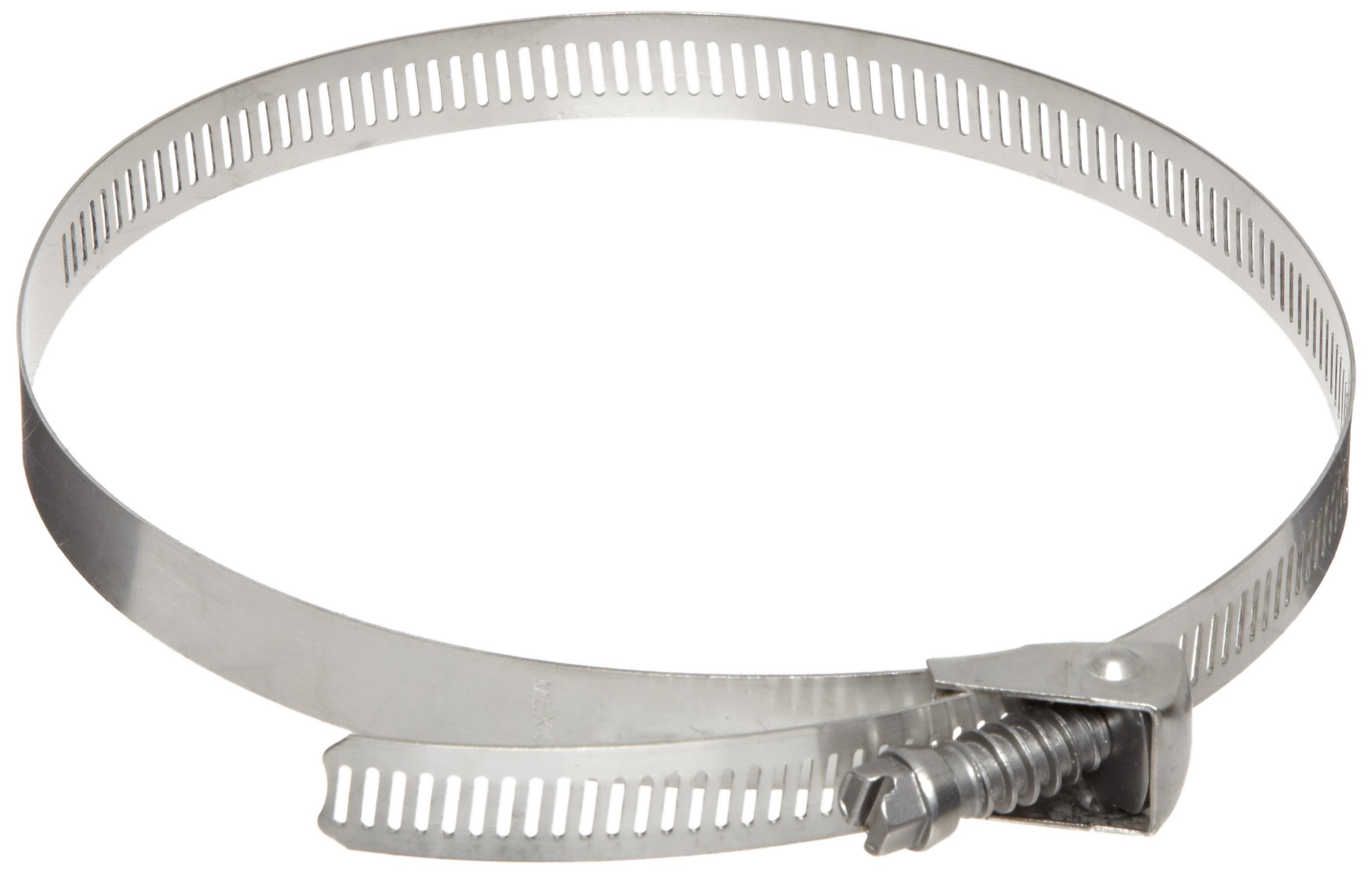

Dixon LSS Series Stainless Steel 301 Quick Release Worm Gear Clamp with SAE 410 Stainless Screw

Be the first to review this item

Product Specifications
Manufacturer Series Number
LSS
Item Shape
Worm Gear
Grade
301
Material Type
Stainless Steel
Structure Description
Quick Release
UNSPSC Code
31162906
Brand Name
Dixon Valve & Coupling

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 12 hrs 42 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Min Diameter Max Diameter Band Width Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-7 of 7
10-3/4" 16" 1/2" 1 LSS248 B007VYAKCQ yes $5.60 Buy Options
10-12/64" 14" 1/2" 1 LSS216 B007VYAI1E yes $9.24 Buy Options
2-1/16" 12-5/16" 1/2" 1 LSS188 B007VYAGIO yes $4.32 Buy Options
1-3/4" 8-9/16" 1/2" 1 LSS128 B007VYAEPO yes $3.83 Buy Options
2-1/16" 6" 1/2" 10 LSS88 B007VYANNC Usually ships in 1 to 2 months $36.97 Buy Options
1-1/2" 3-1/2" 1/2" 10 LSS48 B007VYALXE yes $34.67 Buy Options
1-3/4" 7" 1/2" 10 LSS104 B007VYACC4 Usually ships in 1 to 2 months $36.69 Buy Options

Key Features

  • Type 301 stainless steel band helps provide resistance to corrosion, wear, and fatigue
  • Stainless steel screw resists corrosion
  • Worm gear mechanism for precise band adjustment
  • Quick release screw swivels to lock or disengage the clamp

Product Description

The Dixon LSS series stainless steel quick release worm gear clamp has a stainless steel band, housing, and screw, and a quick release mechanism. The screw swivels to lock the clamp or disengage it for quick release. A worm gear mechanism adjusts the clamp’s diameter to precisely apply sealing pressure. The 1/2" band and housing are made of stainless steel that conforms to the Society of Automotive Engineers (SAE) 301 standard and provides resistance to corrosion, wear, and fatigue. The slotted, 5/16” hex-head screw allows installation using a blade screwdriver, nut driver, or socket wrench. The screw is made of SAE 410 low-carbon stainless steel that Is resistant to corrosion and is hardened to prevent breaking. The clamp is recommended for maximum torque of 30 inch-pounds.

Hose clamps attach hoses to fittings to prevent flow leakage. They come in a variety of designs and distribute uniform pressure over the circumference of hoses to bind them to fittings. Hose clamps are suitable for a large number of industries, and commonly used in industrial, electronic, and automotive applications.

Dixon Valve & Coupling Company manufactures pipe and hose fittings and accessories. The company, founded in 1916, is headquartered in Chestertown, MD.
