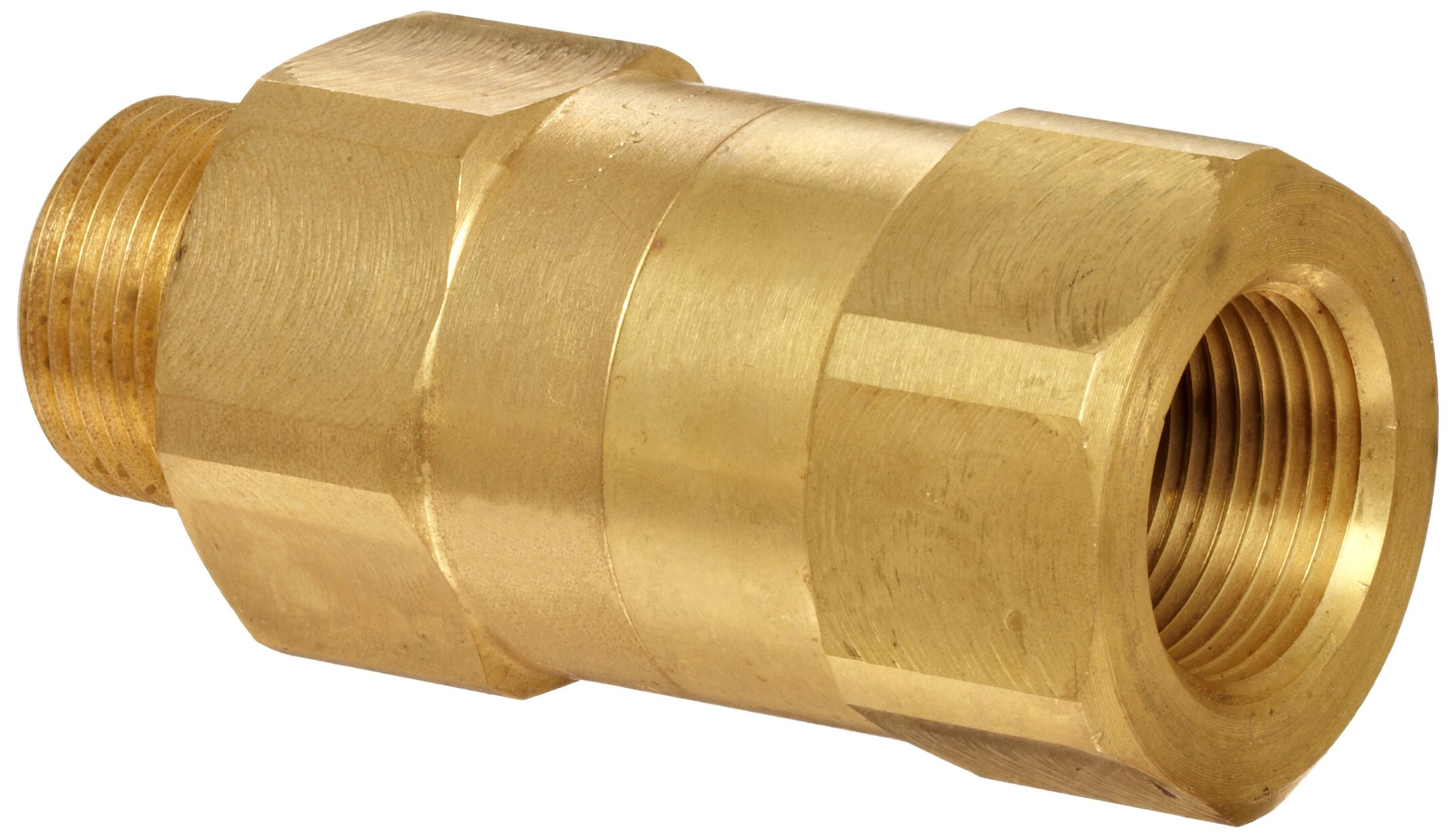

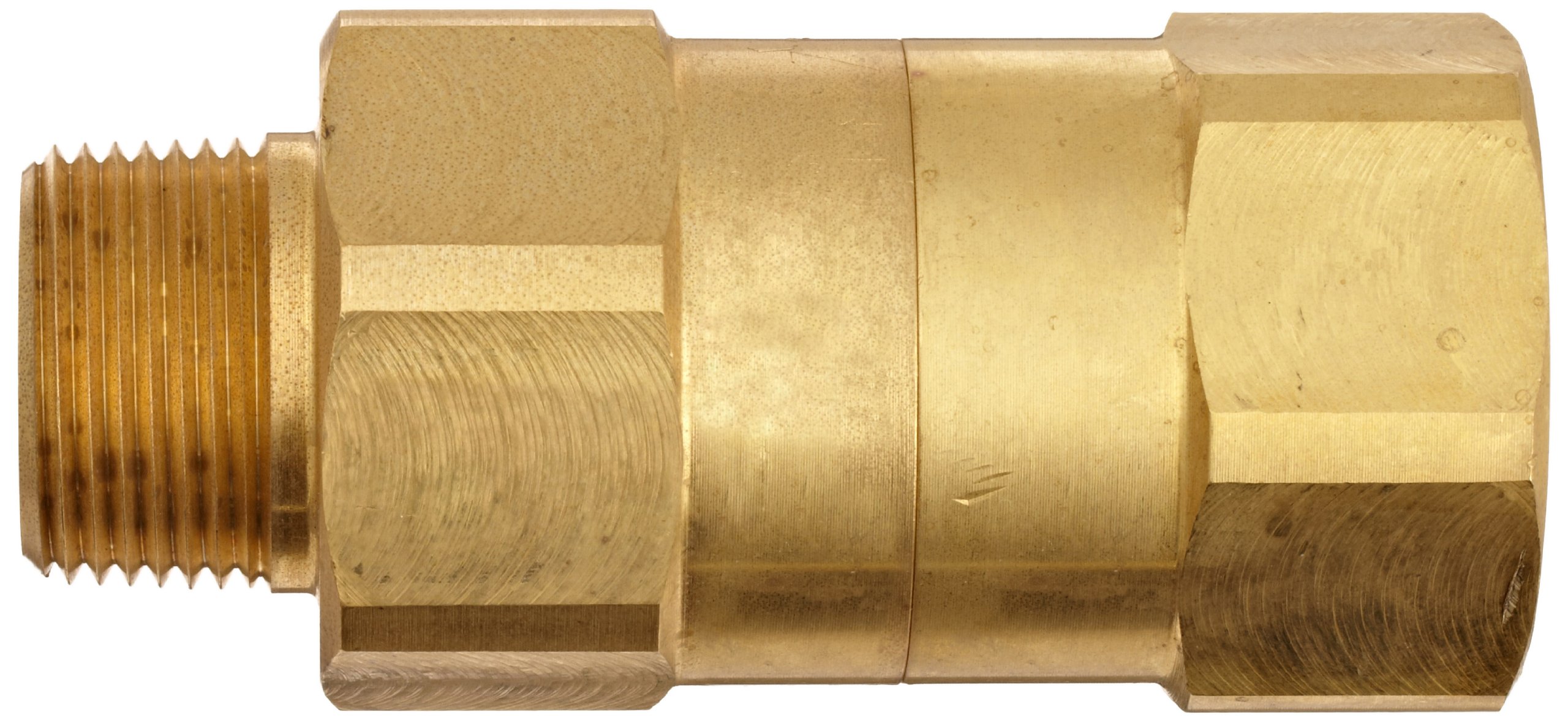

Dixon SCVH8 Brass Safety Check Valve, 1" NPT male x NPT Female

Be the first to review this item

ASIN B0081LJW0Y

Product Specifications
Part Number
SCVH8
Number of Items
1
Size Name
1"
System of Measurement
Inch
Item Weight
1.78 pounds
Maximum Steam Pressure Description
Not Rated
Specification for this product family (See all  products)
Upper Temperature Range
250  Degrees Fahrenheit
Material Type
Brass
Maximum Pressure
250  PSI
Style Name
Threaded
Connector Type
NPT male x NPT Female
UNSPSC Code
40141600
Brand Name
Dixon Valve & Coupling

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 9 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • High flow valve to provide optimum performance
  • Made of brass
  • Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip
  • Conforms to OSHA regulation 1926.302 (b) (7) requiring a safety device at the source of the air supply and at branch air lines
  • Applications include temporary plant/factory air, construction sites, shipyards or utilities

Package Details

Shipping Weight: 1.85 pounds
Package Size: 4.4 x 1.9 x 1.3 inches

Product Description

High flow valve to provide optimum performance. Controls excess air flow (SCFM) in only one direction. Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip. Conforms to OSHA regulation 1926.302 (b) (7) requiring a safety device at the source of the air supply and at branch air lines. Applications include temporary plant/factory air, construction sites, shipyards or utilities. Not for use in applications where 100 percent of the available air is required, i.e. sand blast, pile driving rigs, expansion joint blow down pipes, etc. Does not prevent backflow. Construction: solid brass body and valve. Stainless steel spring and roll pin. Maximum 250 PSI working pressure. 250 degree F maximum temperature. Safety check valves operate by using the pressure differential across the valve to operate the valve and spring assembly. The pressure differential is directly related to the flow of air (SCFM) through the valve. When the pressure differential is within the operating limits - below the cutoff flow - of the unit, the force on the valve exerted by the spring is greater than that caused by the pressure differential. The valve remains open and normal operation continues. When the pressure differential is above the cutoff limit, the force on the valve exerted by the pressure differential is greater than the force exerted by the spring, and the valve closes. After the repair is made, normal operation is automatically enabled when pressure across the valve equalizes through the bleeder hole. The valve spring size can be specified by determining the air flow during normal operation and by estimating the air flow if a failure or rupture occurs. 1" NPT male. 1" Hose ID Barbed. 310-340 Cut-off flow rate (SCFM at 90 PSI).
