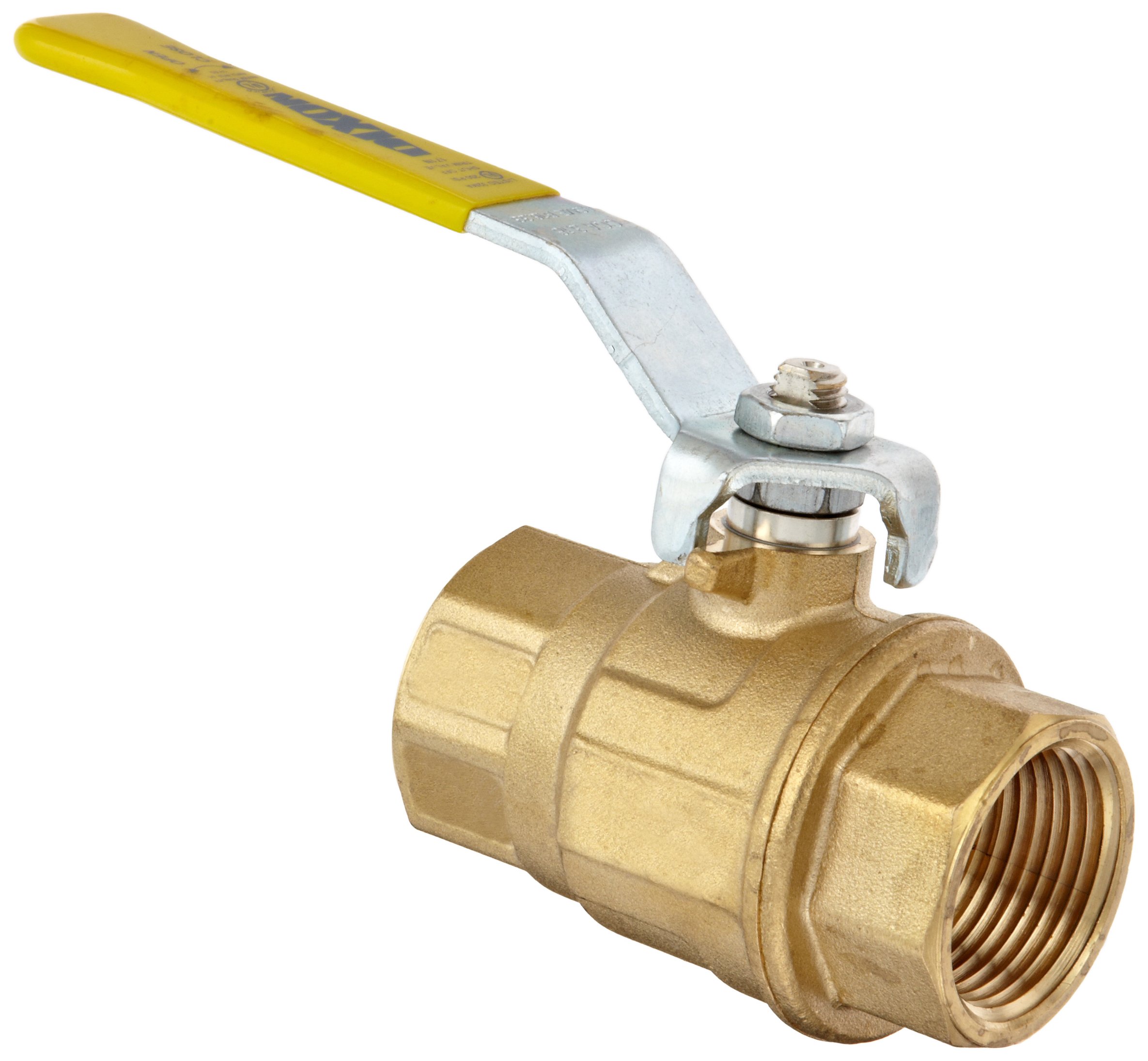

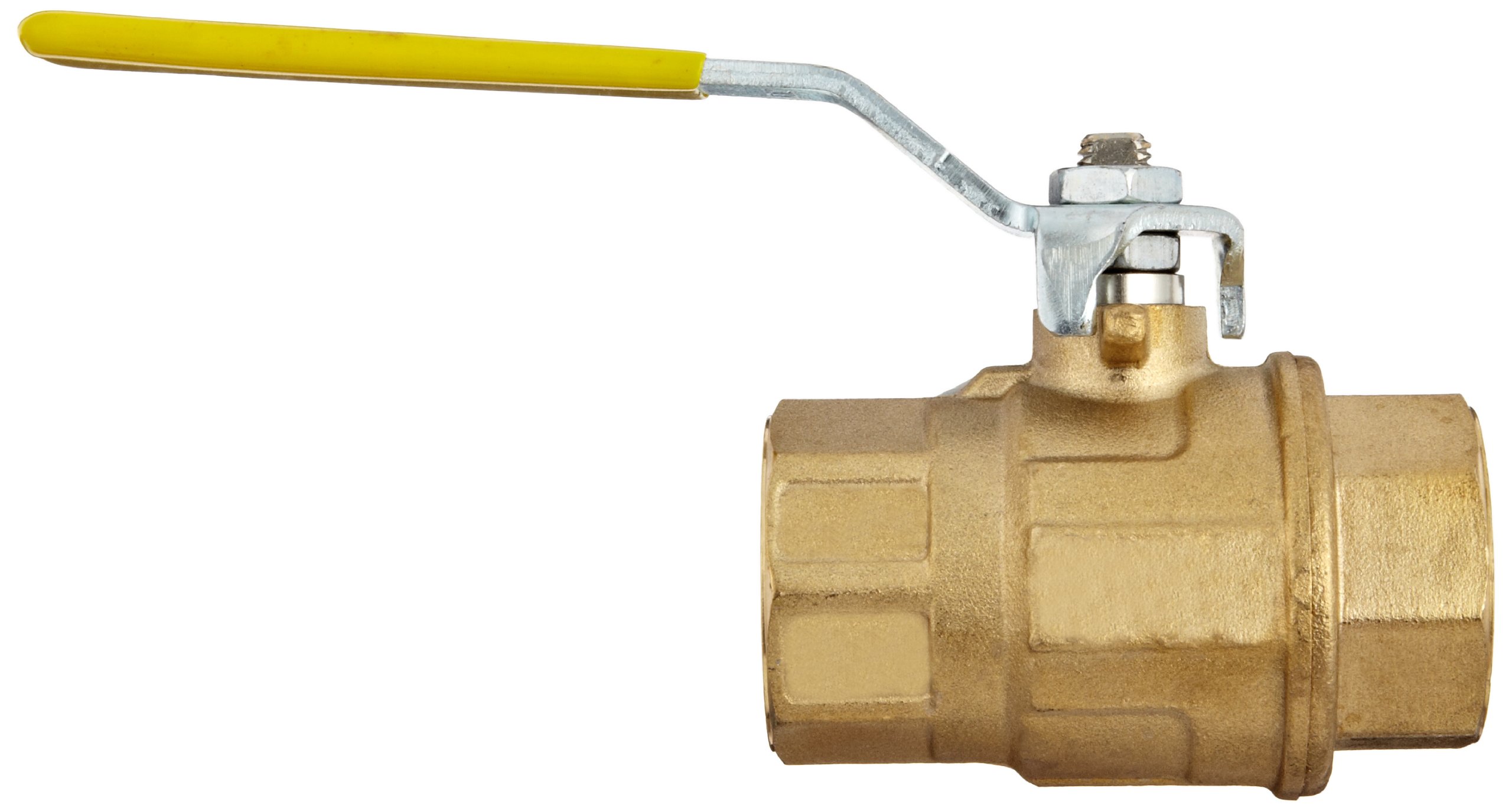

Dixon FBV100 Brass Ball Valve, 1" NPT Female

Be the first to review this item

ASIN B0040C37X6

Product Specifications
Part Number
FBV100
Number of Items
1
Size Name
1"
System of Measurement
Inch
Item Weight
0.01 pounds
Maximum Steam Pressure Description
150 pounds_per_square_inch
Specification for this product family (See all  products)
Item Shape
Inline
Material Type
Brass
Construction Type
Full Port
Brand Name
Dixon Valve & Coupling
Upper Temperature Range
366  Degrees Fahrenheit
Maximum Pressure
600  PSI
Connector Type
NPT Female
UNSPSC Code
40141607
Style Name
Threaded

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 1 hr 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Imported ball valve
  • Made of forged brass
  • Blow-out proof stem
  • Chrome plated brass balls and plated steel handles
  • PTFE seats, seals and thrust washers

Package Details

Shipping Weight: 1.4 pounds
Package Size: 4 x 4 x 2.4 inches

Product Description

Imported ball valve. Made of forged brass. Blow-out proof stem. Chrome plated brass balls and plated steel handles. PTFE seats, seals and thrust washers. Rated to 600 psi WOG; 150 pi working steam pressure. Maximum temperature 366 degree F. NSF61 approved. With full port type. 1" NPT female x 1" NPT female.
