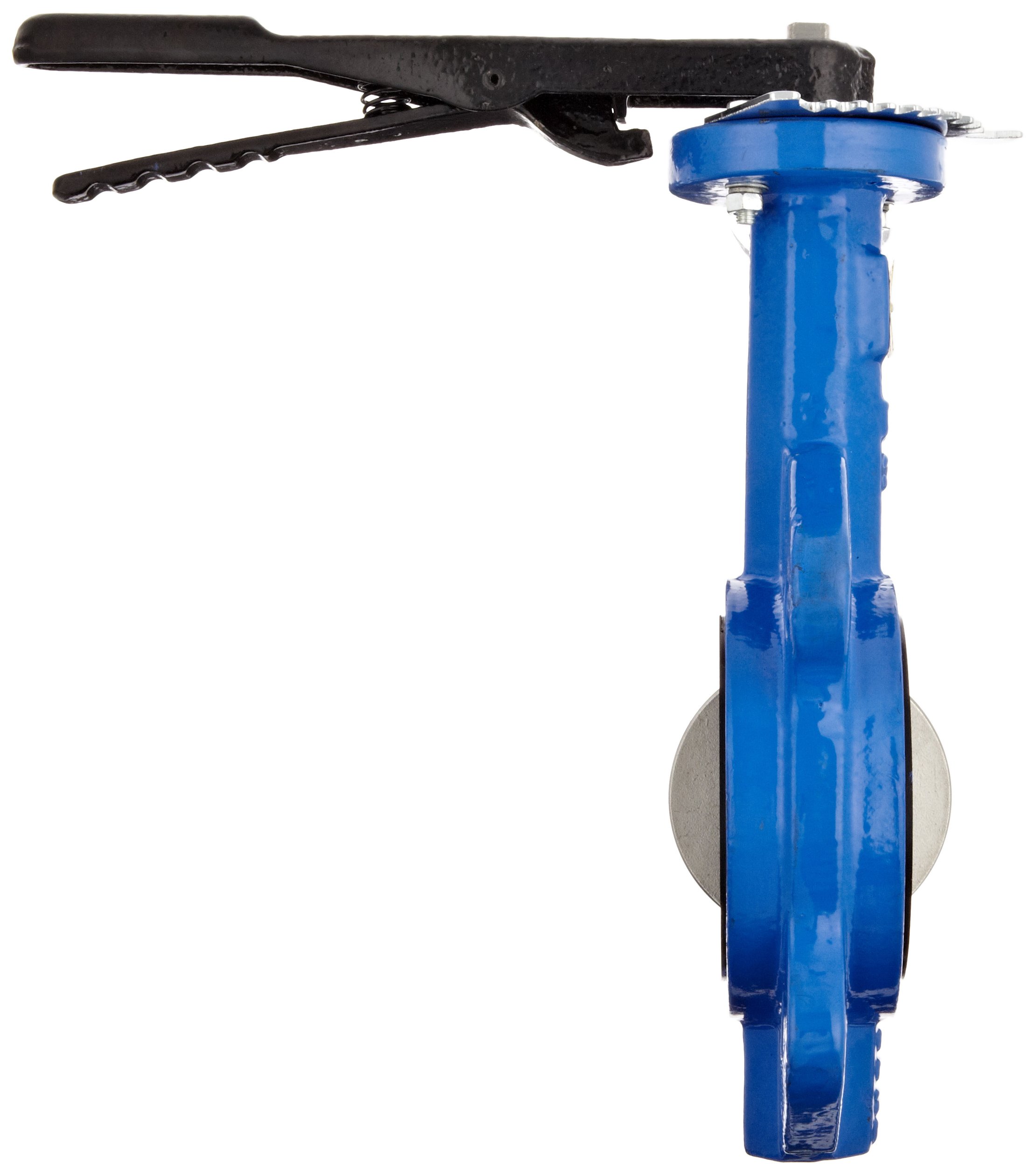

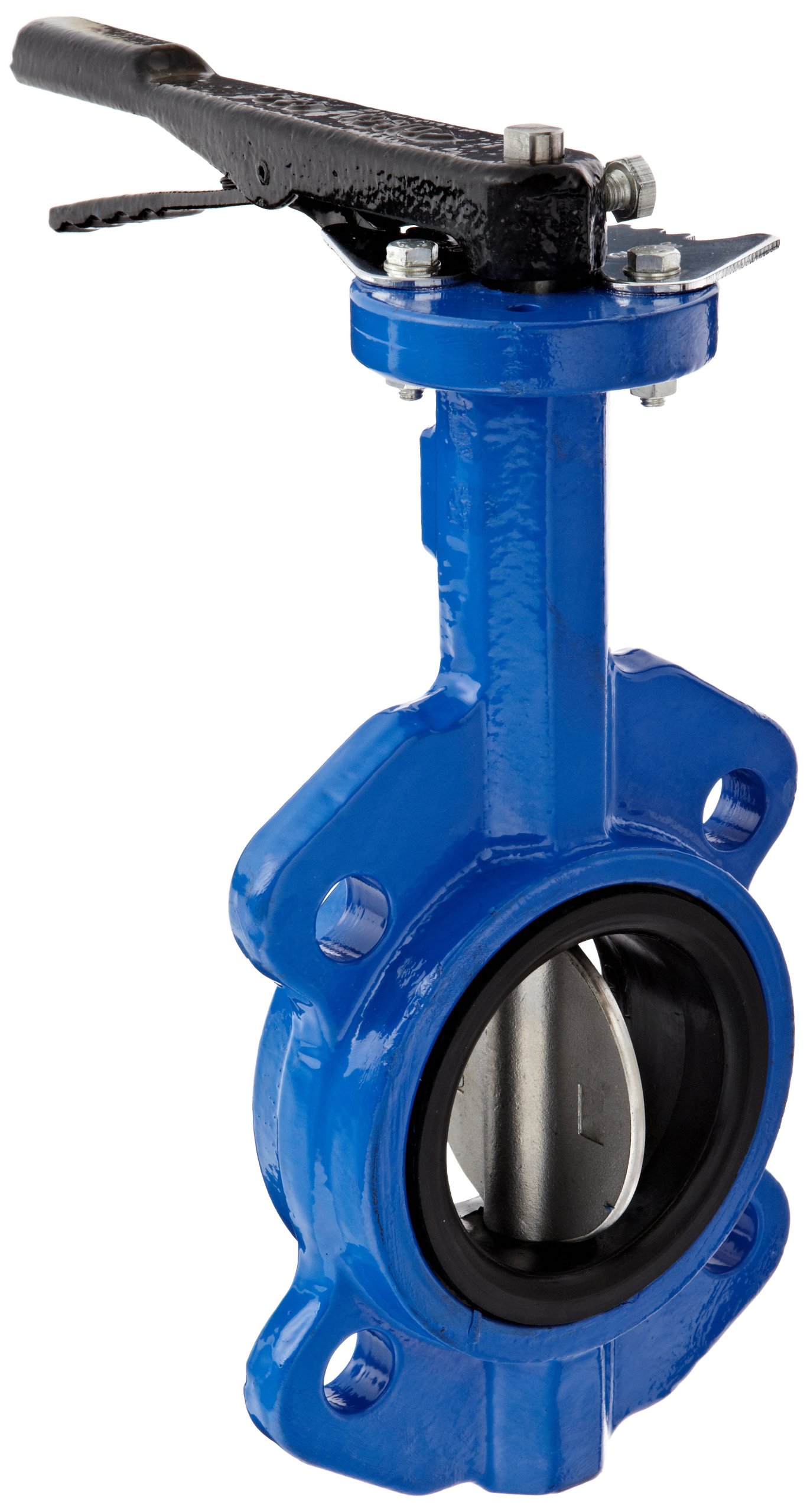

Dixon BFVW300 Ductile Iron Wafer Style Butterfly Valve with Stainless Steel Disc and Buna-N liner, 3" Size, 200 psi Pressure

Be the first to review this item

ASIN B0081LJ2QS

Product Specifications
Part Number
BFVW300
Number of Items
1
Size Name
3"
System of Measurement
Inch
Item Weight
1 pounds
Specification for this product family (See all  products)
Upper Temperature Range
70  Degrees Fahrenheit
Material Type
Iron
Maximum Pressure
200  PSI
UNSPSC Code
40141656
Connector Type
Flanged
Style Name
Flanged
Brand Name
Dixon Valve & Coupling

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 31? Order in-stock items in the next 6 hrs 12 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Wafer style butterfly valve
  • Made of ductile iron
  • PTFE bushing
  • Buna-N seal and stem seals
  • Stainless steel top and bottom stems

Package Details

Shipping Weight: 10.5 pounds
Package Size: 12.5 x 6.6 x 4 inches

Product Description

Wafer style butterfly valve. Made of ductile iron. PTFE bushing. Buna-N seal and stem seals. Stainless steel top and bottom stems. The number of holes on the valve depends on the body size. Stainless steel disc, ASTM A351, GR. CF-8M. Ductile iron body, ASTM A536. For use between two 150 lbs flanges. Will lock "open" or "closed". Buna-N liner. Rated to 200 psi pressure at ambient temperature (70 degree F). Size: 3".
