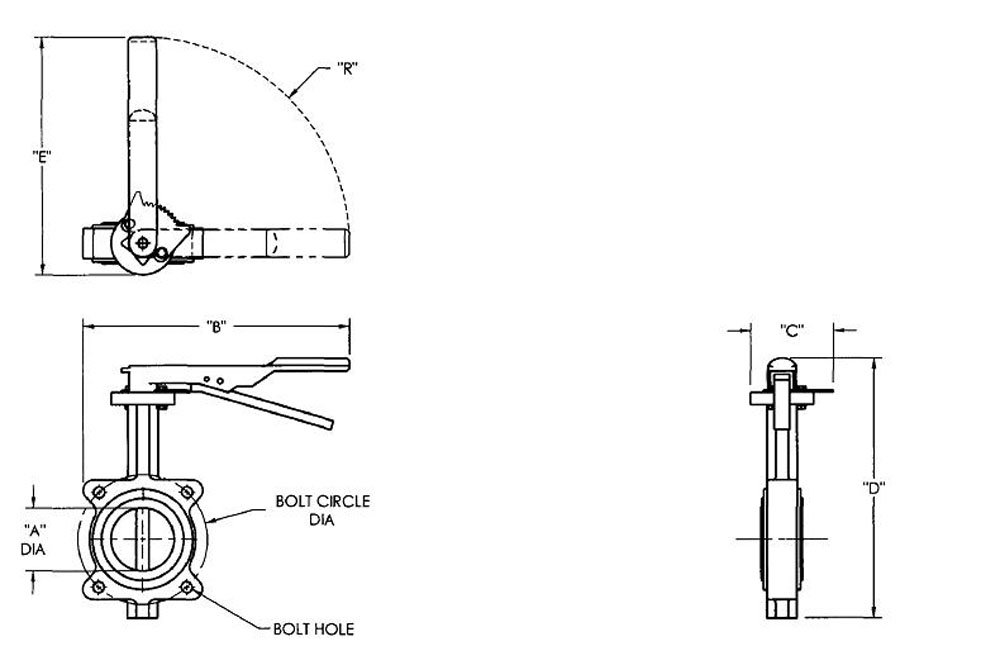

Dixon BFVL600 Ductile Iron Threaded Lug Style Butterfly Valve with Aluminum Bronze Disc and Buna-N liner, 6" Size, 200 psi Pressure

Be the first to review this item

ASIN B0081LJ1BY

Product Specifications
Part Number
BFVL600
Number of Items
1
Size Name
6"
System of Measurement
Inch
Specification for this product family (See all  products)
Upper Temperature Range
70  Degrees Fahrenheit
Material Type
Iron
Maximum Pressure
200  PSI
Style Name
Flanged
Connector Type
Flanged
UNSPSC Code
40141656
Brand Name
Dixon Valve & Coupling

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 3? Order in-stock items in the next 13 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Threaded lug style butterfly valve
  • Made of ductile iron
  • PTFE bushing
  • Buna-N seal and stem seals
  • Stainless steel top and bottom stems

Package Details

Shipping Weight: 28.6 pounds
Package Size: 17 x 13 x 13 inches

Product Description

Threaded lug style butterfly valve. PTFE bushing. Buna-N seal and stem seals. Stainless steel top and bottom stems. The number of holes on the valve should match the number of holes for the specific flange size. Aluminum bronze disc, ASTM B148, ALY.954. Ductile iron body, ASTM A536. For use between two 150 lbs flanges. Will lock "open" or "closed". Buna-N liner. Rated to 200 psi pressure at ambient temperature (70 degree F). Size: 6". Not recommended for steam service.
