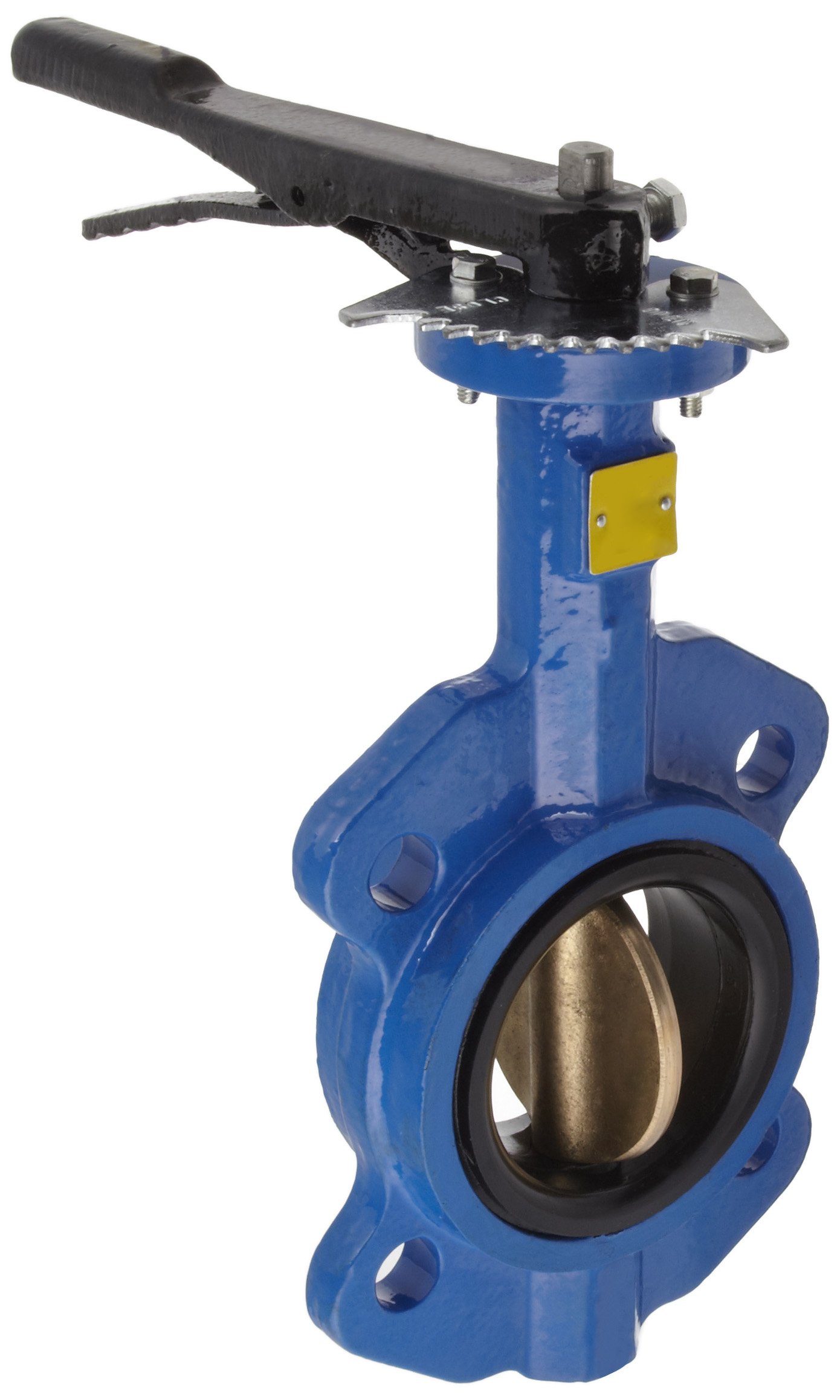

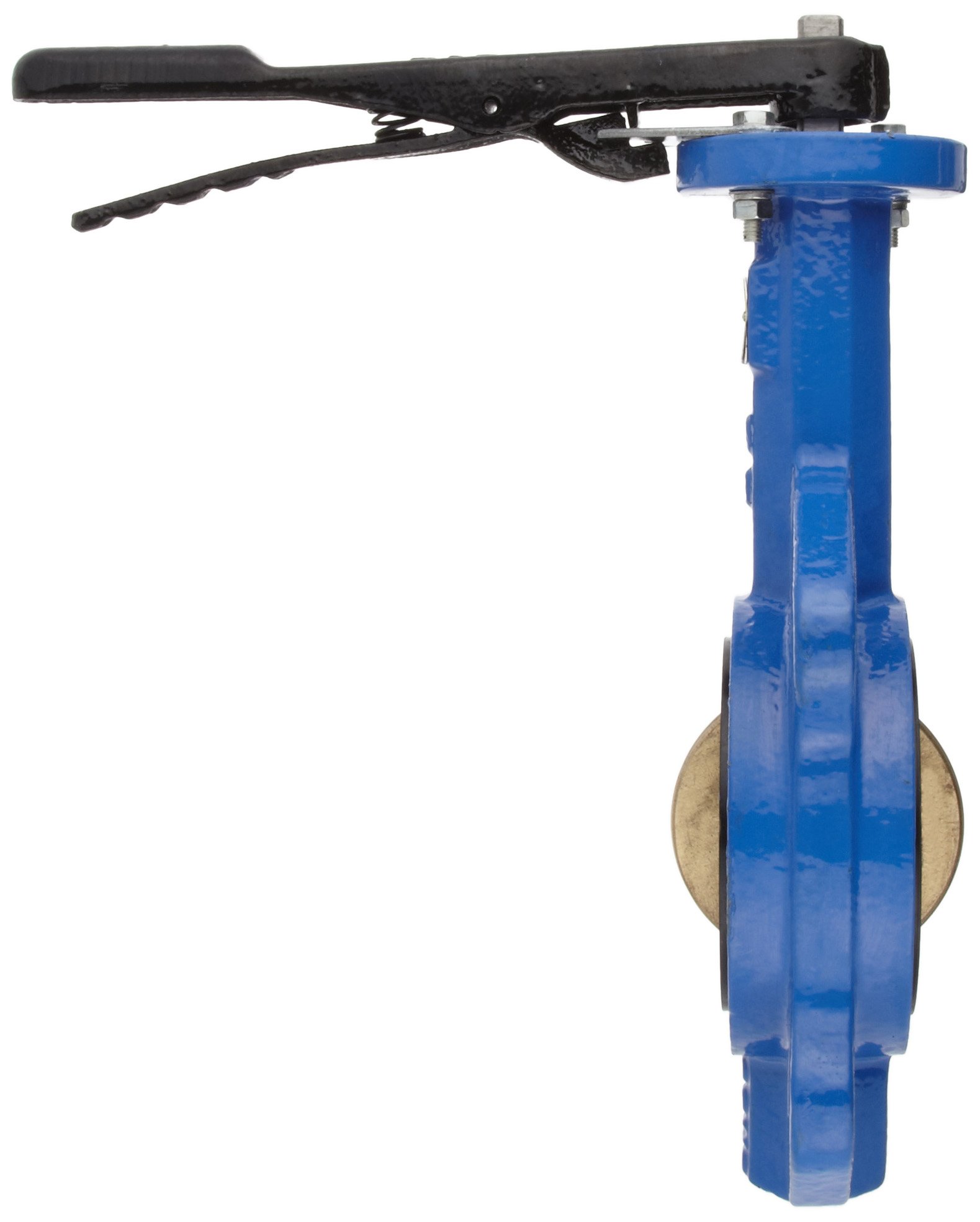

Dixon BBFVW300 Ductile Iron Wafer Style Butterfly Valve with Aluminum Bronze Disc and Buna-N liner, 3" Size, 200 psi Pressure
Be the first to review this item
ASIN B0081LJ240
Product Specifications
- Connection Size
- 3"
- Mfr Part #
- BBFVW300
- Number of Items
- 1
- System of Measurement
- Inch
Specification for this product family (See all products)
- Brand Name
- Dixon Valve & Coupling
- Material Type
- Iron
- Maximum Pressure
- 200 PSI
- Upper Temperature Range
- 70 Degrees Fahrenheit
- Connector Type
- Flanged
- Style Name
- Flanged
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, June 21? Order in-stock items in the next 21 hours 26 minutes and choose One-Day Shipping at checkout.
Key Features
- Wafer style butterfly valve
- Made of ductile iron
- PTFE bushing
- Buna-N seal and stem seals
- Stainless steel top and bottom stems
Package Details
Shipping Weight:
10.6 pounds
Package Size:
12.5 x 6.5 x 4.3 inches
Product Description
Wafer style butterfly valve. Made of ductile iron. PTFE bushing. Buna-N seal and stem seals. Stainless steel top and bottom stems. The number of holes on the valve depends on the body size. Ductile iron body, ASTM A536. Aluminum bronze disc, ASTM B148, ALY.954. For use between two 150 lbs flanges. Will lock "open" or "closed". Buna-N liner. Rated to 200 psi pressure at ambient temperature (70 degree F). Size: 3".
