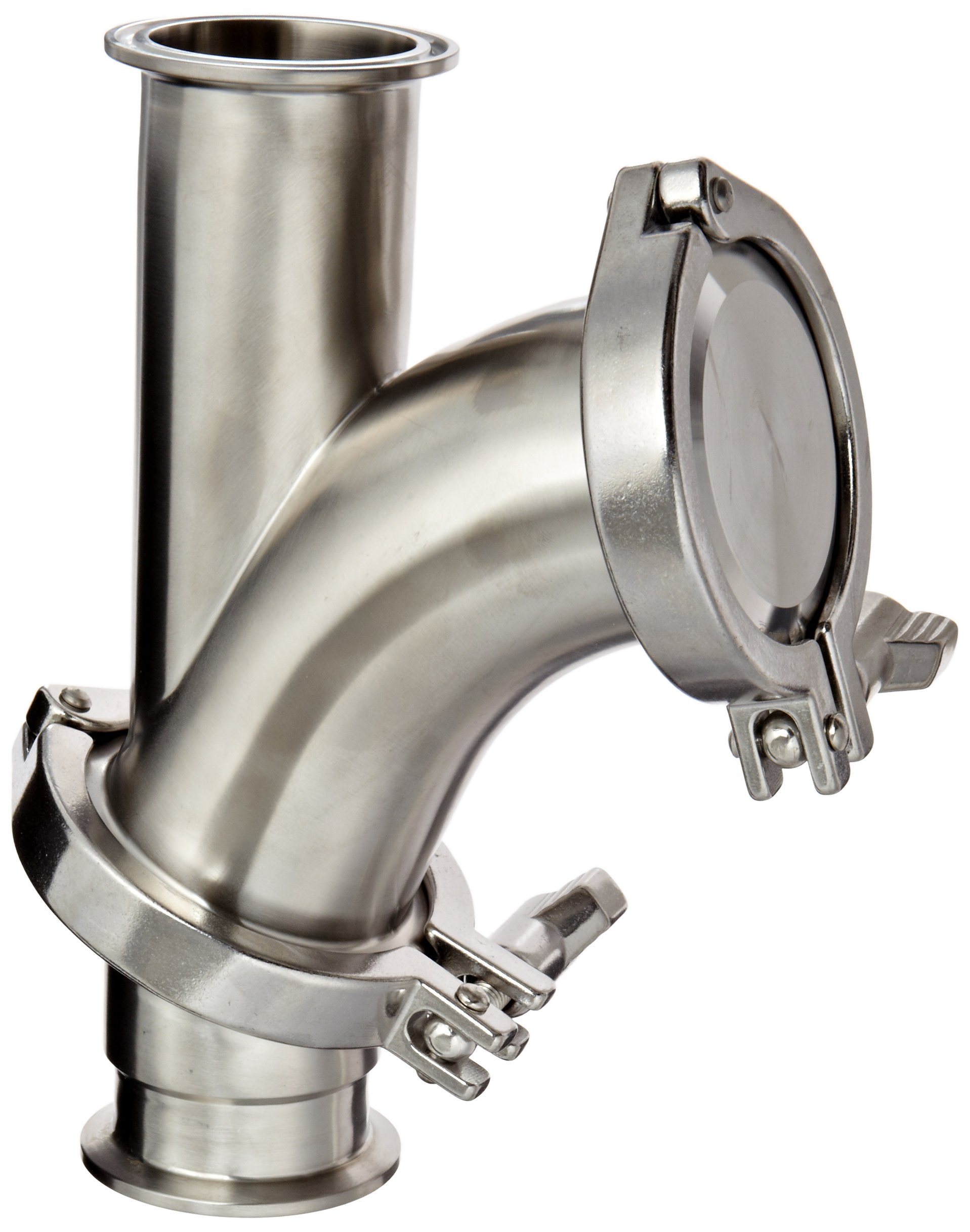

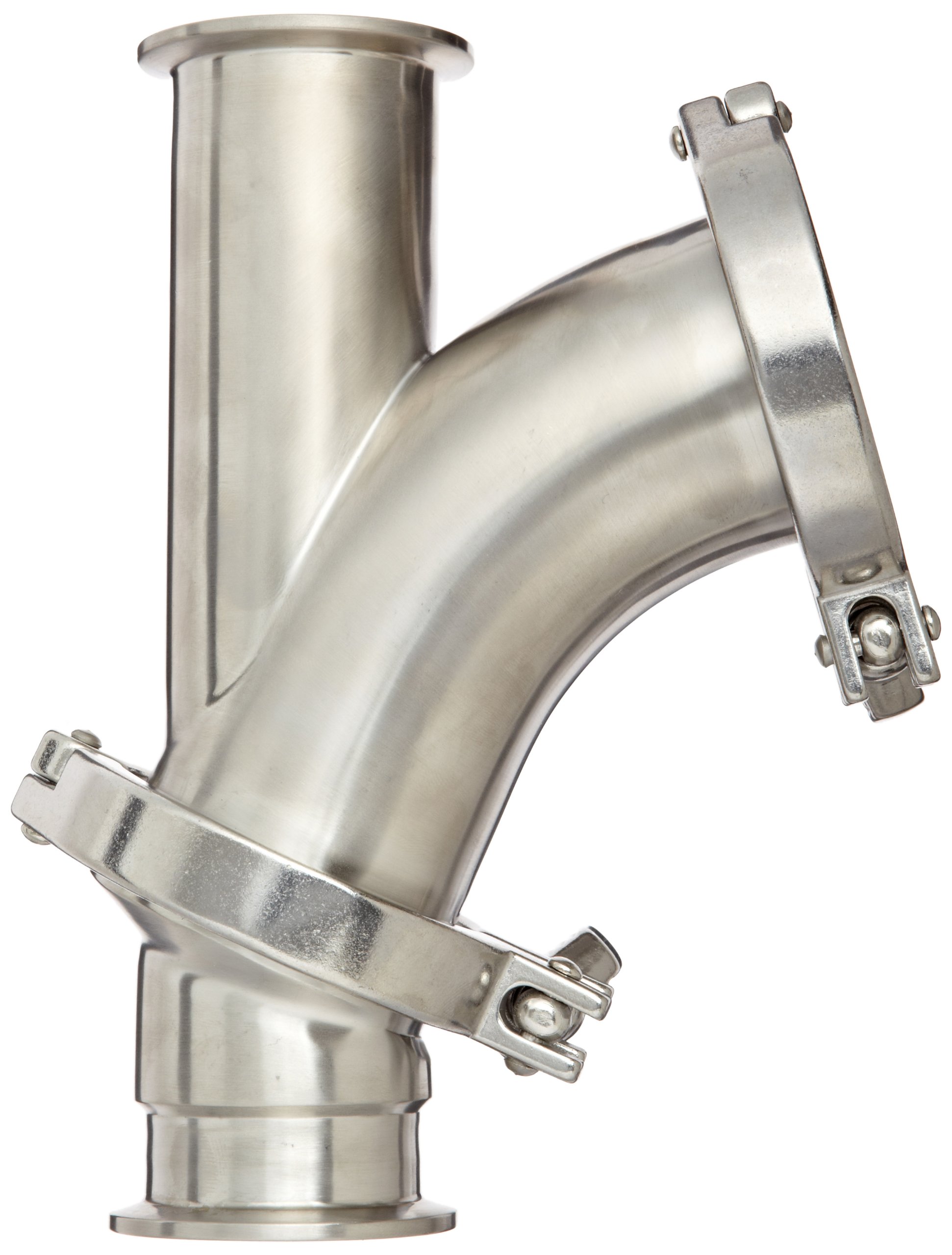

Dixon B45BY-R200 Stainless Steel 316L Sanitary Ball Check Valve, 2" Tube OD Quick Clamp
Be the first to review this item
ASIN B0081LJMAE
Product Specifications
- Connection Size
- 2"
- Length
- 8.5 inches
- Maximum Steam Pressure Description
- Not Rated
- Mfr Part #
- B45BY-R200
- Number of Items
- 1
- System of Measurement
- Inch
Specification for this product family (See all products)
- Brand Name
- Dixon Valve & Coupling
- Material Type
- Stainless Steel 316L
- Maximum Pressure
- 250 PSI
- Upper Temperature Range
- 250 Degrees Fahrenheit
- Connector Type
- Quick Clamp
- Style Name
- Quick Clamp
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, June 21? Order in-stock items in the next 15 hours 27 minutes and choose One-Day Shipping at checkout.
Key Features
- 2 Piece construction for easier alignment during installation
- Made of stainless steel 316L
- Polished ID and OD to 3A standards
- All metal contact surfaces of 316L stainless steel construction; PTFE ball
- Maximum operating pressure: 250 psi; maximum operating temperature: 250 degree F
Package Details
Shipping Weight:
4.95 pounds
Package Size:
10 x 6.3 x 6 inches
Product Description
When liquid flows through the valve, the ball is forced into the branch of the valve allowing full fluid flow. When the liquid stops, equalizing the pressure, the ball drops back into the seat, preventing backflow. Should reverse flow occur, the differential pressure will cause the ball to seal firmly against the seat preventing leakage. 2 Piece construction for easier alignment during installation. Various end configurations available: clamp, weld, I-line, Q-line, bevel seat and John Perry. Polished ID and OD to 3A standards. All metal contact surfaces of 316L stainless steel construction; PTFE ball. Maximum operating pressure: 250 psi; maximum operating temperature: 250 degree F. Air blow check valve can be added. 2.6 psi Vertical seating pressure.
