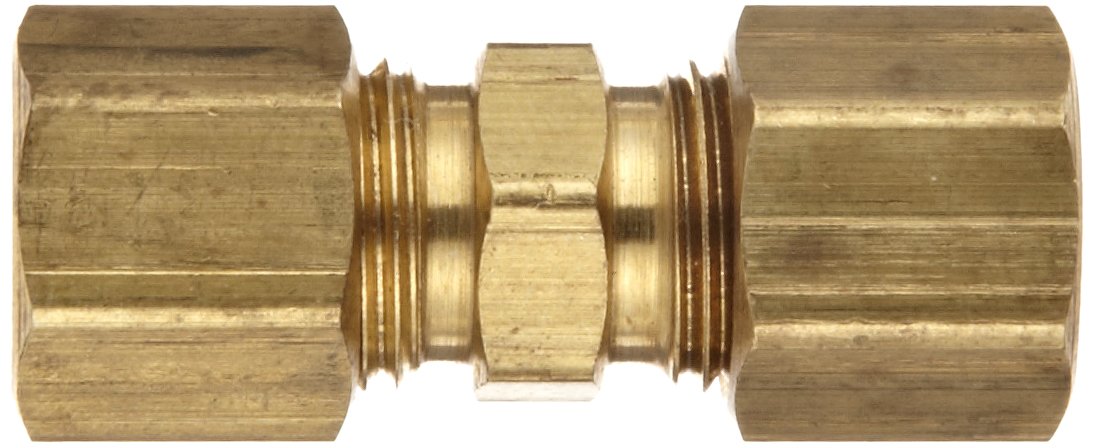

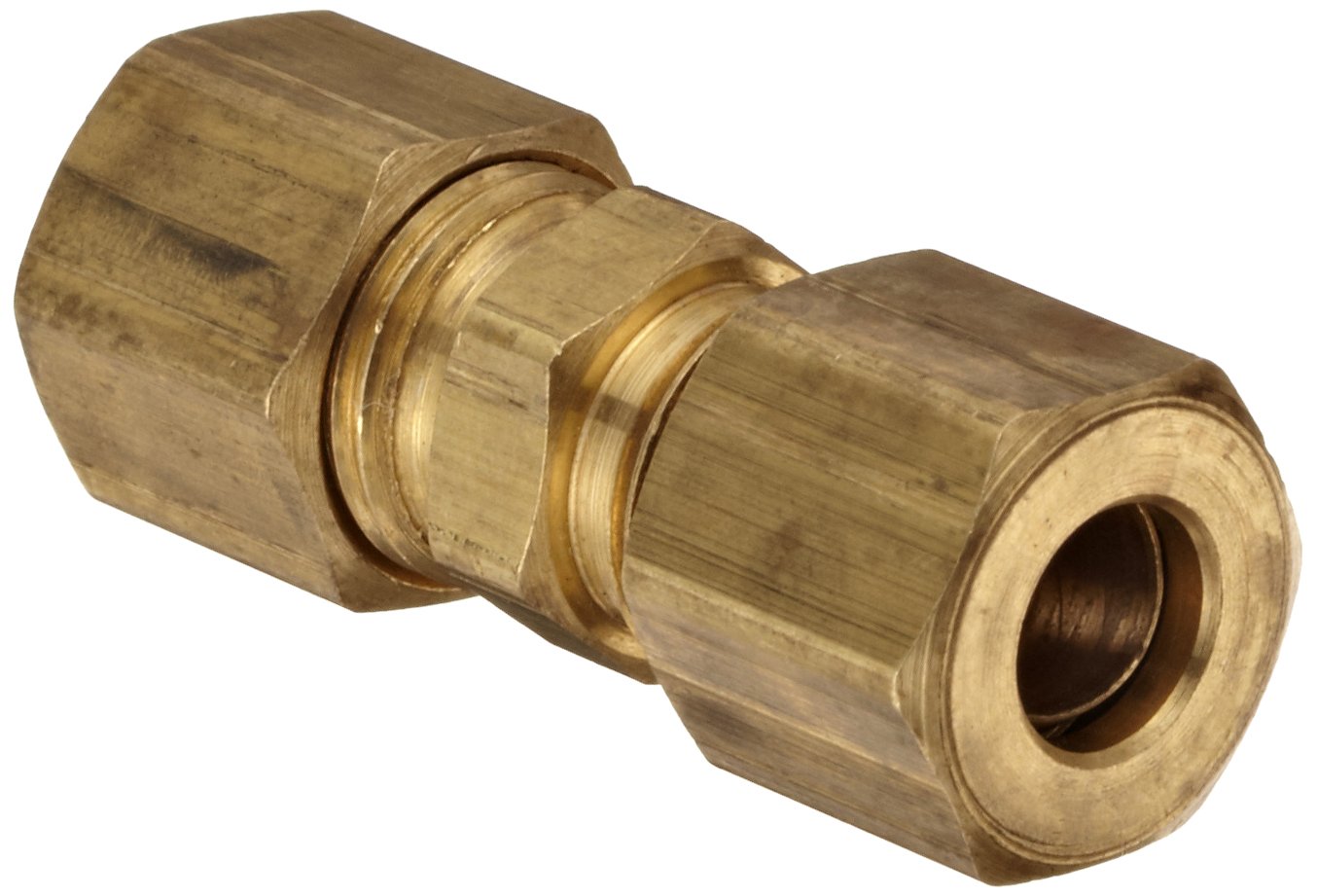

Dixon 62C-04 Brass Compression Tube Fitting, Union, 1/4" Tube OD

Be the first to review this item

ASIN B00835ESMU

Product Specifications
Part Number
62C-04
Pkg Qty
1
Tube Size
1/4" Tube OD
Specification Met
SAE 060101 BA
Specification for this product family (See all  products)
Manufacturer Series Number
62C
Item Shape
Union
Material Type
Brass
Style Name
Compression
UNSPSC Code
40183100
Brand Name
Dixon Valve & Coupling

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 25? Order in-stock items in the next 17 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Union for connecting and disconnecting two tubes more easily than with a coupling
  • Connects to tubing on both ends
  • Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
  • For low to medium pressure operating environments with no excessive vibration or tube movement
  • Meets SAE J512 and ASA standards for functional requirements and is UL listed for flammable liquid

Package Details

Shipping Weight: 0.03 pounds
Package Size: 3.4 x 3 x 0.4 inches

Product Description

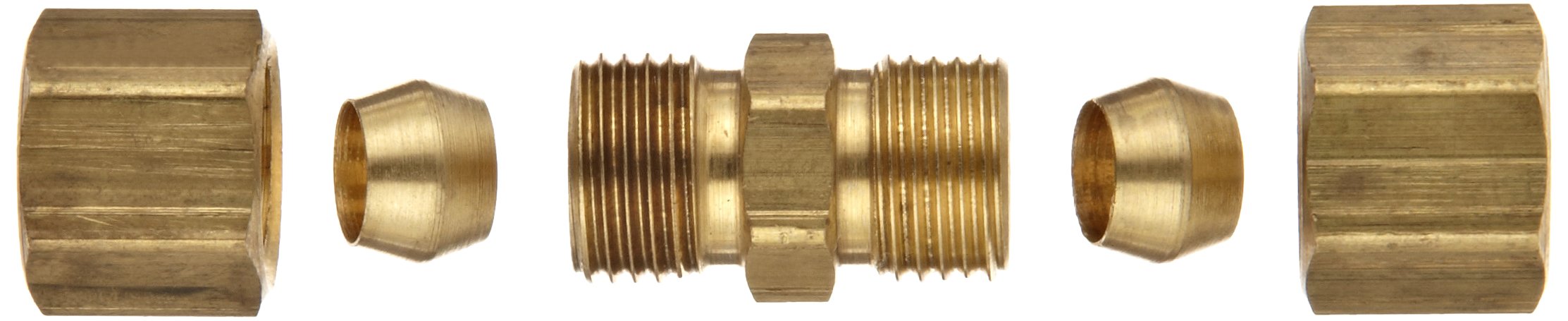

This Dixon 62C series union compression fitting is made of brass, has tube connections, and is suitable for indoor air applications. This union fitting has three pieces and includes a threaded connection that can be screwed or unscrewed to connect or disconnect tubes more easily than with a coupling. It has tube connections on both ends and is intended for use in low to medium pressure operating environments where there is no excessive vibration or tube movement. This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability and does not require flaring, soldering, or other tube preparation for assembly. This fitting meets Society of Automotive Engineers (SAE) J512 and American Standards Association (ASA) for functional requirements and is Underwriter's Laboratories (UL) listed for flammable liquid. This union compression fitting is suitable for indoor air applications.

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, PBT (polybutylene terephthalate), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

Dixon Valve & Coupling Company manufactures pipe and hose fittings and accessories. The company, founded in 1916, is headquartered in Chestertown, MD.
