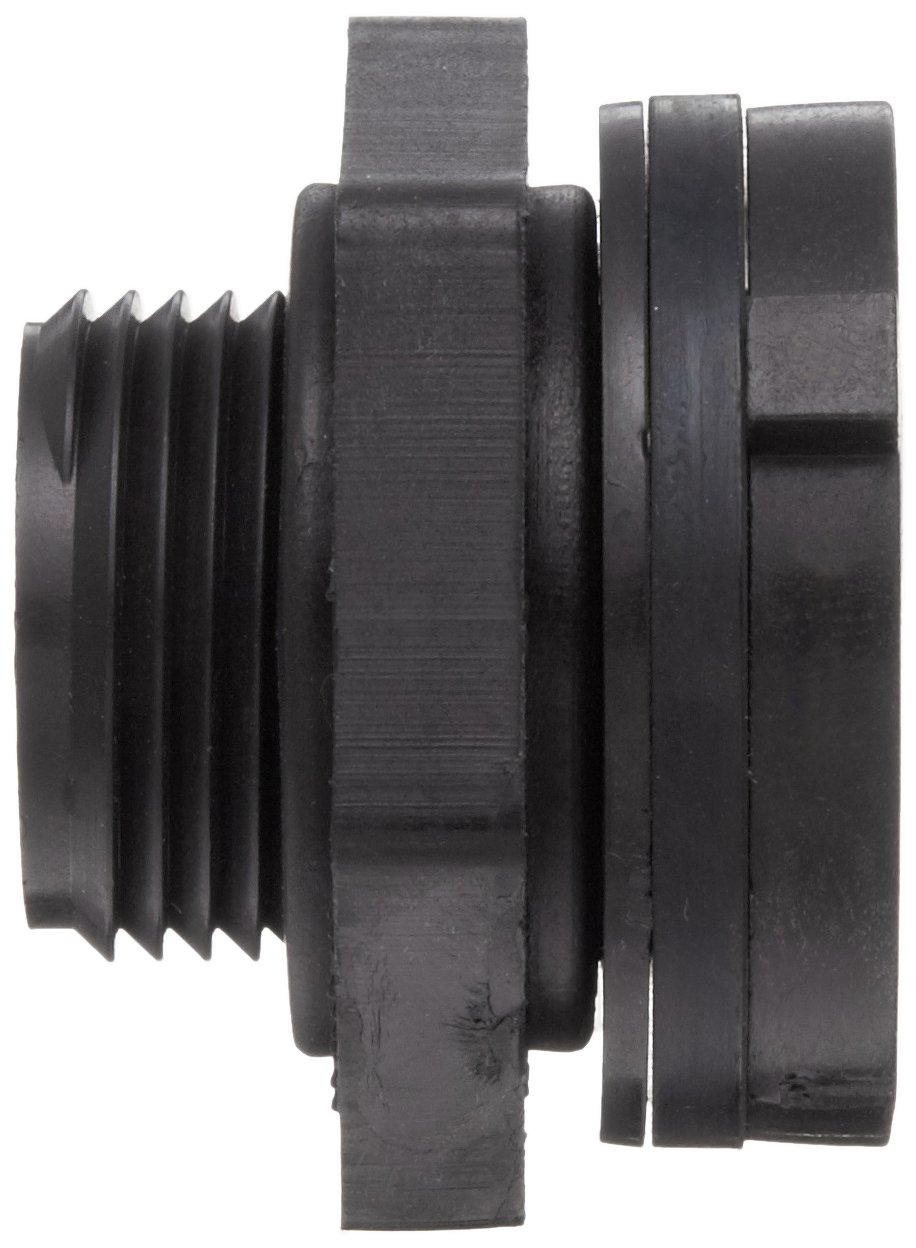

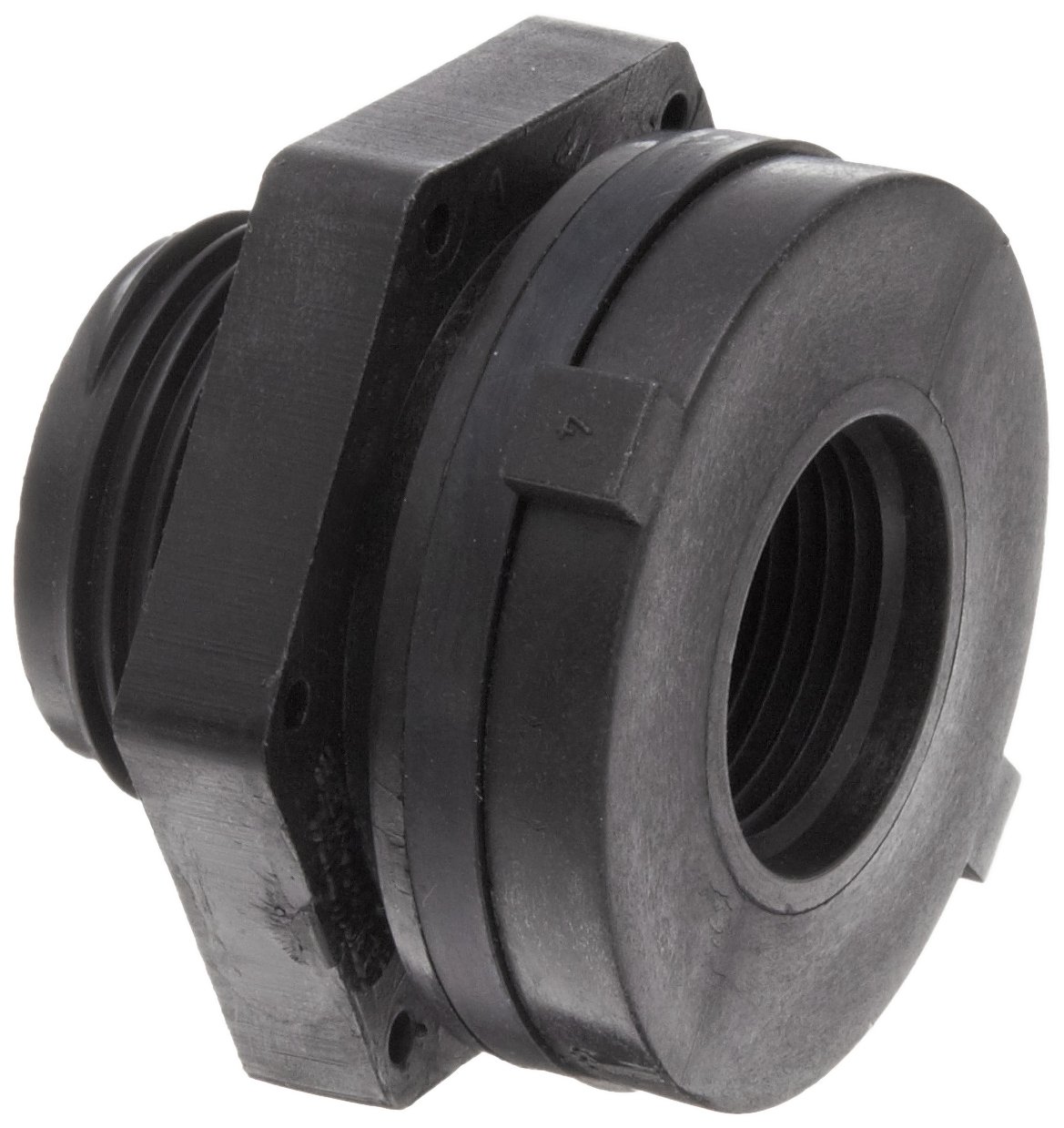

Dixon 60401 Polypropylene Pipe and Welding Fitting, Bulkhead, 3/4" NPT Female, 1-3/8" Hole Size

Be the first to review this item

ASIN B00835T89I

Product Specifications
Number of Items
Part Number
Size Name
3/4" NPT Female
Specification for this product family (See all  products)
Manufacturer Series Number
Material Type
Polypropylene (PP)
Brand Name
Dixon Valve & Coupling

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 1 day 7 hrs 1 min and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Bulkhead to connect two tubes through a tank wall
  • Female NPT threads to connect to a male threaded tube or pipe
  • Glass reinforced polypropylene for strength and chemical resistance
  • EPDM gaskets for resistance to weathering, electricity, oils, water, steam and some solvents

Package Details

Shipping Weight: 0.8 pounds
Package Size: 4.9 x 2.5 x 1.7 inches

Product Description

This Dixon 604 series bulkhead fitting is made of polypropylene, has female NPT threads, and is suitable for use in storage tanks. This bulkhead fitting has female National Pipe Taper (NPT) threaded tubes for connecting to male NPT threads through a tank wall. It is made of glass-reinforced polypropylene for strength and resistance to chemicals. The gaskets (included) are made of EPDM (ethylene propylene diene monomer) for resistance to weathering, electricity, oils, water, steam, and some solvents. This bulkhead fitting is suitable for use on storage tanks made of polypropylene, fiberglass, or steel.

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, PBT (polybutylene terephthalate), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

Dixon Valve & Coupling Company manufactures pipe and hose fittings and accessories. The company, founded in 1916, is headquartered in Chestertown, MD.
