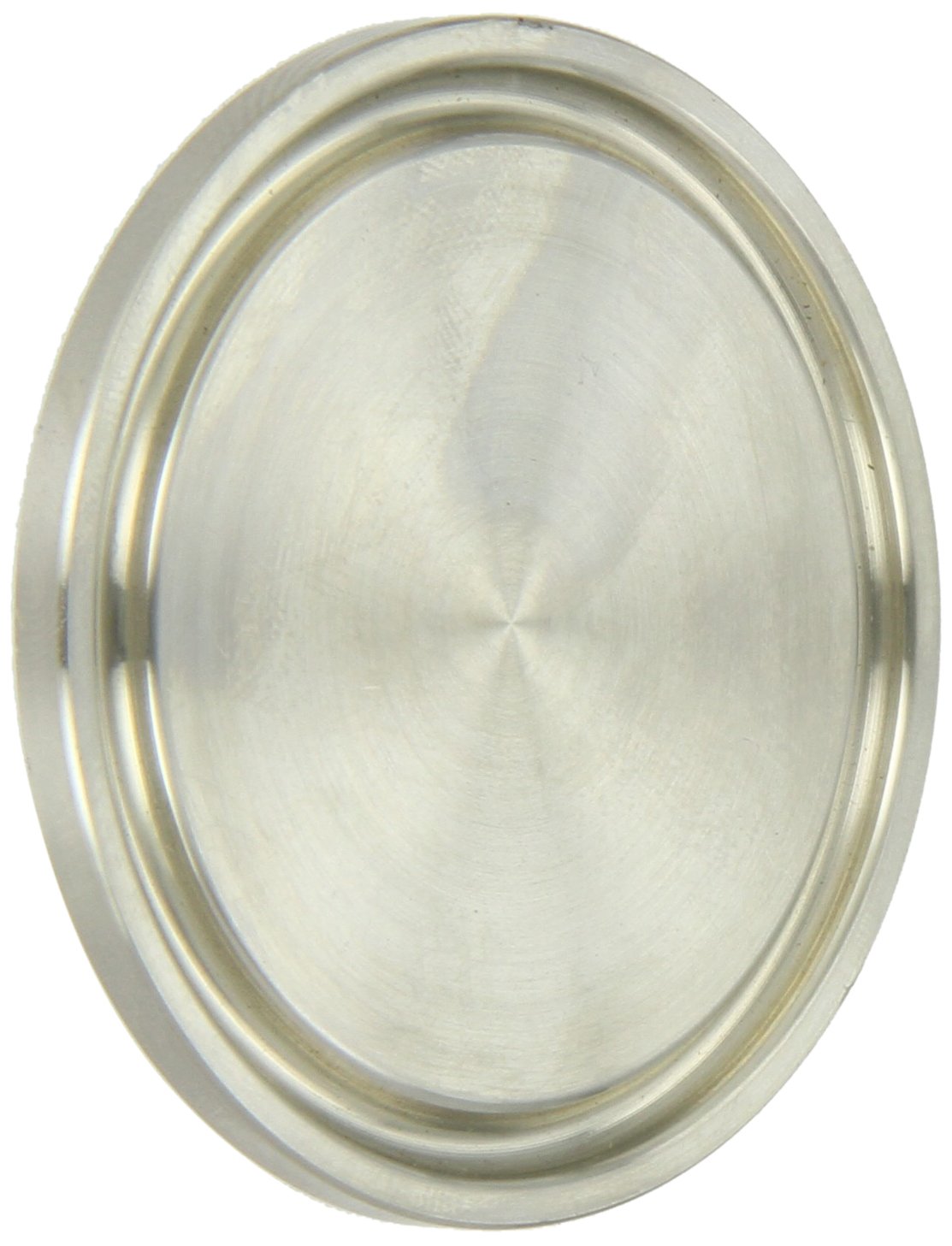

Dixon 16AMP-R100-150 Stainless Steel 316L Sanitary Fitting, Clamp End Cap, 1" to 1-1/2" Tube OD Range

Be the first to review this item

ASIN B00835NQPU

Product Specifications
Mfr Part #
16AMP-R100-150
Pkg Qty
1
Min Diameter
1" to 1-1/2" Tube OD Range
Specification for this product family (See all  products)
Manufacturer Series Number
16AMP
Item Shape
Cap
Grade
316L
Material Type
Stainless Steel
Style Name
Sanitary
UNSPSC Code
40183100
Brand Name
Dixon Valve & Coupling

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 11 hrs and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • End cap for closing the end of a pipe or tube
  • Clamp end connection for a non-permanent seal, providing access to lines
  • Stainless steel 316L for strength and greater ease in welding than 304-grade steel
  • Maximum operating pressure rating of 250 psi at 70 degrees F ambient temperature
  • Meets 3-A Sanitary Standards Number 63-03 for sanitary fitting (authorization number 621)

Package Details

Shipping Weight: 0.25 pounds
Package Size: 6 x 4 x 0.6 inches

Product Description

This Dixon 16AMP Series clamp end cap sanitary fitting is made of stainless steel 316L and clamps on to the end of a pipe or tube to close the line. It is made of stainless steel 316L for strength, enhanced resistance to corrosion, and greater ease in welding than stainless steel 304. This fitting clamps on to the end of a pipe or tube to close the line, providing a non-permanent seal with take-down access. It has a maximum operating pressure rating of 250 pounds per square inch (psi) at 70 degrees F ambient temperature and meets 3-A Sanitary Standards Number 63-03 for sanitary fittings (authorization number 621). This clamp end cap sanitary fitting is suitable for use in food, beverage, and dairy applications.

Pipe and tube fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Sanitary fittings are used in the food, beverage, biotech, pharmaceutical, and other sanitary process industries to transport fluids through pipe lines and are available in a range of materials, finishes, and shapes. When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Dixon Valve & Coupling Company manufactures pipe and hose fittings and accessories. The company, founded in 1916, is headquartered in Chestertown, MD.
