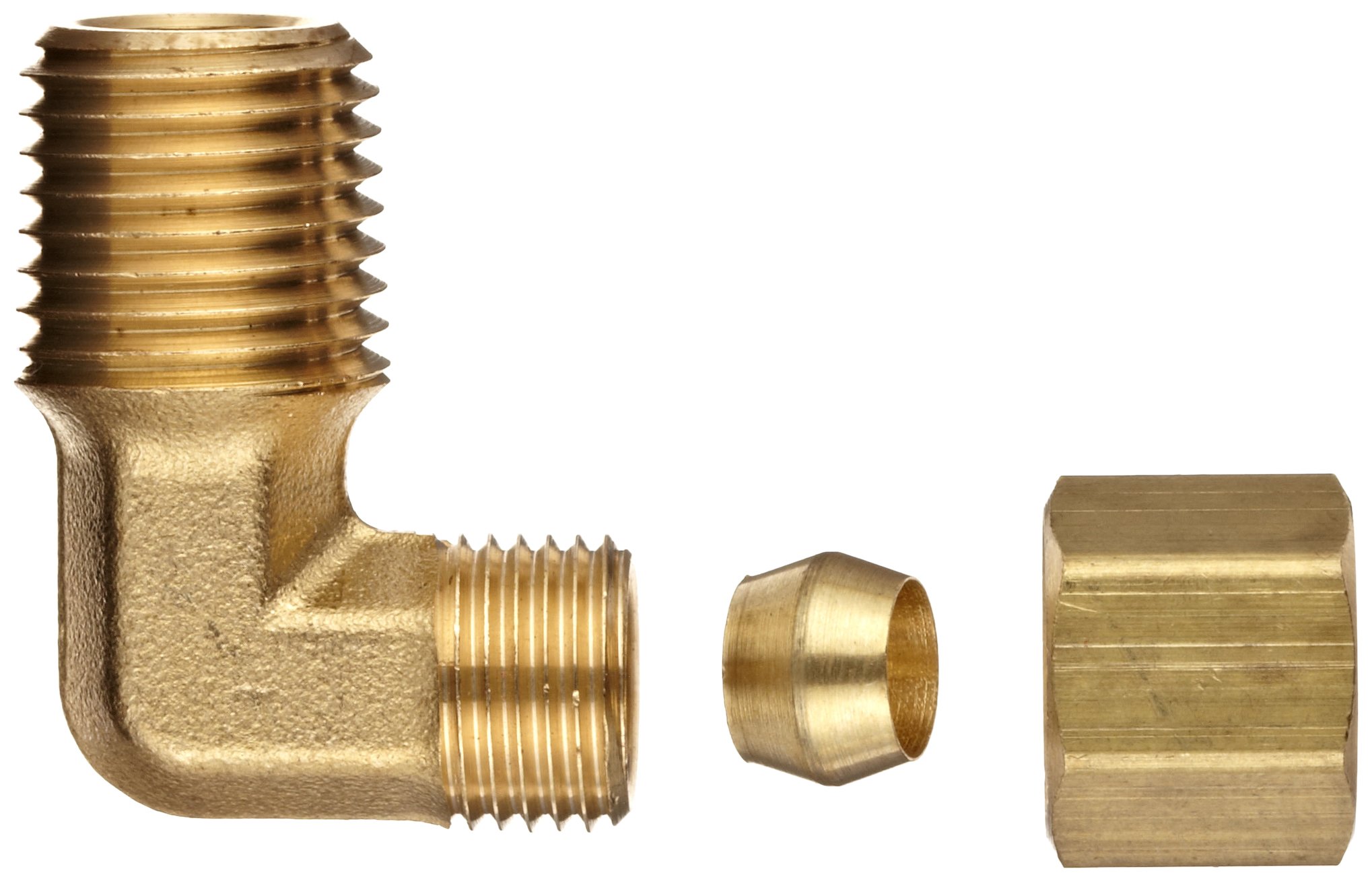

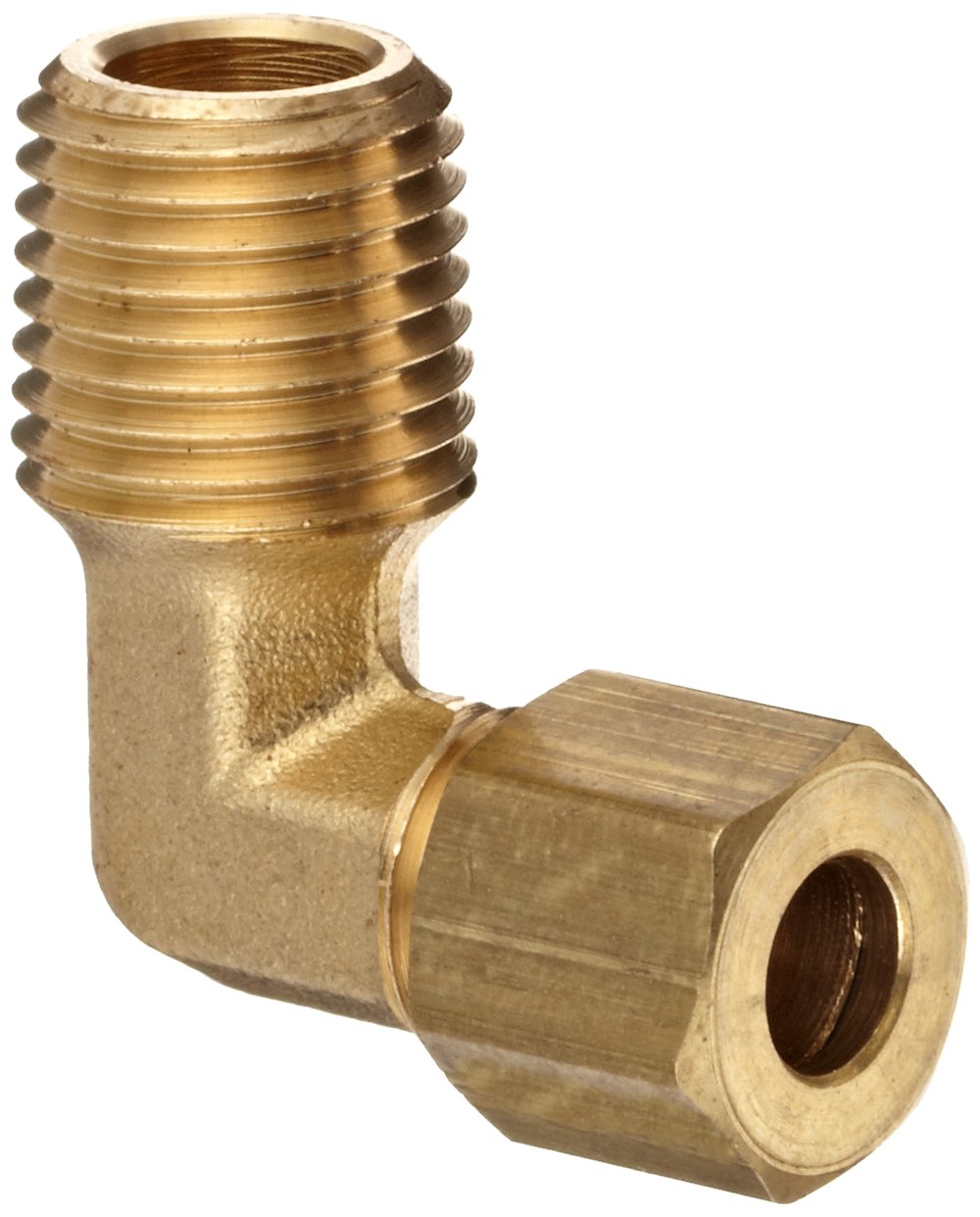

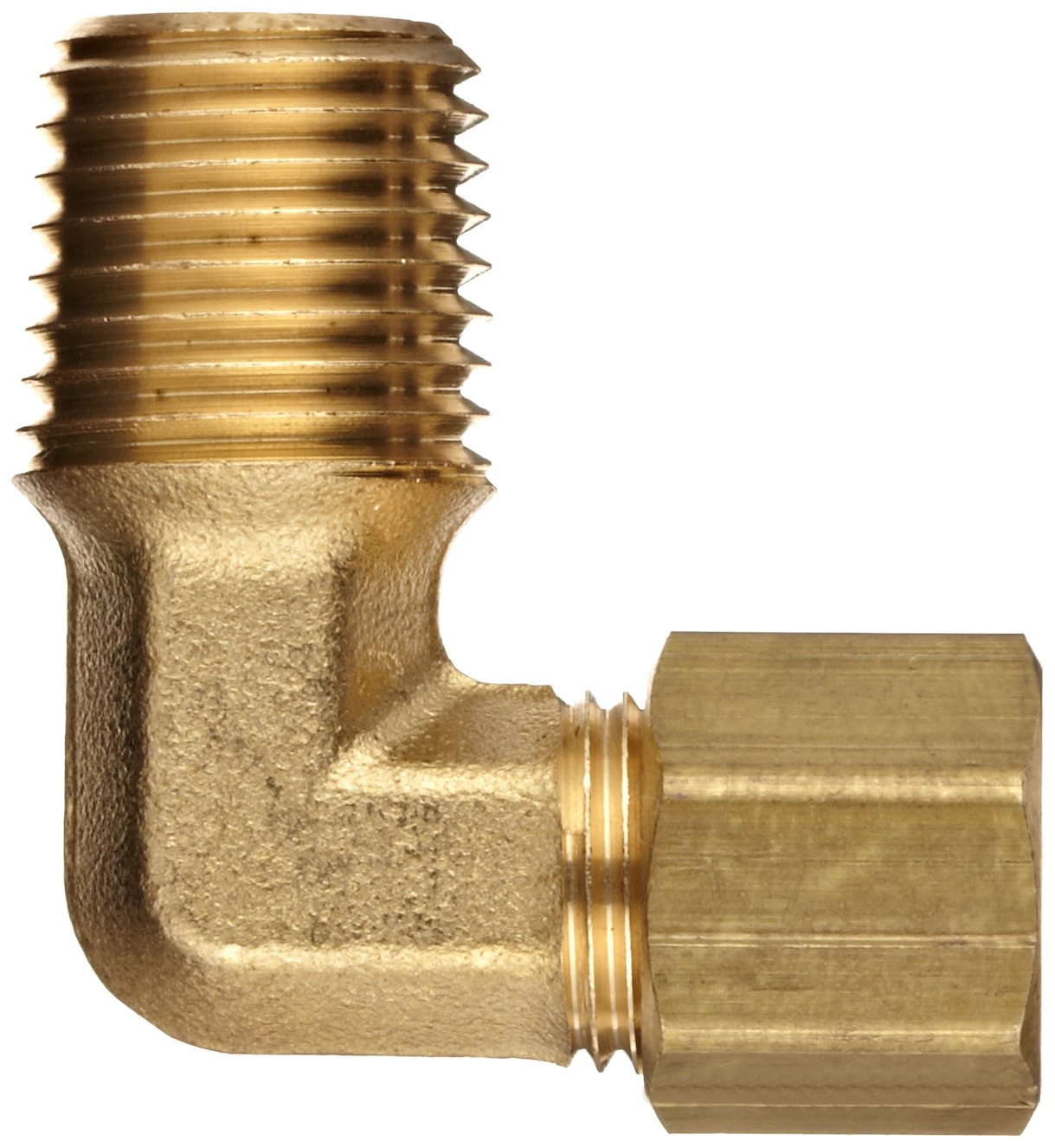

Dixon 169C-0404 Brass Compression Tube Fitting, Elbow, 1/4" Tube OD x 1/4" NPTF Male

Be the first to review this item

ASIN B00835ERMQ

Product Specifications
Part Number
169C-0404
Pkg Qty
1
Tube Size
1/4" Tube OD x 1/4" NPTF Male
Specification for this product family (See all  products)
Manufacturer Series Number
169C
Item Shape
90 Degree Elbow
Material Type
Brass
Style Name
Compression
UNSPSC Code
40183100
Brand Name
Dixon Valve & Coupling

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 2 days 23 hrs 23 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 90-degree elbow for connecting tubes at an angle
  • Tube connection on one end and male NPTF connection on the other
  • Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
  • For low to medium pressure operating environments with no excessive vibration or tube movement
  • Meets SAE J512 and ASA standards for functional requirements and is UL listed for flammable liquid

Package Details

Shipping Weight: 0.05 pounds
Package Size: 3.3 x 0.4 x 0.2 inches

Product Description

This Dixon 169C series 90-degree elbow compression fitting is made of brass, has a tube connection and a male NPTF connection, and is suitable for indoor air applications. This 90-degree elbow fitting, or "ell," connects tubes at a 90-degree angle to change the direction of flow between two tubes. It has male National Pipe Taper Fuel (NPTF) threads on both ends for connecting to female NPT threaded tubes, creating a tighter seal than straight threads. This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability, and is intended for use in low to medium pressure operating environments where there is no excessive vibration or tube movement. It does not require flaring, soldering, or other tube preparation for assembly. This fitting meets Society of Automotive Engineers (SAE) J512 and American Standards Association (ASA) for functional requirements and is Underwriter's Laboratories (UL) listed for flammable liquid. This 90-degree elbow compression fitting is suitable for indoor air applications.

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, PBT (polybutylene terephthalate), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

Dixon Valve & Coupling Company manufactures pipe and hose fittings and accessories. The company, founded in 1916, is headquartered in Chestertown, MD.
