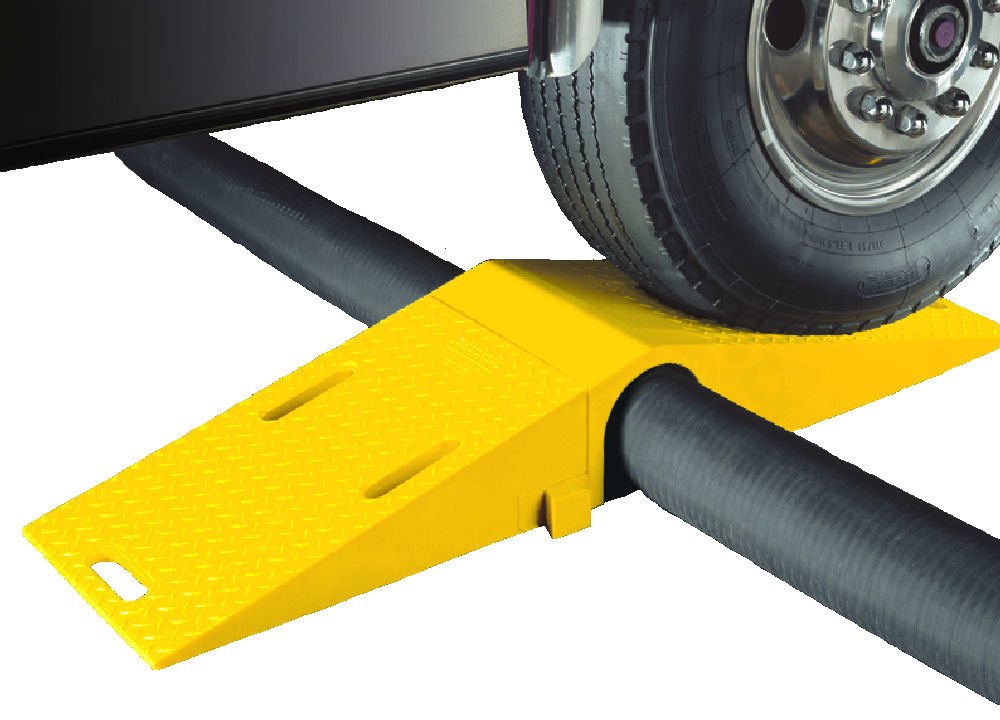

Diamondback UHB2025 Polyurethane Single Tunnel Modular Cable and Hose Bridge System for 3" Lines, Yellow, 34.75" Length, 16" Width, 3.88" Height

Be the first to review this item


Specifications for this item
Number of Items
Material Type
Part Number
Item Weight
31 pounds
Brand Name
Checkers Industrial Safety Products

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Protect cables and hoses: 3" diameter
  • Polyurethane construction for high load bearing capacity
  • Abrasion, impact and weather resistant; modular interlocking design with multiple tunnel choices
  • Diamond plate tread surface for increased traction; yellow caution color for high visibility
  • Lightweight, easy to transport, setup, breakdown and store; built-in hand holds double as attachment points for mounting brackets

Package Details

Shipping Weight: 31.3 pounds
Package Size: 26 x 19.2 x 4.8 inches

Product Description

Diamondback modular cable and hose bridge systems provide protection for valuable cable and hose lines while ensuring a method of safe passage for vehicles. They replace wooden and metal fabricated ramps. High density, all weather urethane construction protects from damage by physical pressure and reduces cable and hose maintenance and replacement costs. Diamondback modular bridge systems can be used to protect lines up to 6 inch diameter. The lightweight, modular design of interlocking 16 inch wide sections provides multi-length flexibility. Diamondback cable and hose bridge systems are intended for temporary installations only. Ideal for fire departments and municipalities. Material: polyurethane (uv stabilized). Operating temperature: -40 degree F to 120 degree F (-40 degree C to 48 degree C). Minimum footprint load capcity: 7" x 7"; Maximum load per tire 75 degree F (23.9 degree C) load capacity: 23,700 lbs. (10,750 kg). Measures 34.75" length by 16" width by 3.88" height. 3" Tunnel diameter. 5.38" Tunnel top length and 13.25" tunnel base width. 14.75" Ramp top and 14.75" ramp base length. Weight: 32 lbs. Available in yellow color.
