DEWALT DC616K XRP 18-Volt Cordless 1-1/4-Inch - 2-1/2-Inch 16 Gauge Straight Finish Nailer Kit

Be the first to review this item


Specifications for this item
Part Number
Item Weight
8.5 pounds
Brand Name
18  Volts
Power Source Type
3 Year Limited Warranty, 90 Day Money Back Guarantee, 2 Year Free Service Contract on XRP (DC9071, DC9091 & DC9096) Batteries

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 22? Order in-stock items in the next 4 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Engine design allows the tool to work as fast as the end user with consistent nail penetration into both soft and hard joints
  • Sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed.
  • Easy access to the nosepiece for the removal of jammed nails without the use of screwdrivers or tool wrenches
  • Contact trip lock-off allows trigger to be disabled when not in use
  • Integrated LED lights for long life and durability; Top cap is impact resistant and easy to remove for troubleshooting

Package Details

Shipping Weight: 16 pounds
Package Size: 18.5 x 15.5 x 6.8 inches

Product Description

Harness the power and efficiency of pneumatic nailing with the DeWalt DC616K Heavy-Duty 16 Gauge Straight Finish Nailer Kit. Designed to work with DeWalt's extended run XRP 18-volt batteries, this nailer provides fast, consistent nail penetration in both soft and hard materials. You can select sequential operating mode to ensure precision placement of each nail or a bump operating mode that allows you to harness top speed. A unique engine design allows this tool to work as fast as you do, firing up to four or five nails a second for increased productivity. And at just 8.5 pounds, this tool is lightweight for easy maneuvering and reduced operator fatigue.

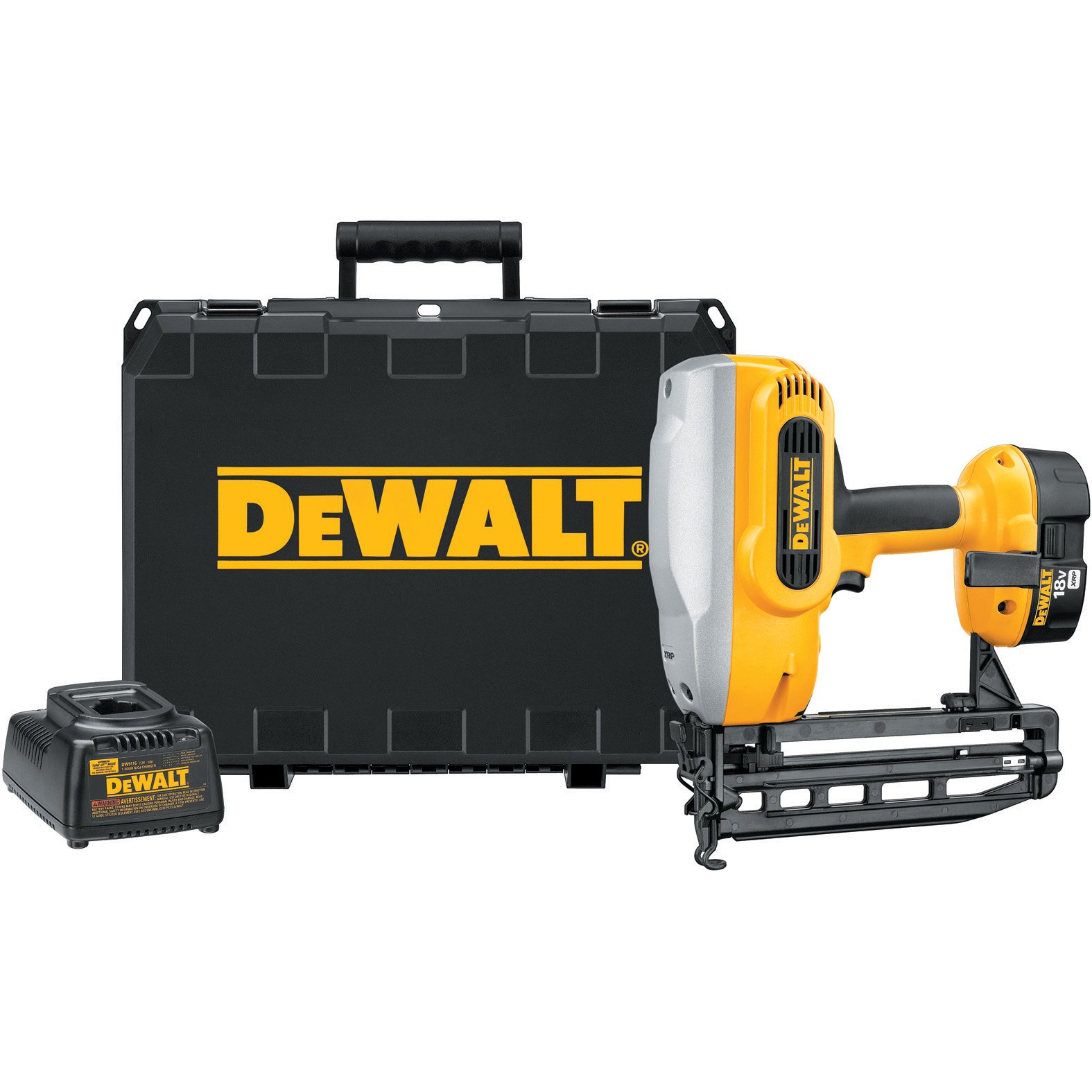

Whatever you're working on, you'll appreciate the little details that separate this intuitively designed tool from similar nailers. Integrated LED lights make it easy to ensure accuracy. An easy-to-operate contract trip lock-off disables the trigger when the tool is not in use for improved safety. The nosepiece is easy to access and clear tool-free if a nail jam occurs. And a six-position dial makes it simple to move between several applications without stopping to re-acquire exact depth settings, saving you time. Additionally, the straight, rear-load magazine is easy to handle for quick refills, and it will accept any standard 16 gauge nails. Included in this kit is a one-hour charger, an 18-volt XRP battery, a reversible belt hook that accommodates right- and left-handed workers, a no-mar tip, safety glasses, and a kit box for easy storage.

From the Manufacturer

The DEWALT DeWalt DC616K Cordless Finish Nailer combines the precision of hand nailing with the speed and ease of pneumatic nailing. With this one compact, portable tool, you can drive nails ranging in length from 1-1/4 to 2-1/2 inch as rapidly as five nails per second. And best of all: no compressor to buy and no air hose to drag around. The 8.5-lb. tool is powered by a rechargeable 18-volt battery and shoots readily available 16-gauge finish nails. Its straight, rear-load magazine holds 110 nails, and is specially designed to seal out dust and debris that can cause the nailer to malfunction. The DC616K can fire nails through softwood, hardwood, and plywood and other sheet goods. It’s an ideal tool for trim carpenters, cabinetmakers, and others who routinely install baseboard, shoe, crown and chair rail moldings, paneling, hardwood flooring, staircases, and window and door casings and jambs. The tool’s narrow, tapered nose fits into tight spaces, such as under toe kicks and inside of cabinets. Choose between two operating modes: Sequential for precise one-at-a-time nailing, or high-speed Bump firing for rapid production work. Other features include: precise depth-control mechanism, swing-open nosepiece for clearing jams, safety contact lock-off that disables the trigger, a no-mar tip, and a reversible belt hook. The DC616K 18-Volt 16-Gauge Finish Nailer Kit comes with an 18-volt XRP NiCad battery, one-hour charger, reversible belt hook, safety glasses, and plastic storage case. It’s backed by a DEWALT 90-day money-back guarantee, and three-year limited warranty, and two-year service contract on the XRP battery.
