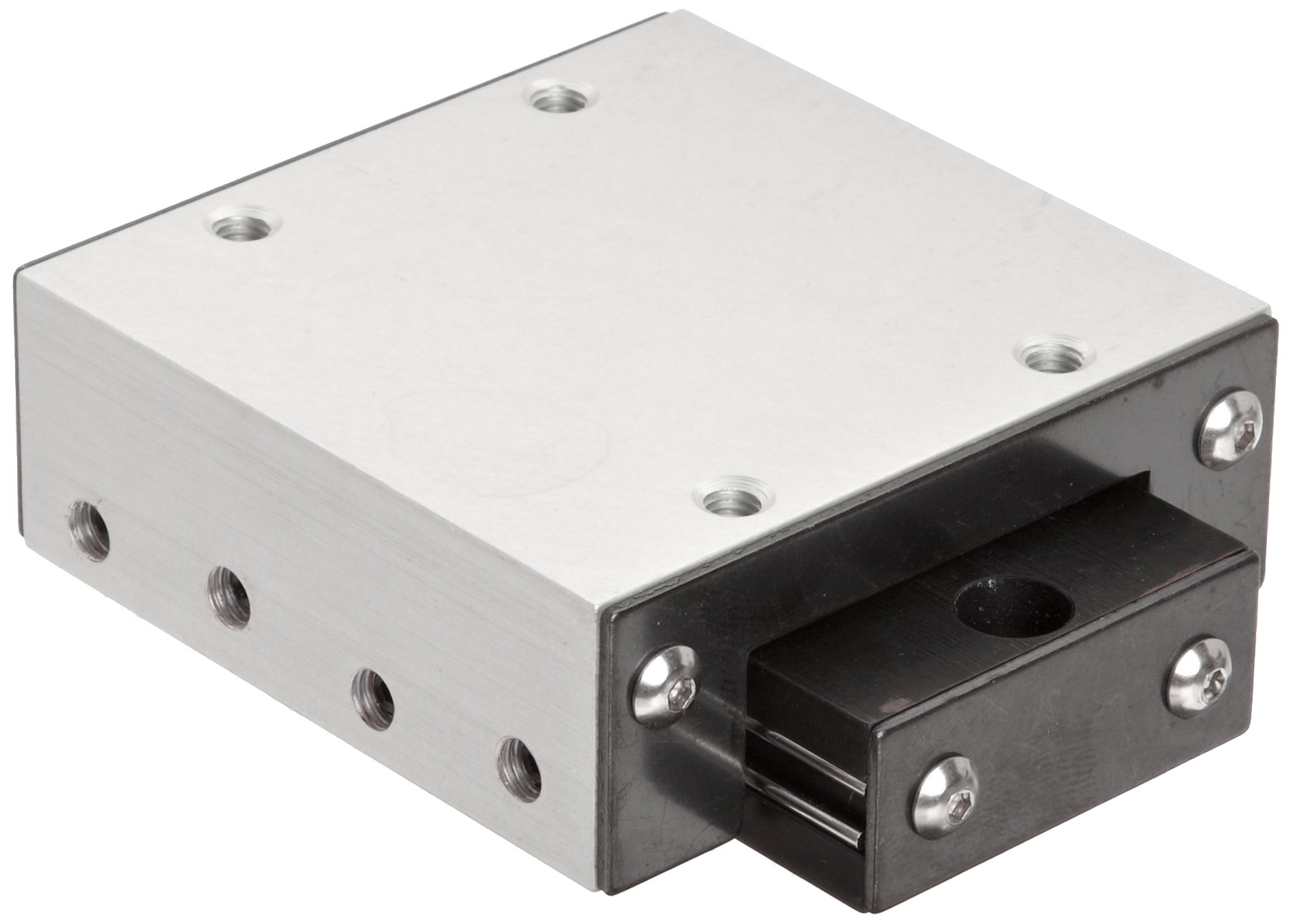

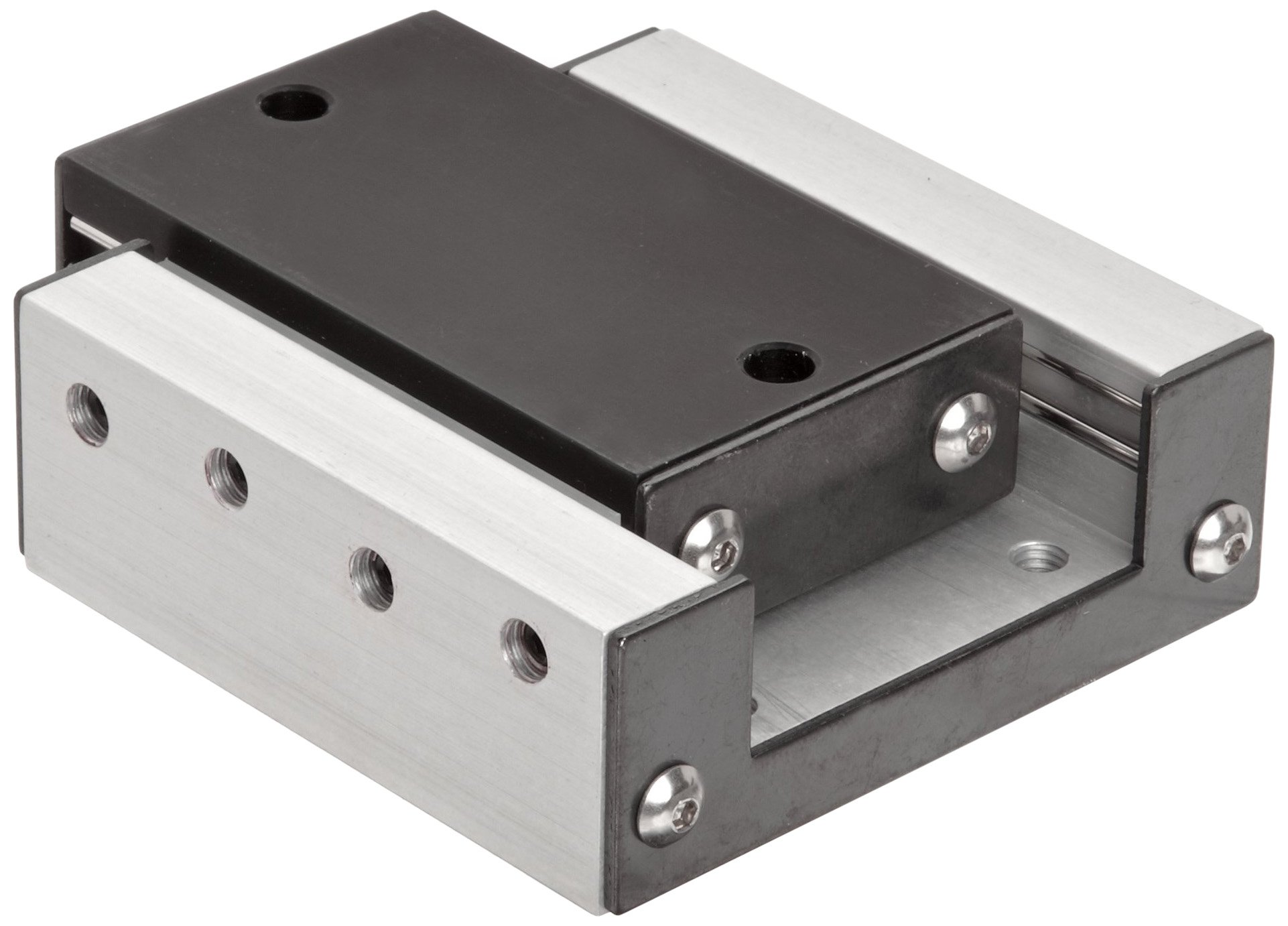

Deltron Linear Motion Slide 1" Travel 30 lb Load Capacity 2.62" Long

Be the first to review this item

ASIN B000FN7UXC

Specifications for this item
Number of Items
1
Material Type
Stainless Steel
Part Number
LMS+100/30
Brand Name
Deltron
UNSPSC Code
23153030
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 2 days 12 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Package Details

Shipping Weight: 0.7 pounds
Package Size: 4 x 3 x 1 inches

Product Description

Linear Motion Slides provide precise linear motion control. 0.0002 inches positional repeatability with a straight line accuracy of 0.0005 per inch of travel. Riding between smooth hardened rods, steel balls within the slide roll parallel to the line of motion (coefficient of friction is 0.003). The rated load must be centered and distributed over the slide, and the base must be fully supported on a flat mounting surface, so the slide does not acts as a beam. Ball slides are lightly lubricated during assembly and are self-cleaning in normal service. Additional lubrication is required for speeds above 1800 inches per minute and is advisable at lower speeds where high loads are applied in continuous duty applications. Preload adjustments prevent sideplay and backlash. Lightweight Aluminum carriage and base. Built-in holes simplify installation and component mounting.
