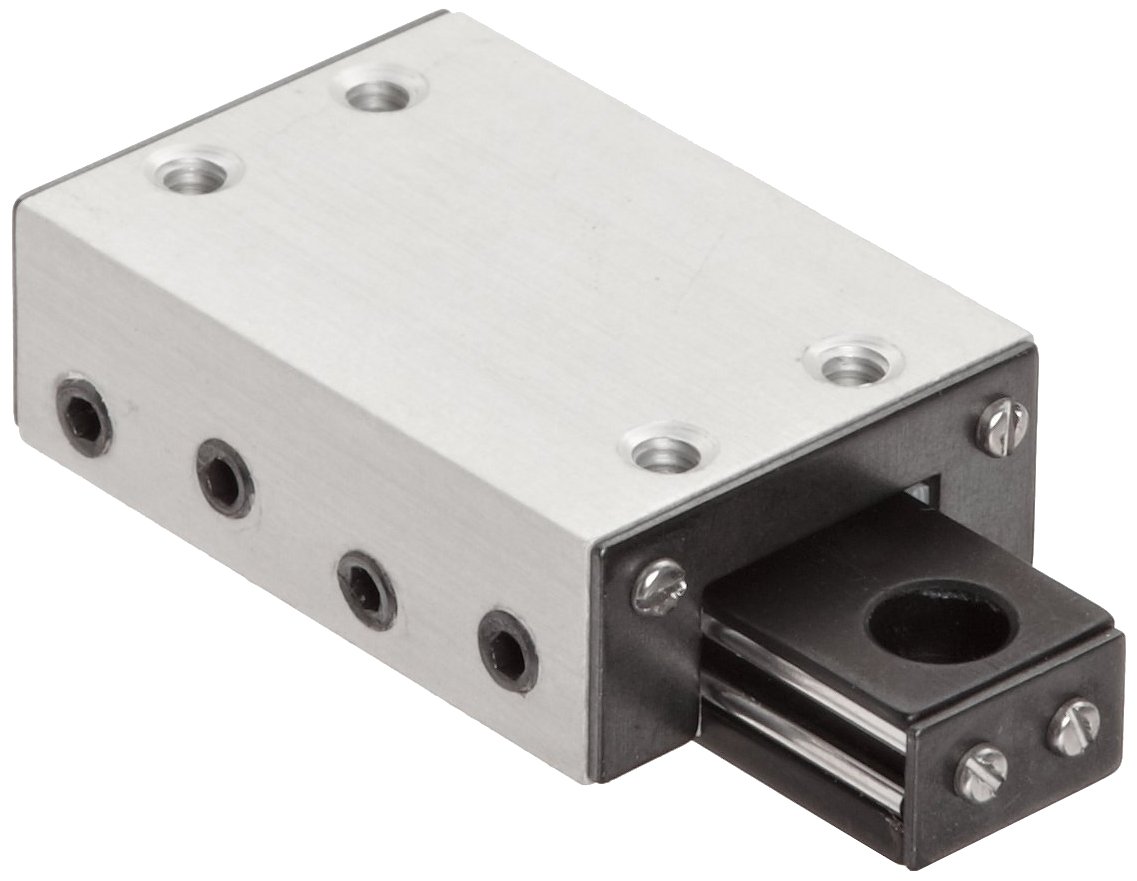

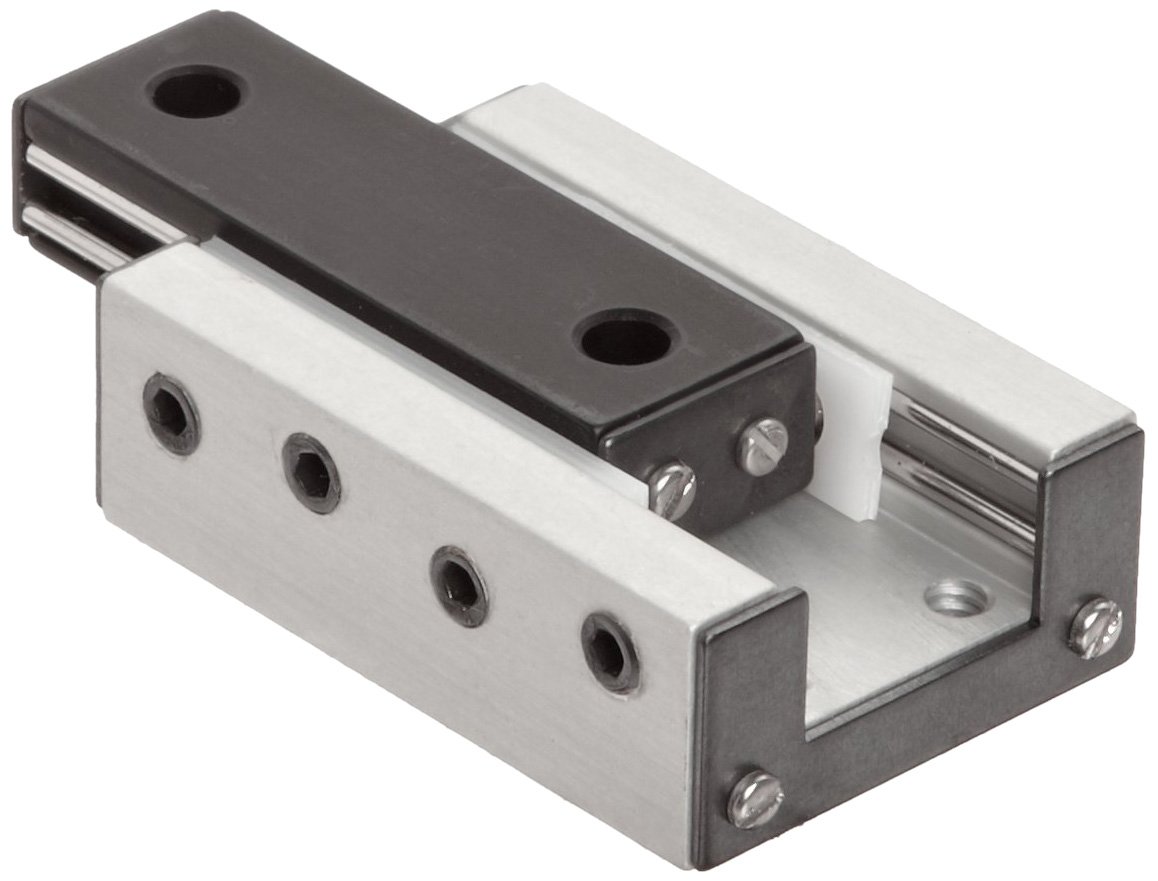

Deltron Linear Motion Slide 0.75" Travel 15 lb Load Capacity 1.56" Long
Be the first to review this item
ASIN B000FN5RIM
Specifications for this item
- Brand Name
- Deltron
- Item Size
- 1.56 x 1.06 x 0.53 inches
- Material Type
- Stainless Steel
- Number of Items
- 1
- Part Number
- LMS+075/15
- System of Measurement
- Inch
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Thursday, June 20? Order in-stock items in the next 2 hours 1 minute and choose One-Day Shipping at checkout.
Package Details
Shipping Weight:
0.1 pounds
Package Size:
4 x 4 x 1 inches
Product Description
Linear Motion Slides provide precise linear motion control. 0.0002 inches positional repeatability with a straight line accuracy of 0.0005 per inch of travel. Riding between smooth hardened rods, steel balls within the slide roll parallel to the line of motion (coefficient of friction is 0.003). The rated load must be centered and distributed over the slide, and the base must be fully supported on a flat mounting surface, so the slide does not acts as a beam. Ball slides are lightly lubricated during assembly and are self-cleaning in normal service. Additional lubrication is required for speeds above 1800 inches per minute and is advisable at lower speeds where high loads are applied in continuous duty applications. Preload adjustments prevent sideplay and backlash. Lightweight Aluminum carriage and base. Built-in holes simplify installation and component mounting.
