DELTA 14-651 Professional 1/2HP Bench Mortising Machine

Be the first to review this item

ASIN B00006K00N

Specifications for this item
Part Number
14-651
Item Weight
77 pounds
UPC
069554146534 , 847962000132
Brand Name
Delta
EAN
0069554146534 , 0847962000132
Voltage
120.00  Volts
Power Source Type
corded-electric
Warranty
2 Years
UNSPSC Code
27112700

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 7 hrs 14 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Easy and open access to drill chuck for bit changing
  • Large cast-iron base with center through hole
  • Adjustable rack and pinion fence and rack and pinion head raising and lowering
  • Mortising head column can be turned 180 degree and remounted for off-table mortising
  • Adjustable fence and hold down; Adjustable dovetail way on mortising head

Package Details

Shipping Weight: 78.9 pounds
Package Size: 20.7 x 18.4 x 18.3 inches

Product Description

Amazon.com

Easy to set up and operate, the Delta 14-651 1/2-Horsepower Mortiser is specially designed for the professional user and includes a multi-position hand lever and rotating mortising head for tricky off-table projects. Capable of punching smooth mortises in a range of stock--including hardwoods--this professional bench mortising machine is a must-have addition to any shop.

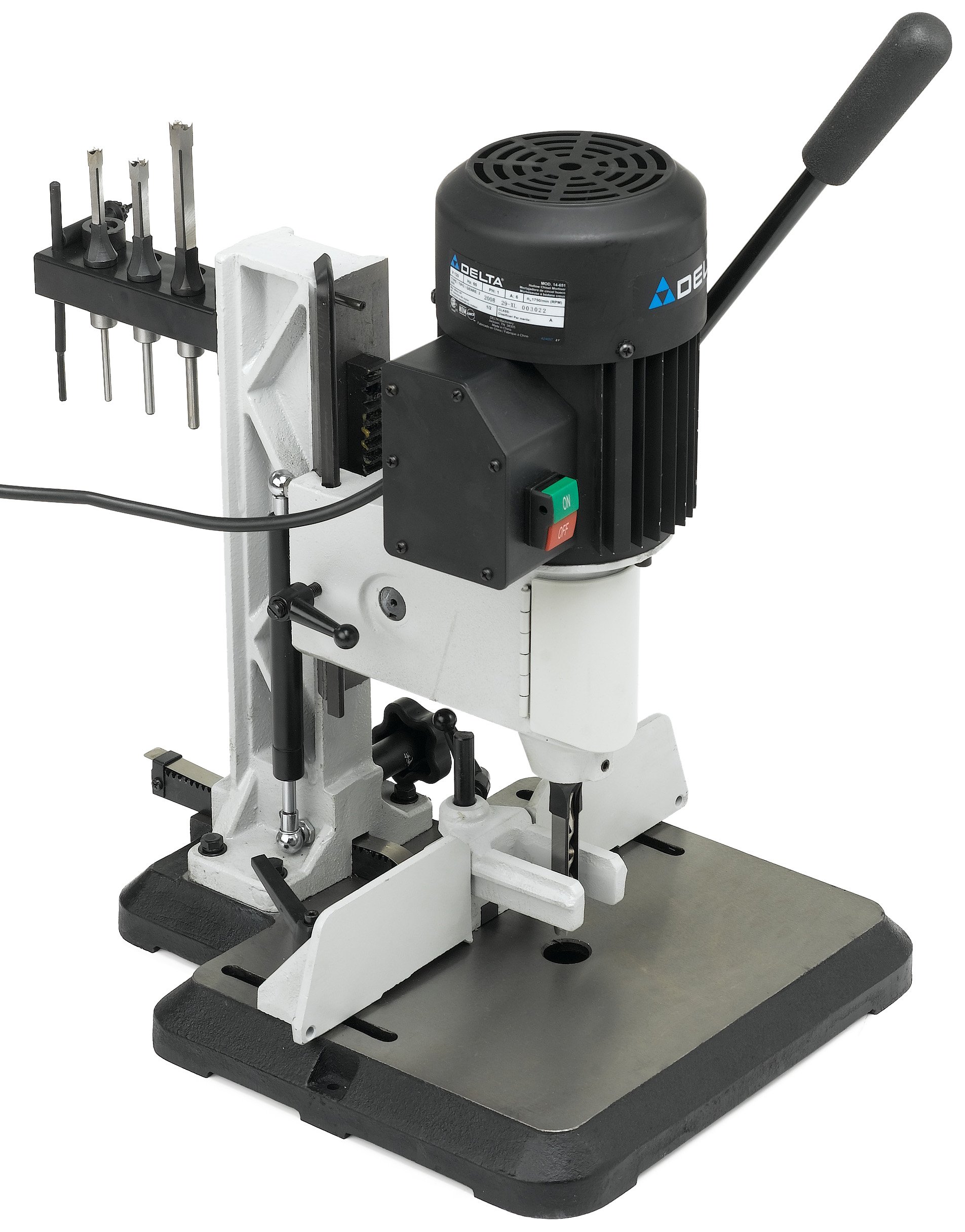

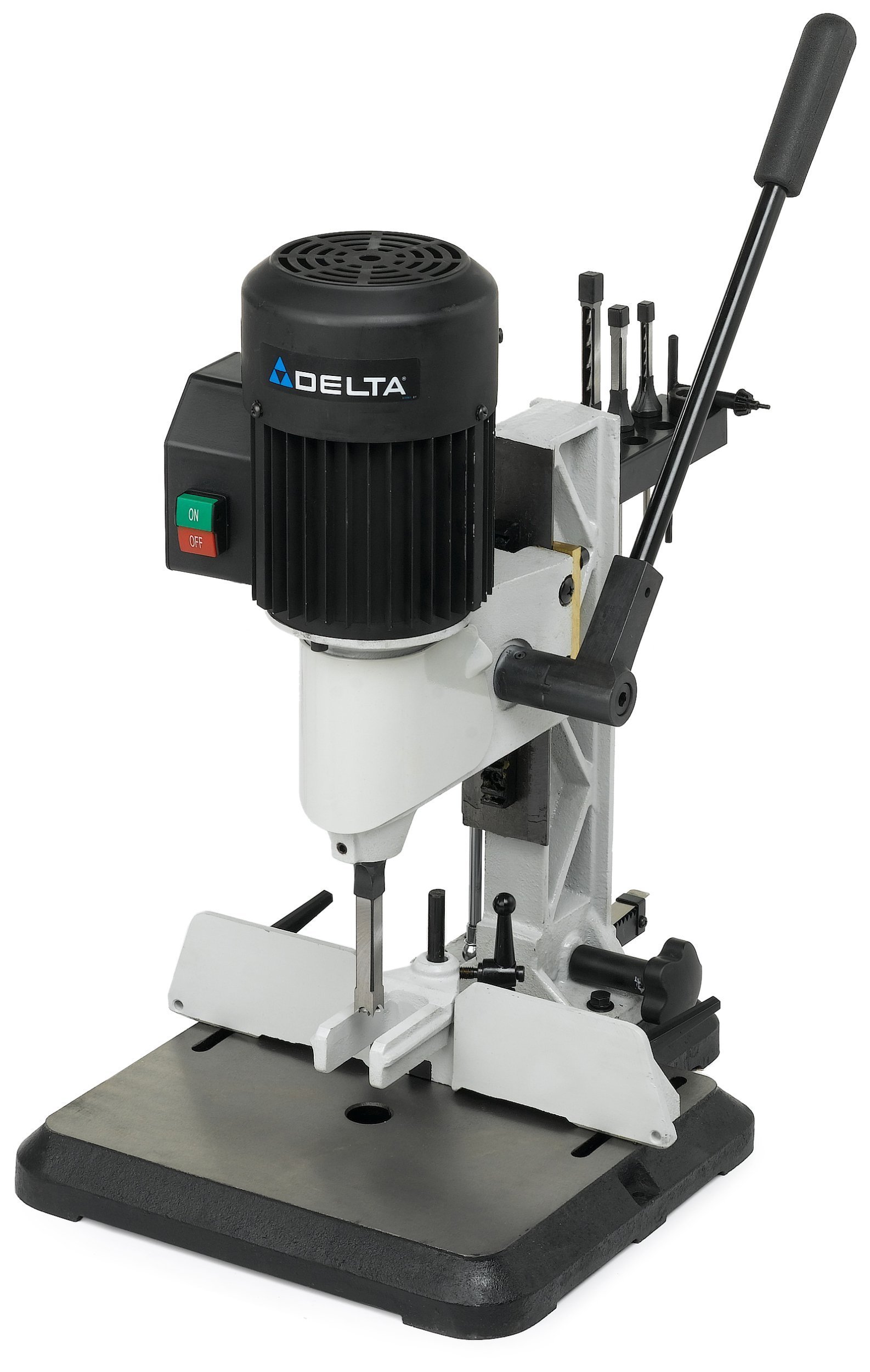

The Delta 14-651 1/2-Horsepower Mortiser
At a Glance:
  • 1/2-HP motor generates 1725 RPM
  • 3/8-inch-capacity drill chuck and key
  • Adjustable rack-and-pinion fence
  • Multi-position feed lever

Multi-position hand lever provides the extra torque needed to mortise especially hard woods.

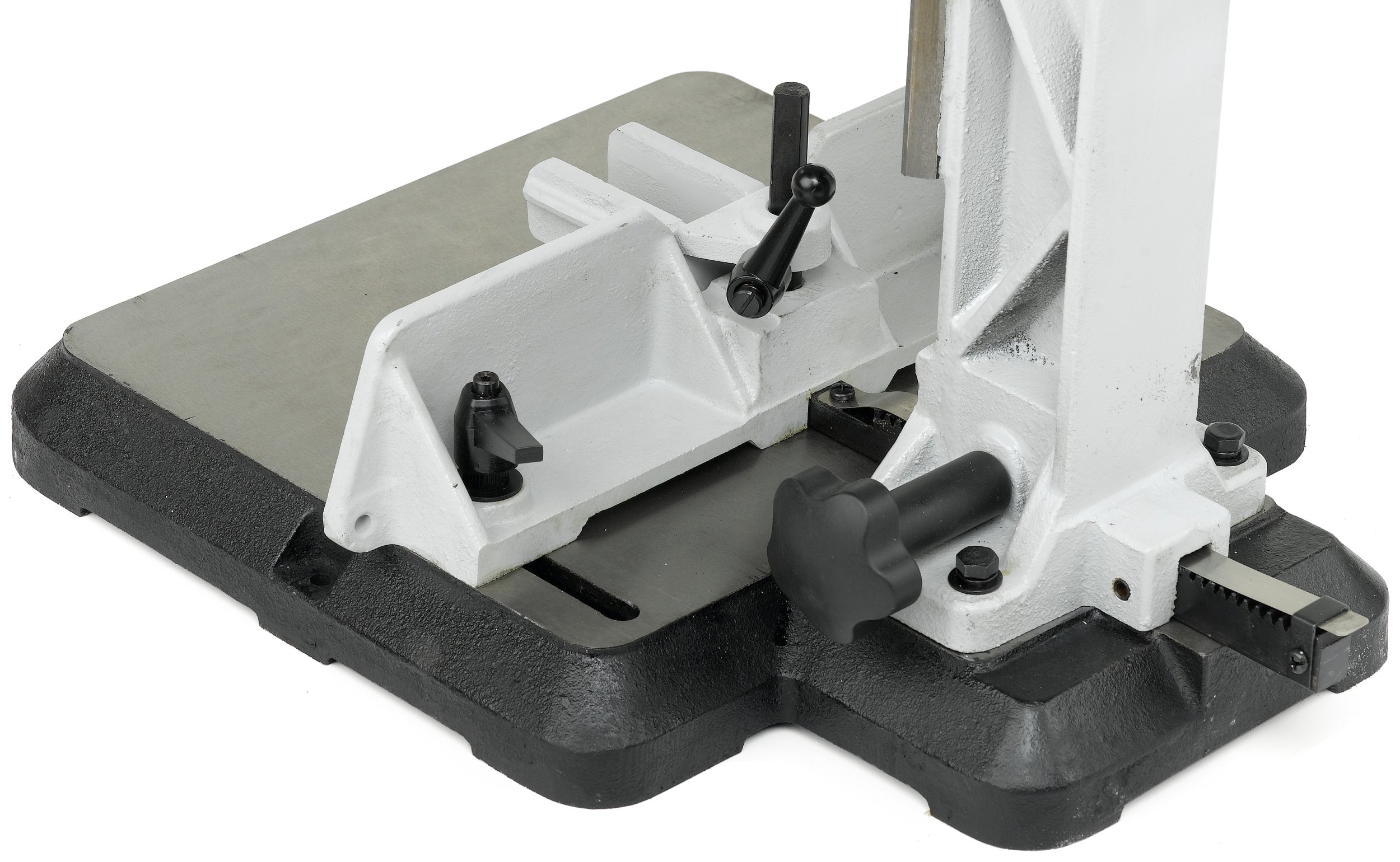

Heavy-duty cast-iron base provides stability and control. View larger
Adjustable Height and Rotating Head Provide Versatility
Setting up the 14-651 is a breeze thanks to features such as the easy-access 3/8-inch-capacity drill chuck and adjustable rack-and-pinion fence. A height attachment increases the mortiser's capacity by 1-3/4 inch, and if you still need more height, you can simply turn the 14-651's head 180 degrees to mortise off-table.

Engaging and releasing via an efficient rack-and-pinion system, the 14-651's head features an adjustable dovetail option for intricate jobs. The lever locks down and is long enough to provide that extra torque you need to mortise especially hard woods.

Robust Motor Guarantees Professional Results
Powered by a 1/2-horsepower, 120-volt, 60-hertz, single-phase induction motor, the 14-651 produces smooth-sided, burn-feed results. The mortiser features a feed speed of 1,725 RPM and a multi-position feed lever for matching the correct position to the job.

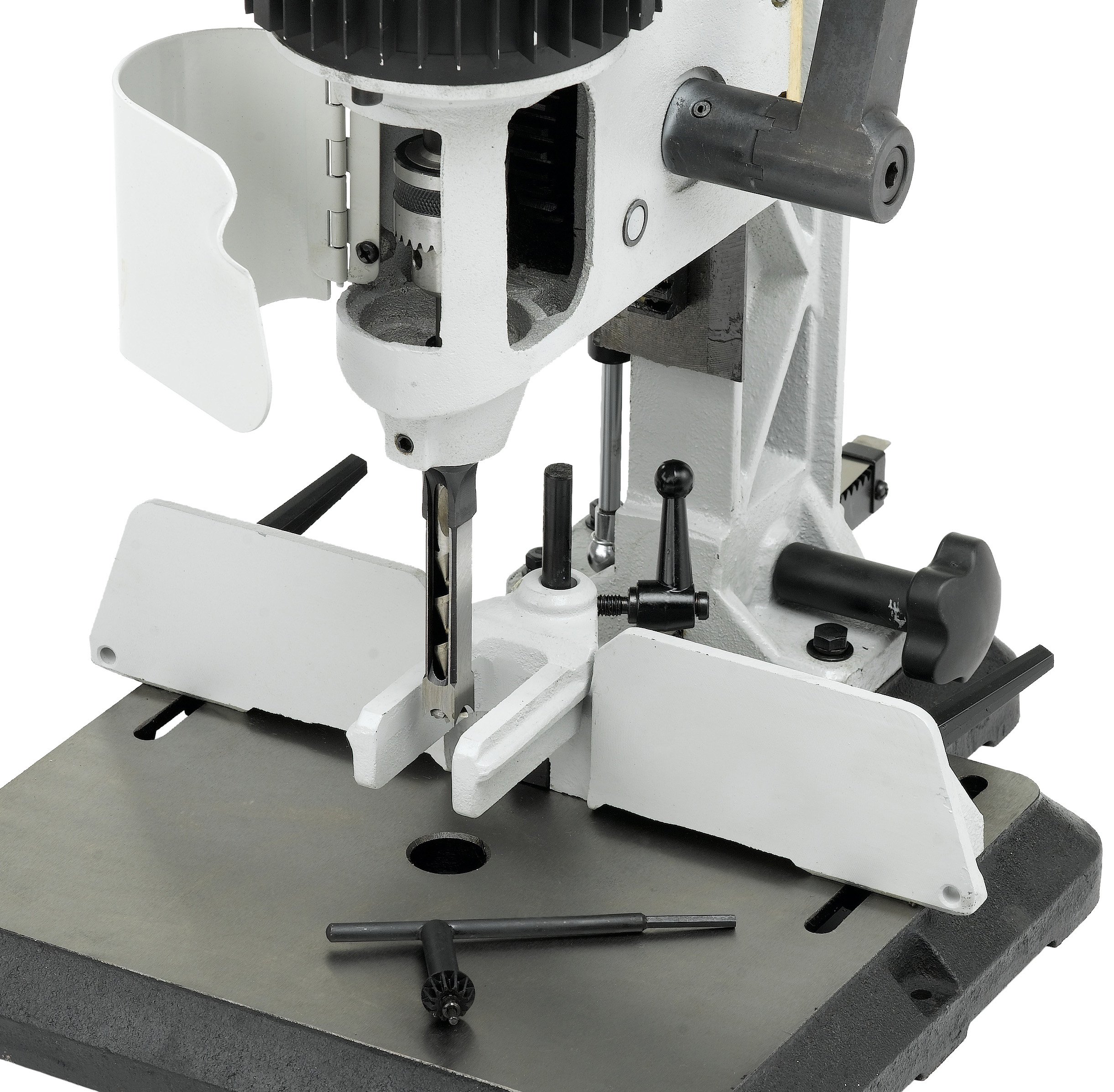

Additionally, the adjustable depth stop locks down, so you don't have to worry about cutting too deep, and a chuck key/hex wrench simplifies bit and chisel changing.

Stable and Sturdy for Tough Jobs
Stable and sturdy, this machine measures 22.4 x 18.6 x 16.4 inches (WxHxD), weighs 77 pounds, and includes a heavy-duty 16-3/4-inch by 13-1/2-inch cast-iron base with center through hole, as well as a two-piece safety fence.

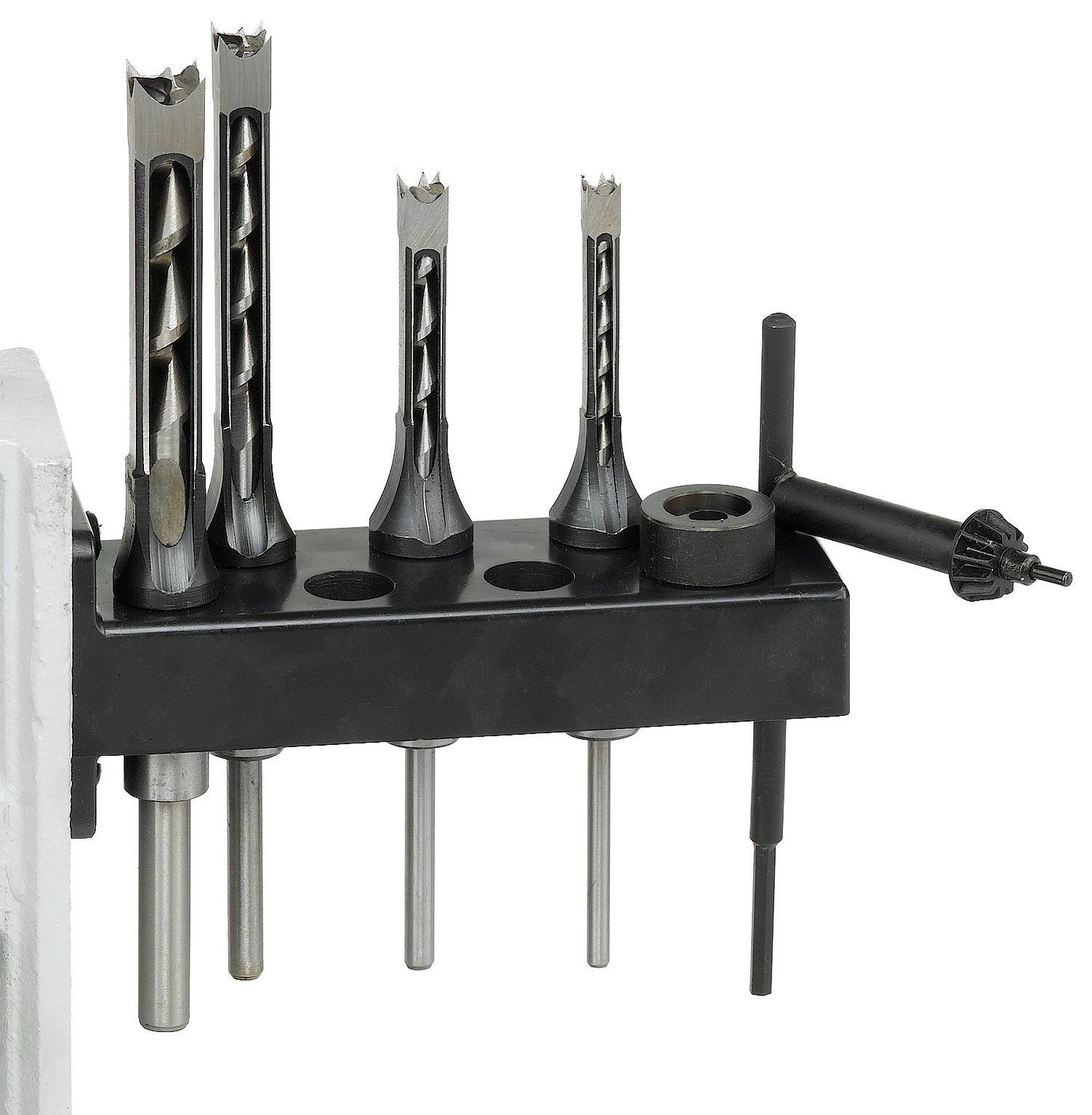

The 14-651 arrives with a tool-and-chisel tray, a multi-position feed level, and a gas-filled head stabilizer for smooth, steady operation. Also, four mortise chisels and bits in 1/4, 5/16, 3/8, and 1/2-inch increments are included, so you have everything you need to get started.

What's in the Box
Mortiser; 3/8-inch-capacity chuck and key; four mortising chisels and bits; tool-and-chisel holder; and riser block.


From the Manufacturer

The Delta 14-651 bench mortiser is key for woodworking, cabinetry, furniture and boat building. The 1/2 HP motor and 3/8-inch capacity chuck mortises hard and soft woods. It has four chisels and bits (1/4-inch x 1/4-inch; 5/16-inch x 5/16-inch; 3/8-inch x 3/8-inch; 1/2-inch x 1/2-inch). A cast iron base, adjustable fence and head ease adjustments between projects. 9 3/8-inches under head to base with a 5-inch stroke accepts multiple sizes assemblies and stock. The head can be turned 180 degrees and re-mounted for off-table mortising; the height attachment adds 1-3/4-inch under the head delivering excellent versatility in the shop. An adjustable stop makes repeat mortises easier. The tool comes with chuck key/hex wrench for bit/chisel changes.
